Product Description

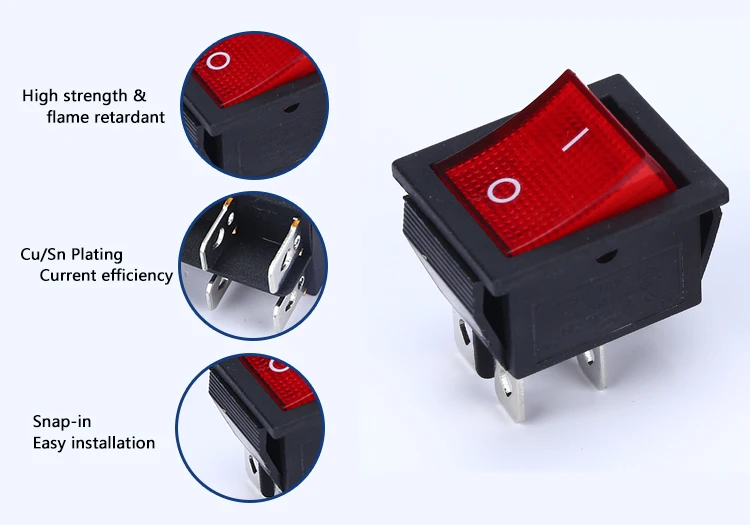

Round Mount 20 Amp Rocker Switch Jaycar




Used in the fields of electronic products, household appliances and more

Product details





































































FunctionON OFF, ON ON, ON OFF ON
TypeKCD4 Rocker Switch
CertificateRohs,CE,CQC
Lamp colorWhiteOrangeRedBlueGreen
Housing colorCUSTOM-MADE
MaterialPA/PC
ColorRed,Green
Product typeRocker Switch
Item6 pins rocker switch
Rating16A 250VAC / 20A 125VAC
Product Keywordsround rocker switch mount,rocker switch 20 amp,rocker switch jaycar



Features:




Quality assurance:


IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.







round rocker switch mountround rocker switch mount



Product Specifications





























































Specification of Rocker Switch
Rating6A/250V AC, 10A/125V AC; 16A/250V AC, 20A/125V AC
Rated Load2/8A 250V AC
Contact Resistance≤50MΩ
Dielectric Intensity≥1500V AC/min
Withstand Voltage1500V AC/min
Temperature-25~85°C
Insulation Resistance≥100MΩ
Life≥10,000 cycles
Pins2/3/4/6
FunctionON-OFF/ON-ON/ON-OFF-ON
Illumniated220V Neon Lamp
APPROVALS
CECQCRohs


Detailed Images








































PartMaterial
Base PlasticNylon
Button PlasticPA66/ PC
Terminal Brass(tin plated)
ContactCompound silver/ Copper
SpringTungsten steel
Waterproof CapPVC ( If you required)
MountSnap in

Application:


Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc



round rocker switch mount






















































Terminal Type
A4.8*0.8round rocker switch mountG6.3*0.8round rocker switch mountM2.5*0.5round rocker switch mount
B4.8*0.8H6*0.8N5.6*0.5
C3*0.8I3.8*0.8P2.8*0.5
DPCJ2.7*0.5
EPCK6.3*0.8
F6.3*0.8L

















Hot Selling Products



round rocker switch mount

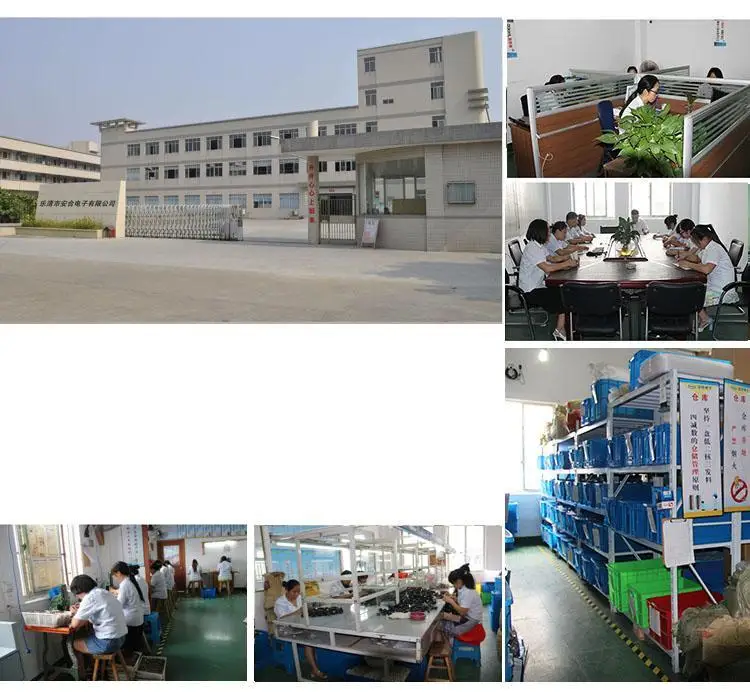

Company Information


round rocker switch mount

Yueqing Anhe Electronics Co.,Ltd.

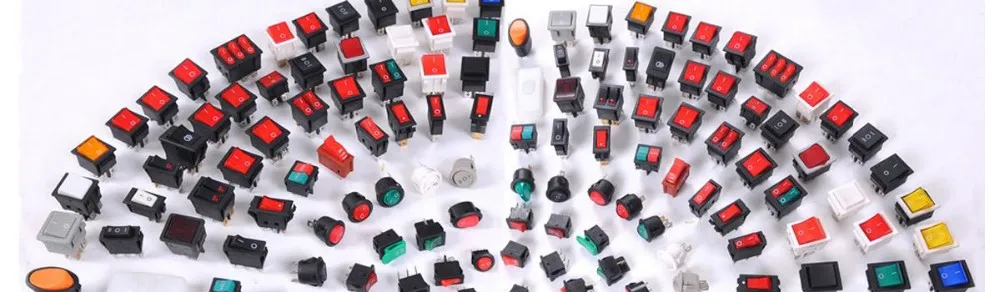

Established in 2003, we are engaged in producing 12 categories and about 2,000 models of rocker switches,push button switches, toggle switches, micro switches, key switches,tact switches,slide switches and etc. Most of our products have passed safety certifications as CE, CQC. And lots of our products are made with RoHS compliant materials.





round rocker switch mountround rocker switch mount






Our Advantages





PRICE


As a manufacture, all of our switch parts are made by our own factory. So the price is competitive.




ADVANTAGES




SERVICE


24 hours on-line professional engineer and business reception will feel free to serve you.




OEM & ODM


Various operating force,height and colour for one switch for your choice.




QUALITY


We have our own testing lab in factory, so quality can be guaranteed.




DELIVERY


Spare production line and on-line stocks inquiry are the most powerful assurance for customers' needs.








Packaging & Shipping




PACKAGE:


Standard export carton as per items acking.


DELIVERY TIME:


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



round rocker switch mount





FAQ


round rocker switch mount



1.When can we get the reply?


Any inquiries will be replied within 24 hours.
Our sales team will try our best to support you.






2.What about minimum order quantity?


Generally our MOQ for rocker switches is 10000pcs, and for mirco switches is 50000pcs.
Also you can place a Trial orders at first without limit for MOQ.






3.Can customize,modify and develop products according to the design drawing?


Yes,we provide OEM service and can customize products according to the drawing.






4.How will you control product quality?


We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by CQC,CE and RoHs.






5.What about delivery time?


Samples, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.
If you want to know the exact time. Email us the quantity, we will check the delivery time for you.






6.What about terms of payment?


Payment terms: T/T, west Union and L/C etc






7.How do I know that you have sent the products out?


Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.






8.How you will send the goods to us?


We will send the goods to you by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST.











Contact Us



round rocker switch mount
