315500 гидравлические Горячие соединения политрубы сварочные машины для плавленых труб сварочный
- Категории: Tube Welders >>>
- Поставщик: Jinan,Bada,Plastic,Pipe,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
90 355mm hot joint poly pipe welders fused pipe butt welding machine
pipe hdpe welding hydraulic butt welder butt fusion welding machine
This hydraulic butt fusion welding machine is able to weld pipes and fittings with material pe pipe，hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Model | SHBD315 |
Welding diameters (mm) | 90-110-125-140-160-180-200-225-250-280-315mm |
Heating plate temperature | 270°C |
Heating plate surface temperature(170-250°C) | <±5°C |
Pressure adjustment range | 0-10MPa |
Cross-sectional area of the cylinder | 2000mm2 |
Working Voltage | 220V, 50Hz |
Heating plate power | 3.1KW |
Milling cutter power | 1.36KW |
Hydraulic station power | 0.75KW |
Total Power | 5.21KW |
hdpe plastic pipe thermofusion 315 pe butt fusion welding equipment price
When our hydraulic butt fusion welding machine together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
Product Detail
Why Choose Us
1. CE, SGS, ISO9001 certificate
2. 2 years warranty, life-long maintenance.
3. Provide on line video technique teaching of fusion welding,In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
4. Engineers available to service machinery overseas.
2. 2 years warranty, life-long maintenance.
3. Provide on line video technique teaching of fusion welding,In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
4. Engineers available to service machinery overseas.
Recommended Products

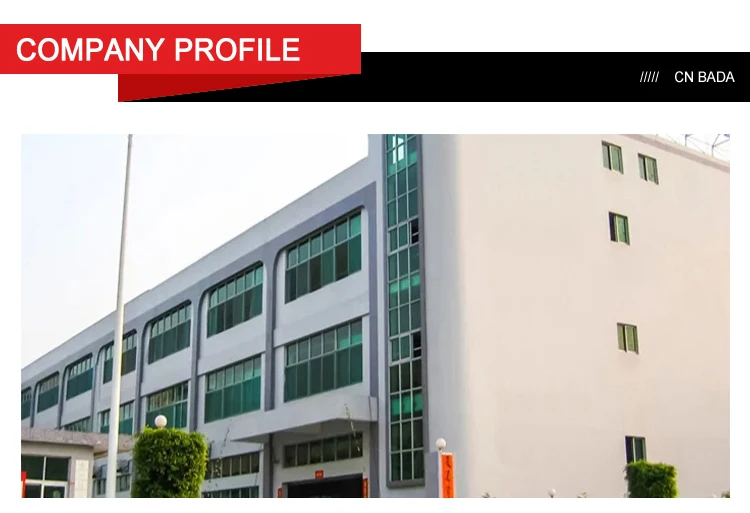

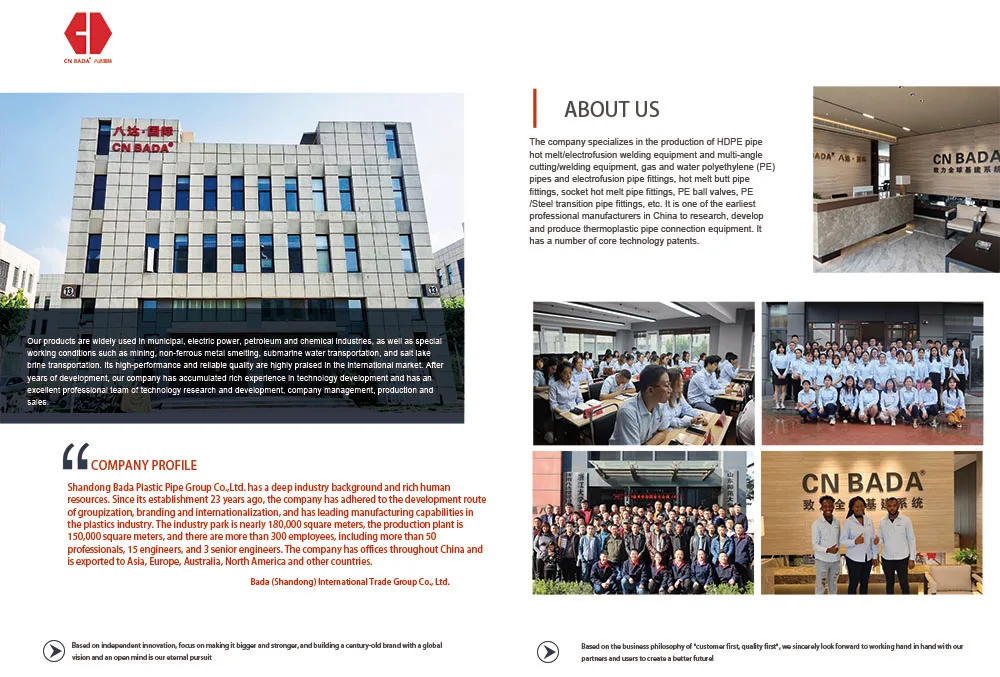

Company Profile
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is a 23 years factory in China on research
develop and produce welding machine
develop and produce welding machine

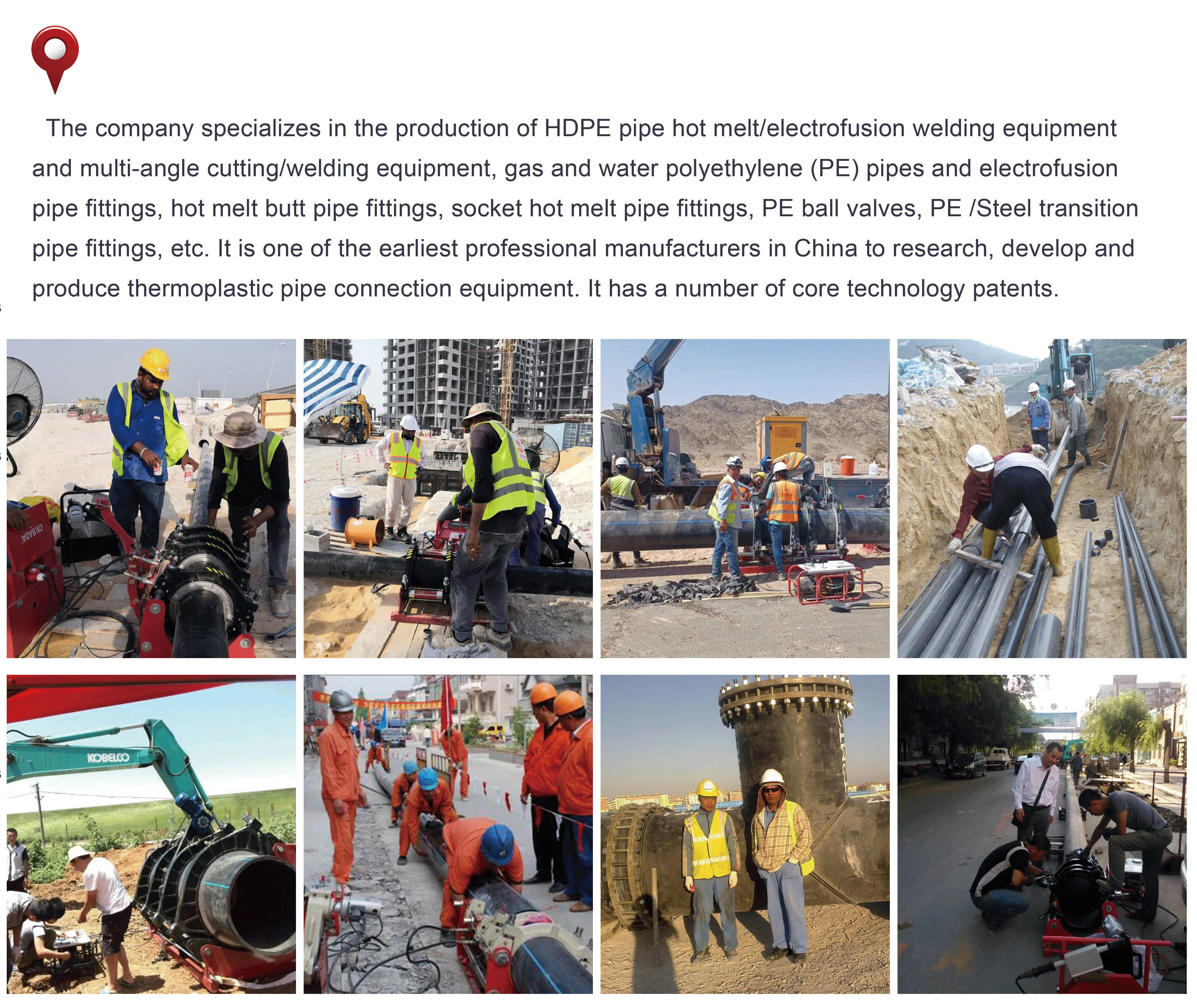

Jinan Bada's main products are:HDPE pipe butt fusion welding machineelectrofusion welding machine,automatic welding machine,multi-angle cutti-ng sawworkshop fitting welding equipment, gas and water polyethylene pipes and fittings.
The products are widely used in municipalelectric power,petroleum and chemical industries.
as well as mininanon-ferrous metal smeltina submarine water convevance and other special working conditions.
The products are widely used in municipalelectric power,petroleum and chemical industries.
as well as mininanon-ferrous metal smeltina submarine water convevance and other special working conditions.
Certifications
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty .
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty .
1. Q:What is your payment terms ?
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
