С горячей продажей с завода лаборатория рубашкой двойной однослойный реактор покрытый кожухом
- Категории: Reactors >>>
- Поставщик: Yancheng,Xieying,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
|
Specification
| Showroom Location | None |
| Condition | New |
| Core Components | Motor,PLC |
| Capacity | 1-200L |
| Automatic Grade | Semi-automatic |
| Warranty | 1 Year |
| Voltage | 110/220V |
| Video outgoing-inspection | Provided |
| Weight | 270 |
| Dimension(L*W*H) | 1000*1300*3200 |
| Applicable Industries | Manufacturing Plant,Food & Beverage Factory,Retail |
| Power | 120-750W |
| Warranty of core components | 1 Year |
| Place of Origin | China |
| Brand Name | Xieying |
| Key Selling Points | Long Service Life |
| Country of Origin | Jiangsu |
| Machinery Test Report | Provided |
| Type | Reaction Kettle |
| Marketing Type | Ordinary Product |
Technical Data
| Model | JR-1L | JR-2L | JR-5L | JR-10L | JR-20L | JR-30L |
| Electrical Requirements | 110/220V, 60Hz 1PH | 110/220V, 50/60Hz 1PH | ||||
| Standard Stirring Motor Power | 120W | |||||
| Reaction Vessel Capacity | 1L | 2L | 5L | 10L | 20L | 30L |
| Cooling/Heating Jacket Capacity | 1L | 1.5L | 2L | 3L | 6L | 10L |
| Glass Vessel Temperature Range | -120℃~250℃ | |||||
| Inner Vessel Pressure | Under 0.098Mpa | |||||
| Installation Dimension (W*D*H mm) | 440×360 ×1325 | 440×360 ×1325 | 520×500 ×1510 | 700×600 ×2030 | 720×650 ×2110 | 750×650 ×2450 |
| Weight(kg) | 40 | 40 | 60 | 90 | 110 | 10L |
| Model | JR-50L | JR-80L | JR-100L | JR-150L | JR-200L |
| Electrical Requirements | 110/220V, 60Hz 1PH | 110/220V, 50/60Hz 1PH | |||
| Standard Stirring Motor Power | 120W | 200W | 750W | ||
| Reaction Vessel Capacity | 50L | 80L | 100L | 150L | 200L |
| Cooling/Heating Jacket Capacity | 16L | 24L | 30L | 35L | 40L |
| Glass Vessel Temperature Range | -120℃~250℃ | ||||
| Inner Vessel Pressure | Under 0.098Mpa | ||||
| Installation Dimension (W*D*H mm) | 750×650 ×2450 | 850×700 ×2550 | 850×700 ×2550 | 1000×1300 ×3000 | 1000×1300 ×3200 |
| Weight(kg) | 120 | 140 | 160 | 210 | 270 |

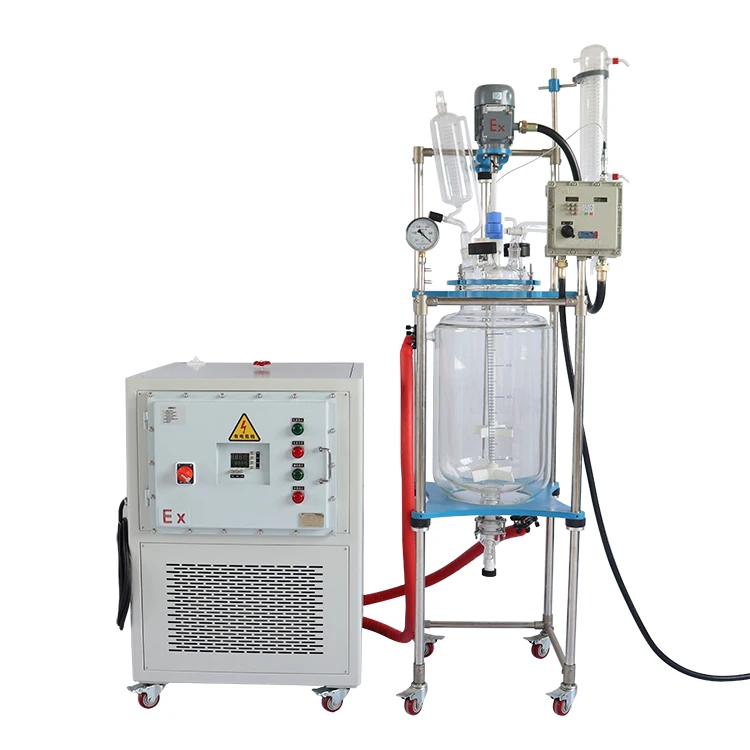

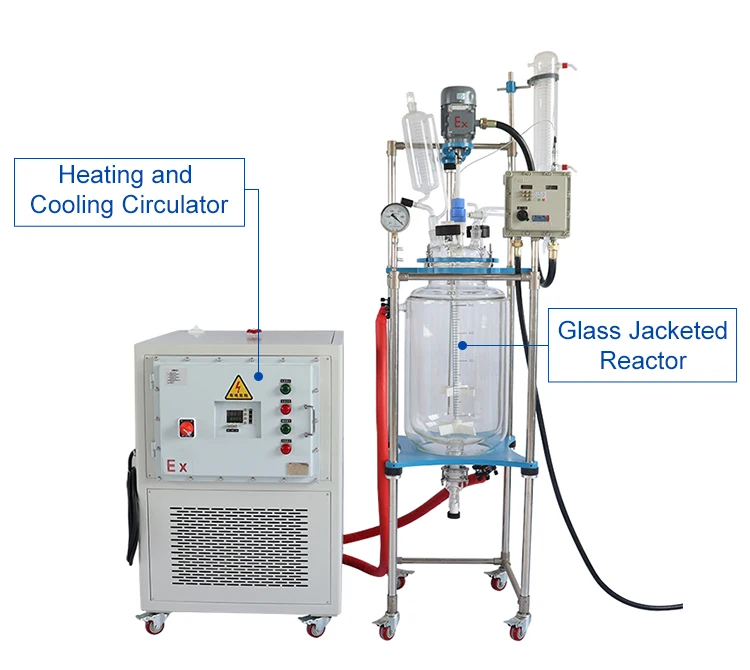

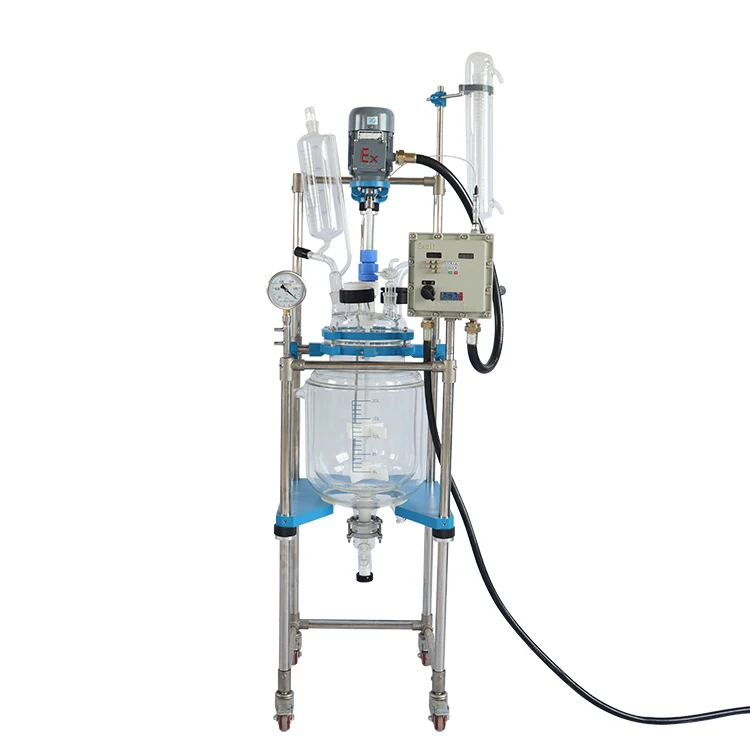

Jacketed glass reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades. It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,Concentration, etc It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.

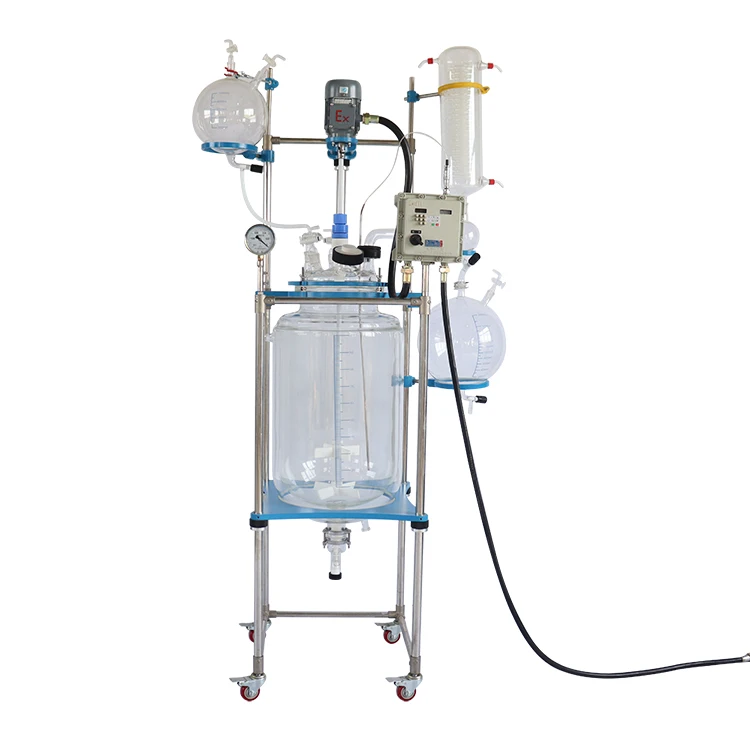

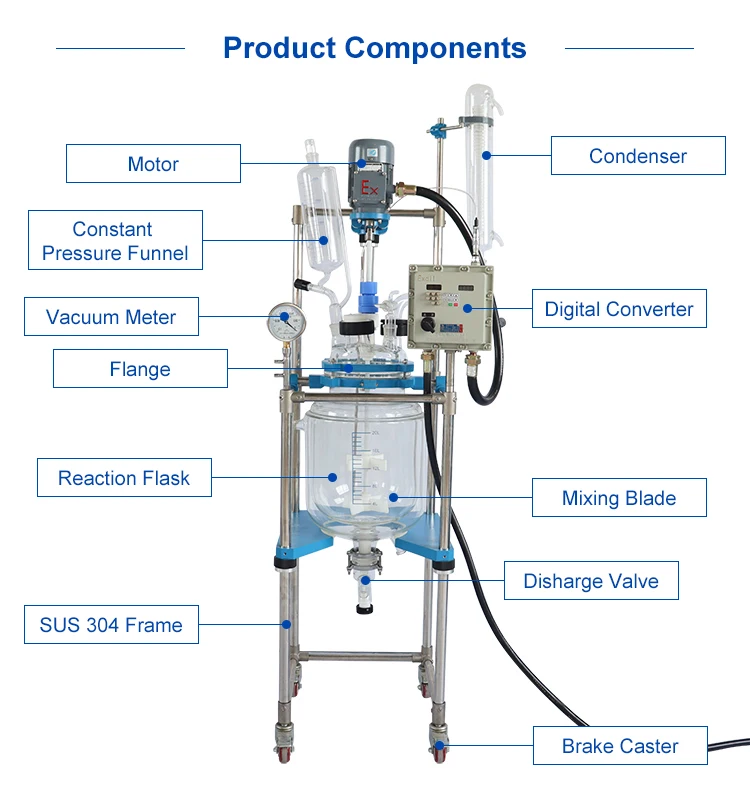

Features of Jacketed Glass Reactor for pilot plant
- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties

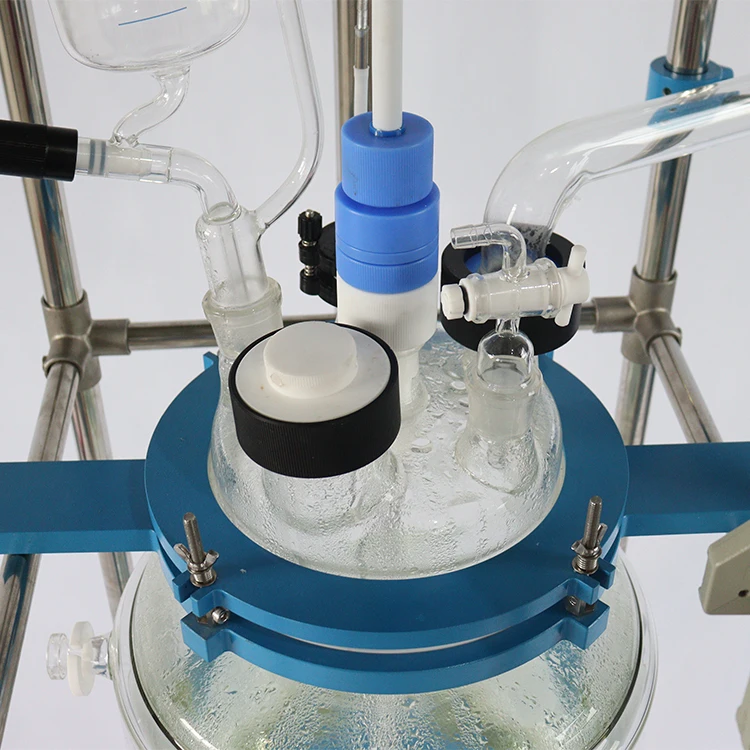

- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.

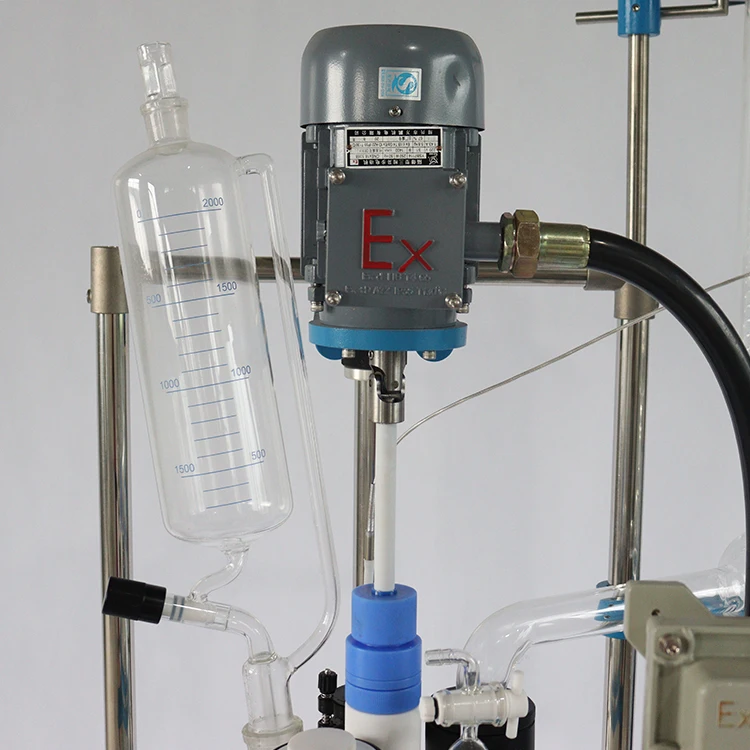

- Frequency-conversion stirring system + PTFE seal & bearing system

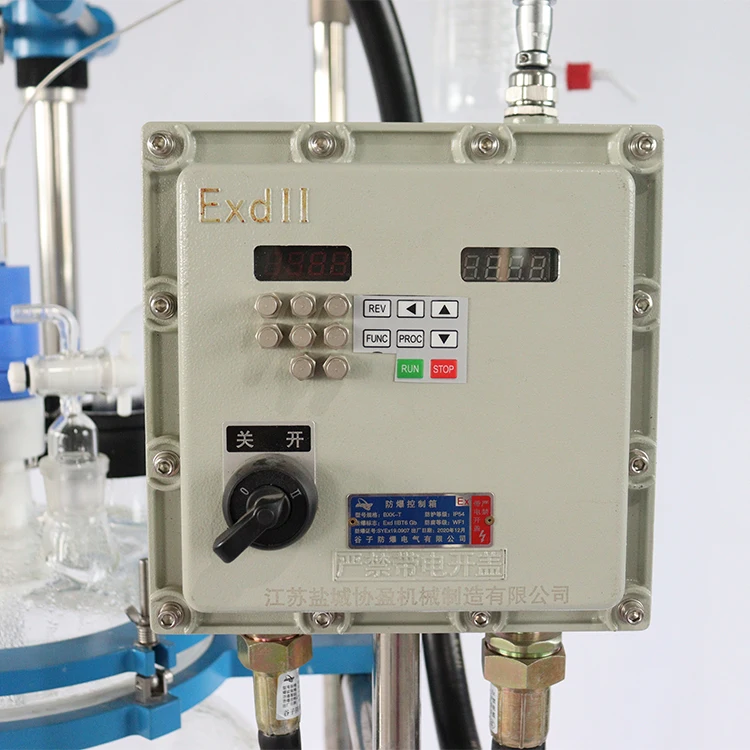

- Digital display and control
- Easy-to-install modular design for exceptional ease and low cost of maintenance
- High quality SUS304 frame
Packing & Delivery
Safe Exported Packing Use foam and bubble wrap to pack the product into a packing box, and pack each product individually to prevent collision and
fragmentation
Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Domestic Market(25.00%),North America(15.00%),Southern Europe(12.00%),Mid East(9.00%),Southeast Asia(8.00%),South Asia(7.00%),Oceania(6.00%),South America(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laboratory Equipment
4. why should you buy from us not from other suppliers?
The company has produced and manufactured experimental consumables and equipment for many years, with rich production experience and excellent manufacturing technology.The company's tenet is customer first, quality is king.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,GBP;
Accepted Payment Type: T/T,L/C,Cash;
