Комбинированная машина для лазерной резки и плазменной различной

Описание и отзывы

Характеристики

Advantages of the combined CNC fiber laser and plasma cutting machine:

1). Two machines combined in one, save cost.

2). It contains fiber laser and plasma cutting. When need fine cutting of steel use the fiber laser, when need to cut aluminum or copper or thick steel, use the plasma.

3). Compare with pure plasma machine, this machine has better plasma cutting precision due to the high-configured guide rails,motors and so on.

4). Taiwan made guide rails and gear racks, Japanese servo motors, all the components are famous and best quality.

5). Professional fiber laser cutting head with auto following system, plasma cutting head with THC (torch height control).

6). Auto lubrication for convenient maintenance.



Technicial parameters of the CNC fiber laser and plasma cutting machine:

Model No.	U-FL1530C fiber laser and plasma metal cutting machine
Fiber laser power	1000W,1500W, 2000W
Plasma source power	China Huayuan 63A/100A/120A/160A/200A/300A US Hypertherm 45A/85A/105A/125A/200A
Cutting area	1500x3000mm
Transmission type	Dual gear rack transmission
Driving system	Servo driving
Control system	Two control system, one for fiber while the other for plasma
Cutting thickness	Depends on the fiber laser or plasma power
Assisting gas	Compressed air, oxygen and nitrogen
Cooling mode for the fiber laser	Industrial water chiller
Working voltage	220V/380V

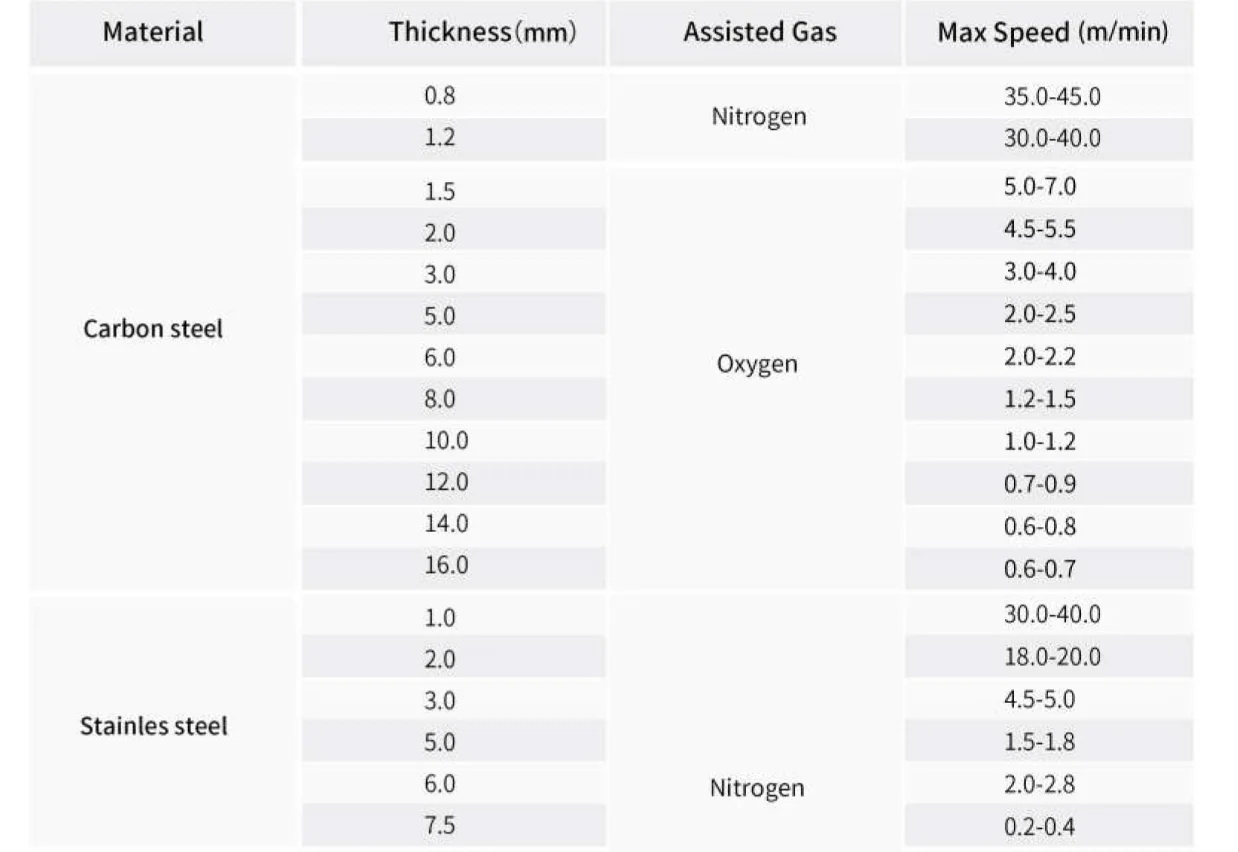

1500W fiber laser cutting thickness

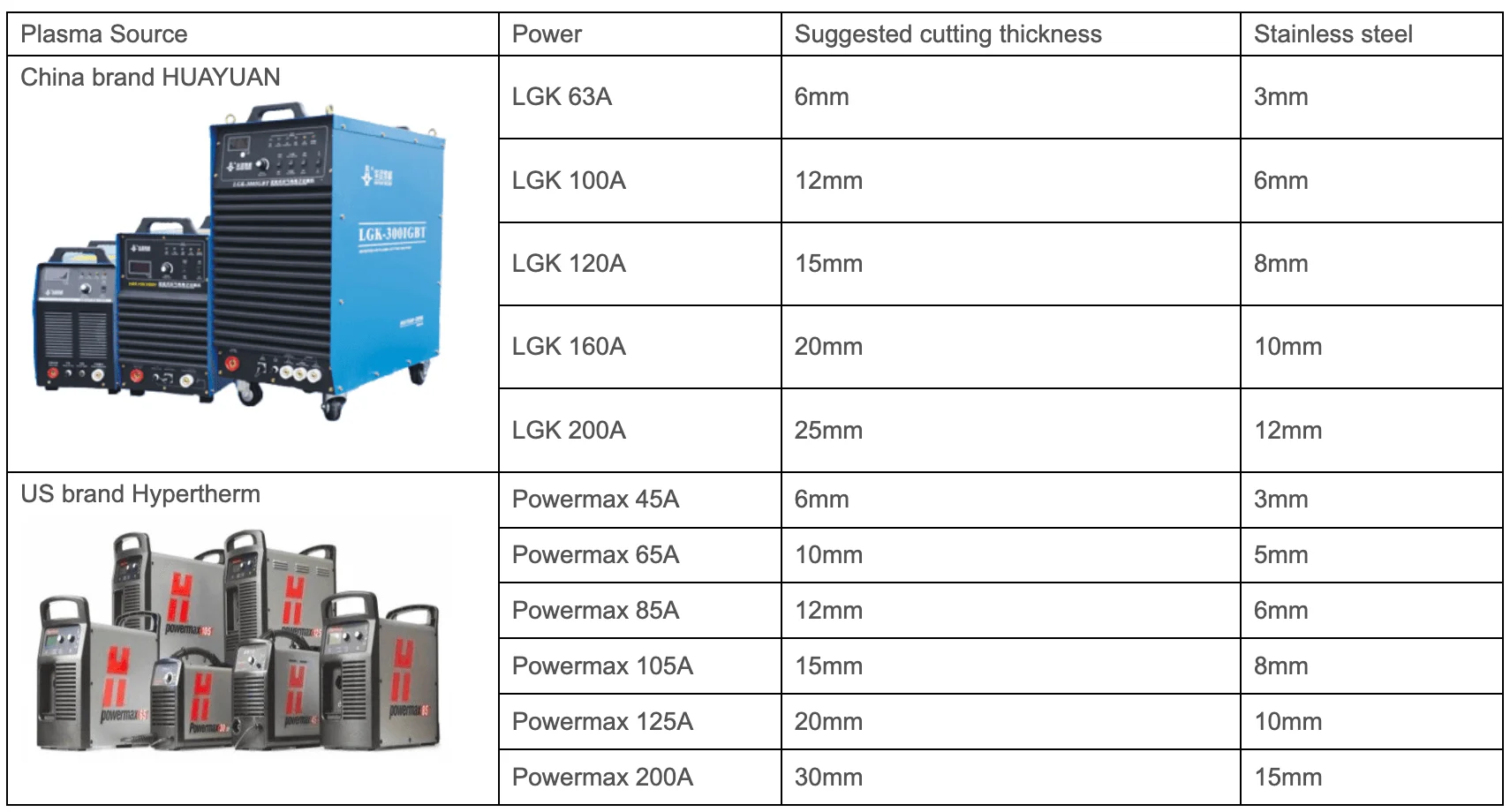

Plasma cutting thickness

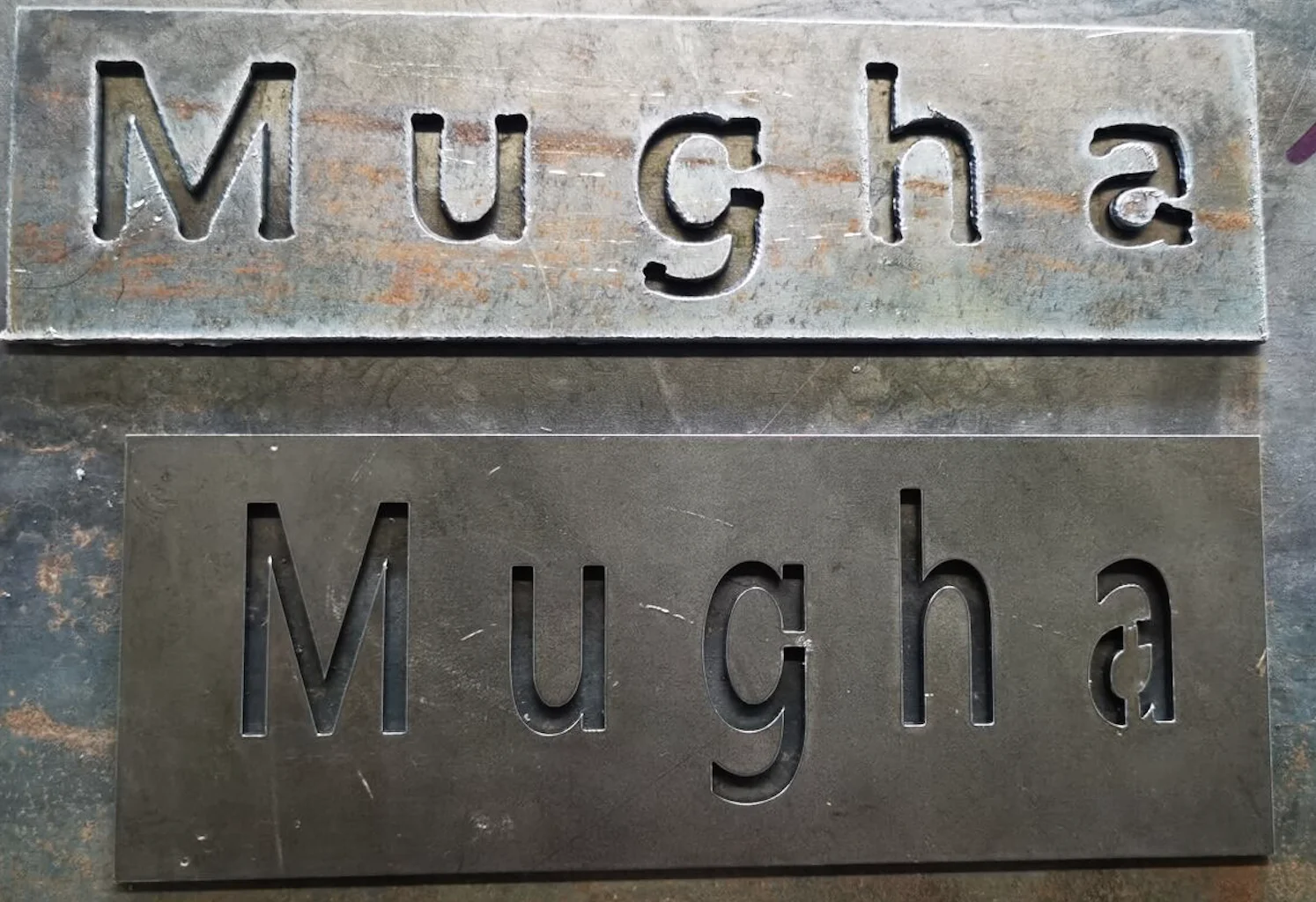

Metal fiber cutting and plasma cutting samples:

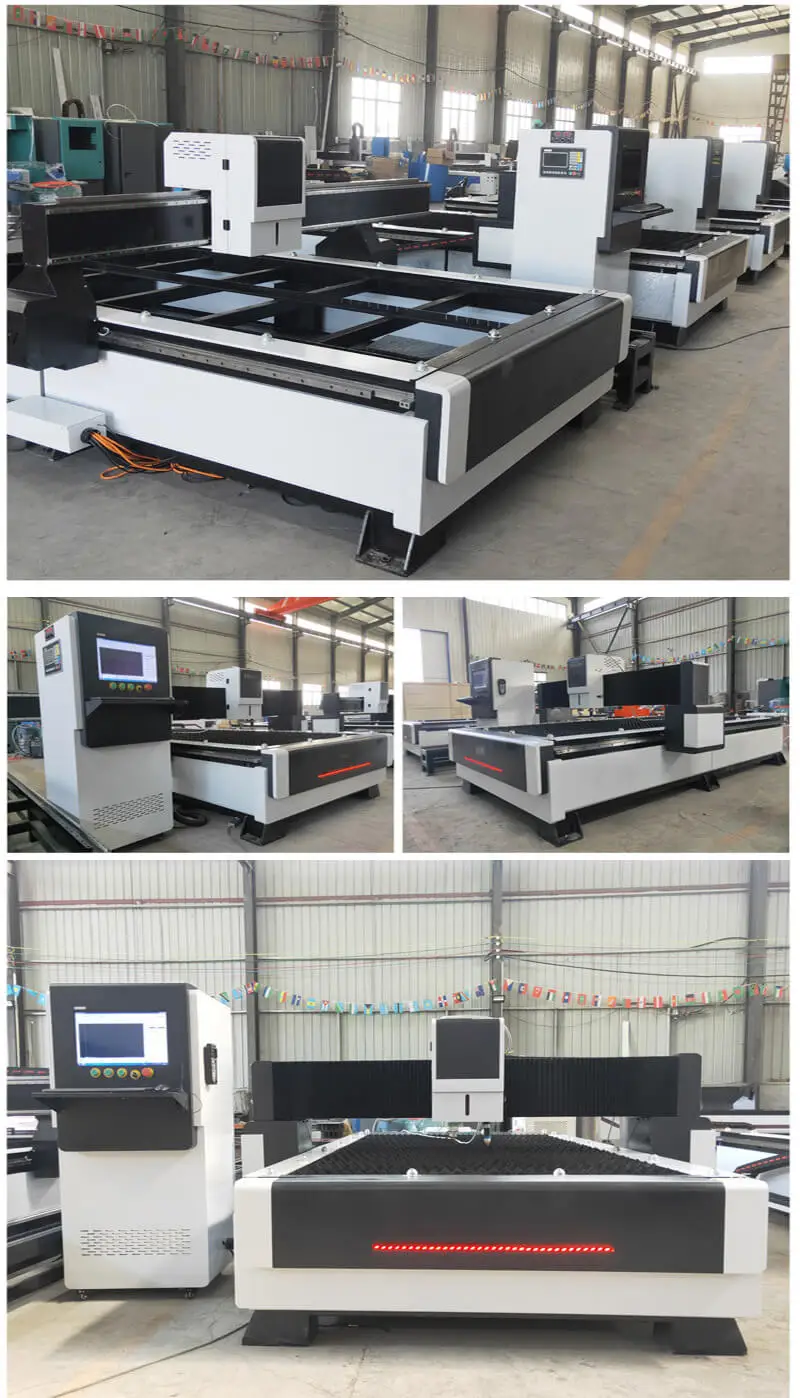

Machines in Factory
