Оцинкованная стальная базовая станция оборудование телекоммуникационный укрытие с
- Категории: Telecommunication Towers & Accessories >>>
- Поставщик: Shanghai,Huijue,Network,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

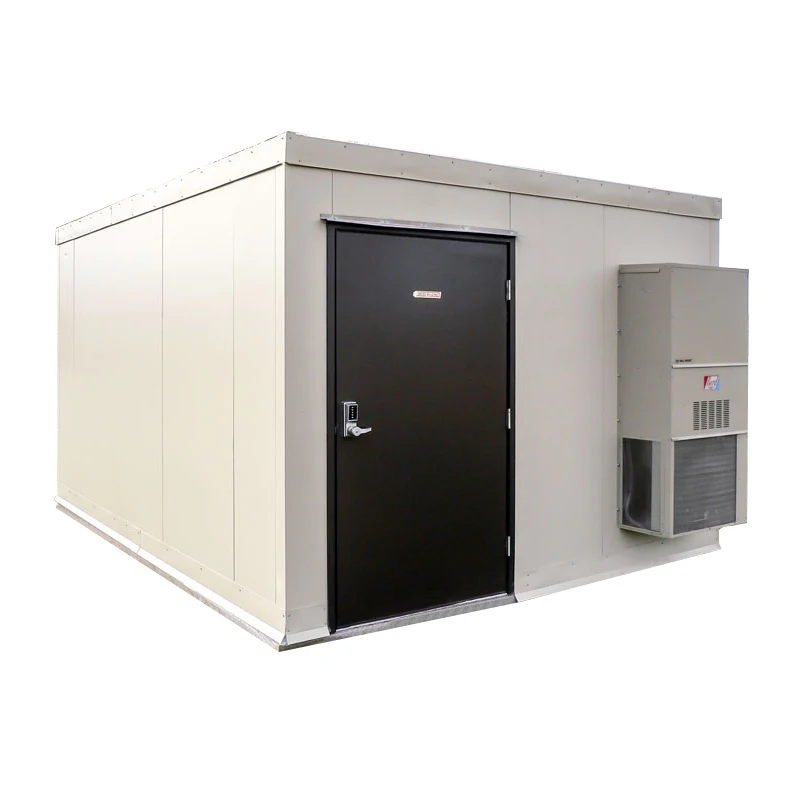

The shelter consist of : shelter frame , outer Iron clad ,inner PU, PVC static-free floor ,Security emergency door . Inside provide with : AC distribution system ,lighting system , Fire and Security Safes system . 2°degree leaning roof with perfect draining system . In additional with shockproof ,windproof ,damp proof, waterproof , lightening protection , heat insulation , Fire and Security Safes system .

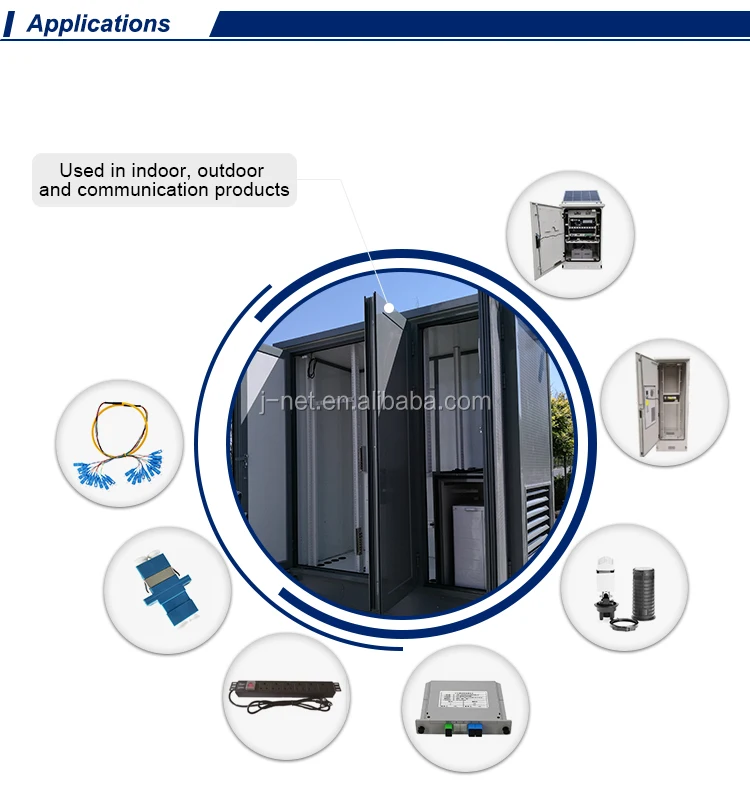

HJ Network Mini Shelter is widely used in roads,communication base station ,seaside and other complex outdoor environment,we provide high quality ,durable ,anti-corrosion Mini Shelter ,We do OEM and accept customized product.
Parameter
1 |
High Temperature Resistant | -60 +80 |
2 |
Anti-wind capability | 55m/s |
3 |
Anti-sun photochemical effect | Seal Rubber life time : 30 Years 30 |
4 |
shock resistance | 8 Grade 8 |
5 | salt spray test | 4,, salt spray test 4 days , paint slightly rust allow , no rust on zinc coat . |
6 |
Outside shelter steel thick | 4mm |
7 |
inner interlayer thick | 0.5mm |
8 |
Inner core materials heat transfer coefficient | 0.027W/m.k |
9 |
Inner core materials compression strength | 100KPa |
10 |
adherence force | 0.09MPa |
11 |
Shear stiffness | 0.1MPa |
12 |
Inner core materials Transverse rupture strength
| 500N/m2,1/250 |
13 |
Inner core materials fire resistance | B2 |
14 |
water absorptivity | 4% |
15 |
Roof load | 3KN/m2 |
16 |
antistatic floor load | 600KG/m2 |
17 |
IP | IP55,IP66,IP67,IP68 |
18 |
fire resistance | GB8624-1997B2 According to B2 of GB 8624-1997 << Building Materials burning performance Hierarchical Methodology >> |
19 |
Water-proof | 0.2Mpa,10mm/min,30min, Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside |
20 |
relative humidity | 5%99% |
21 |
Paint |
anti-corrosive paint( For container only) |
22 |
Load on floor | 8KN/ m2 |
