Горячая Распродажа 400 сортировочная машина с вихревым током устройство для дробления материал электронных отходов оборудование
- Категории: Other Recycling Products >>>
- Поставщик: Henan,Center,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product introduction

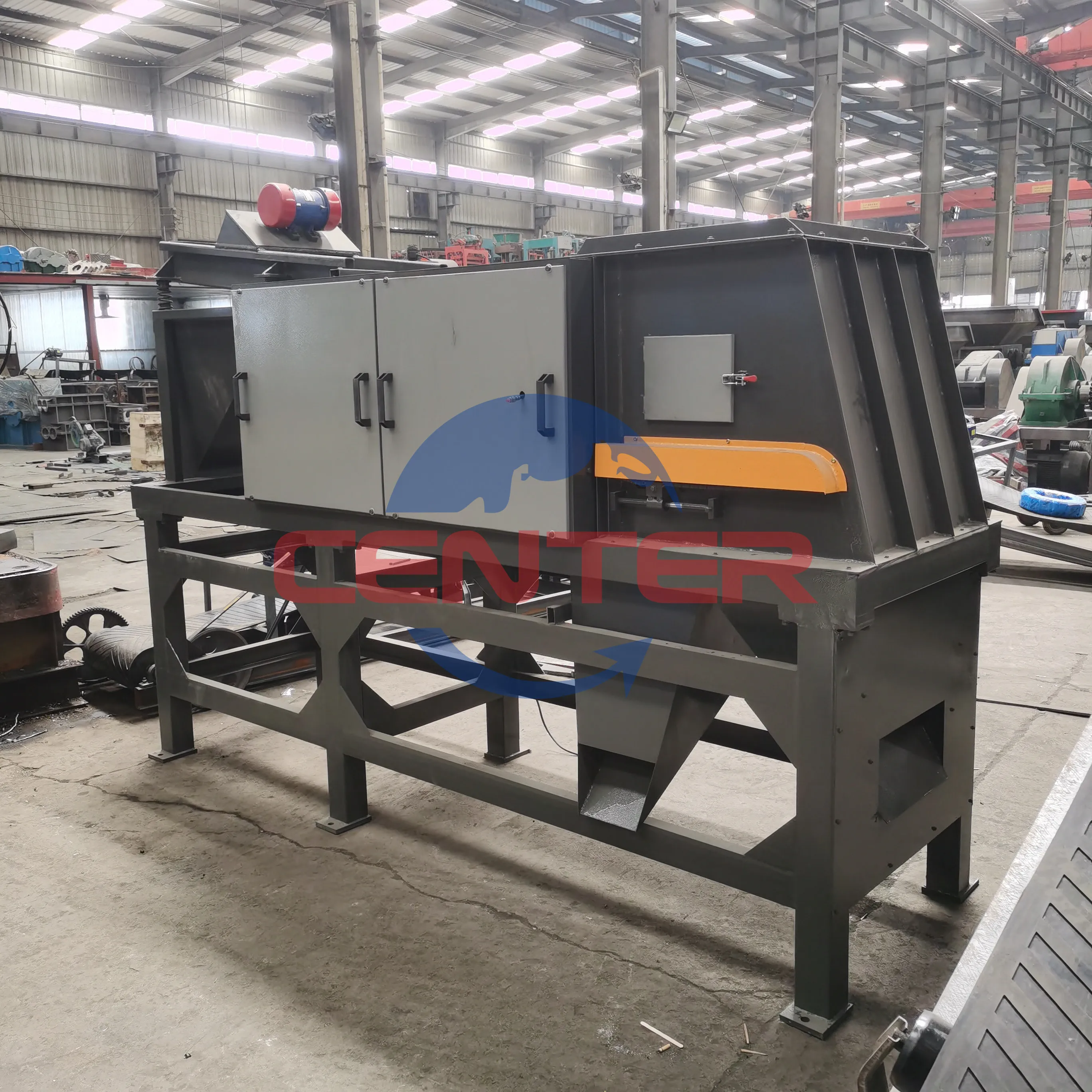

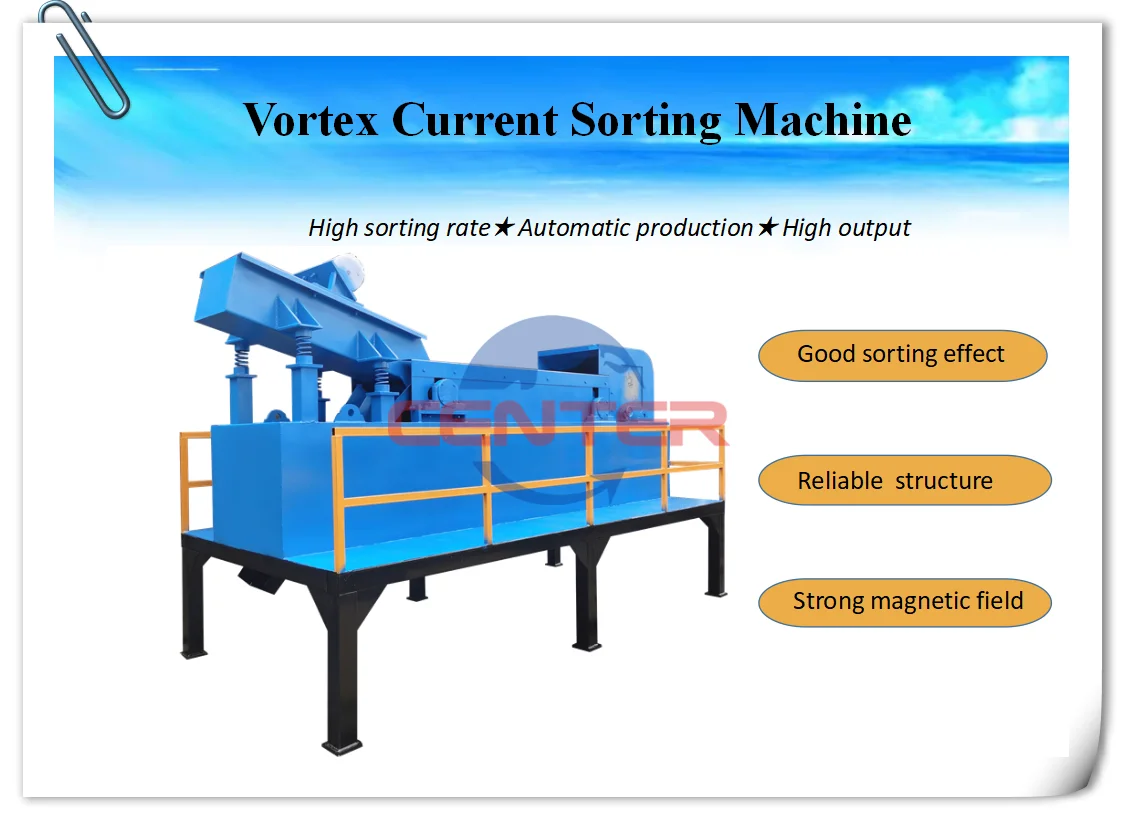

Vortex current sorting machine, also known as non-ferrous metal sorting machine, mainly suitable for sorting copper, aluminum and other non-ferrous metals from industrial waste, household waste. It can be widely used in waste disposal, scrap car dismantling and recycling, waste electrical appliances recycling and other fields, as well as non-ferrous metal processing industry material processing and other industries. Eddy current sorting machine for a variety of non-iron metal has good sorting effect, the machine has strong adaptability, reliable mechanical structure, strong magnetic field, frequency adjustable characteristics.
Product Paramenters
Model | Output (m³ /h) | Sorting drum diameter(mm) | Drum speed(r/min) | Separating drum speed(r/min) | Sorting drum power(kw) | Belt drive power(kw) |
WDL-400 | ≤3 | 320 | 50-2800 | 60-150 | 4 | 1.1 |
WDL-600 | ≤5 | 320 | 50-2800 | 60-150 | 5.5 | 1.1 |
WDL-800 | ≤7 | 320 | 50-2800 | 60-150 | 5.5 | 1.5 |
WDL-1000 | ≤8 | 400 | 50-2800 | 60-150 | 7.5 | 1.5 |
WDL-1200 | ≤10 | 400 | 50-2800 | 60-150 | 7.5 | 1.5 |

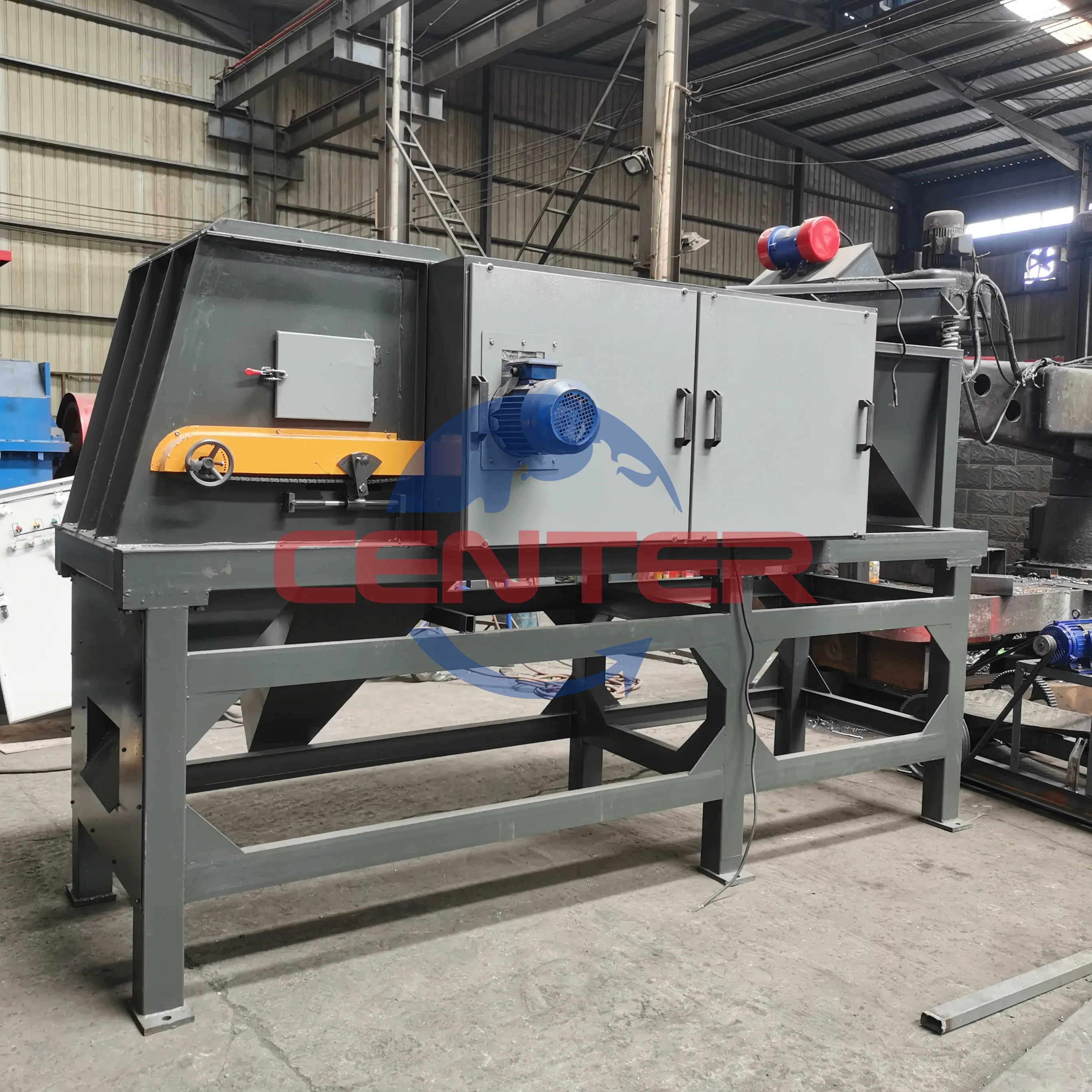

Details Images
Windows design
Timely understanding of the operation is convenient for maintenance and overhaul.
Flexible adjustment
Baffle clearance is adjustable, it can adapt to different material sorting.
Built-in frequency converter
A key to start，Frequency conversion control, speed adjustable.
Source is stable
Using permanent magnet converging iron and boron as magnetic source, magnetic stability.

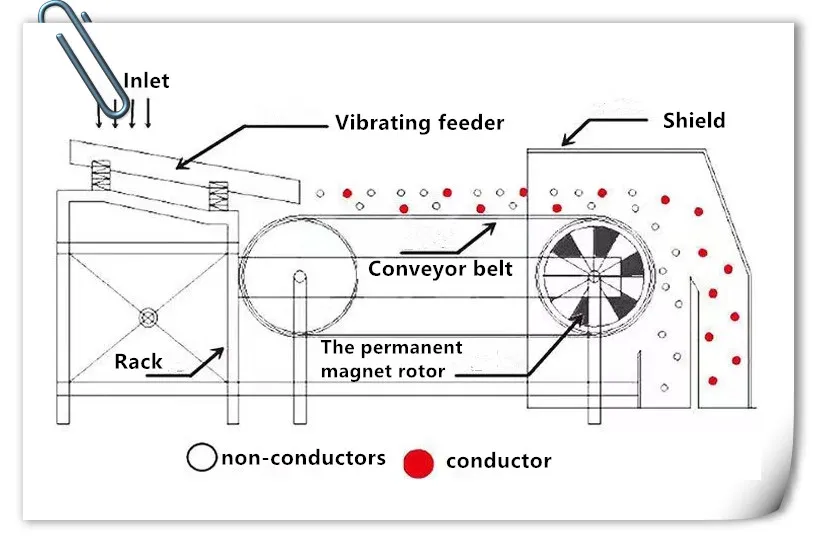

The working principle
Non-ferrous metal separator is designed using the principle that the conductor can produce induced eddy current in the high-frequency alternating magnetic field:
1.The machine will produce high-frequency alternating strong magnetic field on the surface of the sorting magnetic roller when working.
2. When the metal block enters the strong magnetic separation zone, eddy current will be induced inside the metal block.
3. The magnetic field generated by this vortex current is opposite to the original magnetic field, and there are mutually repulsive forces.
4. The repulsive force can throw the conductive metal block forward to achieve the purpose of separation.
1.The machine will produce high-frequency alternating strong magnetic field on the surface of the sorting magnetic roller when working.
2. When the metal block enters the strong magnetic separation zone, eddy current will be induced inside the metal block.
3. The magnetic field generated by this vortex current is opposite to the original magnetic field, and there are mutually repulsive forces.
4. The repulsive force can throw the conductive metal block forward to achieve the purpose of separation.

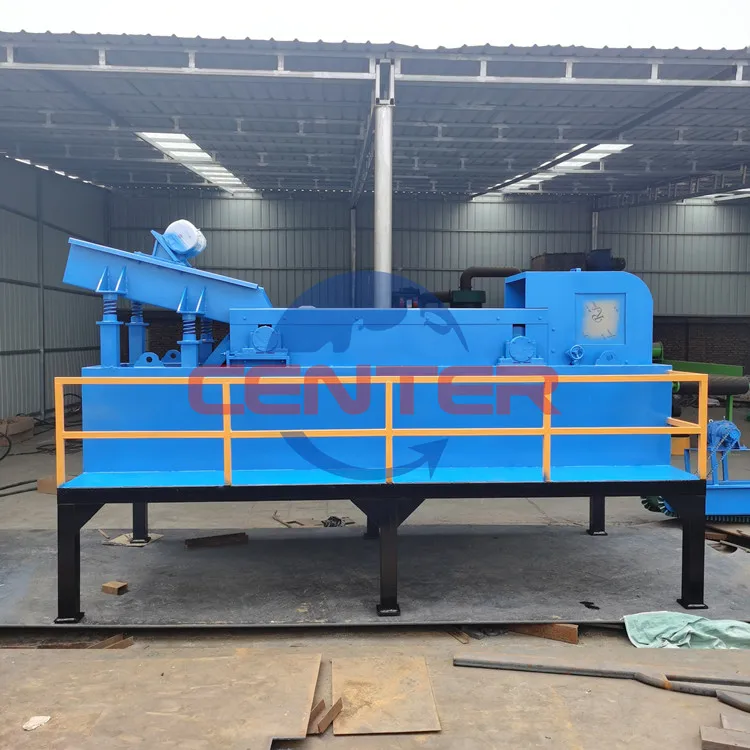

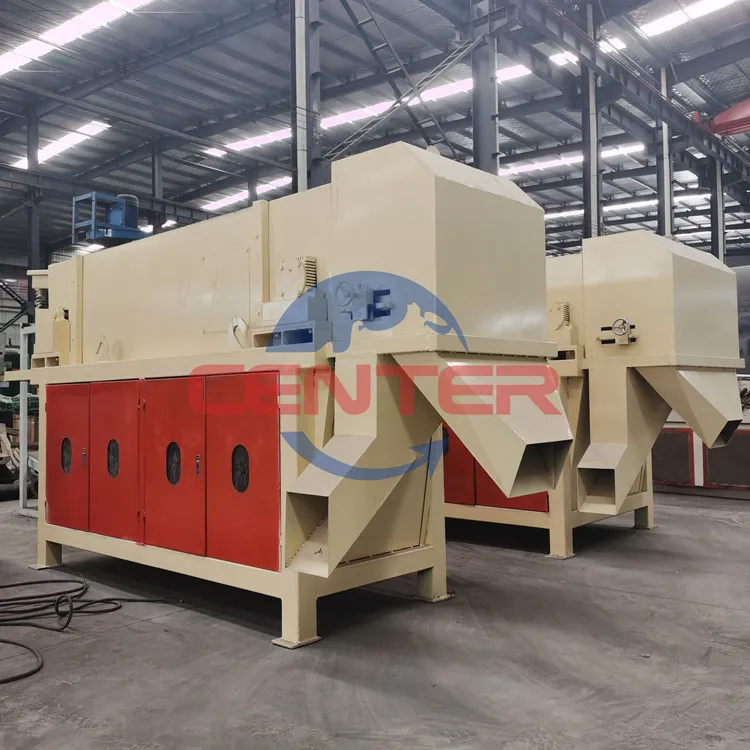

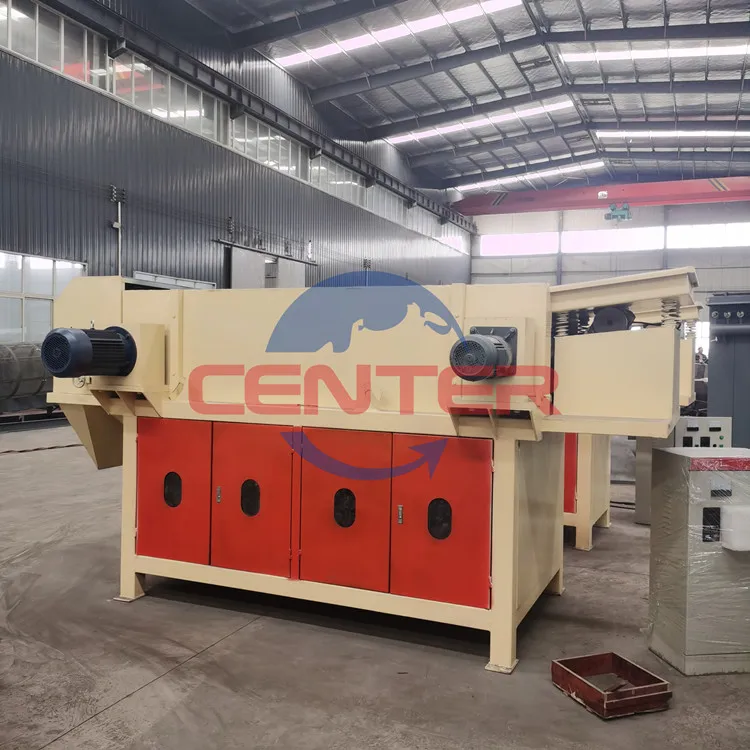

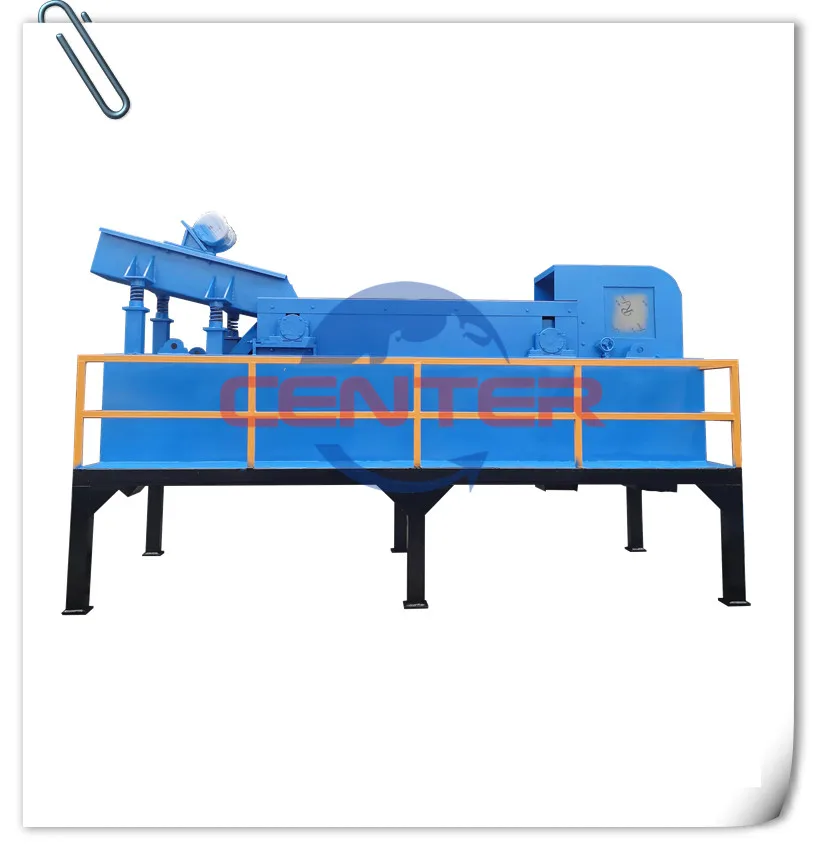

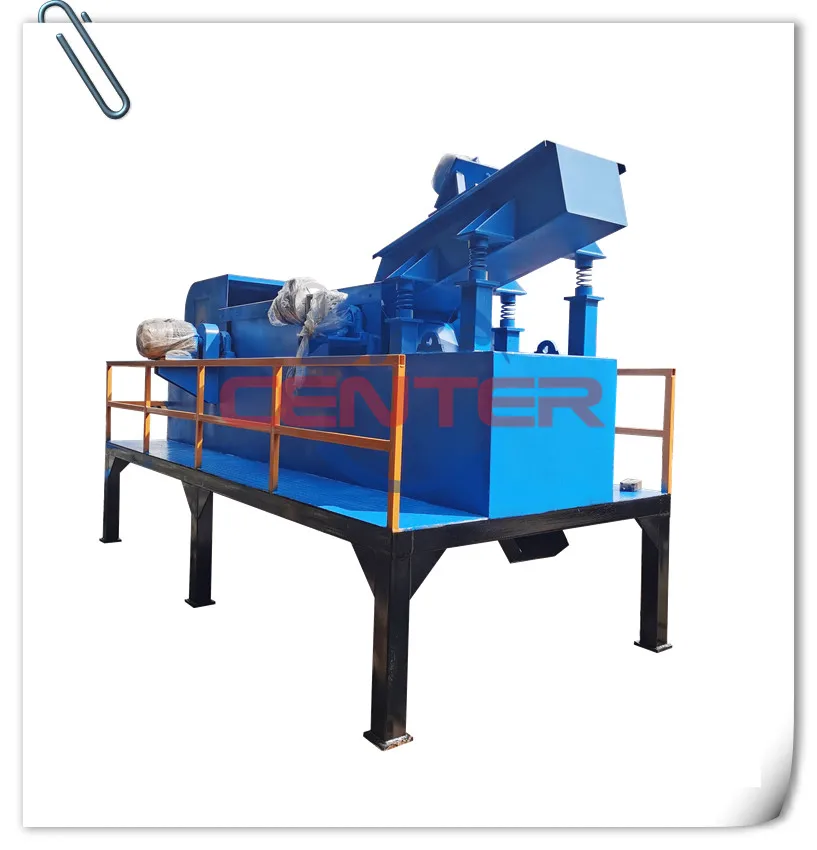

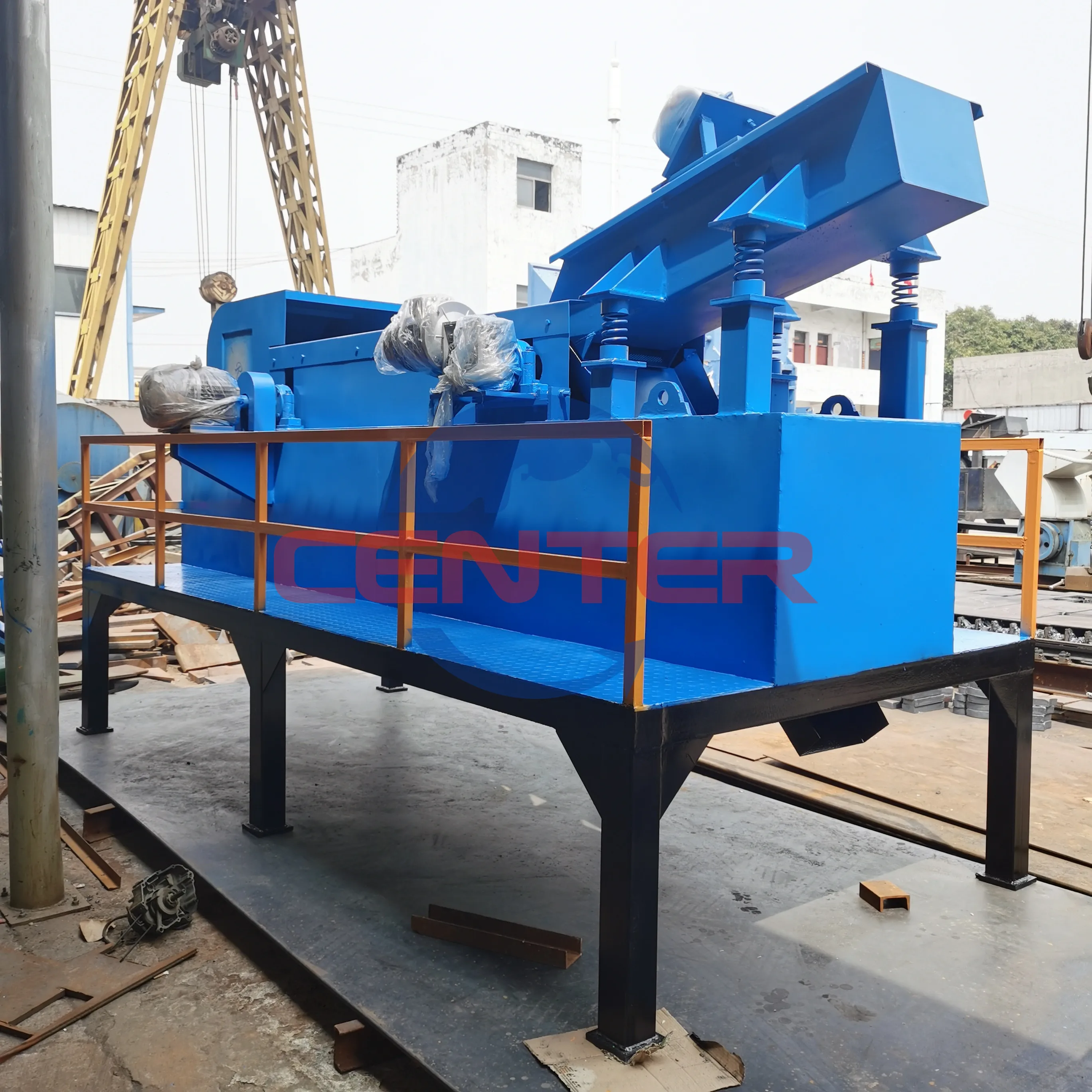

More pictures
Product Application
Applicable to a variety of industries
Common material such as home appliances broken, car broken material crushing material, power cable, circuit boards, pieces of nonferrous metal, nonferrous metal glass bottle recycling aluminum cover, mixture combustion furnace slag, aluminum pieces, electronic waste, etc
Our Vortex current sorting machine for a variety of non-iron metal has good sorting effect, the machine has strong adaptability, reliable mechanical structure, strong magnetic field, frequency adjustable characteristics.
Company Profile
Henan Center Machinery Manufacturing Co., Ltd.
Henan Center Machinery Manufacturing Co., Ltd. is committed to the environmental protection industry machinery and equipment manufacturing, sales in one of the manufacturing enterprises. The company takes "science and technology, environment, resources" as the core concept, is committed to creating a set of "solid waste treatment", "waste resources utilization" development in one of the circular economy industry chain.Our company has advanced processing equipment and testing facilities.Over the years, relying on the advantages of technology and service, Center Machinery has laid out the global market and served more than 160 countries and customers around the world. Its strong brand appeal has become a name card of the environmental protection equipment industry.
Why Choose Us
FAQ
Q:Can you produce according to our design?
A:Yes.we can produce according to customers’ design.
Q:Is your company a manufacture factory?
Q:Is your company a manufacture factory?
A:Yes.We are a professional manufacturer of solid processing machine in Gongyi, Henan province, China, and our factory set up in 2005.
Q:How is the quality of your product?
Q:How is the quality of your product?
A:Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q:How about the price?
A:We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q:What if the machine breaks down?
A:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
Q:How about the price?
A:We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q:What if the machine breaks down?
A:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
