Product Description

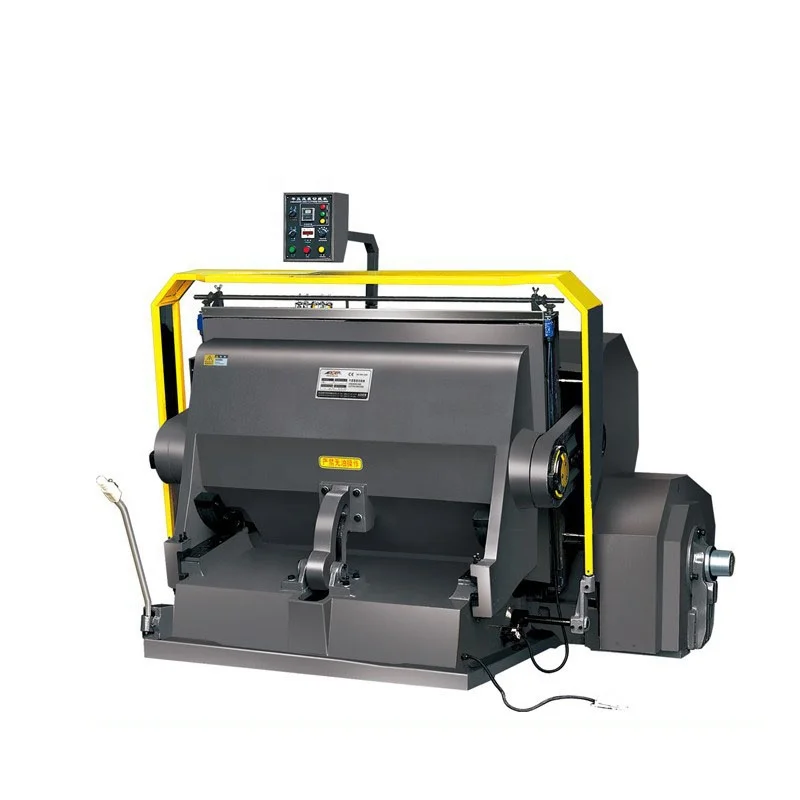

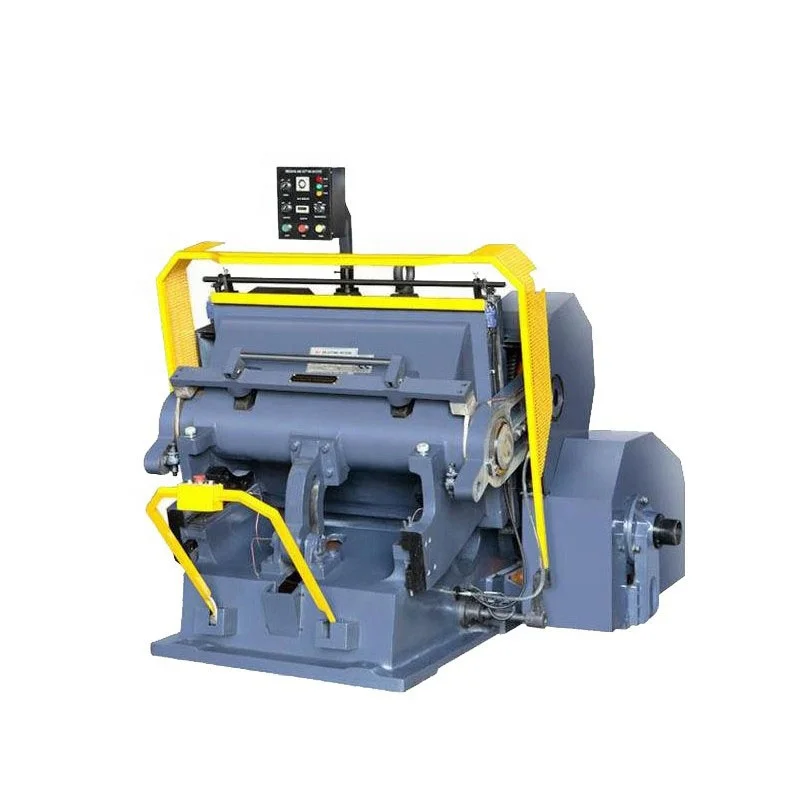

Automatic die cutting machine with computer control and driver technology application, can reduce the actual operation of manual service, can directly machine control processing.
Automatic die cutting machine can die cutting PE, PP, PVC and PET plastic film, paper and composite bag. The overall characteristics are fast, high efficiency, high precision, high reliability, can let customers really feel high quality, moderate price performance excellence die-cutting machine. On the basis of information technology, automatic die cutting machine is more extreme, more practical.
Features
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better
durability.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better
durability.
DETAILS
High speed and strength 4-suck-4 forwarder feeder, the angle of the nozzle can be adjusted according to the paper condition, it ensure that the thin thick and corrugated paper can be fed smoothly.
Wall plate for feeder is cast iron, stable and fit for high speed running.
Electro mechanical double sheet detector can reduce the waste.
Both side lay can be used both for pull and push function, equipped with opto-electronic sensor.
Electro mechanical double sheet detector can reduce the waste.
Both side lay can be used both for pull and push function, equipped with opto-electronic sensor.
The pressing section is made of high strength cast iron QT500, has high strength and never deform.
Special processed alloy crankshaft.
Extra anti worn worm and worm gear.
Extra anti worn worm and worm gear.
Specification
item | value |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other, Advertising Company |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Type | Paper Cutting Machine |
Automatic Grade | Automatic |
Place of Origin | China |
Zhejiang | |
Brand Name | Koten |
Voltage | 380V |
Dimension(L*W*H) | 6800x3780x2050mm |
Weight | 9500KG |
Warranty | 1 Year |
Key Selling Points | Automatic |
Main technical parameters
Model | 800Q | 1080Q | ||||||
Max paper size: | 800 x 620 mm | 1080x780mm | ||||||
Min paper size: | 340 x280 mm | 450x400mm | ||||||
Max cutting size: | 770 x 600 mm | 1075x770mm | ||||||
Die frame inner size: | 820 x 628 mm | 1100x800mm | ||||||
Cutting plate size: | 826 x 628 mm | 1100x800mm | ||||||
Min gripper edge size: | 7 mm | 7mm | ||||||
Cutting precision: | ≤±0.1 mm | ≤±0.15mm | ||||||
Max cutting pressure: | 200 T | 300T | ||||||
Max cutting speed: | 7000 S/H | 7000 S/H | ||||||
Pre-stacking height: | 1150 mm | 1150 mm | ||||||
Delivery stack height: | 1000 mm | 1100 mm | ||||||
Application: | ||||||||
White board: | 0.1～2 mm | 0.12～2 mm | ||||||
Corrugated paper: | ＜4 mm | ＜4 mm | ||||||
Main motor power: | 7.5 KW | 11KW | ||||||
Total power: | 12.75 KW | 17.8KW | ||||||
Dimension : 【L(+ pre-stacking)x W(+ platform)x H】 | ||||||||
5150(+1360) x 2000(+1300) x 1690 mm | 6800x3780x2050mm | |||||||
weight: | 9.5 T | 14T | ||||||
Main configuration list
No | Name | Brand | Origin | No | Name | Brand | Origin |
1 | Shell, main structure | QT500-7 ductile iron | China | 16 | Fastener | GEMYEAR | Taiwan |
2 | Mold pressing plate | 75Cr1alloy steel | China | 17 | Invertor | Panasonic | Japan |
3 | Worm, Worm gear | Xingtang | China | 18 | HMI | TAISEE | Taiwan |
4 | Crankshaft material | Ni-Cr-Mo alloy | China | 19 | Sensor | Panasonic | Japan |
5 | Gripper Bar | Aluminum alloy | China | 20 | PLC controller | FATEK | Taiwan |
6 | Gripper | Imported manganese steel | China | 21 | Encoder | KUBLER | Japan |
7 | Cam indexing unit | HANDEX | Taiwan | 22 | Proximity switch | FOTEK | Taiwan |
8 | Main transmission chain | TYC | Taiwan | 23 | Relay | SCHNEIDER | France |
9 | Rotary joint | SMC | Japan | 24 | Optoelectronic switch | Panasonic | Japan |
10 | Pneumatic solenoid valve | AIRTAC | Taiwan | 25 | Button | SCHNEIDER | France |
11 | Main motor | TECO | Taiwan | 26 | AC contactor | SCHNEIDER | France |
12 | Main feeding motor | DUNGLEE | Taiwan | 27 | Circuit breaker | SCHNEIDER | France |
13 | Delivery lift motor | DUNGLEE | Taiwan | 28 | Vacuum pump | TONGYOU | China |
14 | Bearing | NSK | Germany | 29 | Heating solid state relay | TAISEE | Taiwan |
15 | Linear guide rail | HIWIN | Taiwan | 30 |
