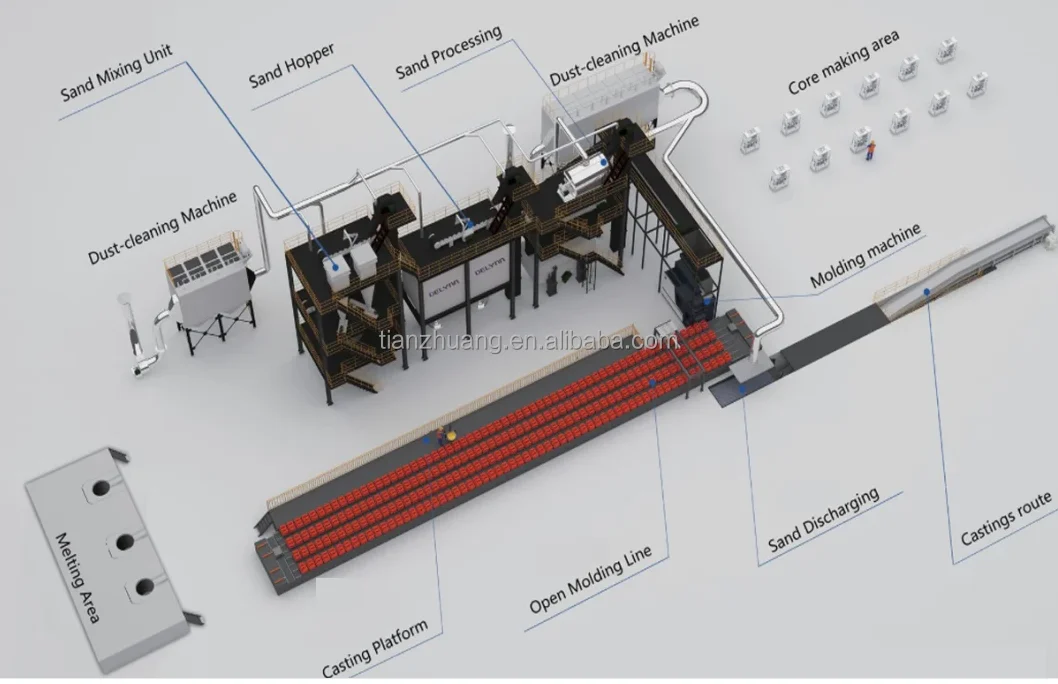

Автоматическая линия литья без вспышки/литейное оборудование литьевая машина для под давлением
- Категории: Metal & Metallurgy Machinery >>>
- Поставщик: Qingdao,Tianzhuang,Casting,Machine,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Details Images
Product Paramenters
Technical parameter for Foundry Vertical Flaskless Sand Casting Molding Machine
Parameter/Model | Z425 | Z426 | Z427 | |
Foundry flask size(mm) | 500*400*120-150 550*450*120-150 | 610*508*130-180 660*508*130-180 | 700*600*130-180 600*600*130-180 | |
Productivity(Second/Mould) | 36-40 | 40-45 | 40-45 | |
Air pressure(Mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | |
Air cunsumption(m³/Min) | 1.6 | 2 | 2.2 | |
Oil pressure(Mpa) | 8.5 | 10.6 | 9.2 | |
Total power (Kw) | 15 | 18.5 | 22 | |
Sand consumption (T/h) | 8.6-12 | 10.5-17 | 12-22 |
Technical parameters of GS series high-efficiency rotor sand mixer
Model | Disc diameter（mm） | Feeding amount at one time（kg） | Productivity （t/h） | Main motor power（kw） | Rotor motor power（kw） | Speed of mainshaft (r/min) | Rotor speed (r/min) | Size（mm） | Weight（t) |
GS16-30 | φ1600 | 600-800 | 15-20 | 30 | 2×15 | 34 | 980 | 2650*2160*2386 | 4.5 |
GS20-55 | φ2000 | 900-1000 | 25-32 | 75 | 2×22 | 31.72 | 980 | 3577*3423*3256 | 11.5 |
GS20-75 | φ2000 | 1000-1300 | 30-35 | 75 | 2×30 | 27.32 | 975 | 3577*3423*3256 | 11.8 |
GS22-90 | φ2240 | 1300-1500 | 35-40 | 90 | 2×37 | 27.32 | 975 | 3600*3868*3578 | 13.5 |
GS25-110 | φ2500 | 1500-1800 | 40-50 | 110 | 2×45 | 27.3 | 950 | 4305*4150*3511 | 16.8 |
GS25-132 | φ2500 | 2000-2500 | 50-60 | 132 | 2×55 | 27.32 | 950 | 4062*3616*3511 | 17.8 |
GS26-160 | φ2600 | 2500-3000 | 80-100 | 160 | 2×55 | 27.32 | |||
GS29-200 | φ2850 | 60-80 | 200 | 2×55 | 25.4 | 850 | 4576*4482*3734 | 22.5 |

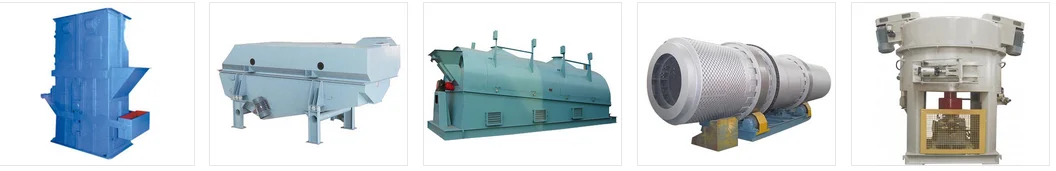

Main Products
Company Profile
Packing&Shipping
Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
