Ручной шаровой клапан из нержавеющей стали 2 304
91,56-100,71 ₽
QINFENG CF8 Cf8m санитарная нержавеющая сталь SS304/SS316L Пневматический санитарный SS вакуумный шаровой клапан 3 шт. с двойным
- Категории: >>>
- Поставщик: Qinfeng,Technology,(zhejiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Applications
It is applied in food, beverage, wine and chemical industries.
Design Features
●All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning, and heat
resistance of -40℃~+150℃, the highest pressure 0-10 bar.
●Available with a variety of structures. such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually
handle can also be equipped with the control the unit, location, position sensor, and other compatible automatic control system.
●The valve body can be replaced in an connections and length will not chance.
●Connection Type: Clamp, Weld, Thread, Flange
●Material for the part contacted with media is 304/316L, other part is 304.
●Sealing material: PTFE, it is according to FDA117.2600
●Size: 1/2"-4"
●Standard:3A/DIN/SMS/IDF/RJT/BPE/ISO
Design Features
●All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning, and heat
resistance of -40℃~+150℃, the highest pressure 0-10 bar.
●Available with a variety of structures. such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually
handle can also be equipped with the control the unit, location, position sensor, and other compatible automatic control system.
●The valve body can be replaced in an connections and length will not chance.
●Connection Type: Clamp, Weld, Thread, Flange
●Material for the part contacted with media is 304/316L, other part is 304.
●Sealing material: PTFE, it is according to FDA117.2600
●Size: 1/2"-4"
●Standard:3A/DIN/SMS/IDF/RJT/BPE/ISO

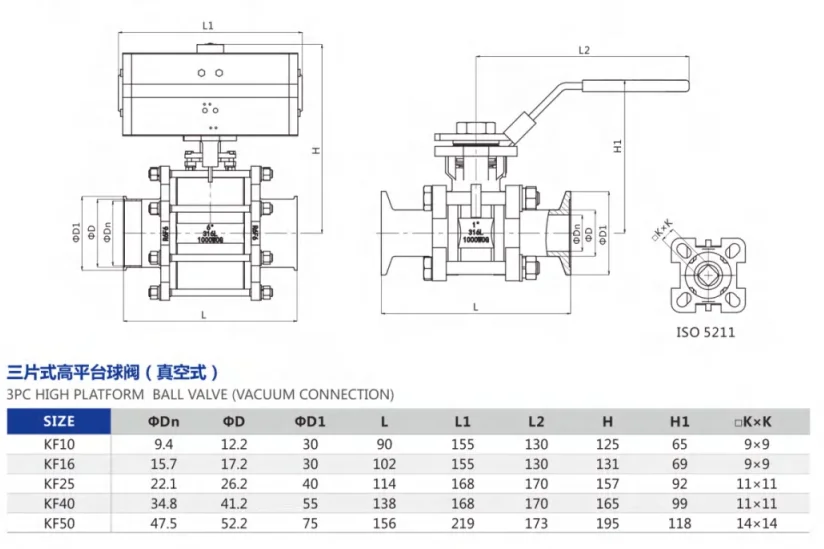

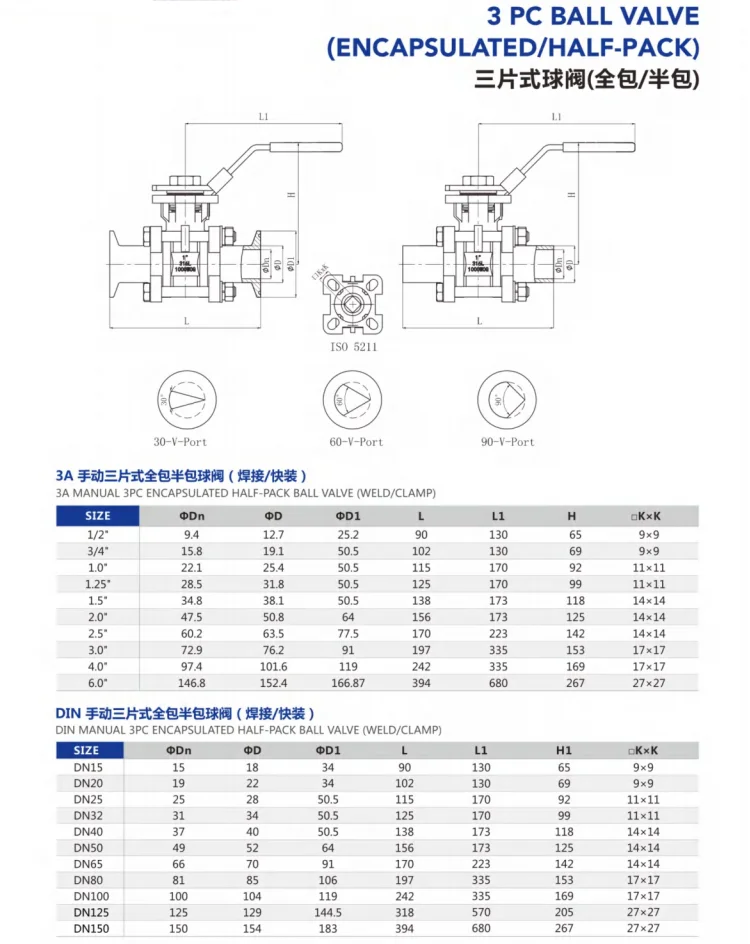

Vacuum 3PC Ball Valve
Electric 3PC Ball Valve
3PC Ball Valve with Stainless Steel Pneumatic Actuator
Main Products
OEM/ODM Service
Company Profile
Our Partner
Certifications
Shipping&Packing
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q:The Industries We Serve?
A:We hope to make business withcompanies from all over the world. And for now, our products have been exported to especially in Europe, Russia, America,Australia,Peru,South Asia,Middle East and so on.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are
in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How about the packing?
A: Normally, we have carton for packaging then packing the cartons in the plywood case.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do OEM?
A: Yes
Q:How can you guarantee the quality of products?
A:First of all, We have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every product or fitting we sell is qualified.
Q:What is your price level?
A:Quick return and small profit. Never make price reduction at the reputation of quality.
