Зернистость из литой стали GH50 для

Steel Grit Size:

G10/2.5mm,   G12/2.0mm,   G14/1.7mm,  G16/1.4mm,    G18/1.2mm,

G25/1.0mm,   G40/0.7mm,   G50/0.4mm,  G80/0.3mm,    G120/0.2mm

Technical Specifications:

Steel Grit Types:

GP:Angular when new, this grit rapidly rounds off in use and its particularly suited descaling applications.

GL:Although harder then GP steel grit, also loses its sharp edges during shto basting and is particularly suited to descaling and surface preparation applications.

GH:Having maximum hardness, GH always remains angular in its operating mix. These abrasive are particularly effective in surface treatment processes and produce a uniform, etched finish, GH angular grit should only be used in wheel machines where working requirements take precedence over cost price considerations (for example with rolling mill cylinders or when a special finish is needed). For use mainly with compressed air equipment.

Steel Grit Standards:

In accordance with standards of GB/T18838.3-2008 Steel Shot and Steel Grit,SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High Carbon Steel Grit, YB/T5149-1993 Cast Steel Shot, YB/T5150-1993Cast Steel Grit,ISO11124-3High Carbon Cast Steel Shot and Grit.

Steel Shot and Steel Grit Production Flow:

https://www.youtube.com/watch?v=4zOPuk-_pZM&feature=youtu.be

With strong technical force,advanced equipment like intermediate frequency induction

furnace ,centrifugal atomizer,second quenching,tempering ,spiralizing ,package and so on,

the company could produce high strength ,strong durability cast steel shot and cast steel grit.

The production technology and equipment gains Progress in Science and Technology of Shandong

Province Scond Prize and Progress in Science and Technology of Binzhou City First Prize.

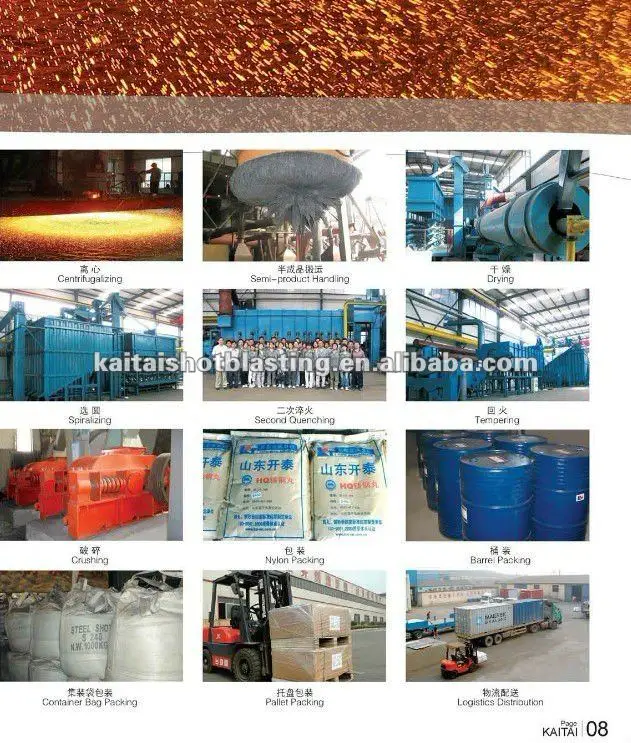

Steel Shot and Steel Grit Product Process:

•  Shandong Kaitai Shot-blasting Machinery Co.,Ltd is a professional enterprise which integrates with technical research, development, production, installation, and debugging. Cooperated with machinery college of Jinan University, we have developed cleaning and intensification equipment of shot-blasting and shot-peening.

•  The company has first-class technology research-development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit. And the company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Conditions All products apply CAD computer-aided design, the appearance applies three-dimensional software design, and key components of numerical simulation use finite element analysis.

•  Our main products are cleaning machinesand-peening equipmentenviroment-protection and dust-removal equipment,and offer the ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, the machine tool industry.

Workshop

Exhibitions:

Customer Visit

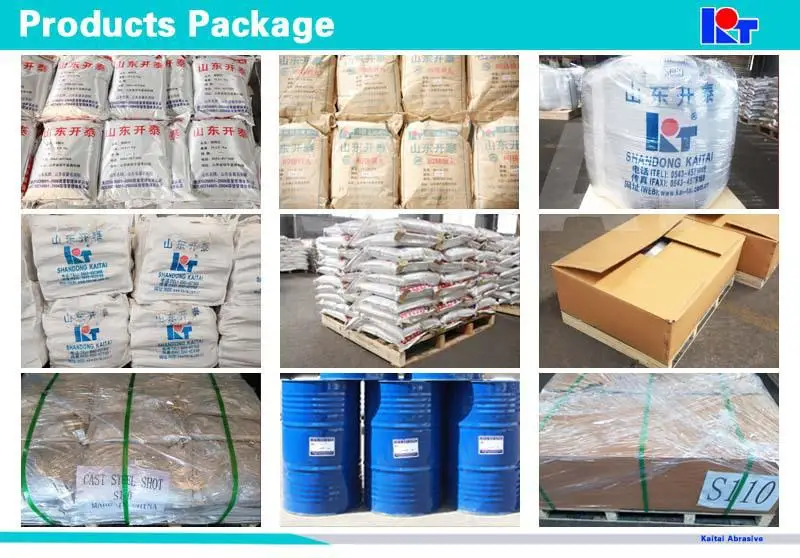

    Standard export package: Machine body with stretch film packaging. Spare parts, motor, reducer and others into plywood pallet, then load into container together. As bellows,

Our Service

 •  Provide comprehensive shot-peening and shot blasting solution

 •  Customized design available

 •  Oversea engineer service avaliable

 •  To aim to save your cost and improve efficiency

 •  Offer OEM service.

 •  One year warranty for machine

 •  English manual and Video CD for manchine using and maintance.

 •  Company enjoys high reputation and favorable comments for quality products, good service, and faithful management in past twenty years

Sales Net

The shot blasting machine have been exported to more than 50 countries and regions. Include Malaysia, Indonesia, Singapore, Australia, UAE, Qatar, Egypt, South Africa, Netherlands, Argentina, Brazil and so on.

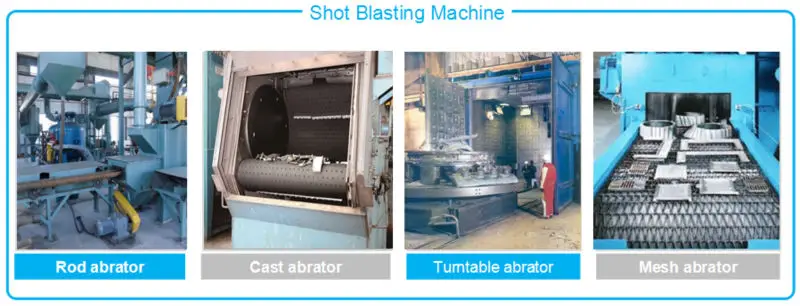

Other Products from KAITECH

•   Q : Do you have after-sale service?
     A : Yes, we have perfect after-sale service

•   Q : How long can your spare parts be used?

     A:  Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours.

         Kinds of guard board can be used for more than 3000 hours.

•   Q : Where is your factory?

    A:  We are near Jinan Airport, you are welcome to be Jinan Airport and then we will arrange car to pick you up there.             Sincerely welcome here to investigate our factory in person.

•  Q : How about your company ?

    A: Our company is the biggest manufacturer of metal abrasive and shot blasting machine in china , we have exported to         more than 50 counries and regions , and got good comments from overseas and domestic.

Sincerely look forward to cooperate with you ! For more details about shot blasting machine ,

welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.

--------------------------------------------------------------------------------------
