Product Overview

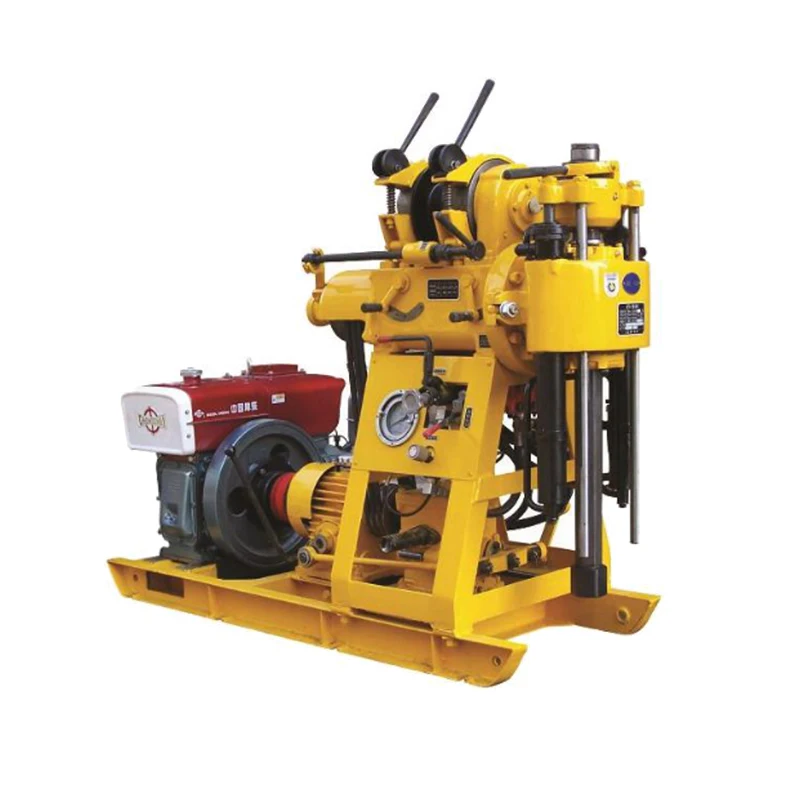

200m Hydraulic Diesel Drill Borehole Machine/water Well Drilling Rigs Diesel Borehole Drilling Machine
A.the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and
other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and
other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The pump and diesel engine are installed on common base frame in order to have a compact structure and occupy small field area.lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The pump and diesel engine are installed on common base frame in order to have a compact structure and occupy small field area.lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
CHEAP PRICE
1
2
3
PRODUCT SPECIFICATIONS
Drilling Rig | ||||
Drilling diameter(mm) | 75,91,110,130,150,300 | |||
Drilling depth (m) | 200,150,100,70,50,30 | |||
Drill pipe diameter (mm) | 42,50 | |||
Drilling angle(°) | 90~75 | |||
Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) | |||
Rig weight (except engine) | 700 | |||
Mobile device | ||||
Moving length | 350mm | |||
Leave distance | 300mm | |||
Gyrator | ||||
Spindle speed (four gear) (r/min) | 115,230,505,1010 | |||
Spindle travel(mm) | 450 | |||
Spindle no-load lifting maximum moving speed(m/s) | 0.05 | |||
Spindle no load drop maximum movement speed(m/s) | 0.067 | |||
Spindle maximum feed pressure(KN) | 15 | |||
Spindle maximum lifting force(KN) | 25 | |||
Spindle maximum output torque(KN• m) | 1.5 | |||
Winch assembly | ||||
Winch maximum lifting force (single rope) | 20 | |||
Reel speed (r/min) | 20,39,85,170 | |||
Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 | |||
Reel diameter(mm) | 140 | |||
Wire rope diameter(mm) | 9.3 | |||
Wire rope density (m) | 40 | |||
Brake diameter(mm) | 278 | |||
Brake band width (mm) | 50 | |||
Oil pump | ||||
Oil pump type | YBC -20/125 | |||
Nominal pressure (Mpa) | 12.5 | |||
Rated flow(ml/r) | 20 | |||
Rated speed(r/min) | 800-2500 | |||
Diesel engine or motor | ||||
Diesel engine | 1115 | |||
Rated power (KW) | 16.2 | |||
Rated speed (r/min) | 2200 | |||
Rated pressure(Mpa) | 12.5 | |||
Motor type | Y160M - 4 | |||
Rated power (KW) | 11 | |||
Rated speed (r/min) | 1460 | |||
PRODUCT CONFIGURATION
1
2
3
42mm drill pipes
Drill bits
Water pump

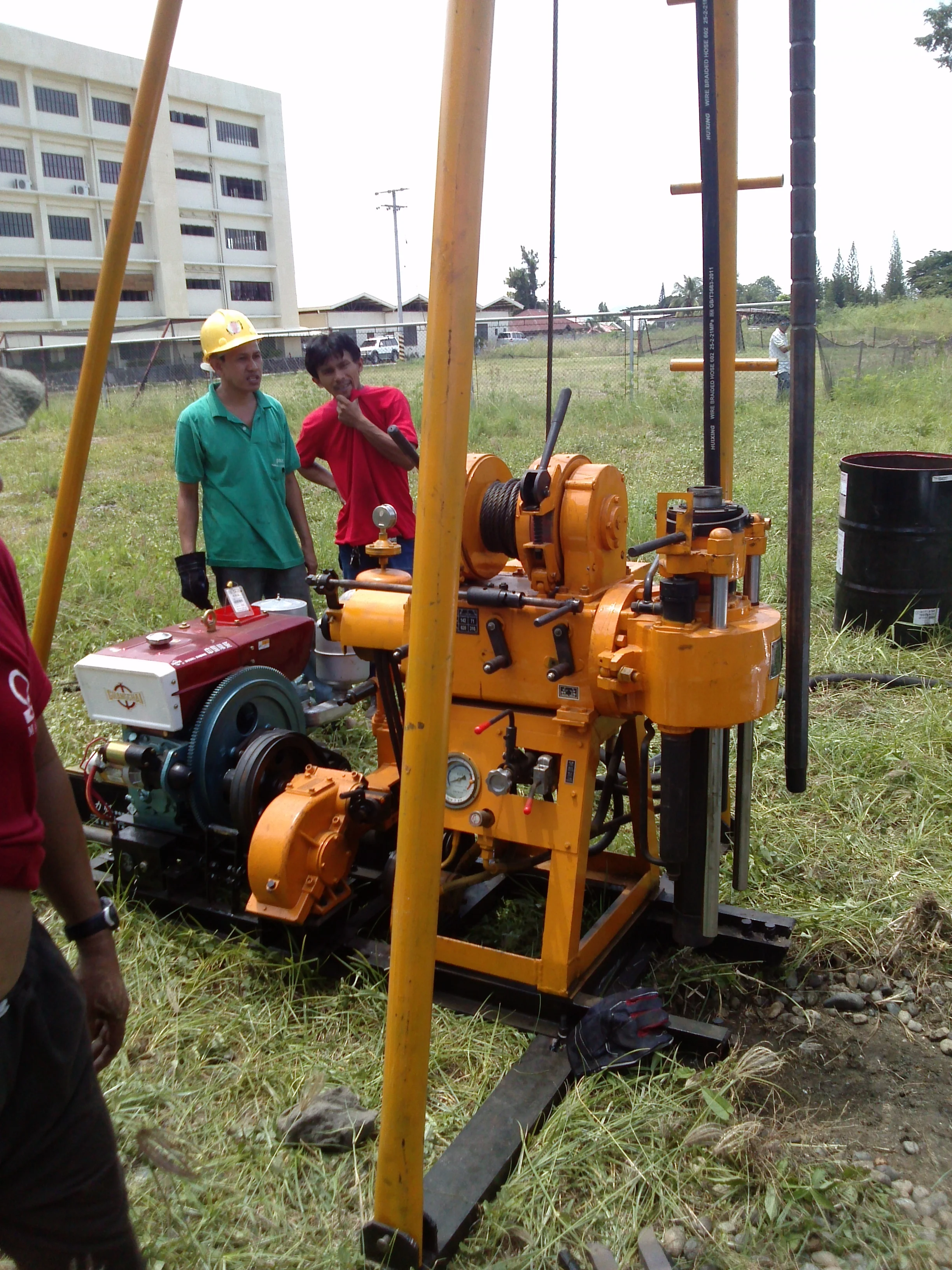

Customer actual shot
Customer actual shot
Customer actual shot

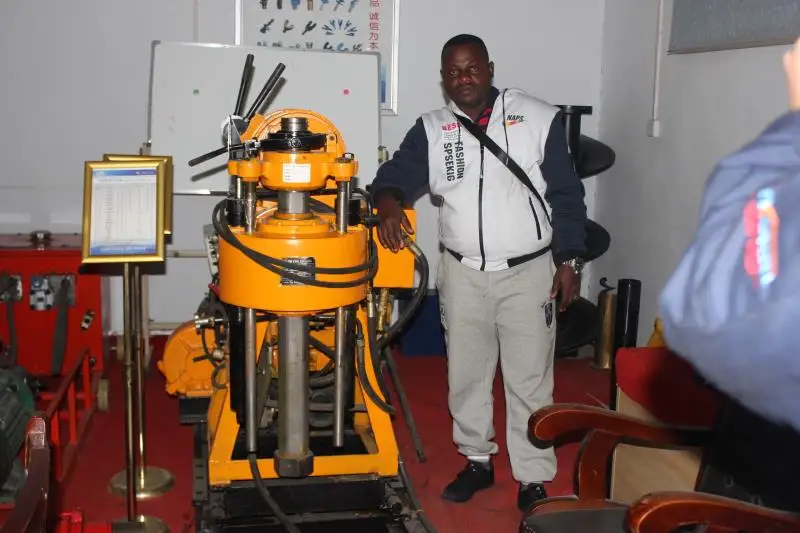

Exhibition
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Do you have after-sales service?
A: Yes.
1. Our sales team will answer your questions within 24 hours (holiday).
2. Technical support will be available at all times. Once the fault caused by the quality of our products is confirmed, a free
replacement will be provided.
Q2: Where is our factory? How do I get there?
A: Our factory is located in Jining City, Shandong Province, China. We warmly welcome you to visit us.
Q3: Do you test all items before shipping?
A: Yes, we have passed 100% testing before delivery. We will attach our inspection report to each machine.
Q4: What are your terms of trade?
A: FOB, CFR and CIF are acceptable.
Q5: How do you build long-term and good business relationships with us?
A:1. We maintain excellent quality and competitive prices to ensure that our customers benefit; 2. We respect each customer and regard it as a friend, no matter where they come from, we sincerely do business with them and make friends.
Q6: What is your payment terms?
A: T / T is 30% of the deposit and 70% before delivery. Before you pay your balance, we will show you a photo or video of the product and packaging.
Q7: What is your delivery time?
A: The exact delivery time depends on the item and quantity you ordered.
Q8: What warranty does our machine have?
A: Our mainframe has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide videos on machine installation and operation.
Q9: What is your packaging condition?
A: Usually, we use the standard export wooden box for LCL cargo and fix the full container.
Q 10: Are you willing to provide consumables for trading customers?
A: Yes, we have a record for your customers and want to provide accessories for our customers.
