195l 20bar Mobile Cryogenic Liquid Container Liquid Argon Storage Dewar Tank Price
Product Description
Description of liquid dewar cylinder
DPL series dewar cylinder is a kind of high-performance vacuum insulated cylinder, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas ,etc. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications .
Specifications | Product model | ||
DPL450-195-1.4 | DPL450-195-2.0 | ||
volume(L) | 195 | 195 | |
Effective volume(L) | 175.5 | 175.5 | |
Size(D×H)mm | Φ508×1623 | Φ508×1626 | |
Working Pressure(MPa) | 1.4 | 2.0 | |
Set pressure of main safety value(MPa) | 1.59 | 2.41 | |
Set pressure of bursting discset(MPa) | 2.6 | 3.6 | |
Evaporation rate (Liquid nitrogen) | ≤2.0% | ≤2.0% | |
Empty weight(kg) | 124 | 144 | |
Maximum filling weight:Liquid oxygen(kg) | 200 | 200 | |
Maximum filling weight:Liquid nitrogen(kg) | 142 | 142 | |
Maximum filling weight:Liquid argon(kg) | 245 | 245 | |

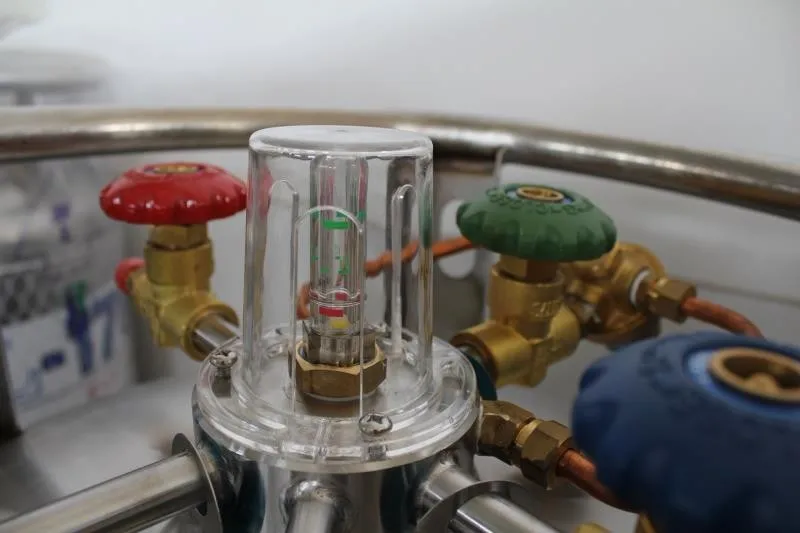

Level gauge | Float type,Capacitance | ||
The base style | Stainless steel-rubber bas | ||

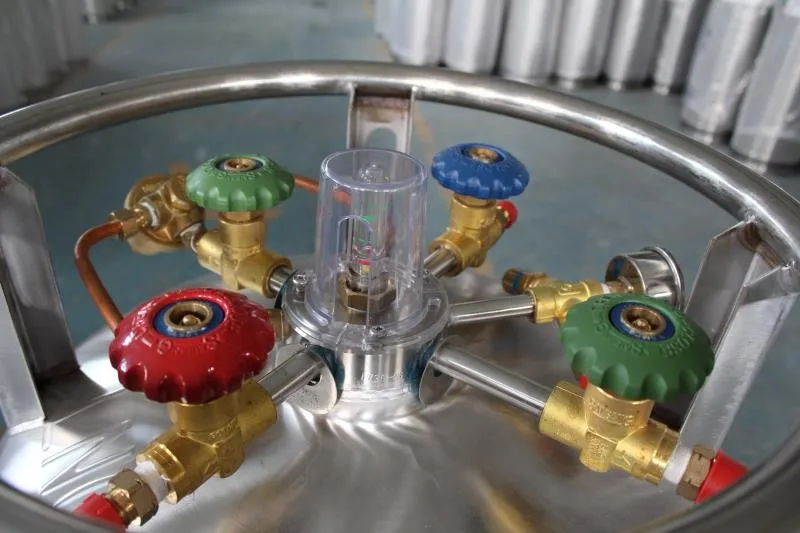

Details Images
Packing & Delivery

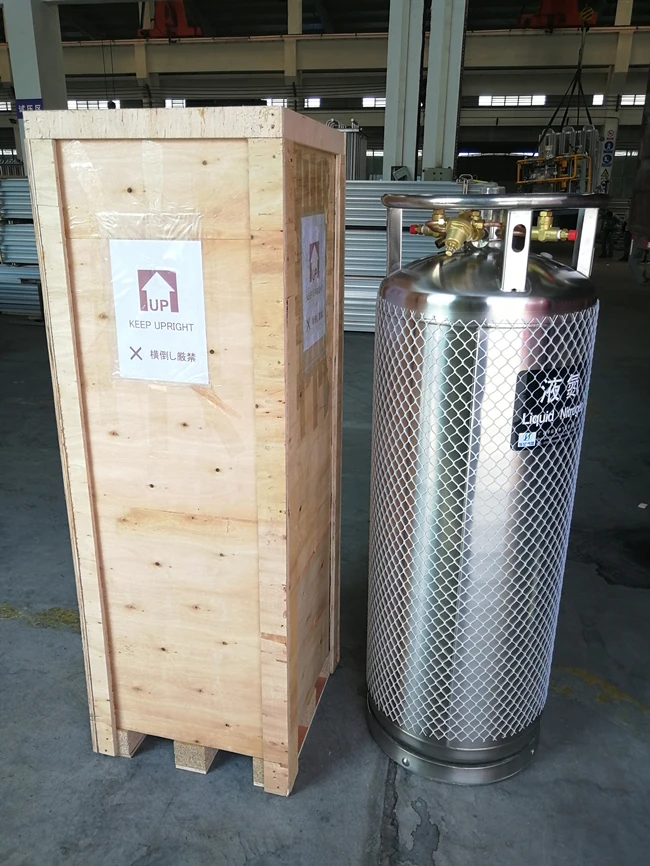

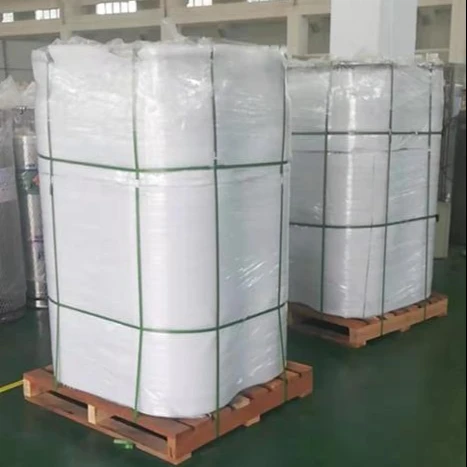

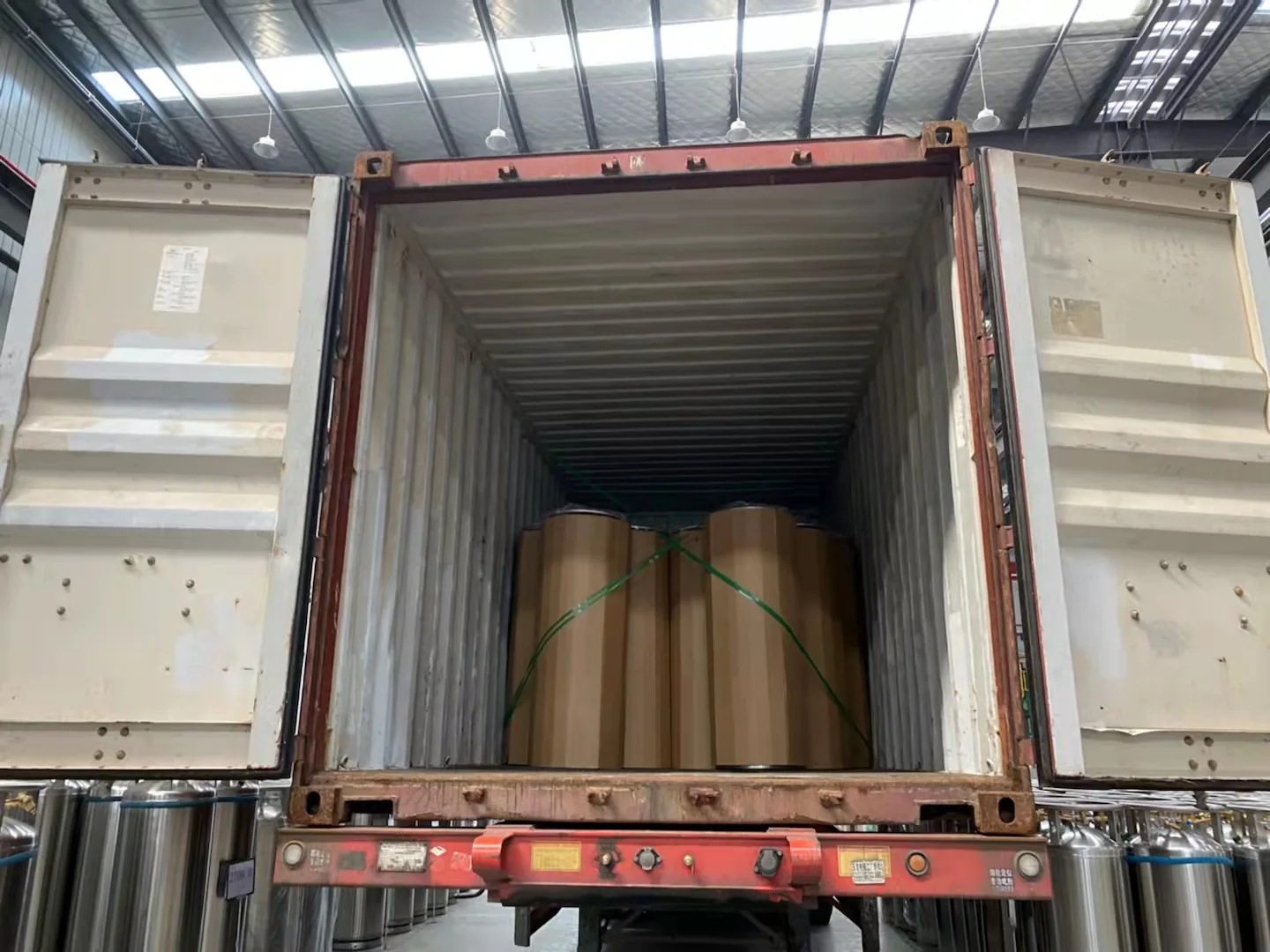

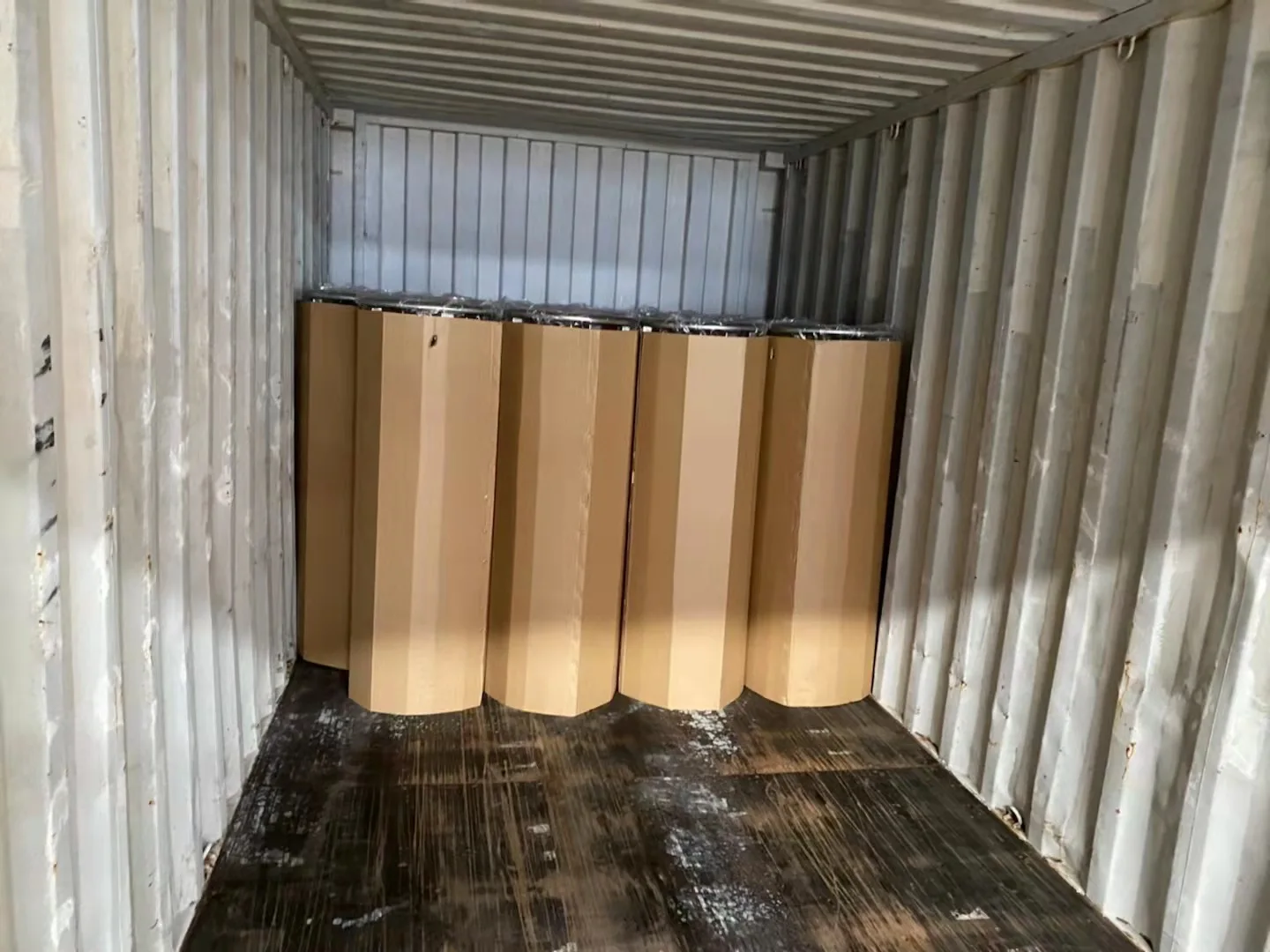

Packaging and delivery
1.packaging with nude

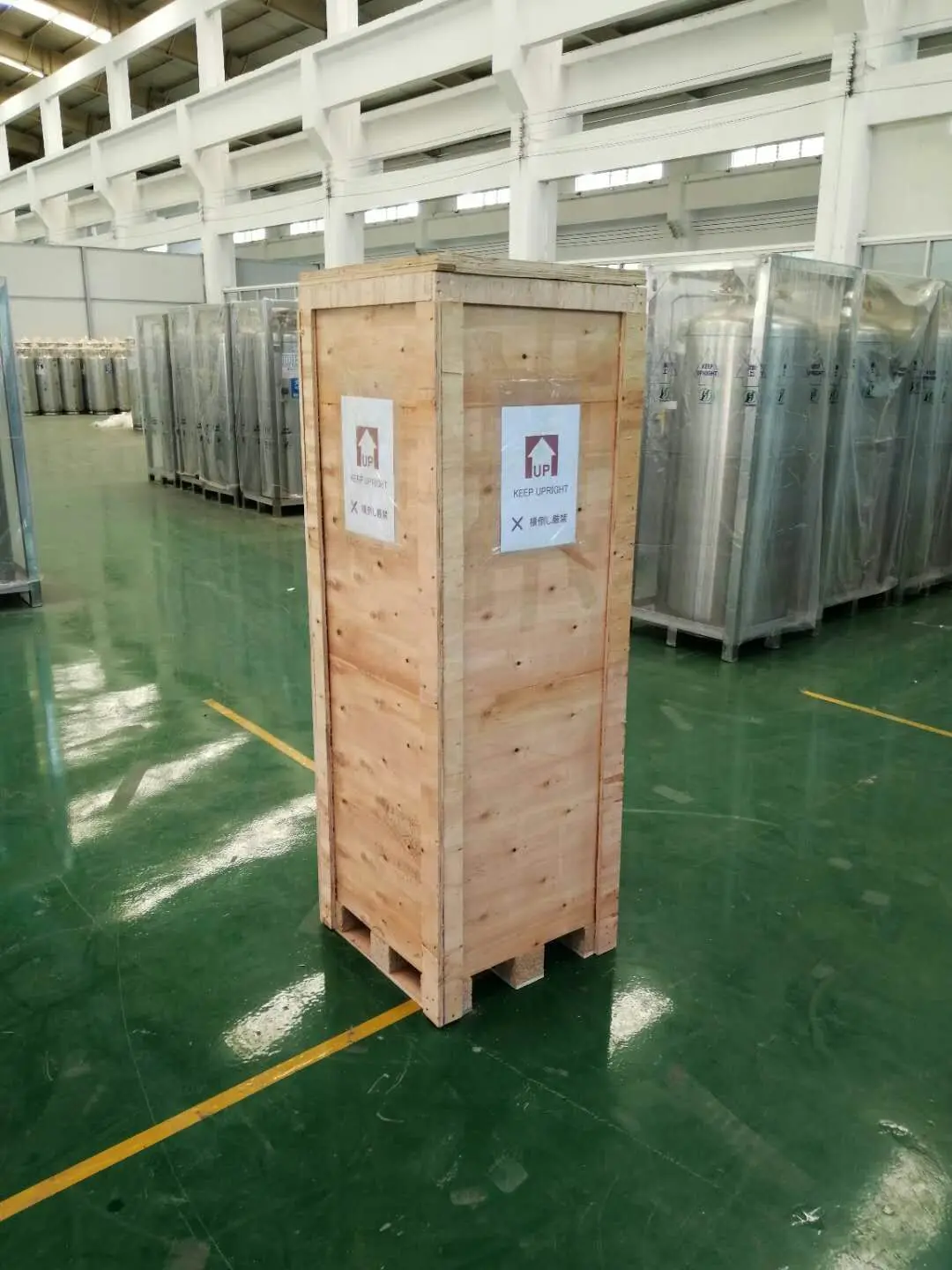

2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.
2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.
