Машина для распыления цементного раствора машина с смесителем разбрызгиватель цемента аналогичный Putzmeister

Описание и отзывы

Характеристики

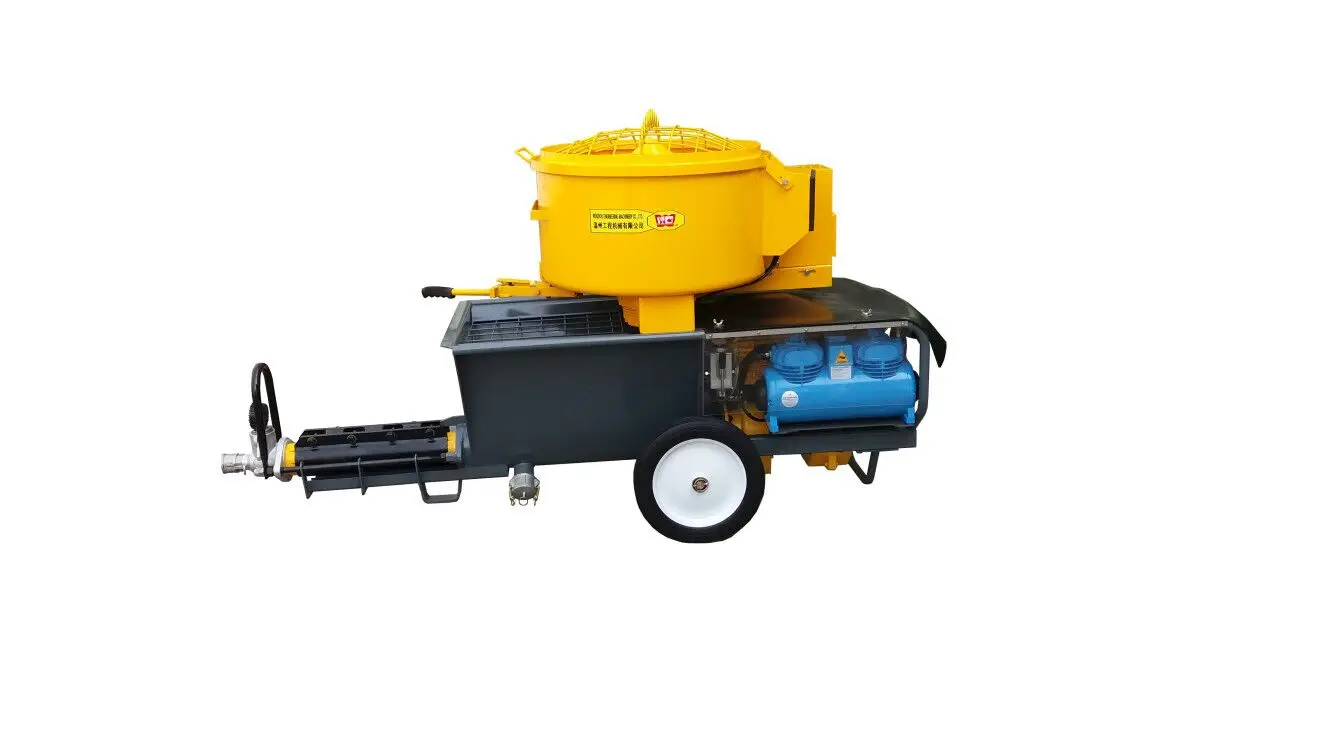

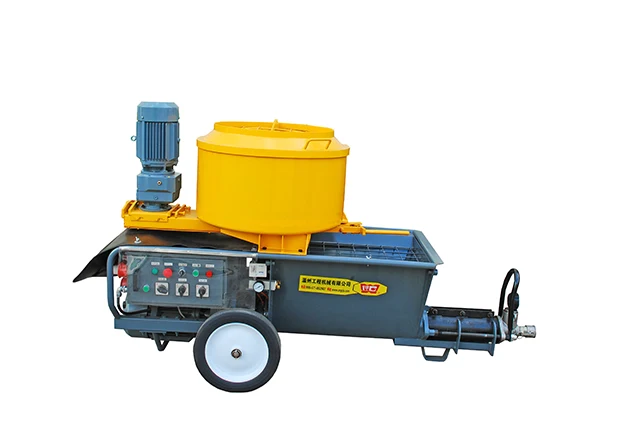

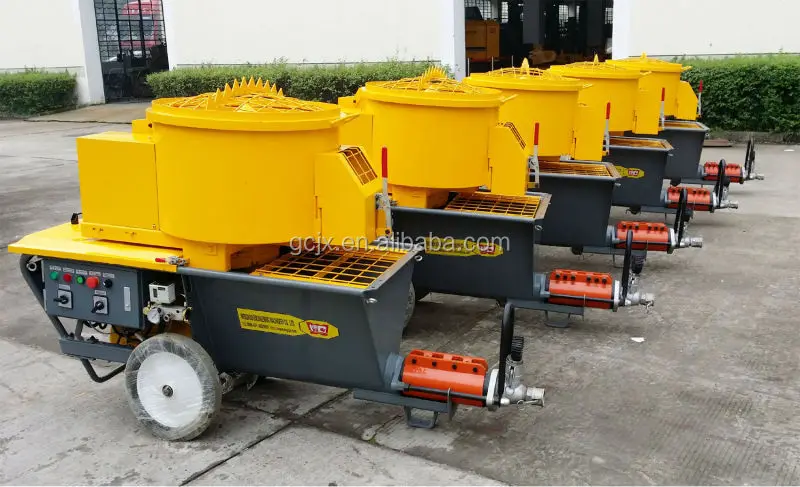

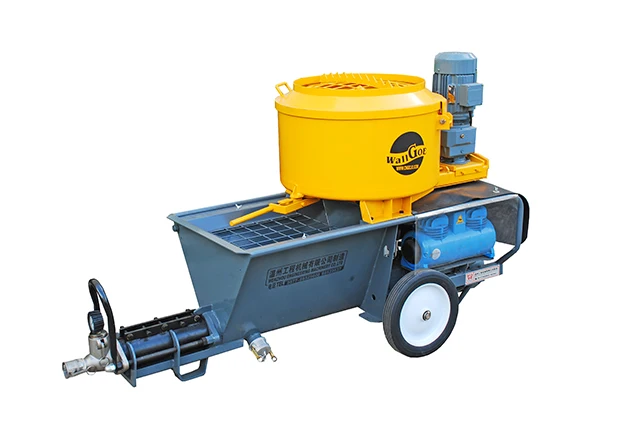

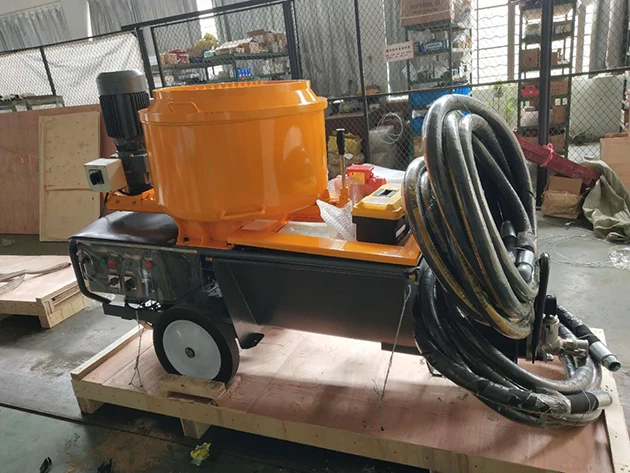

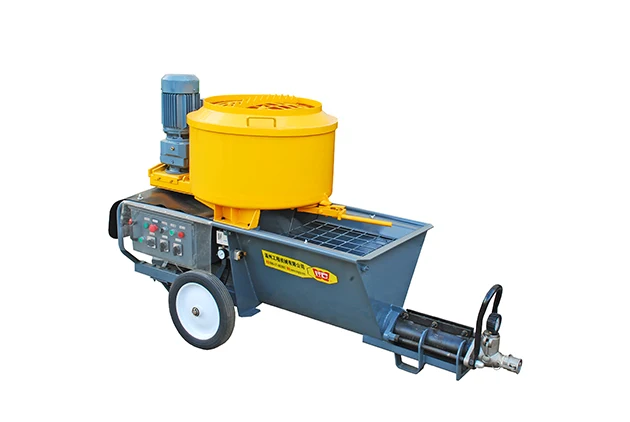

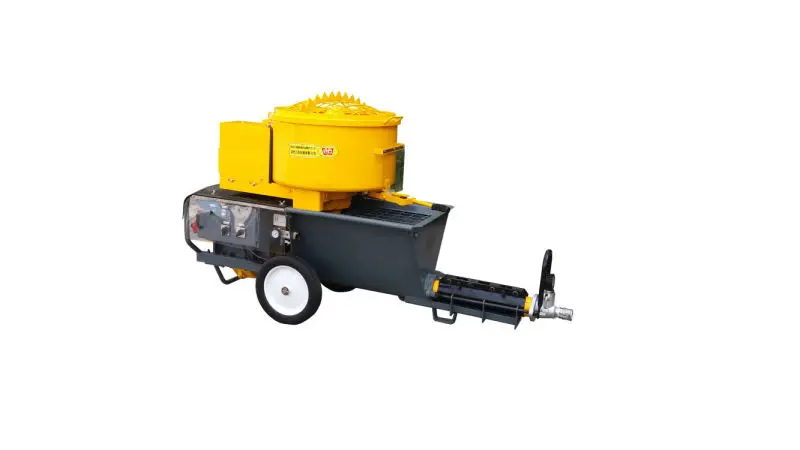

                                               JP70-L   Fireproofing spray machine



1. JP70-L is multi-functional large output plastering machine introduced Putzmeister technology. And worm pump same as Imter step 120.



2. It has the combined functions of mixing, pumping, bonding and plastering includes mortar, fireproofing, thermal insluation etc.





3. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.



4. Pumpable max grain size is 8mm, max pumping height is 30m, max pumping distance is 60m.





JP70-L plastering machine feature:

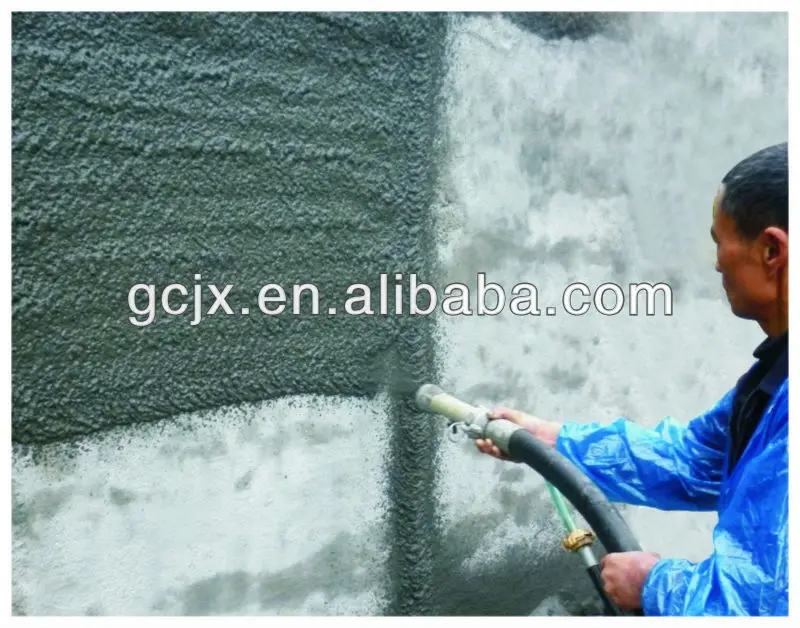

For spraying or pumping traditional mortar and pre-mixed plasters, fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds and for reinforcing injections at controlled pressure.





Technical parameters of JP70-L Mortar plastering machine



Model	—	JP70-L
Supply power	—	400V 50Hz
Motor power	kw	3.7/4.4
Compressor power	kw	2.2
Maximum grain size	mm	8
Output	L/min	50
Delivery pressure	bar	30
Horizontal delivery distance	m	60
Vertical delivery distance	m	30
Mixer power	kw	1.1
Mixer volume	l	120
Hopper volume	l	120
Net weight	kg	395
Dimension (L×W×H)	mm	2040×820×1270

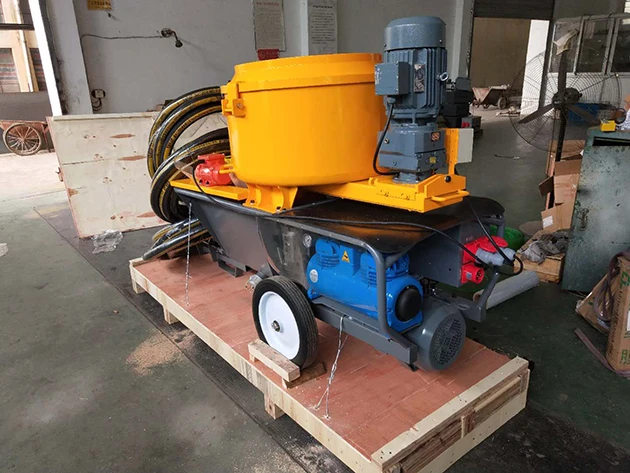

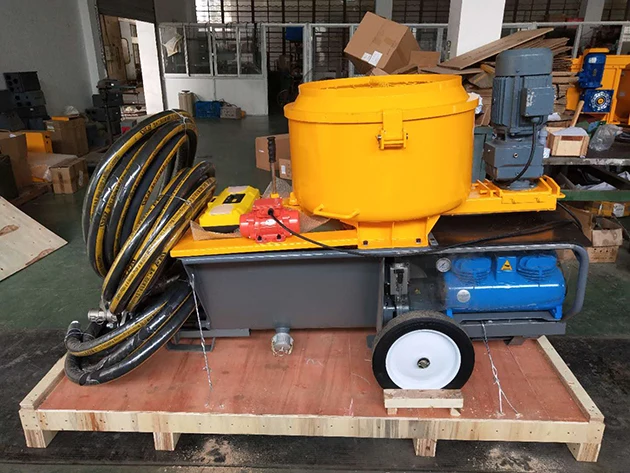

1 JP70-L is adpoted Itlian Imer technology which can be devides into two parts including plaster pump and mixer. And we design the vibrating grid for selecting the over large grain size material.









 2. And it can pump the larger grain size with 8mm. We adpot air compressor and motor powered from German.









3. JP70-L Plastering machine speed is very fast which achieve more than 1000-1200m2 in 7hours.

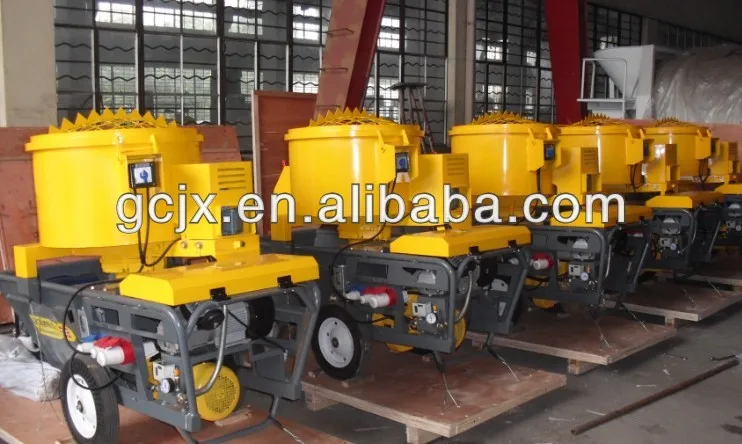

4. JP70-L always export 4sets into 40HQ for one time to Kuwait, KSA, UAE, Malaysia, Philippines etc.

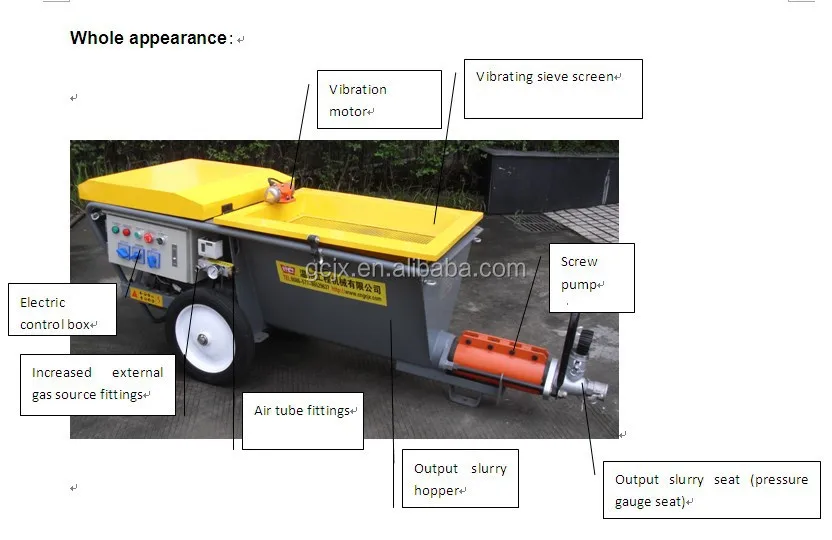

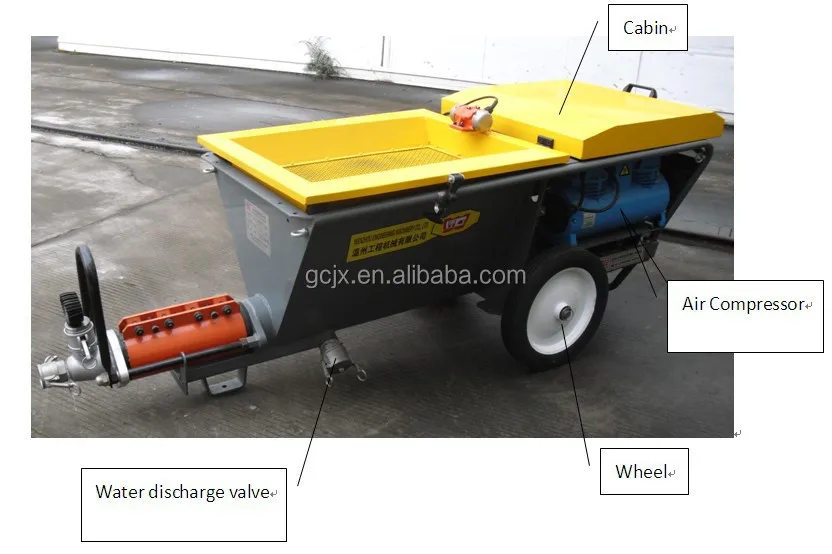

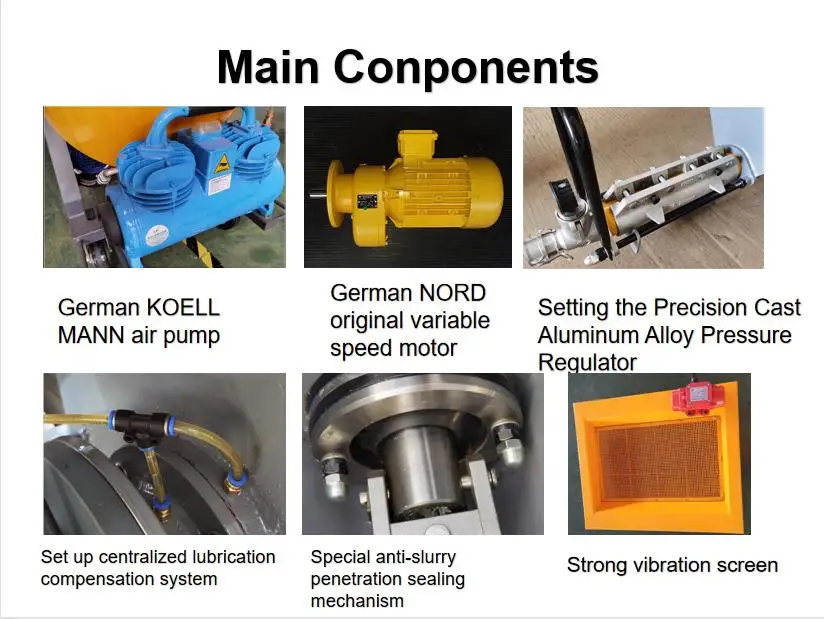

1. Output volume adjustable (lower/high speed)

2. The machine is equipped with vibration screen.

3. The pump sprayer has remote control function.

4. The cement mortar spray pump use Germany made durable screw pump (rotor / stator made in Germany).

5. Control box: the core of the machine, to drive the motor, air & water pump.

6. Safety cover & quick unpack gear & material hopper: the material can be unpack

by the gear on the net cover, and be even poured into the tank.

7. Quick snap: easy to fix the material hopper and the cart.

8. 5.5KW motor & retarder: to drive the twister for material transportation.

9. Stirrer tank: quick and even mixing material.

10. Water inlet: lead water into the machine from outside.

11. Spinning Form Twister & Screw Pump: the material will be transport to the outlet by

the screw pump after the quick and even mixing by twister.

12. Pressure controller: to adjust the pressure of the mortar pipe to avoid the suddenness

13. Mortar pipe connector: very easy to connect with the machine.
