Сельскохозяйственные КОЛЕСНЫЕ ТРАКТОРЫ lovol 504 50hp 4x4wd с небольшим
- Категории: Agricultural Machinery & Equipment >>>
- Поставщик: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
LOVOL Tractor Authorized Dealer

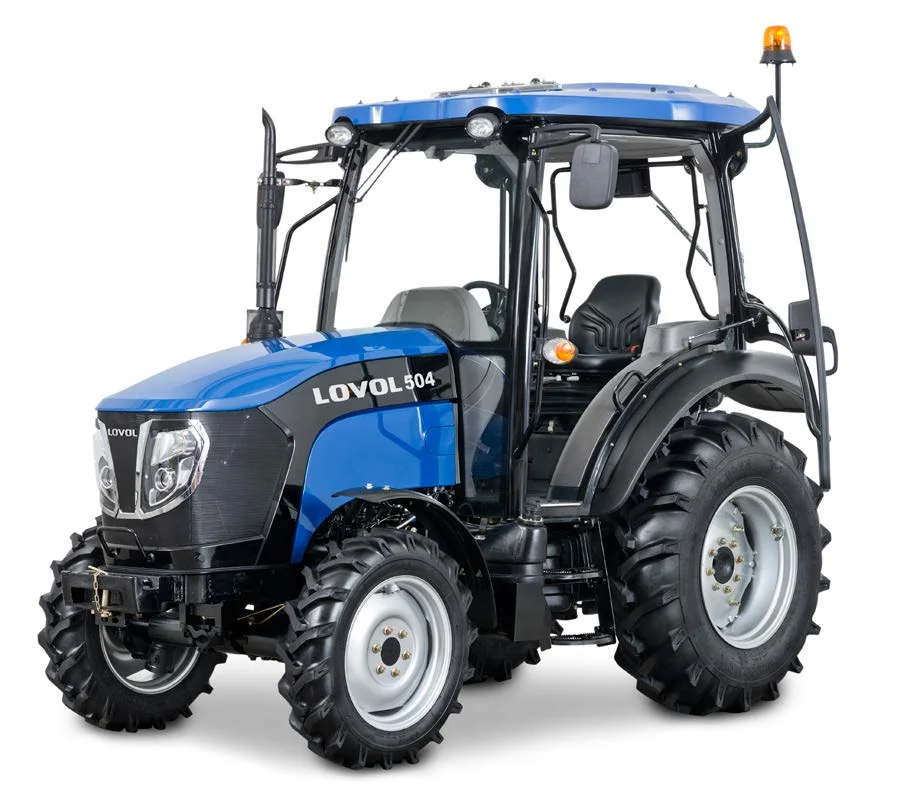

Lovol’s European Technical Team . With a brand new cab structure, air conditioner + sunroof window, first-class tightness +
manipulation space, interior trim, luxury adjustable seat, adjustable steering wheel, brand new hood assembly, the whole cab looks more fashionable and energetic, with its safety improved.
The new 4-cylinder in-line diesel engine is used for M Series 40-75hp tractor, which has a power range of 35-70hp; the ultralow
fuel consumption (less than 245g/kwh) and extra-large torque output (155-245n.m) will make your work more efficient and
energy-saving. In addition, it has passed the EPA and Euro III Emission Standards certification.
Multi-functional operation capacity
A Field operations
B Construction operations
C Transportation operation
Technical Specifications | ||
model | LOVOL504 | |
Traction rating | 0.9 | |
wheeled | 4x4 | |
Structure weight, kg | 2525 | |
Length unit with front counterweight and rear attachment, mm | 4136 | |
width, mm | 1870 | |
Cab height, mm | 2657 | |
Wheel seat, mm | 1990 | |
Ground clearance (mm) | 310 | |
Maximum pressure, MPa | 18 | |
Pump displacement, l/min | 32 | |
Type of suspension system | Rear three-point type 2 | |
Speed. r/min | 540/1000 | |
steering | hydraulic | |
brake | Disc type. Mechanical type. Working in oil | |
front wheel | 8.3-20 (31x9.5-16) | |
rear wheel | 12.4-28 (13-20) | |

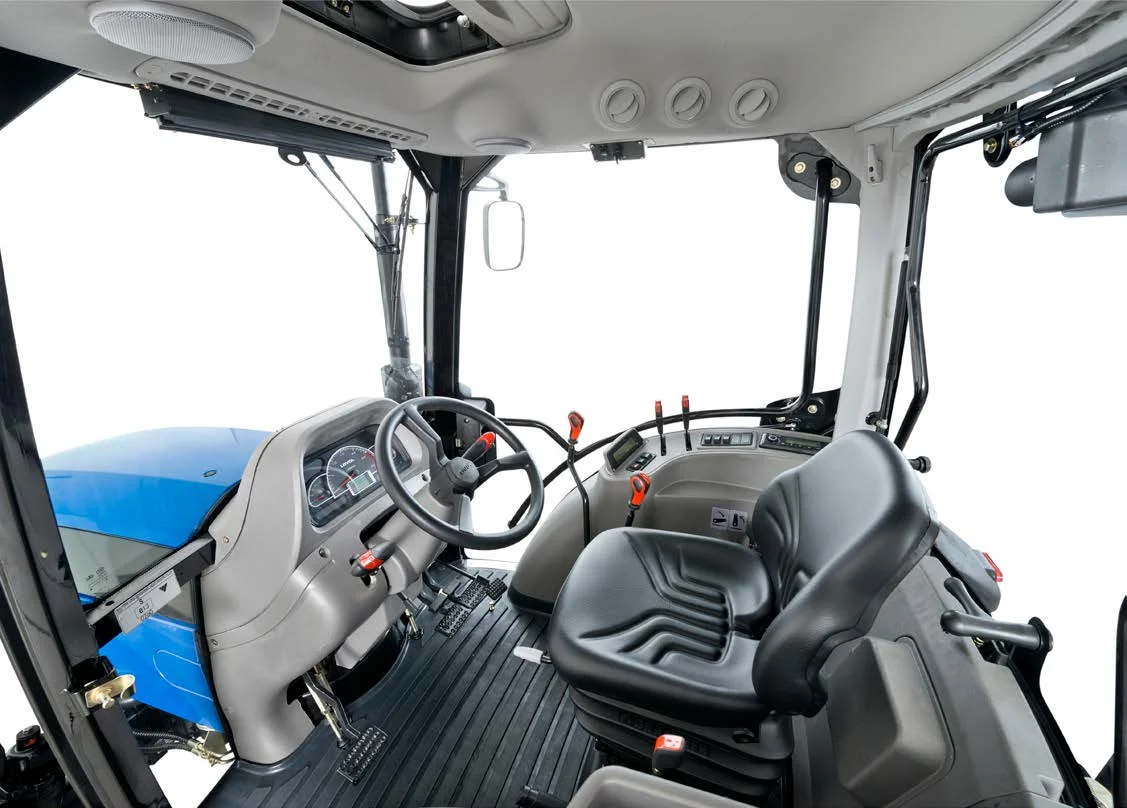

Optimized ergonomic design, reasonable control distributionand color division, as well as right-side manipulation; suspended accelerator and clutch pedal; manual accelerator and shuttle shift mechanism below the steering wheel; and steering gear can be adjusted back and forth.
The air inlet and outlet pipes are concealed behind the A-pillar of cab, providing you with better vision.
The larger oil tank will provide you with a longer operation time.
The air inlet and outlet pipes are concealed behind the A-pillar of cab, providing you with better vision.
The larger oil tank will provide you with a longer operation time.
The cylinder is enhanced and connected with the gearbox, when they are to bear the weight of the complete tractor, the
high-strength and high-rigidness cylinder will help you to calmly handle the heavy operations or bad ground working conditions.
high-strength and high-rigidness cylinder will help you to calmly handle the heavy operations or bad ground working conditions.
Direct injection technology is adopted in cylinder to realize full combustion. The engine does more work with unit fuel
consumption.
consumption.
Front axle with good manipulating performance and high reliability
1. Step-less adjustable limit bolt
The steering angle is limited, which not only ensures the steering safety, but also provides more adjustment options for users on the steering radius.
The steering angle is limited, which not only ensures the steering safety, but also provides more adjustment options for users on the steering radius.
Rear axle with high reliability and large driving force
This rear axle with planetary reduction mechanism, differential mechanism and wet brake is used on the rear drive axle of M Series 40-75hp products, which possesses high durability, stability and reliability and is almost free of maintenance under normal conditions.
One -stop Purchasing Platform
Geetien Agricultural Machinery
is committed to creating a first -class professional agricultural machinery procurement platform
and providing smart agricultural solutions.

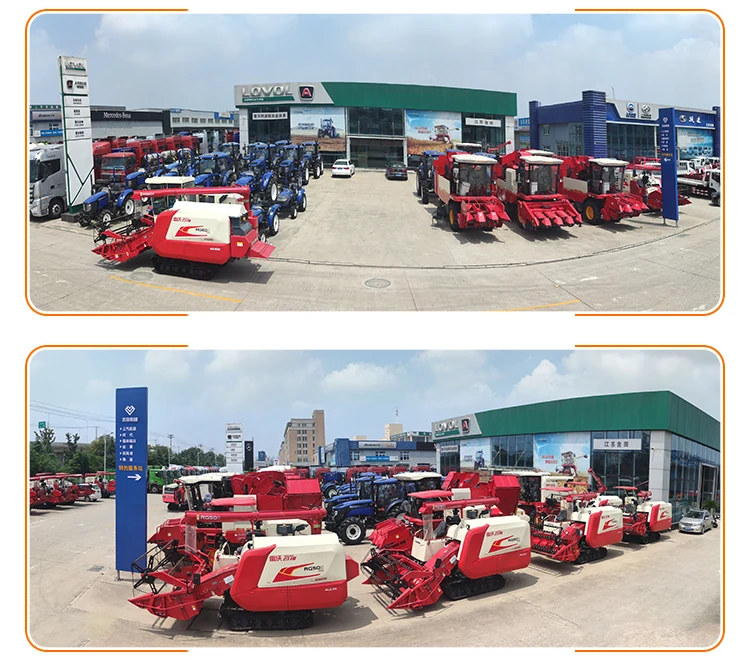

Company Profile
Equipped with a number of process equipment to ensure the assembly quality of the whole machine
50 meters long gearbox, rear axle load line
The 120-meter final assembly line ensures the production capacity and meets the production needs in peak season.
3000 square meters parts and accessories area
Full range of tractor accessoriesSpecializing in the production of tractor steel rims, large, medium and super large tractor steel rims, and automobile wheels, with a complete variety.
Excellent tire supplier, meeting various models and requirements
Certifications
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
