95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой
95% керамическая пластина из оксида алюминия высокой

95% керамическая пластина из оксида алюминия высокой


Поделиться:

Цена:0,20 $ - 0,50 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description








Specification


Name
99% Alumina Ceramic
95% Alumina Ceramic
zirconia ceramic
steatite ceramic
Main Material
AL203≥99%
AL203≥95%
ZR02≥94%
MGOSIO2
Physical Properties
Density
g/m³
3.85
3.6
5.9
2.8
Water Absorption
%
0
0
0
0
Sintering Temperature
℃
1700
1670
1600
1350
Material Properties
Hardness
HV
1700
1600
1400
800
Flexural Strength
Kgf/m㎡
3500
2900
11000
900
compressive Strength
Kgf/m㎡
30000
25000
25000
4000
Thermodynamic Properties
Max Temperature
℃
1600
1450
1300
1100
Coefficient of thermal expansion(0-1000℃）
℃
8
7.8
10
6
Heat shock resistance
T(℃)
200
220
350
200
Thermal conductivity
W/m.k
31
22
3
2.5
Electrical Properties
Volume resistivity
Ω.CM
＞1012
＞1012
＞1012
＞1012
Insulation breaking strength
KT/M
18
16
15
10
Dielectric constant
1MHZ(E)
9.2-10.5
9.0-10
12.5
5.8

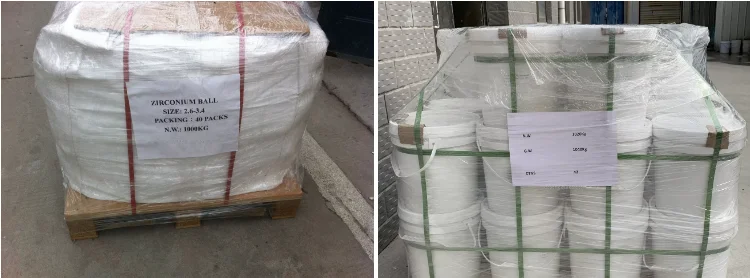

Packing & Delivery

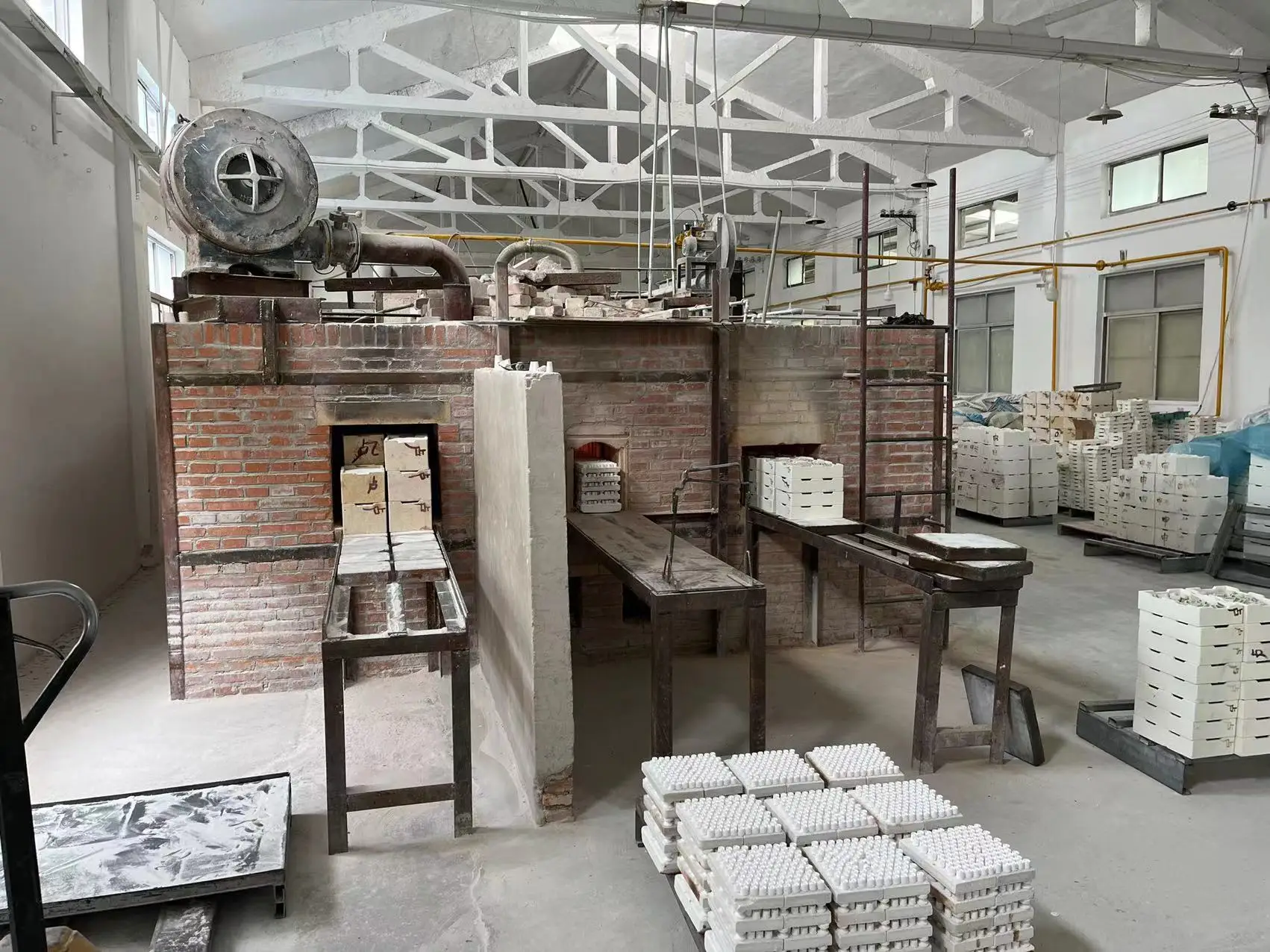

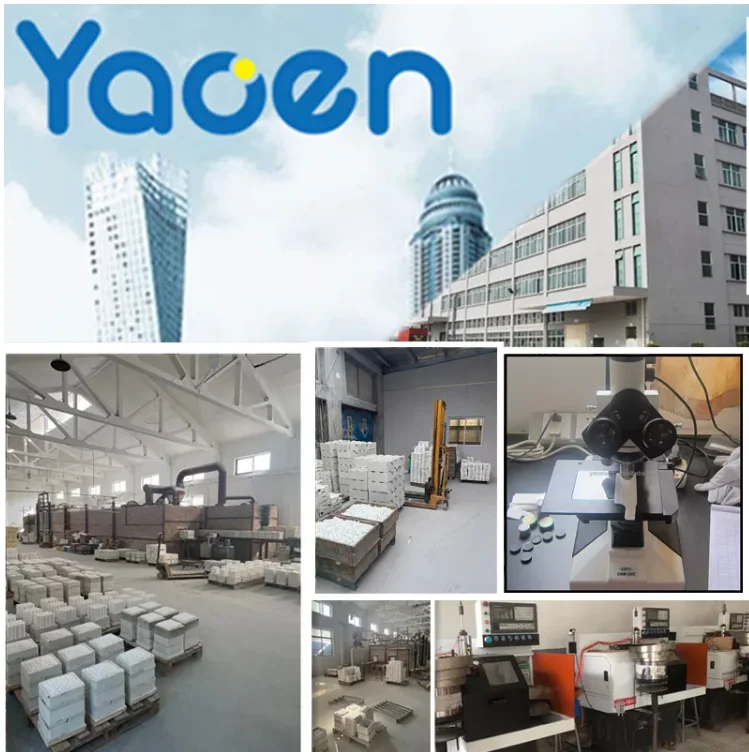

Company Profile




Cerficate received






FAQ


Title goes here.
1. How to make order
Please send us your drwaing about the size of the product though the alibaba contact link or our email address carl@wxyaoen.com.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.
2. How can you get samples?
We can supply free samples if we have them in stock.
If not, you may need to pay for the mold cost after we get the needed size and we can offer you some free samples
Please take note that the courier fee should be at destination.
3.What’s the lead-time for samples and batch orders?
It usually takes 15 days for supplying samples, inlcuding mold creation time. It takes around 25days for batch orders.
4.Can I visit you?
Please contact us to arrange an appointment, we are always welcome our customers to visit us.
