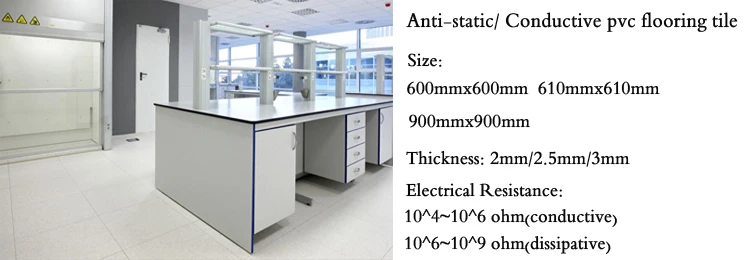

Vinyl artistic flooring server room raised esd floor
Product Description
Features:
1. Homogeneous contains carbon, conductive tile, anti-static;
2. Flexible, comfortable, relieve fatigue;
3. Good dimensional stability, not affected by temperature, humidity;
4. Anti-bacterial, anti-acid, anti-moth, anti-mildew;
5. Slip resistance.
ESD flooring tiles is suitable for the cleaning and anti-static space of the programmable computer room,computer room,power dispatching room and purification workshop of telecommunication,electronic power,microelectronics and medicine industries.
| TECHNICAL DATA | ||
| Item | Standard | Result |
| THICKNESS | EN426 | 2.0mm,2.5mm,3.0mm |
| SIZE | EN426 | 500x500mm,610x610mm,600x600mm |
| WEIGHT | EN430 | 3.8Kg/2.0mm,4.8Kg/2.5mm,5.8Kg/3.0mm |
| ELECTRIC PROPERTIES | DIN51953 ASTM F-150 OR NFPA99 | conductive tile 10^4~10^6 ohm |
| DISSIPATIVE 10^6~10^9 ohm | ||
| DECAY TIME | SJ/T10694-2006(±1000V±100V≤2s) | EQUAL 0.4S |
| CHARGE VOLTAGE | SJ/T10694-2006(ⅠVⅠ<100V) | EQUAL 70 |
| FIRE RESISTANCE | DIN4102 | B1 |
| COMBUSTION PROPERTIES | SJ/T11236-2001(<10S,reach FV-0) | EQUAL 0.35IFV-0 |
| AMOUNT OF ANTI WEAR | SJ/T11236-2001(≤0.020g/cm 21000r) | EQUAL0.014 |
| ANTI-WEAR PROPERTIES | EN660pt2 | ITEN-T<2.0mm3 |
| WHEEL PRESURE | EN425 | No influence |
| RESIDUAL CONAVITY | EN433/DIN51955 | 0.03mm(2.0mm) |
| 0.035mm(2.5mm) | ||
| 0.04mm(3.0mm) | ||
| DIMENTIONAL STABILITY | EN 434 | ≤0.2% |
| COLOR FASTNESS | ISO105BO2 | At least 6 |
| RESISTANCE TO CHEMICALS | DIN423/DIN51958 | Good |
| IMPACT SOUND ABSORPTION | VLI,ISO104,ISO717 | Approx 2dB |
l Electronics, microelectronics
l Telecommunications environment
l Raised Access Floor
l Healthy Equipment
l Clean Room
l Computer Room
l Electronic Equipment
Detail show
Certifications
Packaging & Shipping

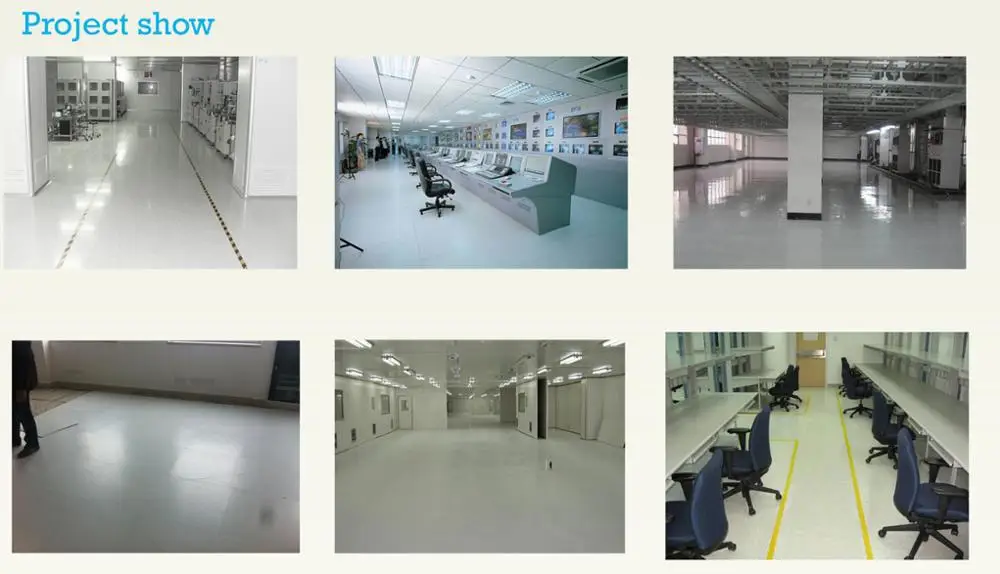

Project-Sport

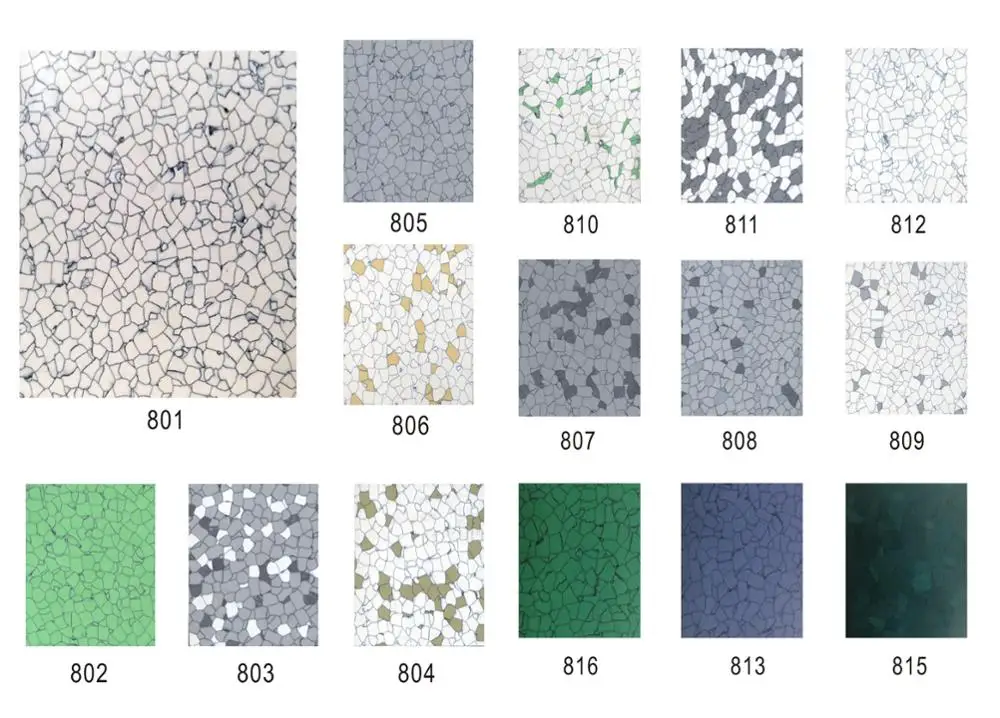

Available color
Our Services
1. Free samples
2. Fast delivery
3. High quality and warranty
4. Best pre-sales and after-sales service
5. We have a very professional and rich experienced installer team
6. We may offer the accessories and even install tools
Similar ESD products

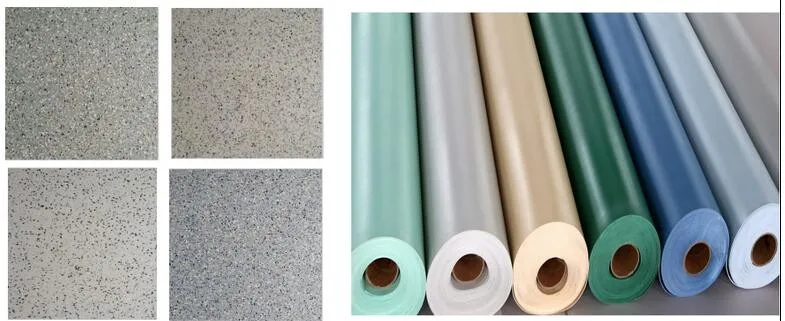

ESD Roll
