  • Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со
Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со

Используемый китайский производитель дизельный Бетономешалка Насос с насосной машиной портативный трейлер бетононасос со


Поделиться:

Цена:2 689 084,96 ₽ - 3 104 279,68 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики








































































































Item




Unit




HBTS30-10-78R




Concrete delivery capacity




m3/h




30




Maximum outlet pressure




MPa




10




Maximum horizontal delivery distance




m




500




Maximum vertical delivery distance




m




150




Maximum aggregate size




mm




≤30




Feeding height




mm




1400




The diameter of pipeline




mm




Φ125




Cylinder




number




2




Oil cylinder bore × stroke




mm




Φ110×1000




Material cylinder bore × stroke




mm




Φ180×1000




The maximum pressure

of the PUMPING system




MPa




23




Hydraulic oil tank




L




200




Main motor power




kW




78




Dimensions (L × W × H)




mm




5800*2150*2600mm




Weight




kg




5000










1.Power system portable trailer concrete pump with mixer
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control portable trailer concrete pump with mixer
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system portable trailer concrete pump with mixer
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the
system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are
guaranteed.
4.Pumping system portable trailer concrete pump with mixer
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of
the condition.
5.Lubrication System portable trailer concrete pump with mixer
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which
can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee
the system reliability.
6.Cooling System portable trailer concrete pump with mixer
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic
system works at normal status.

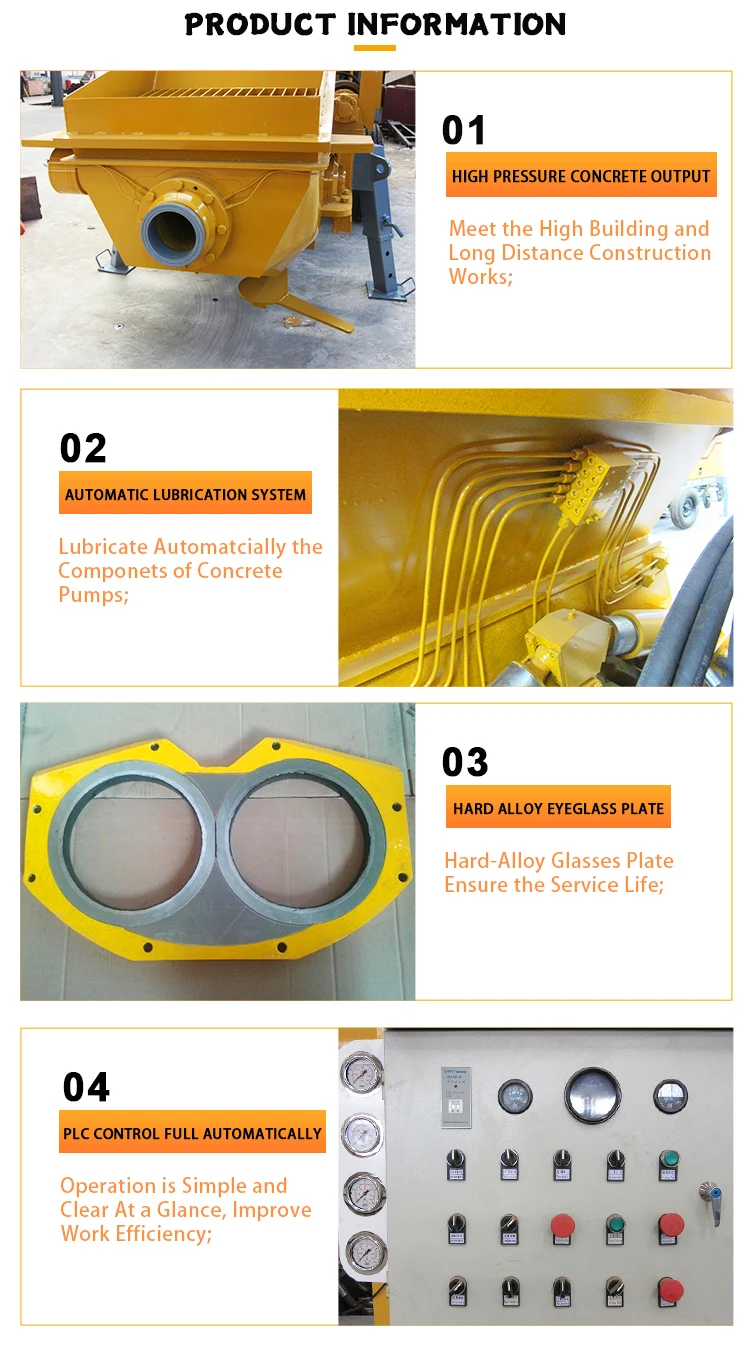

Product information

Product information


























Company information

Company information









    Our Company is a professional large-scale supplier of many types of heavy construction machinery including CRANE, DOZER, GRADER, LOADER, ROAD ROLLER, FOLKLIFT and other related products. Our products are maintained in a good condition. But we give a reasonable price. We are dedicated to promoting cooperation with each buyer and customers, so as to achieve good and long-term business relationship. We promise to provide our buyer and customers with high quality and satisfying machines.


   Besides, we hold a regular business license to ensure that every customer who comes to negotiate is assured, reassured, and satisfied with our machines.





   Your reliable business partner for all used machin20221019090649





















FAQ

FAQ






1. What's the warranty time ?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.

2 . what's your payment term ?

We accept T / T ( 30 % down payment and balance before shipping ) and L / C mostly , But if you prefer other payment terms please contact us for further information.

3 . How long is your delivery time ?

Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

4 . Can we paint our label on your product ?

Of course! OEM and ODM are acceptable, please send us your logo or brand, and we'll paint for you.
