Китайский сельскохозяйственный гусеничный экскаватор 2 тонны маленький
- Категории: Excavators >>>
- Поставщик: Chenggang,Machinery,Laizhou,Co.,Ltd.Chenggang,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

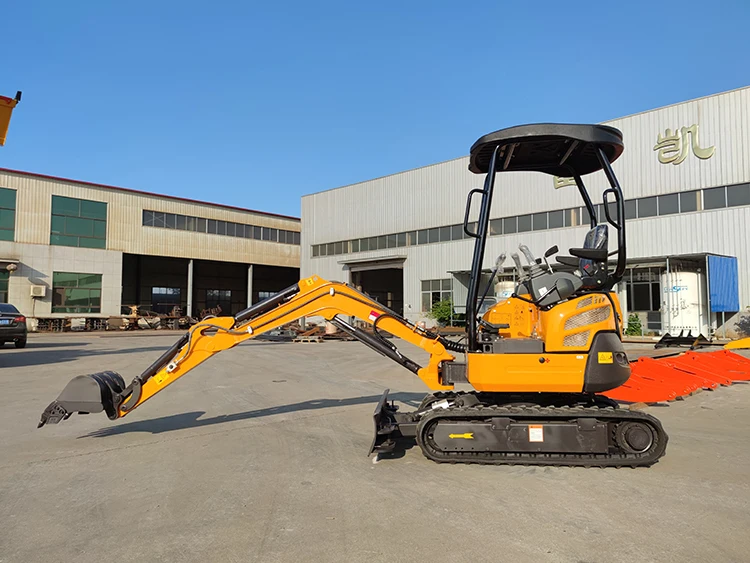

Excavator China farm agricultural crawler 2 ton mini small digger price
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING
UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING
UNDERCARRIAGE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item | Data |
Power | 10.3KW |
Bucket capacity | 0.05 M3 |
Operating weight | 2Ton |
Engine | Yanmar (3TNV70-S) |
Diesel tank capacity | 19 L |
Bore stroke | three cylinder, water cool |
Engine displacement | 8540ml |
Max. torque | 500N.m |
Working pressure | 22MPa |
Overall dimension( LxWxH) | 3400x1040x2350mm |
Total length of track on land | 1590mm |
Platform ground clearance | 473 mm |
Platform back turning radius | 740 mm |
Bucket digging force | 13.5kn |
Arm digging force | 10.1kn |
Track height | Track height |
Max. Digging depth | 2150 mm |
Max. Vertical digging depth | 1740 mm |
Max. Digging height | 3275 mm |
Max. Vertical digging depth | 1740 mm |
Max. Digging height | 3275 mm |
Max. Dumping height | 2310 mm |
Max. Digging radius on ground | 3610 mm |
Min. Rotation radius | 1580 mm |
Max. Upgrade height of bulldozer blade | 275 mm |
Max. Digging depth of bulldozer blade | 180 mm |
