80 кг хорошая цена виброуплотнитель бензиновый трамбовщик
US $665.50-$726.00
Дизель электрическая ударная тромбовочный виброкаток один высокоскоростной мотоблок тональный
- Категории: Rammers >>>
- Поставщик: Shandong,Yuanchuan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Gasoline impact rammer technical specifications:
Gasoline Rammer Model HCR90
Type impact times: (600-700) times/minute jumping
Height: 400-500mm
Gasoline engine power: (4KW) 5.5Ps
Impact energy: 56N.m
Machine mass: 90Kg
Features:
The product has the characteristics of reasonable design, advanced structure, low noise, large tamping strength, flexible operation, safe use, wide adaptability, long service life, and high efficiency of one machine for multiple purposes. This machine adopts thickened insulating grease, and the thickened box is equipped with a large ramming plate.
Gasoline impact rammer is a compaction machine that compacts backfill in layers by impact and shock vibration. Gasoline impact rammer, also known as fire rammer, is used for the compaction and leveling of asphalt gravel, concrete and clay, especially for the construction of buildings, grounds, courtyards, roadbeds, bridge piles, trenches, fields, narrow sites and other environments. The rammer finds the trouble of finding the power cable and cannot work without the power source, especially overcomes the unsafe factors of the electric impact rammer's live operation on the human body, and can be competent for the construction tasks that large and medium-sized machinery cannot complete.
The working principle of gasoline impact rammer:
It is made according to the principle of a two-stroke internal combustion engine. There are upper and lower pistons in the cylinder. The upper piston is an internal combustion piston and the lower piston is a buffer piston. The lower part of the cylinder is provided with a rammer with an inclined bottom surface, so that the vertical axis of the cylinder is deflected forward. The upper piston rod protrudes from the through hole in the middle of the cylinder top cover, and the lower piston rod protrudes from the lower end face of the cylinder and is integrated with the rammer. The forward direction of the earth machine. Under the action of the explosive force of the combustible mixture, the fire rammer jumps off the ground forward and upward, and under the action of its own weight, it falls to the ground to ram the soil, and the rammer jumps and falls, and the fuselage moves forward step by step.
Gasoline rammer features and advantages:
1 stroke adjustable, can compact different soil and asphalt pavement.
2 The large closed air filter system is easy to clean and the engine is not easy to be damaged.
3 Special muffler hood reduces engine and floor noise to the operator.
4 Shock-absorbing guide handles reduce operator fatigue.
5 The bottom plate made of ductile iron has a longer service life.
6 Fully sealed, splash-type lubricating impact system to ensure reliable lubrication of parts.
Gasoline Rammer Model HCR90
Type impact times: (600-700) times/minute jumping
Height: 400-500mm
Gasoline engine power: (4KW) 5.5Ps
Impact energy: 56N.m
Machine mass: 90Kg
Features:
The product has the characteristics of reasonable design, advanced structure, low noise, large tamping strength, flexible operation, safe use, wide adaptability, long service life, and high efficiency of one machine for multiple purposes. This machine adopts thickened insulating grease, and the thickened box is equipped with a large ramming plate.
Gasoline impact rammer is a compaction machine that compacts backfill in layers by impact and shock vibration. Gasoline impact rammer, also known as fire rammer, is used for the compaction and leveling of asphalt gravel, concrete and clay, especially for the construction of buildings, grounds, courtyards, roadbeds, bridge piles, trenches, fields, narrow sites and other environments. The rammer finds the trouble of finding the power cable and cannot work without the power source, especially overcomes the unsafe factors of the electric impact rammer's live operation on the human body, and can be competent for the construction tasks that large and medium-sized machinery cannot complete.
The working principle of gasoline impact rammer:
It is made according to the principle of a two-stroke internal combustion engine. There are upper and lower pistons in the cylinder. The upper piston is an internal combustion piston and the lower piston is a buffer piston. The lower part of the cylinder is provided with a rammer with an inclined bottom surface, so that the vertical axis of the cylinder is deflected forward. The upper piston rod protrudes from the through hole in the middle of the cylinder top cover, and the lower piston rod protrudes from the lower end face of the cylinder and is integrated with the rammer. The forward direction of the earth machine. Under the action of the explosive force of the combustible mixture, the fire rammer jumps off the ground forward and upward, and under the action of its own weight, it falls to the ground to ram the soil, and the rammer jumps and falls, and the fuselage moves forward step by step.
Gasoline rammer features and advantages:
1 stroke adjustable, can compact different soil and asphalt pavement.
2 The large closed air filter system is easy to clean and the engine is not easy to be damaged.
3 Special muffler hood reduces engine and floor noise to the operator.
4 Shock-absorbing guide handles reduce operator fatigue.
5 The bottom plate made of ductile iron has a longer service life.
6 Fully sealed, splash-type lubricating impact system to ensure reliable lubrication of parts.
Specification
item | value |
Applicable Industries | Farms, Home Use, Retail, Construction works , Energy & Mining |
Showroom Location | None |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Motor |
Condition | New |
Place of Origin | shandong |
Brand Name | yuanchuan |
Voltage | |
Power | 4KW |
Weight | 80kg |
Dimension(L*W*H) | 1000*350*788 |
Warranty | 1 Year |
UNIQUE SELLING POINT | Low Maintenance Cost |
Type of impact | (600-700) jumps/min |
high | 400-500mm |
Gasoline engine power | (4KW)5.5Ps |
impact energy | 56N.m |

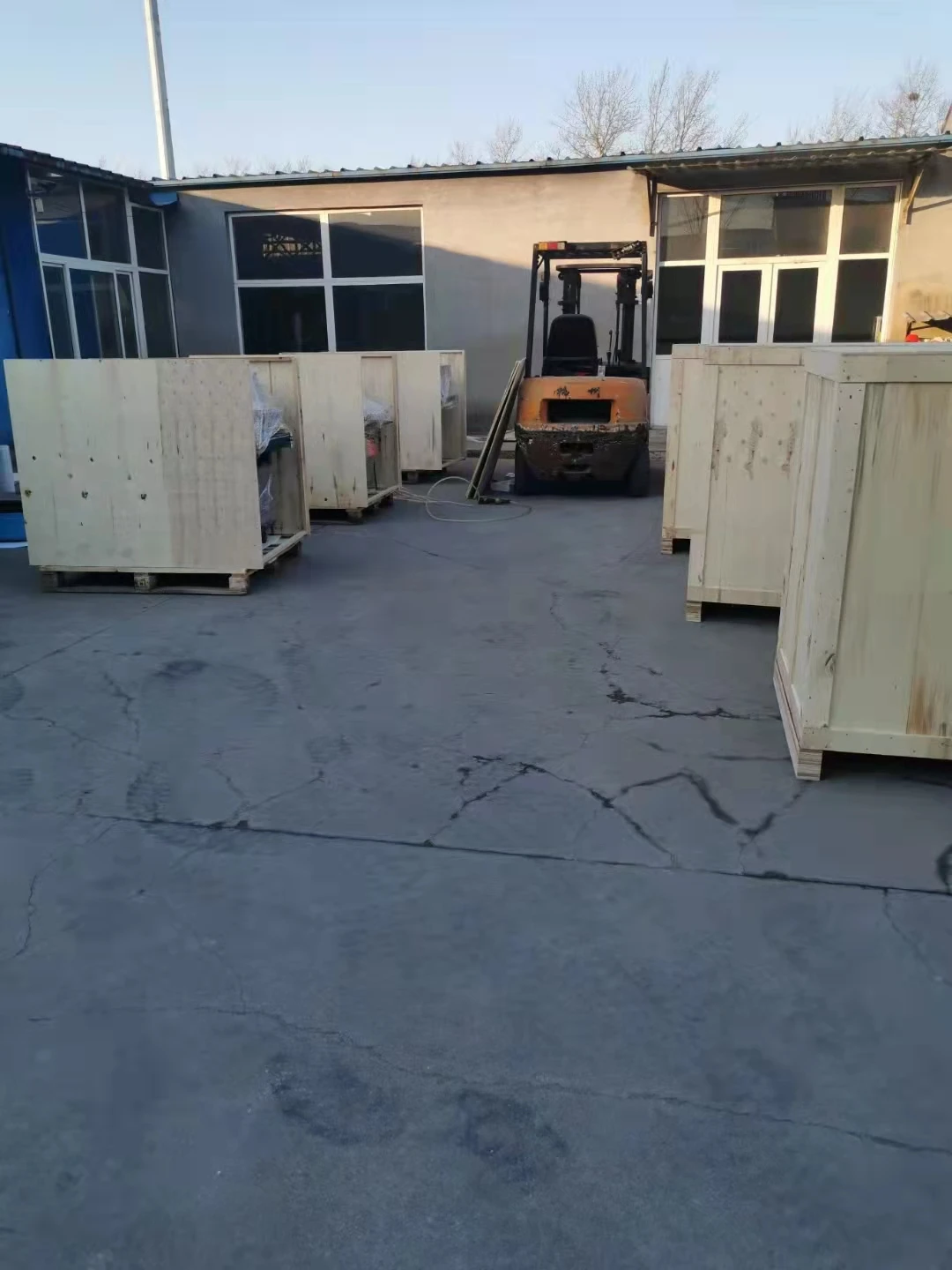

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shandong Yuanchuan Machinery Co., Ltd. is a diversified company that focuses on industrial manufacturing and involves the development, production, manufacturing and trade of mechanical equipment. The company mainly supplies engineering machinery, construction machinery, profile cold processing machinery, forging, shearing, forming, riveting, cutting, non-standard automation design and manufacturing, equipment major modification and other businesses. The company focuses on advanced manufacturing, takes "unity, truth-seeking, pioneering and enterprising" as its corporate philosophy to cultivate a high-quality workforce, and relies on the advantages of existing high-tech industries and talents, and adheres to the business philosophy of "survival by quality and excellence". High-quality products, star-level services, and strong R&D forces promote the realization of the company's aspirations of "working together, striving for governance, and contributing to society". Looking forward to your call, we will serve you enthusiastically!
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Africa(12.00%),Northern Europe(12.00%),South America(10.00%),Southeast Asia(10.00%),North America(10.00%),Domestic Market(8.00%),South Asia(8.00%),Eastern Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Oceania(4.00%),Mid East(3.00%),Western Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Engineering & Construction Machinery,Metal forming equipment,agricultural machinery,Garden machinery,construction machinery
4. why should you buy from us not from other suppliers?
The company is mainly in industrial processing and manufacturing. It is an entity factory integrating R & D, production and sales. It has 12 years of design and R & D experience and currently has 15 R & D engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2019,sell to Africa(12.00%),Northern Europe(12.00%),South America(10.00%),Southeast Asia(10.00%),North America(10.00%),Domestic Market(8.00%),South Asia(8.00%),Eastern Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Oceania(4.00%),Mid East(3.00%),Western Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Engineering & Construction Machinery,Metal forming equipment,agricultural machinery,Garden machinery,construction machinery
4. why should you buy from us not from other suppliers?
The company is mainly in industrial processing and manufacturing. It is an entity factory integrating R & D, production and sales. It has 12 years of design and R & D experience and currently has 15 R & D engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
