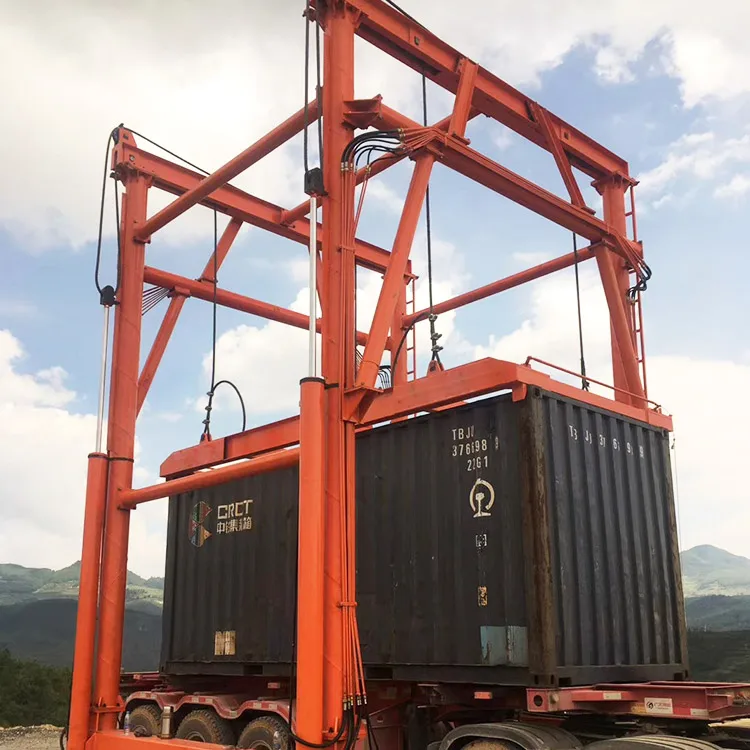

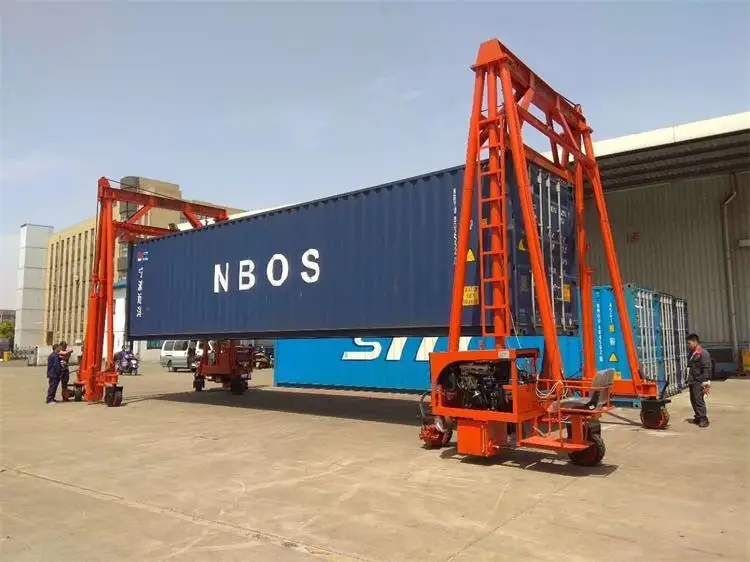

40ft container Lifting Mobile Gantry Crane for Station
Mobile container crane is a container-specific crane which is specially produced for small and medium-sized container yards and enterprise container shipments with low operating cost. The main functions are: Loading and unloading the container from the truck on the work site, the operator can continuously load the container. At the same time, using containers as transit will greatly shorten the waiting time of container trucks for loading, can improve the efficiency of container trucks by 12 to 15 times.
The container crane is powered by a 490BPG diesel engine and features low operating noise and low vehicle vibration. The main body consists of steel frame, steel wire rope, hydraulic motor of hydraulic transmission system, gear pump, steering cylinder, lifting cylinder, double-acting balance valve and walking solid tire. The lifting mechanism adopts four cylinders with the diameter of 180 mm, which have a large lifting capacity, a small system pressure, a stable and safe lifting and lowering, and high loading and unloading efficiency. It adopts two-wheel drive, four-wheel steering, and a large rotation angle of up to 110 degrees. It can realize steering and translation at any angle, and the turning radius is small. The control system consists of a complete set of valve body and operating rod, which is simple, convenient and flexible to operate.
The container crane is required to be used on a flat, hardened, pit-free site. It is suitable for the loading and unloading of containers in logistics companies, warehouses, terminals, container yards, freight yards, etc.
It is a high-quality, low-cost, convenient and practical container lifting equipment.
Product Paramenters
Item | Technical parameter | ||
Rated load | 40T | ||
Max. lifting height | 2360mm | ||
Max. lifting speed | 0.04m/s | ||
Self weight | 9.5T | ||
Model of generator set | KM385QB KM485QB | ||
Generator power/Rated rotate speed | 26/3300kw/r/min 35/3300kw/r/min | ||
Max. torque/Rotate speed | 85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min] | ||
Max. running speed | 4km/h | ||
Lifting hydraulic cylinder dia. | 180mm | ||
Lift system pressure | 16Mpa | ||
Steering hydraulic cylinder dia. | 75mm | ||
steering system pressure | 15Mpa | ||
Torque of hydraulic motor | 949Nm | ||
Hydraulic motor speed range | 6~400r/min | ||
Drive wheel dia. | 450mm | ||
Min. ground clearance | 80mm | ||
Outline dimension | Length | 6000mm | |
Width | 5800mm | ||
Height | 7500mm | ||
Application
Company Profile
Nybon Machinery is a leader in providing bridge cranes,gantry crane,port crane,ship cranes,electric winches,hydraulic
winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.Our company also welcome O E M and ODM orders.
winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.Our company also welcome O E M and ODM orders.
NYBON, JUST FOR YOUR TRUST!
Packaging & Shipping
FAQ
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What’s your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it’s very easy to buy all the world. But if there is any
difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock
catch, wire rope, fiber rope, etc.
A: 1 Set;
2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What’s your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it’s very easy to buy all the world. But if there is any
difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock
catch, wire rope, fiber rope, etc.
