Китайский 12-метровый Трехместный мини-автобус
US $7200-$14000
Общая нулевая эмиссия 18 т GVW 6000 мм колесная база 1200x2500x304/3170 батарея Lfp чистый Электрический автоматический городской автобус
- Категории: City Buses >>>
- Поставщик: Dongfeng,Huashen,Special,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT OVERVIEW

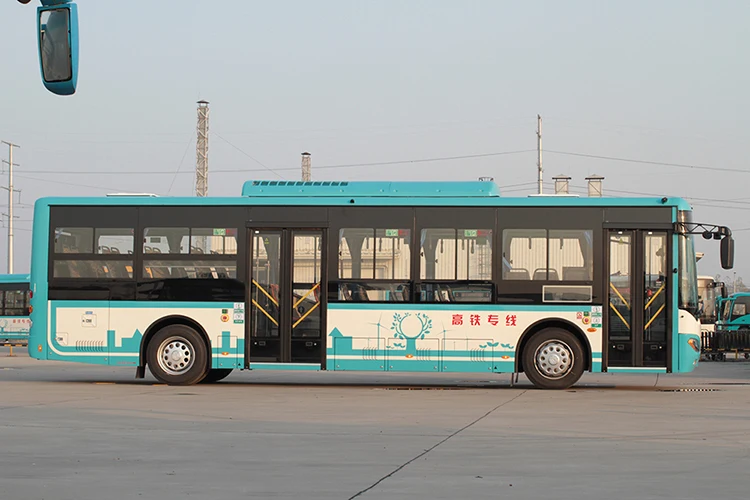

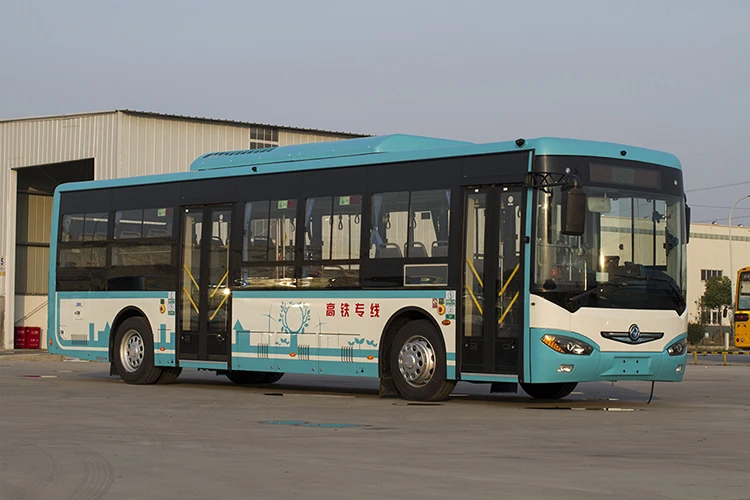

Total Zero Emission 18T GVW 6000mm Wheelbase 12000x2500x3040/3170mm Lfp Battery Pure Electric Automatic EV City Bus
PRODUCT SPECIFICATIONS
Dimension | L× W× H（mm） | 12000×2500×3040,3170 | |
Wheelbase（mm） | 6000 | ||
Tread F/R（mm） | 2054/1873 | ||
F/R overhang（mm） | 2680/3320 | ||
weight | curb weight（kg） | 12000 | |
G.V.W（kg） | 18000 | ||
seats/passengers | 78/10-43 | ||
performance | Max. speed（km/h） | 69 | |
Max. grade ability (%) | 17% | ||
Min. turning diameter(m) | 24 | ||
Approach/departure angle | 8/7° | ||
Drive range | 11.-1.25KWH/km(AC On); 0.9-0.1KWH/km(AC Off) | ||
front axle | dongfeng dana, 22.5inch disc brake, load capacity 7500kg with WABCO ABS | ||
Rear axle | dongfeng dana, disc brake, load capacity 13000kg with WABCO ABS | ||
Suspension | air suspension front 2 / rear 4 as optional | ||
Steering | Electro-hydraulic power steering | ||
Brake | Front disc/rear disc brake，duel-circuit air brake , Parking brake function on rear wheel | ||
tire | 295/80R22.5-18PR | ||
Drive motor | rated power/peak power（Kw） | 135/196 | |
rated torque/ peak torque（N.m） | 1520/2800 | ||
Motor controller | rated voltage（Vdc） | DC 576 | |
rated/peak capacity（kVA） | 147/213 | ||
power battery | battery brand and type | CATL LFP | |
battery pack power capacity（Ah） | 173 | ||
battery pack rated voltage（Vdc） | 608.58 | ||
total battery power capacity | 210.6 kWh | ||

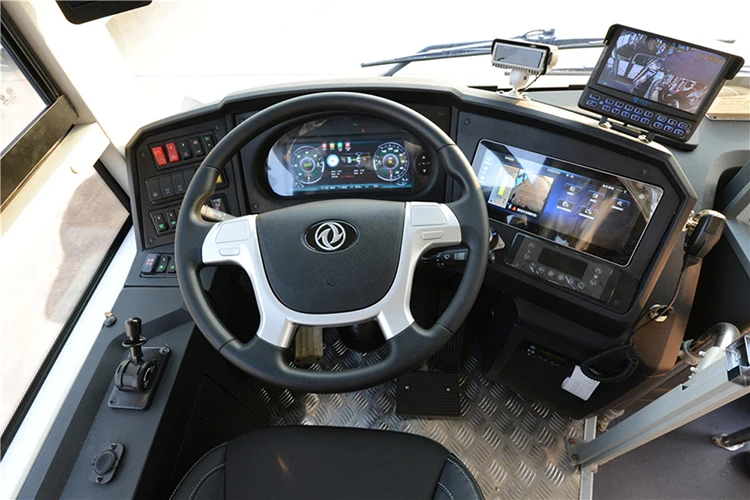

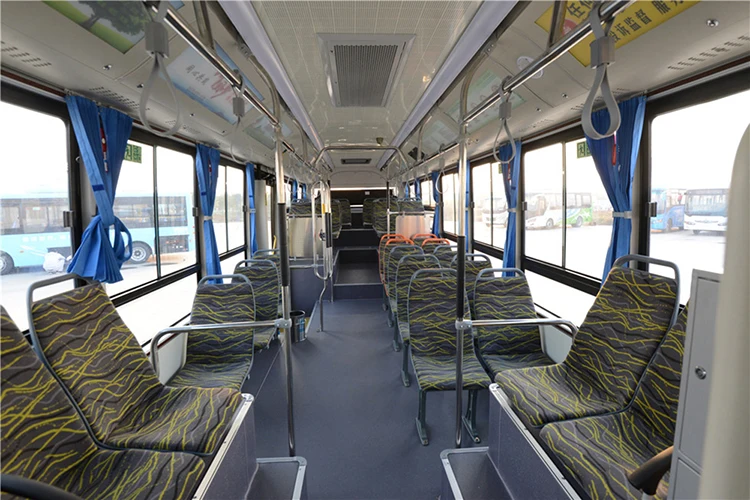

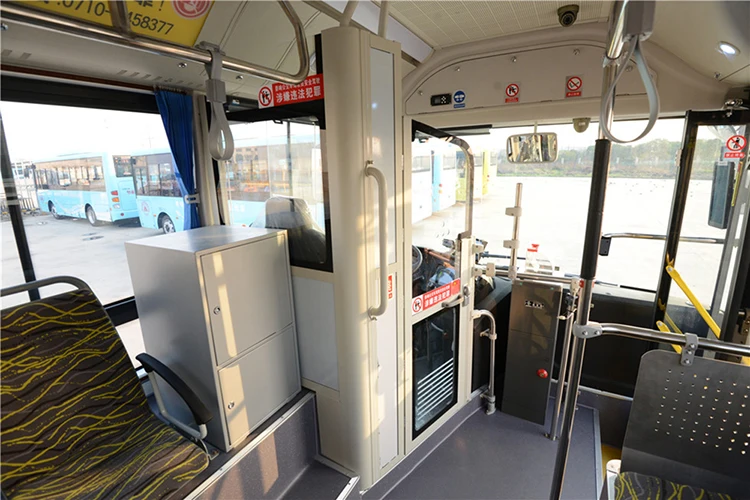

MORE DETAILS
OUR FACTORY
PRODUCT PACKAGING
FAQ
Q1. How to purchase the truck from our company?
A1: You can choose the model from our website. Also, you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
Q2. How to ensure product quality?
A2: Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A3: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4.What is the warranty term?
A4: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
Q5. How to visit our factory?
A5: After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
Q2. How to ensure product quality?
A2: Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A3: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4.What is the warranty term?
A4: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
Q5. How to visit our factory?
A5: After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
