Камера для прямой трансляции Anywii PTZ 4k камера sdi ptz оптическая ndi hx 12x 20x 30x оборудование радиовещания и
- Категории: TV Receivers & Accessories >>>
- Поставщик: Shenzhen,Anywii,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Main Feature | ||||
UHD 4K | Ai auto track | 12X optical zoom | ||
USB/SDI/HD MI/LAN(POE) | Horizontal rotation: 340°, Vertical rotation: -30° ~ +90° | audio in(3.5mm line in) AAC/MP3/G.711A format | ||
RS232/422(compatible RS485) VISCA/Pelco-D/Pelco-P protocol | RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER IP, IP VISCA | Up to 255 presets via joystick controller | ||

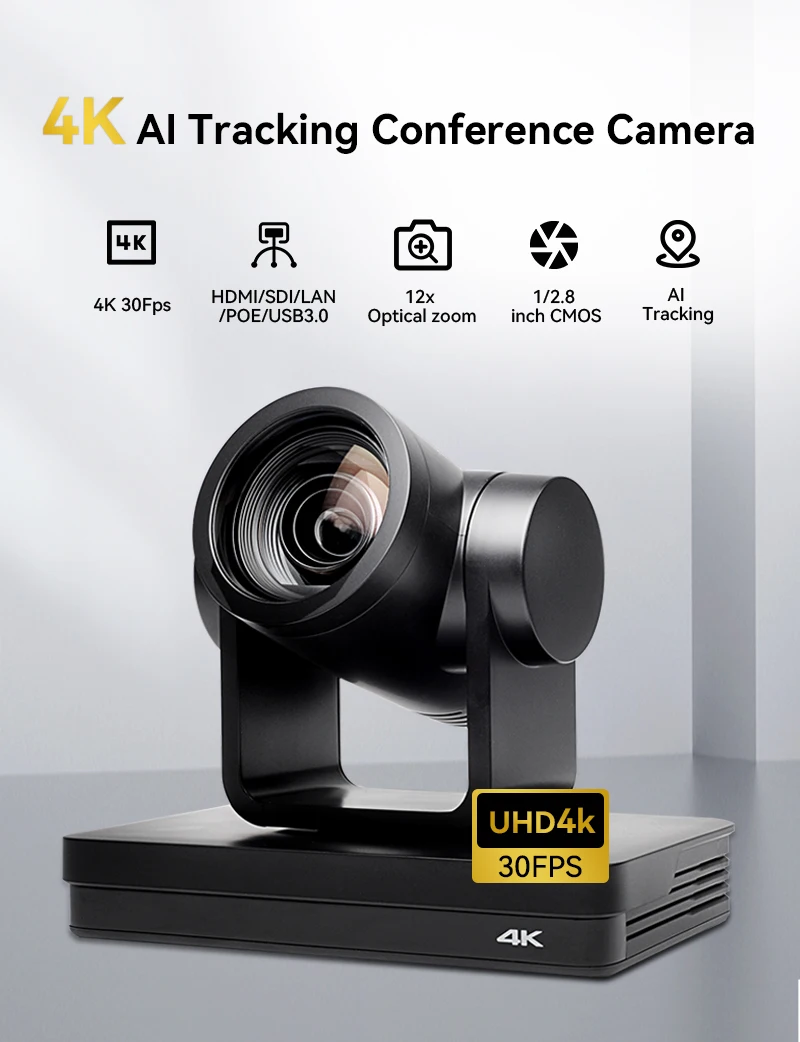

4K Auto Track PTZ Camera, USB HD-MI SDI 4K PTZ Camera 12X
■ 8.5 megapixel SONY CMOS sensor, reach 4K (3840 × 2160)@30fps
■ AI Auto track and auto framing according the presenter
■ 12x lossless optical zoom lens supports framing adjustment
■ USB/HD-MI/SDI LAN (POE) video output to meet various needs
■ Support audio in(3.5mm line in) and AAC/MP3/G.711A compression format
■ Support RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER I, IP VISCA protocols
■ Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
■ Pan 340°, tilt 120°; achieve fast, quiet and precise pan-tilt movement
■ Multiple presets setting, 10 presets via infrared remote control, 255 presets via joystick controller
■ Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
■ Multiple presets setting, 10 presets via infrared remote control, 255 presets via joystick controller
■ Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
welcome contact us for the best price
we also suppler other usb sdi ndi ptz camera, speakerphone and joystick controller, welcome contact us for more informations
Product Paramenters
Max Resolution | 4k 3840*2160P |
Max Frame Rate | 30FPS(4K/1080P) |
AI Powered Track | auto tracking |
Focus | Auto focus |
Optical zoom | 12x optical zoom |
FOV-H | 6.5°～70.9° |
Aperture | F1.6 ～ F2.8 |
Video Signal | 4K@30fps, 4K@25fps 1080P@30fps,1080P@25FPS,1080P@29.97fps, 3840*2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/ 720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Video formats | H.265, H.264(LAN) MJPG/H264/YUY2/NV12(USB3.0) |

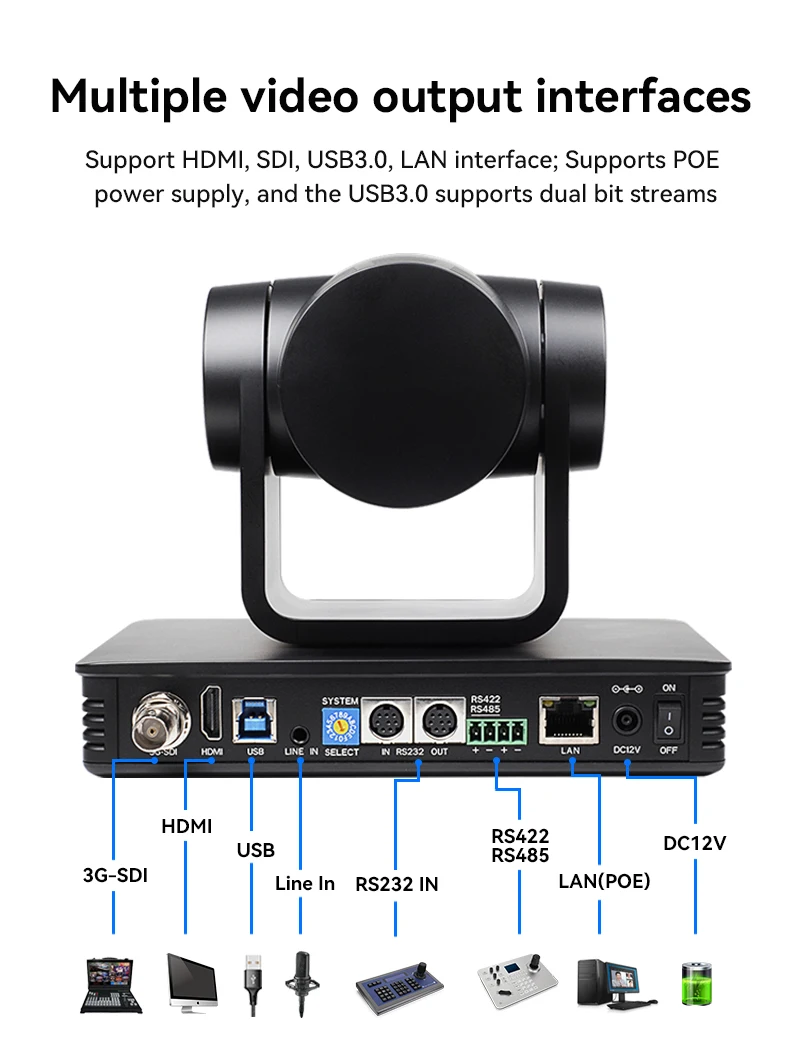

Video output | USB3.0/SDI/HD-MI/LAN(POE) |
Audio In | 3.5mm Line In |
Audio Compression | AAC/G.711A/MP3 |
Network Protocols | RTSP, RTMP, ONVIF, RTMPS, SRTGB/T28181, VISCA OVER I, IP VISCA protocols |
Control Interface | RS232 in/out, RS422(compatible RS485) |
Control protocols | VISCA/Pelco-D/Pelco-P |
Horizontal rotation | -170°～+170° |
Tilt rotation | -30°～+90° |
Preset bits | User can set up to 255 preset positions (10 presets for remote control) |
Accessories | Power adapter, RS232 control cable, USB3.0 connecting cable, remote controller, manual, warranty card&certificate |
Why Choose Us
■ Patented private models and certified CE FCC RoHS
■ ISO9001 direct factory, Professional QC Team
■ 13 years OEM ODM, we has our own R&D team, design team
■ ISO9001 direct factory, Professional QC Team
■ 13 years OEM ODM, we has our own R&D team, design team
■ Offer various video conference solution from small conference room to large conference room, and also support video conferencing system equipment
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!.
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!.

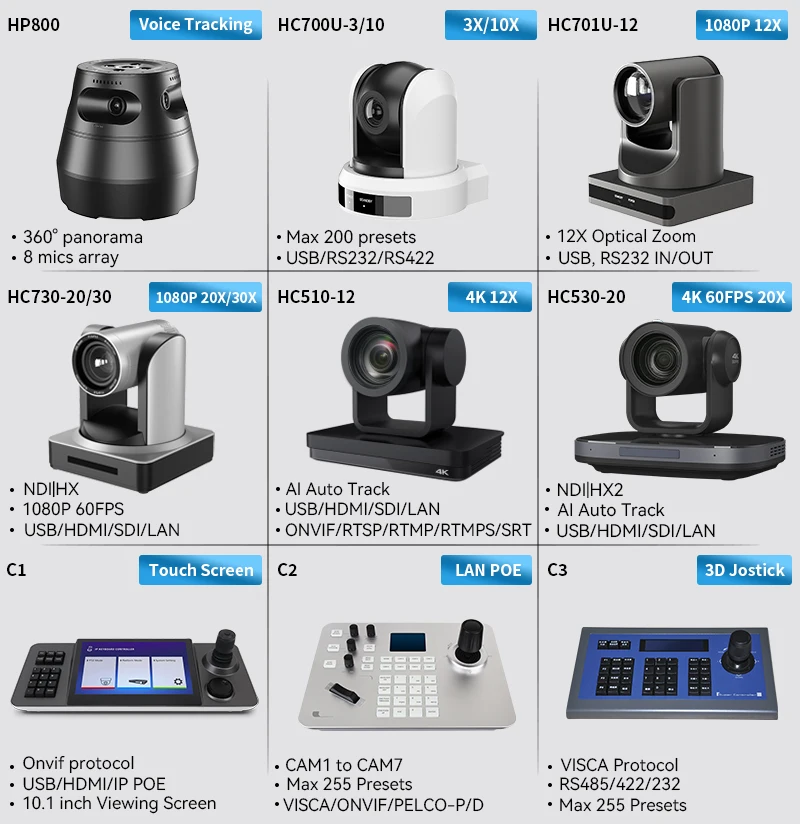

Model | HC700-F | HC700-10 | HC701-12 | HC730UH-20 | HC510-12 | HC530-20 |
Resolution | 1080P | 1080P | 1080P | 1080P | 4K | 4K |
Pixel | 2.1MP | 2.1MP | 2.07MP | 2.07MP | 8.5MP | 8.42MP |
Zoom in | digital zoom | 10X | 12X | 20X | 12X | 20X |
FOV-D | 108° | 60.9°～6.43° | 72.5°～6.9° | 54.7°～3.3° | 70.9°～6.5° | 60° ~ 3.5° |
Video interface | USB | USB | USB | USB/LAN/HDI/POE/NDI | USB/SDI/LAN/HDI/POE/NDI | USB/SDI/LAN/HDI/POE/NDI |
Auto Track | / | / | / | / | Auto track | Auto track |
Company Profile
■ One-stop Service
Complete R&D team, SMT workshop, assembly factory, full control from product concept to finished product to delivery.
■ IS09001 Factory
ISO9001 international quality management system, standardized production process and product quality inspection.
■ Patent Private Molds
Professional ID designer team, the product appearance design won the IF award and the red dot award.
■ R&D and innovation
Complete R&D system with over 20 years of experience in the industry, releasing over 10 new products every year.
■ Product Certification
All products are CE FCC RoHS certified, providing strong support for customers to retail in many regional markets.
Our service & Strength
■ Patented private models and certified CE FCC RoHS
■ ISO9001 direct factory
■ 13 years OEM ODM, we has our own R&D team, design team
■ Rich experience in various customized projects such as logo/packaging/mold/specification, etc
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!
FAQ
Does the factory have any management system certification?
How long about the lead time and Shipping time?
Our factory has passed the ISO9001 international management system certification
Can we place order by OEM/ODM?
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
I can get product catalogs and certificates?
Of course, just contact us
About the sample: How could I get the sample?
Pls click 'contact supplier' to contact us. Once received your sample payment. We will send it by express. Delivery time is about 5 to 7 days
How to order in alibaba?
Tell me the product and quantity you want to buy, and your delivery address, phone number, zip code. I will draft an Alibaba payment link to you by email, you just need to click the link to pay.
Which payment term can be accepted?
We accept TT/ Visa/Paypal/Westem Union/Alipay/Wechat.
About shipment: what type of shipment will you use?
Usually by express. If the order quantity is large,we may ship by logistic forwarder.
How long about the lead time and Shipping time?
The general delivery time is about 4-7 days.Shipping time depends on the shipping way you choose.
How long is the warranty?
You can choose 0.3% of order quantity as free spares to replace the warranty or send faulty back by yourselves within 1 year
