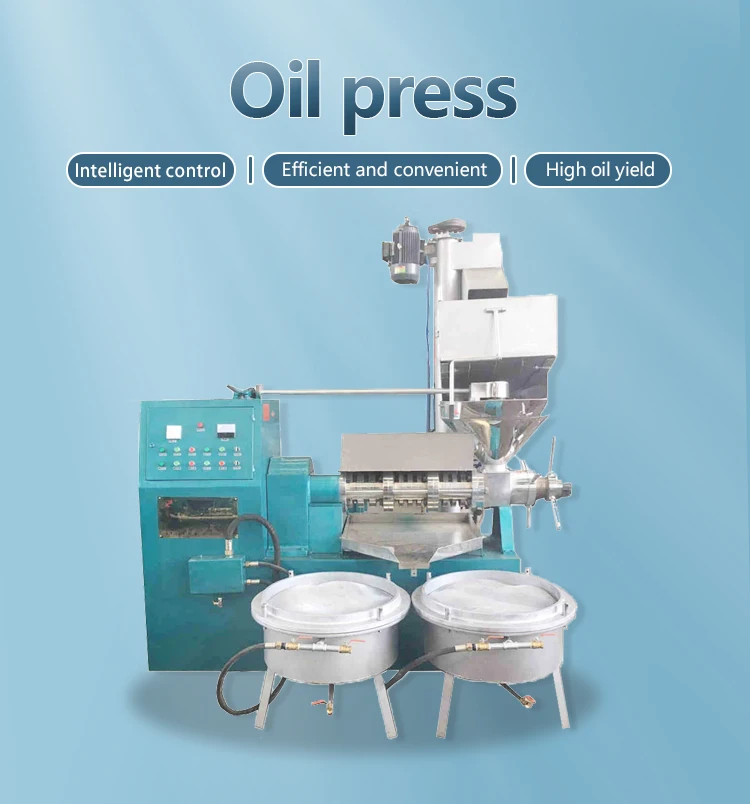

The screw oil press equipment is a new product that our company has introduced foreign technology and independently researched and developed. The machine has a high degree of automation. It adopts automatic temperature control hot press process and high-pressure vacuum filtration system. It is an advanced oil press machine in the market at present. The multifunctional full-automatic screw oil extractor uses a single press, saving labor and time, high oil yield, small power, pure oil quality, and multiple uses of one machine.

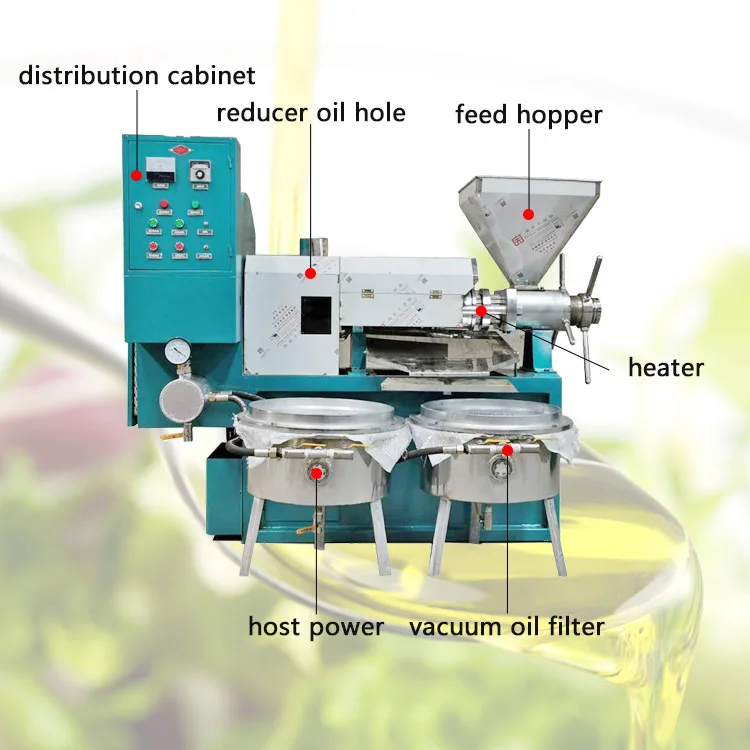

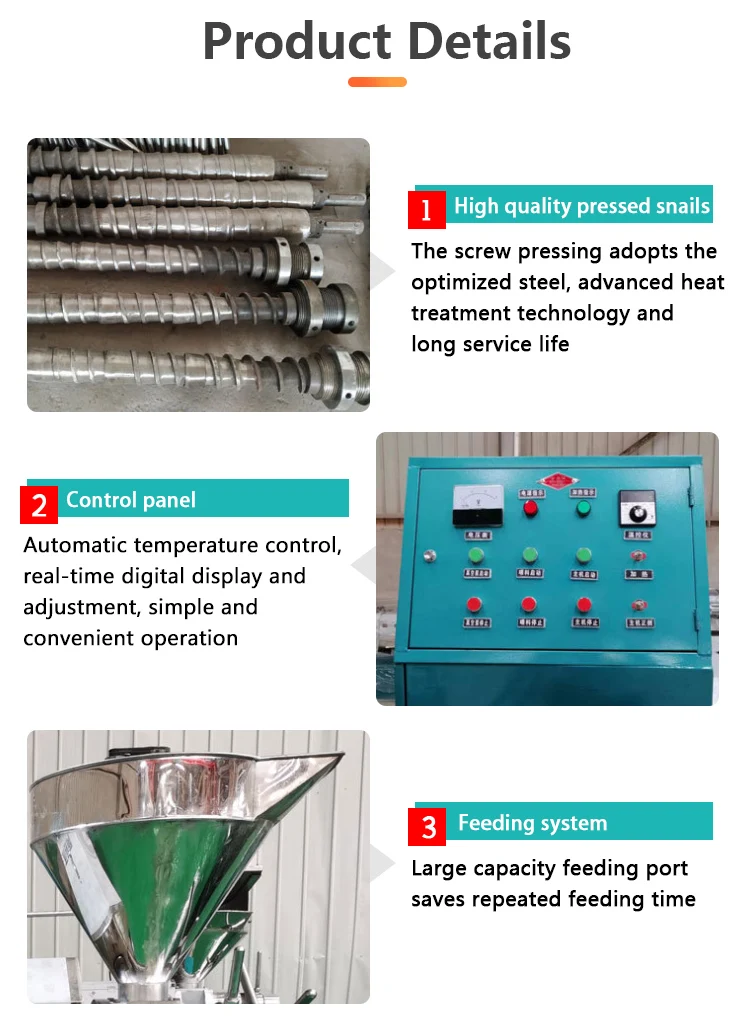

The main parts of the machine include transmission box, hydraulic cylinder, piston, pillar, movable top, base, barrel, distribution box, pressure gauge and automatic temperature control device. The machine is made of metal materials such as 45 steel and 27 SiMn steel forgings, thus improving the performance and life of the machine.

Wide range of uses - a multi-purpose machine, can press more than 30 oil crops such as peanut, flax, sesame, rapeseed, sunflower, cottonseed, soybean, etc. Multi-stage press, one press clean.

Automatic pouring of temperature controlled stir frying materials: the quality of stir frying materials has a direct impact on the quality and oil yield of oil products. There is a saying that "three parts of pressing, seven parts of stir frying materials", which shows the importance of stir frying materials in the oil pressing process, and the key of stir frying materials is the quality and device of the stir frying machine. The frying machine of our company is driven by gear. All models are equipped with shock absorption and noise reduction devices. The steel plate and the volume of the frying chamber are thickened. It can be heated with a variety of heating fuels (coal, electricity, gas, firewood, etc.). The design concept of extensive heating and fast frying greatly improves the service life of the frying machine and the quality of frying seeds. It is also equipped with advanced devices such as oil temperature display instrument, reverse switch function, which are simple to operate and highly automatic.

Installation instructions for screw oil press

(1) When installing the oil extractor, leave 50 cm space on the left side from the wall for disassembling and assembling motors and replacing V-belts.

(2) There is enough space on the right side of the oil press to adjust the cake thickness and clean up the cake residues.

(3) Adjust the machine so that it and the oil filter are in a horizontal position.
