Product Description
Why to use MONDE tree shear?
Simply, why use chainsaws if you can do the job cheaper, quicker and safer working from the warm and comfortable cab of a machine in almost all weather conditions?
Tree Shears have become the most cost-effective and safest way to fell trees since Shandong Mingde Machinery Co., LTD introduced them to the China in 2005.
Tree Shears have become the most cost-effective and safest way to fell trees since Shandong Mingde Machinery Co., LTD introduced them to the China in 2005.
Model | JSM30 | JSM50 | JSM80 | JSM120 | JSM200 |
Preset pressure(mpa) | 25 | 25 | 25 | 25 | 25 |
Max Pressure(mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
Max Diameter Of The Tree(mm) | 120 | 200 | 300 | 350 | 500 |
Clamp Max Opening(mm) | 400 | 564 | 607 | 847 | 995 |
Weight(kg) | 160 | 265 | 420 | 1160 | 1560 |
Applicable Excavator(t) | 2-3 | 4-6 | 8-10 | 12-18 | 20-30 |

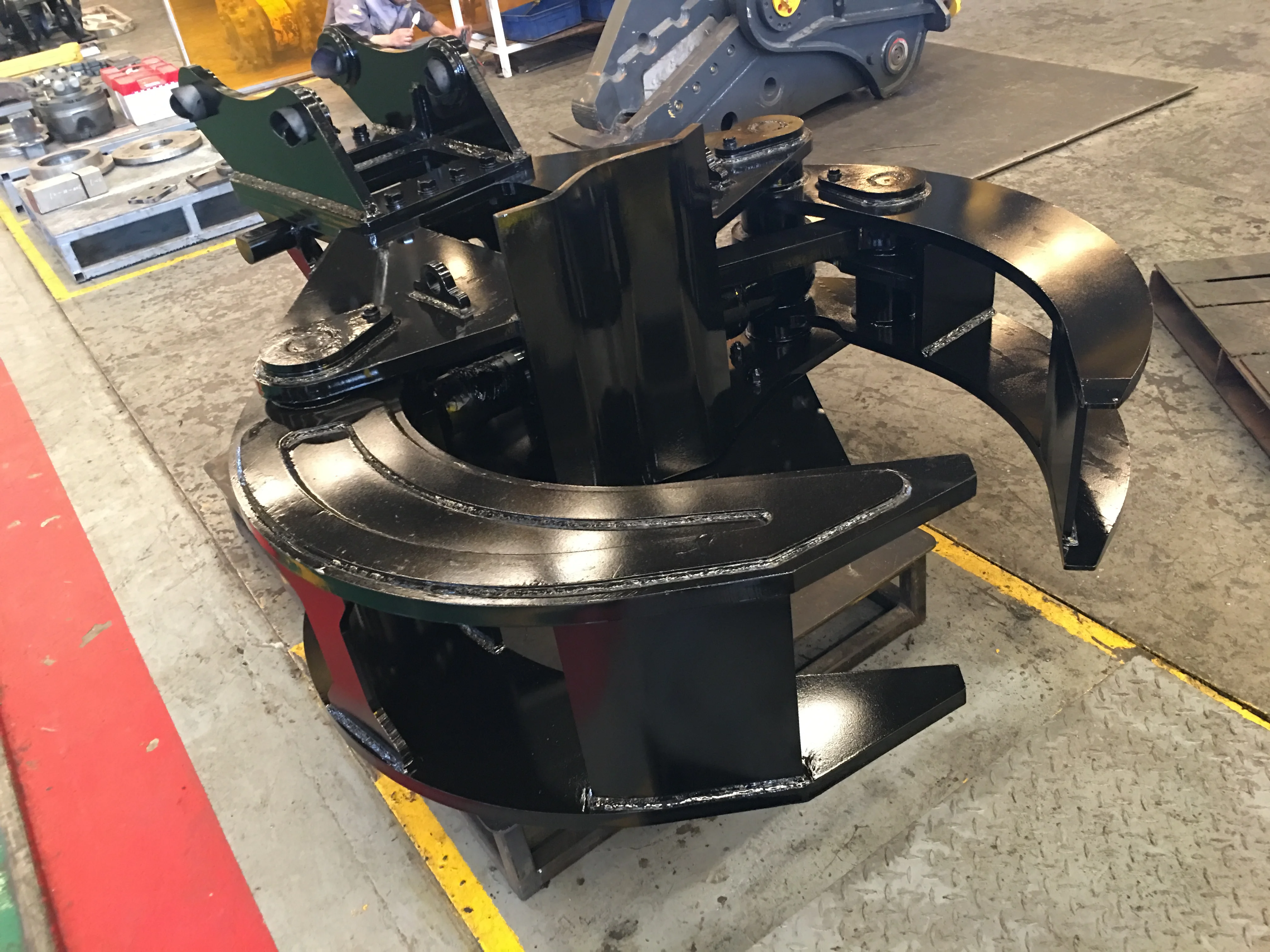

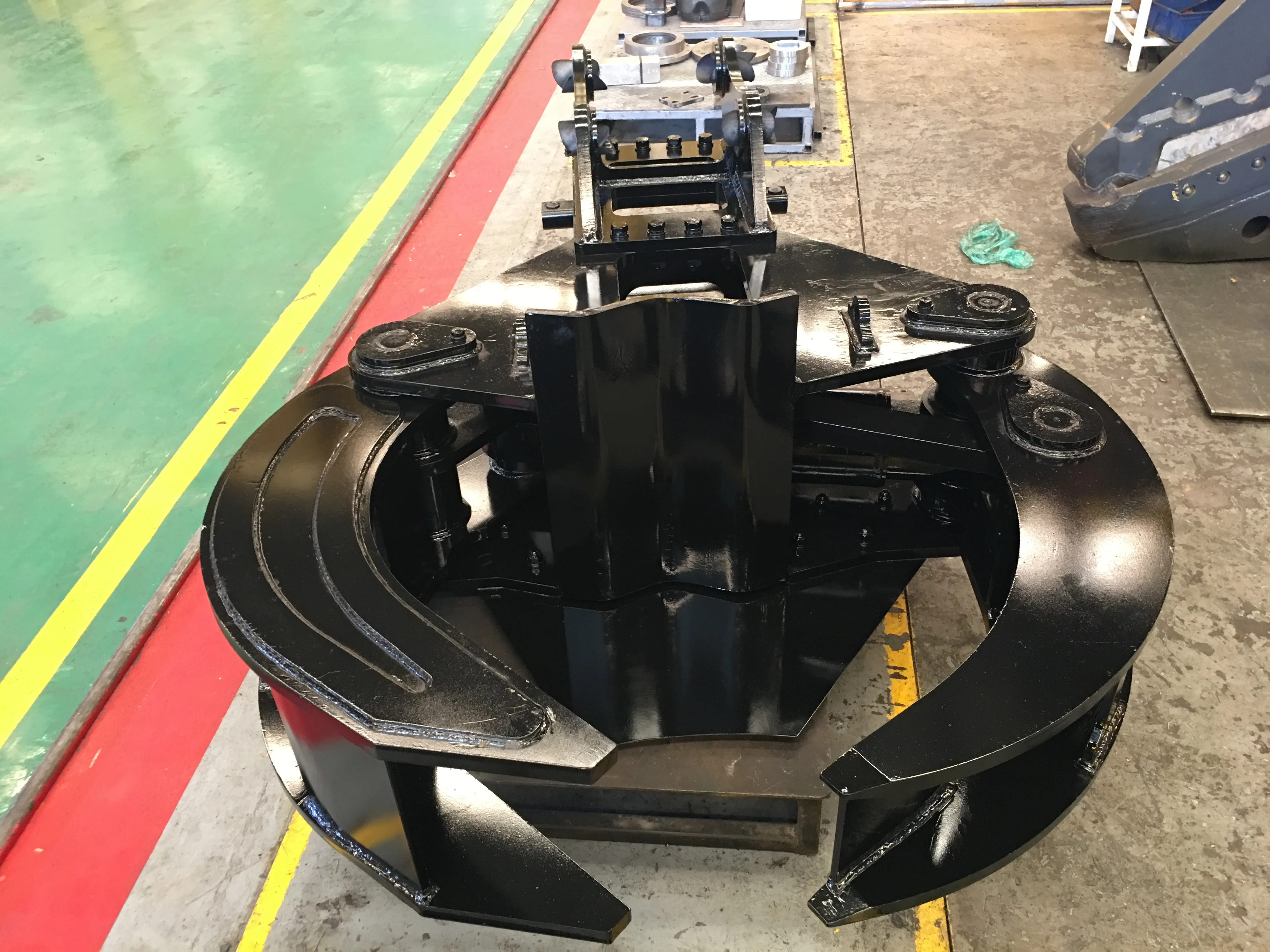

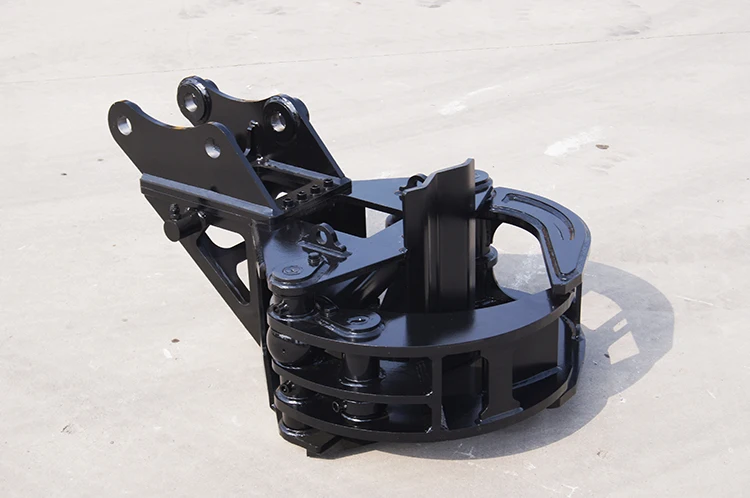

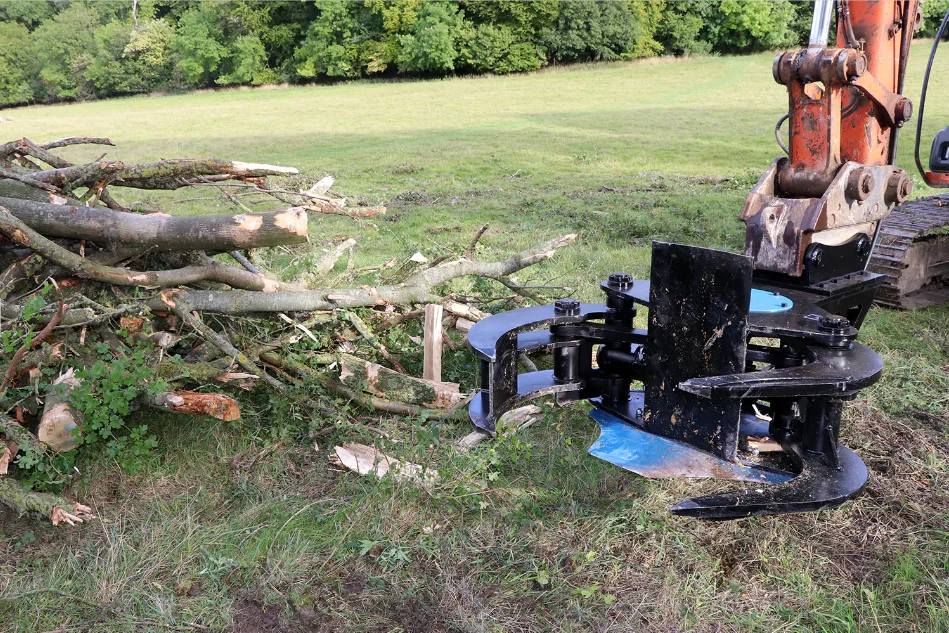

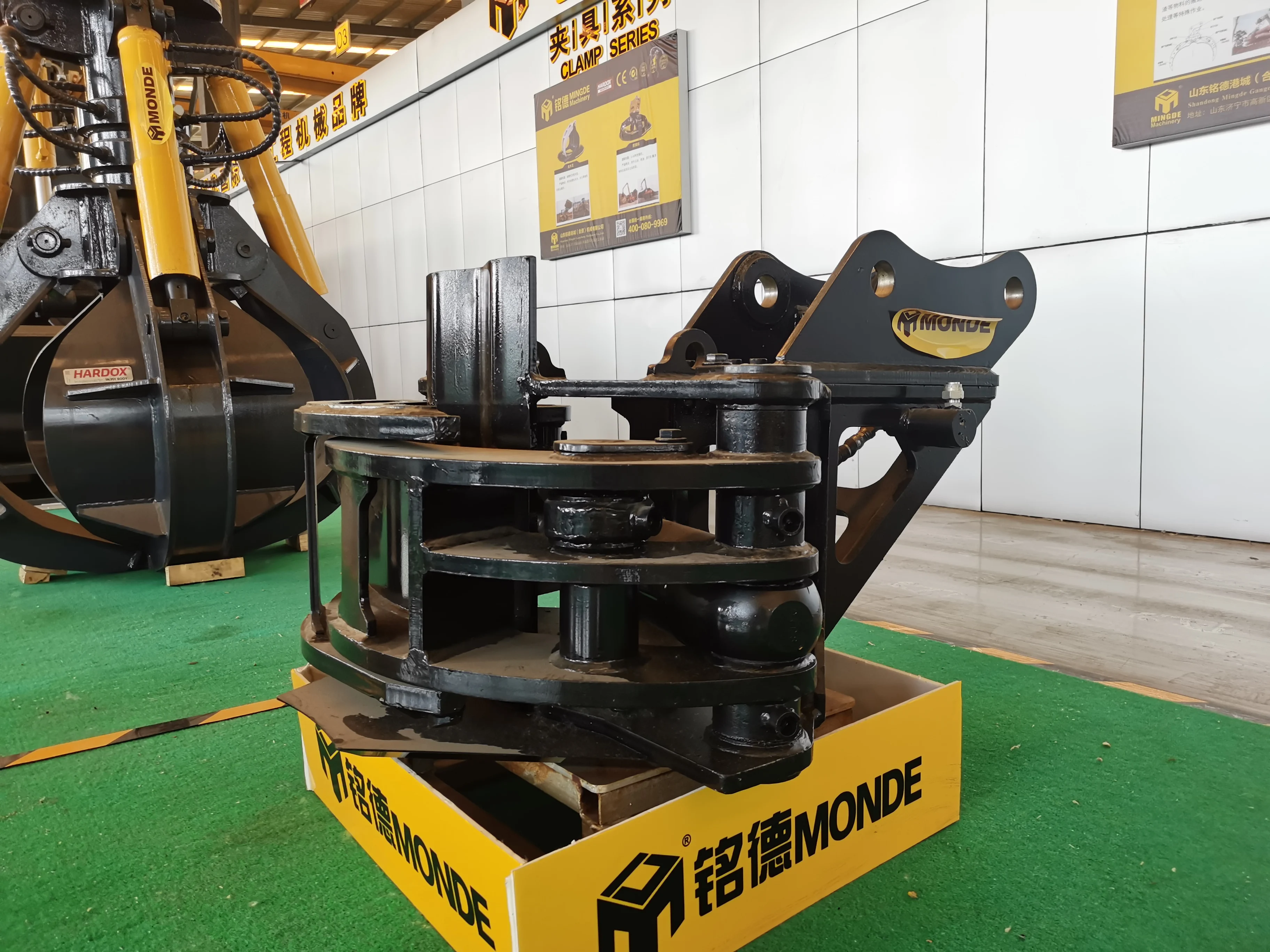

Product Display

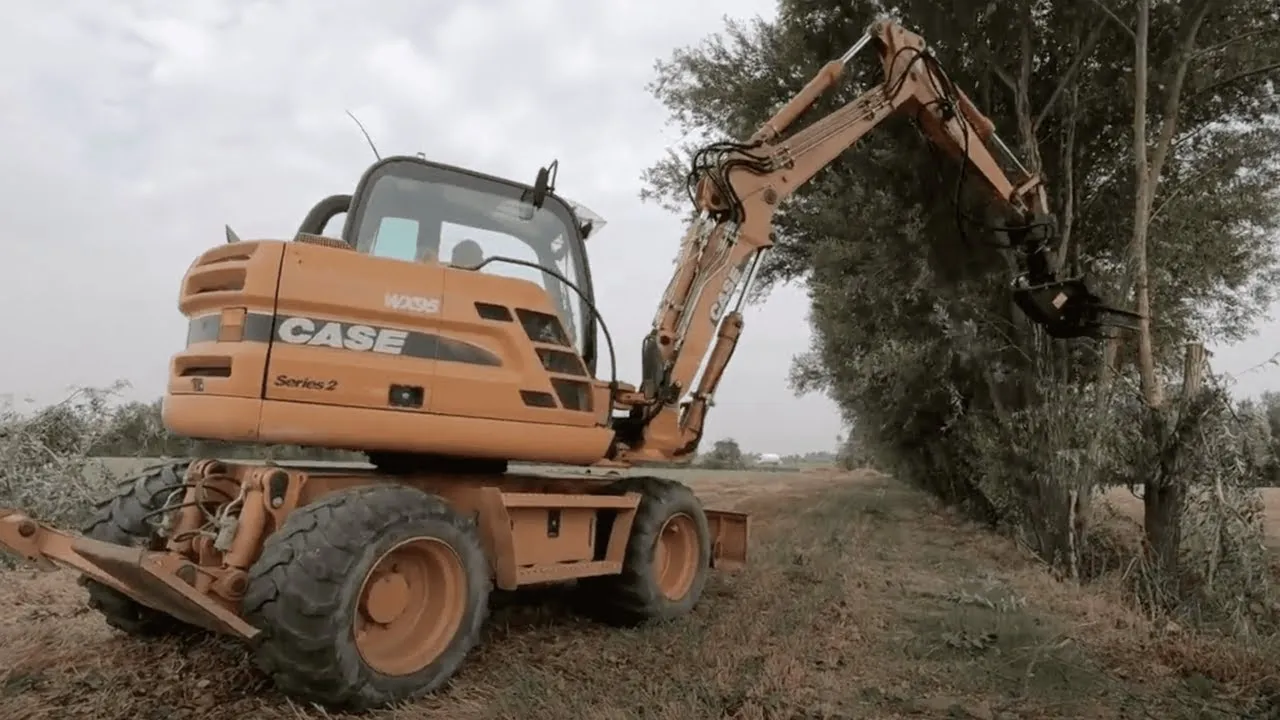

MONDE excavator tree shear range are Heavy Duty, professional work tools and are primarily available for use on any excavator between 2-30 tonnes, as well as being adaptable to fit on telehandlers and skid steers. The tree shear attachment / tree lopper is becoming increasingly used in many forestry applications due to the time and money saving advantages it offers. It is a single service attachment that works off your existing double acting hammer circuit. With one powerful hydraulic ram, this excavator tree shear is forgiving to imprecise alignment of the blade by the operator and consequently facilitates faster cutting.

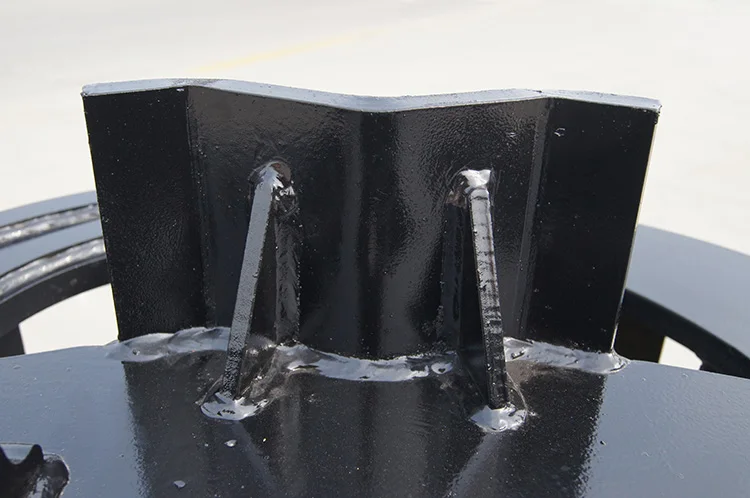

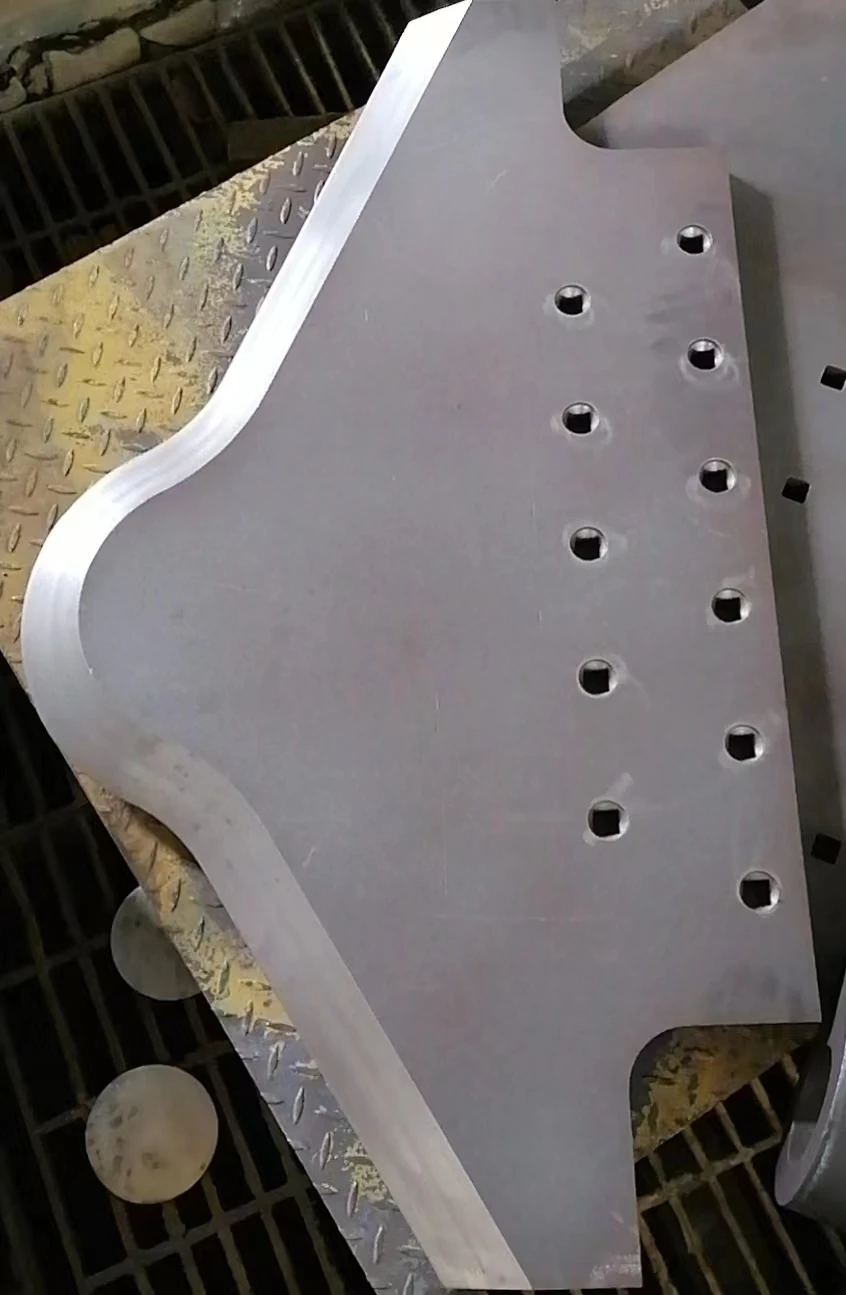

The cycle takes just seconds per tree and you can immediately move the tree out of the way and move on to the next. Aside from being one of the fastest tree shears on the market, the MONDE is also one of the easiest to maintain. With fewer moving parts than other tree shear models there is both less to go wrong and less to look after. With a removable and replaceable Hardox 500 blade, this excavator tree shear can also double as a hydraulic grab and is perfect for moving around timber, positioning telegraph poles or placing fence posts.
Advantage
MONDE Tree Shear got started from an own need, and it was developed to work efficiently even in the most challenging work conditions. This to be possible, the product needed to be easy to use, reliable and productive. Thorough designing and engineering resulted in a MONDE Tree Shear which was efficient and easy to operate.
The simple cutting cycle involves:
1) Opening the grab,
2) Lining up a tree,
3) Pushing the blade in to the tree whilst closing the grab
4) Placing the cut tree down to one side
1) Opening the grab,
2) Lining up a tree,
3) Pushing the blade in to the tree whilst closing the grab
4) Placing the cut tree down to one side
Feedback from Customer

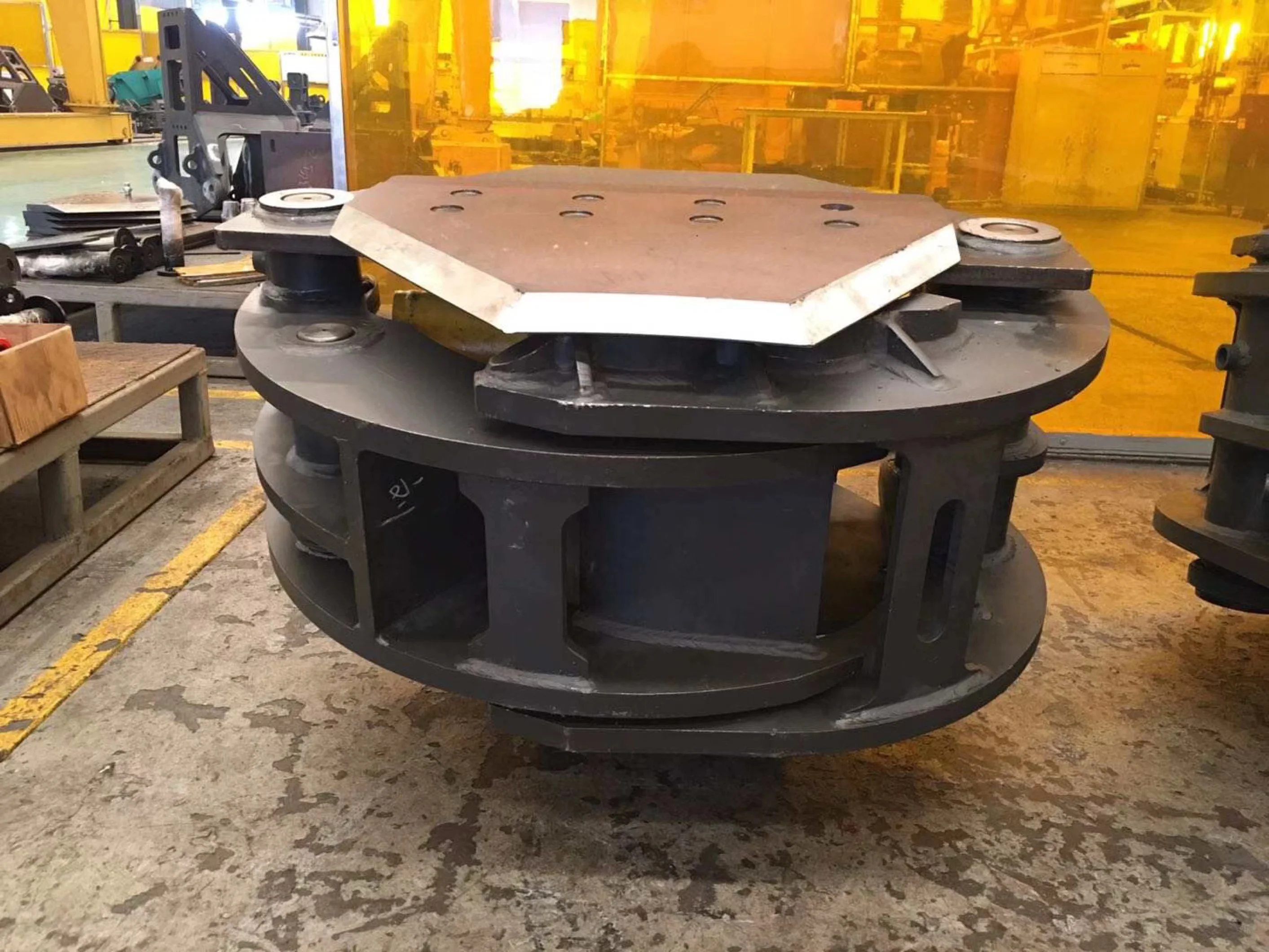

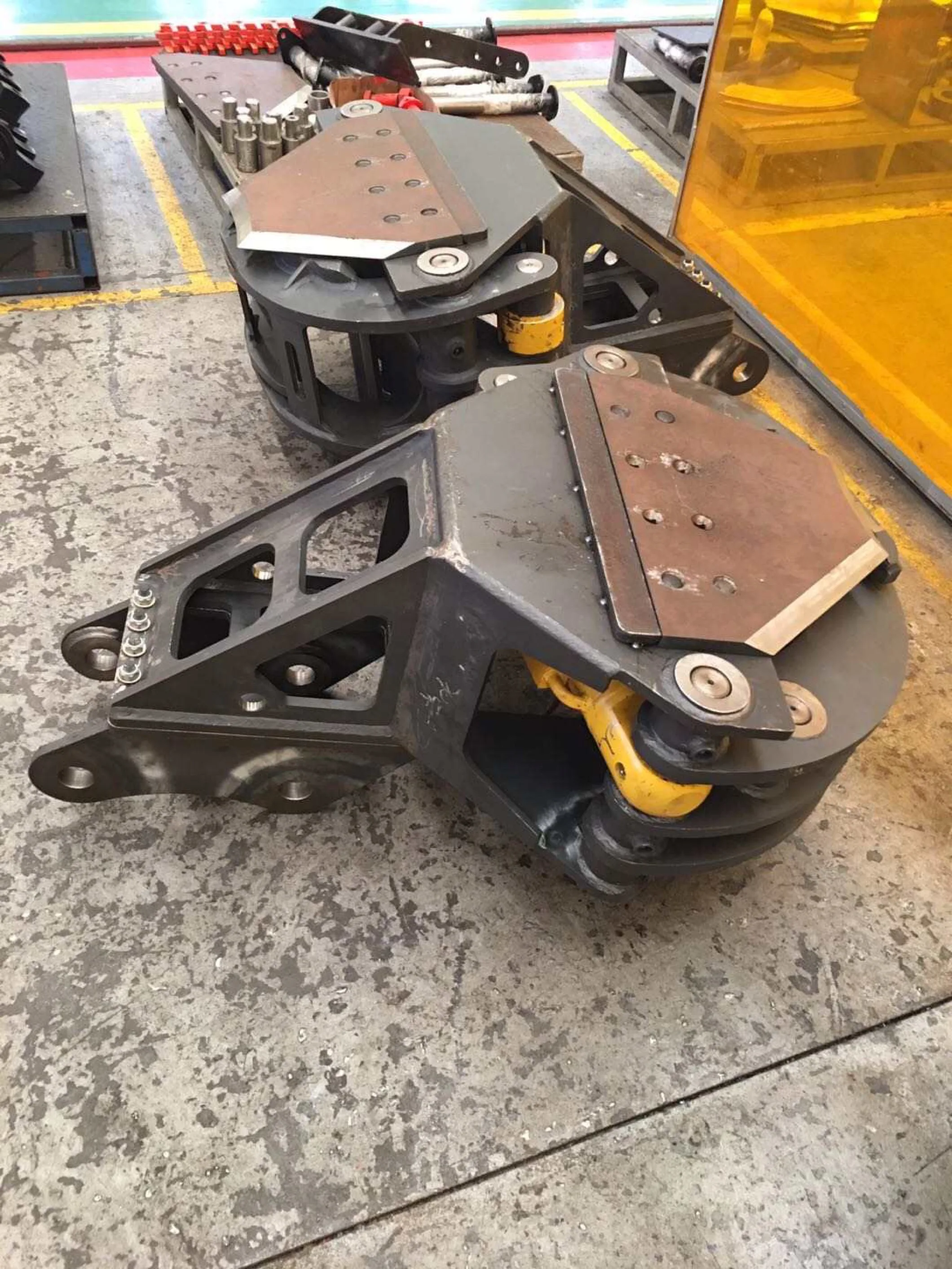

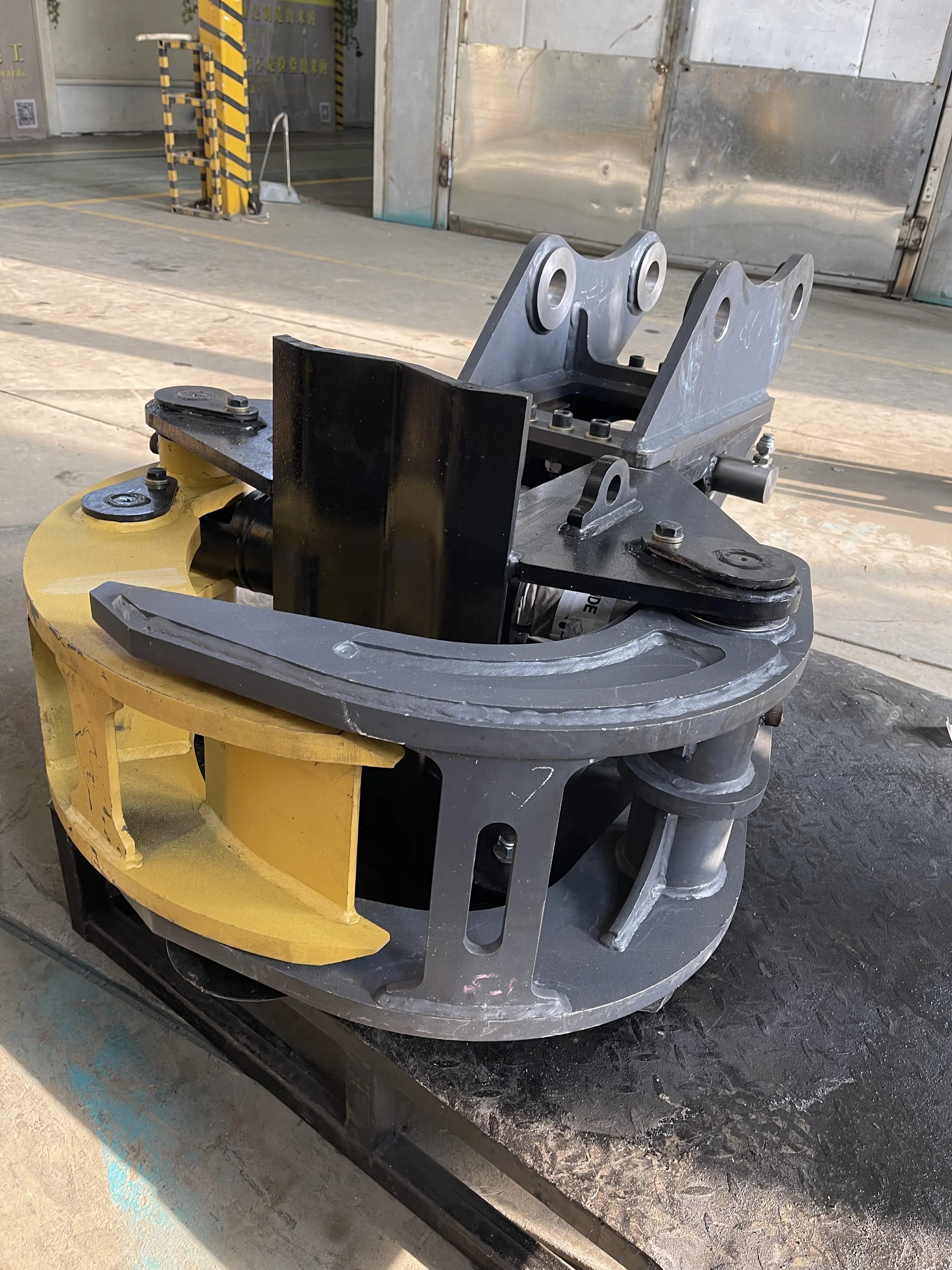

Production show

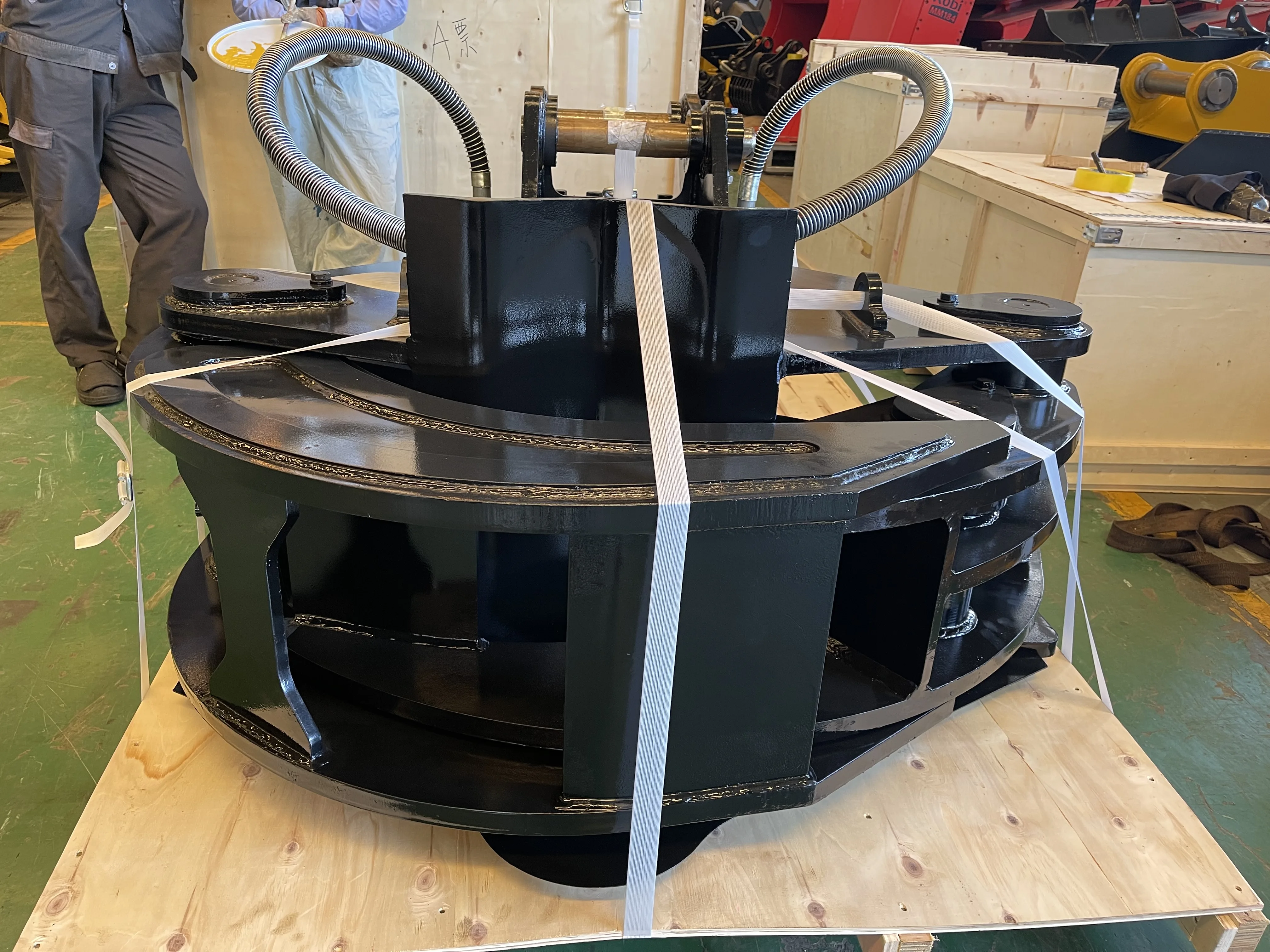

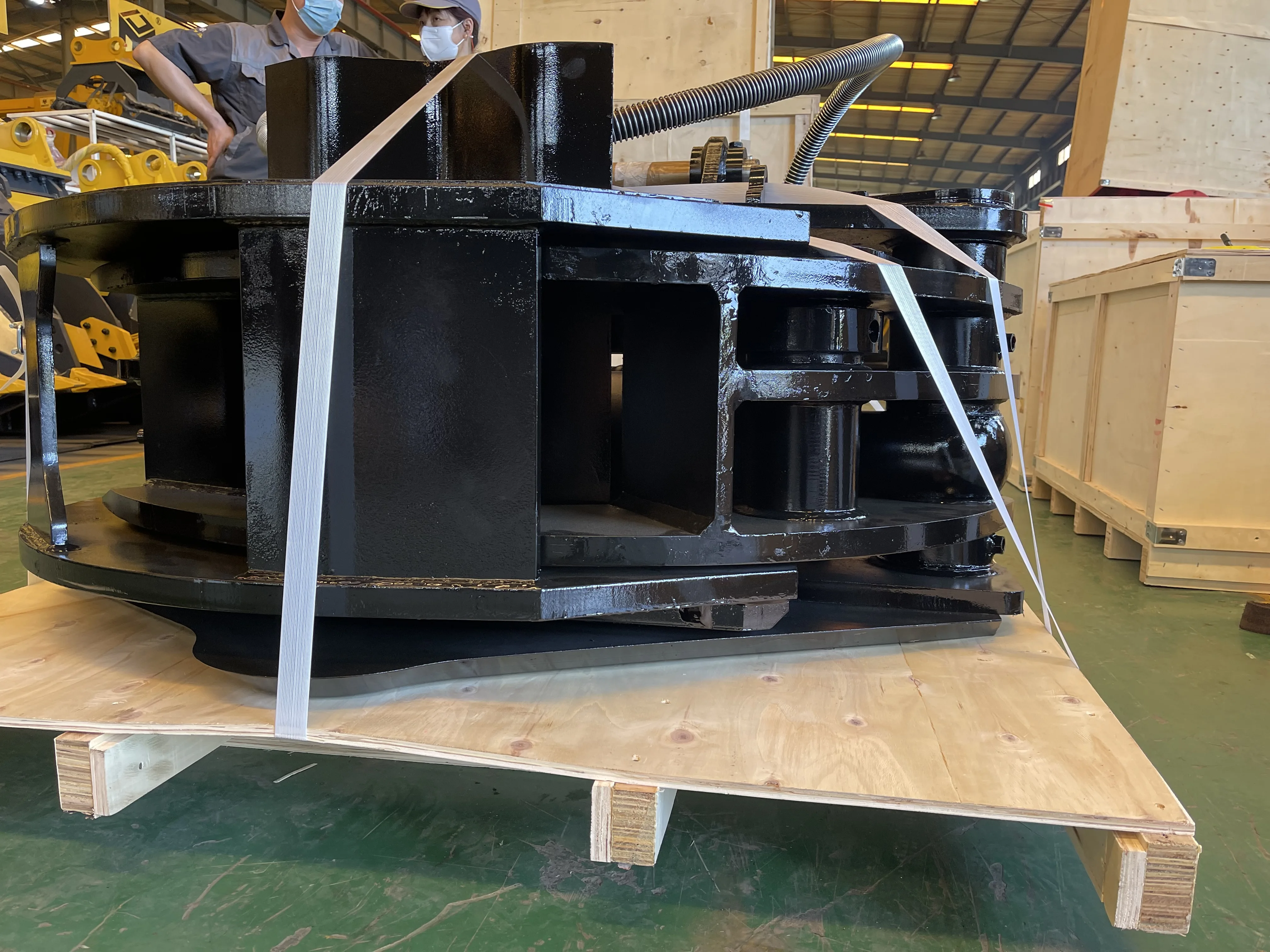

Packaging & Shipping
Use a crate, wooden pallet, steel pallet or according to your requirements
1, We pack the grapples by export standard wooden pallet, wooden case, steel pallet or as your request.2, Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
Company Profile
Shandong Mingde Machinery is a well-known global enterprise in the R&D, manufacturing, sales and service of multi-functional attachments. Mingde always adheres to the human resources management idea "Scientific and Technological Innovation, Talents Base". During committing to the safe production and standard operation, the company organizes staff to carry out a series of comprehensive training and cultural activities, striving to build a solid, united and diligent excellent team. Mingde has established strategic partnership with SSAB Company in Sweden and a member of HARDOX IN MY BODY global club and HARDOX WEARPARTS global processing center.
In technology research and development, mass production and marketing sales, Mingde has opened deep cooperation with Ueda Company in Japan, which greatly improved the company's core competitiveness and made the company get more than 30 patents of utility model. Mingde has passed the ISO9001 international quality system certification, SGS testing certification, CE European safety certification and ISO14001 environmental management system certification.
FAQ
Q: Are you a manufacturer?
A: Yes,our factory was established in 2007 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.Also we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
A: Yes,our factory was established in 2007 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.Also we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
