Manufacturer N1009 N1008m N1009TNHA/HC5SP N1009KTN/SP N1009TVP roller bearings single row n1008 cylindrical roller bearing


Products Description


Product name
cylindrical roller bearing
Model
N1009 N1008m N1009TNHA/HC5SP N1009KTN/SP N1009TVP
material
Chrome steel,bearing steel,iron
Quality Certificate
ISO9001:2008
Row
Single Row
Application
Large and medium-sized electric motors, rolling stock, machine tool spindles, internal combustion engines, generators, gas
turbines, reduction boxes, rolling mills, vibrating screens and lifting and transportation machinery, etc.

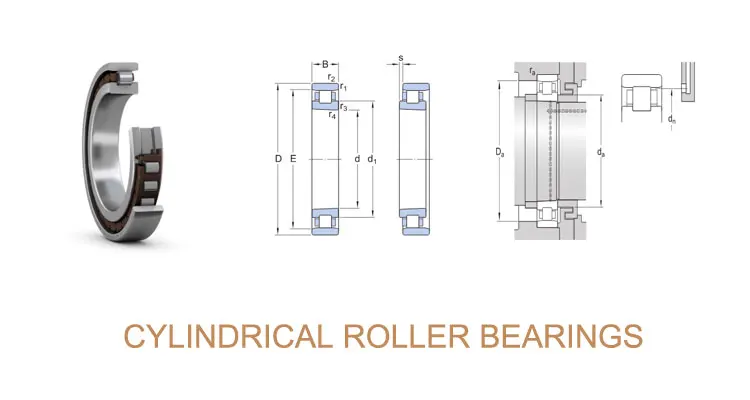

Types of cylindrical roller bearing:
Single row cylindrical roller bearing: NU, NJ, NUP, NUB series.
Double row cylindrical roller bearings:NNU series.
Four row cylindrical roller bearing:FC series.
Single row full complement cylindrical roller bearing:SL18 series, SL 19 series.
Double row full complement cylindrical roller bearing: SL01 series, SL02 series, SL18 series.


Details Images

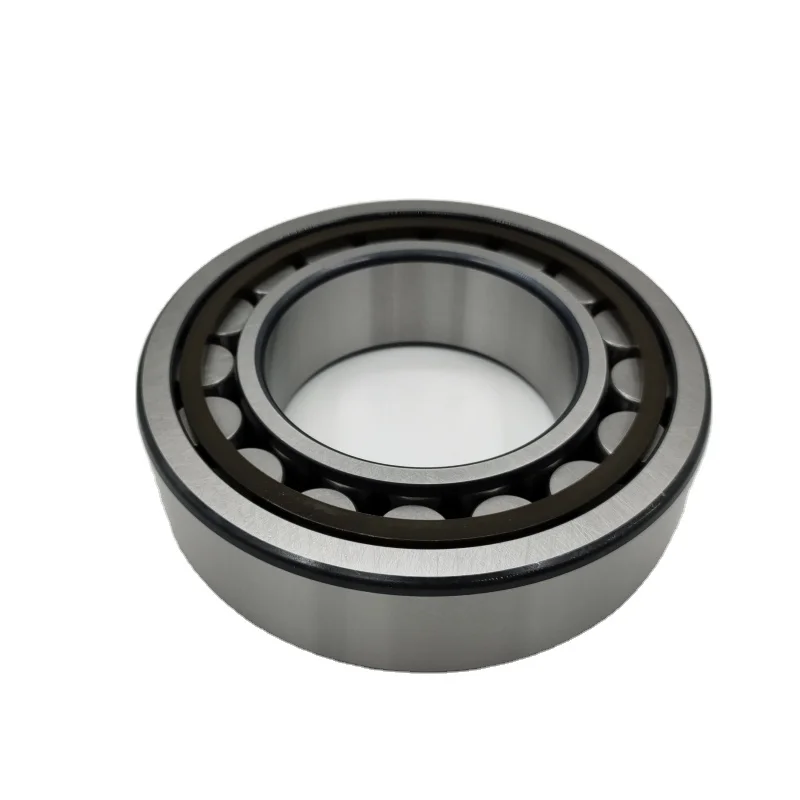

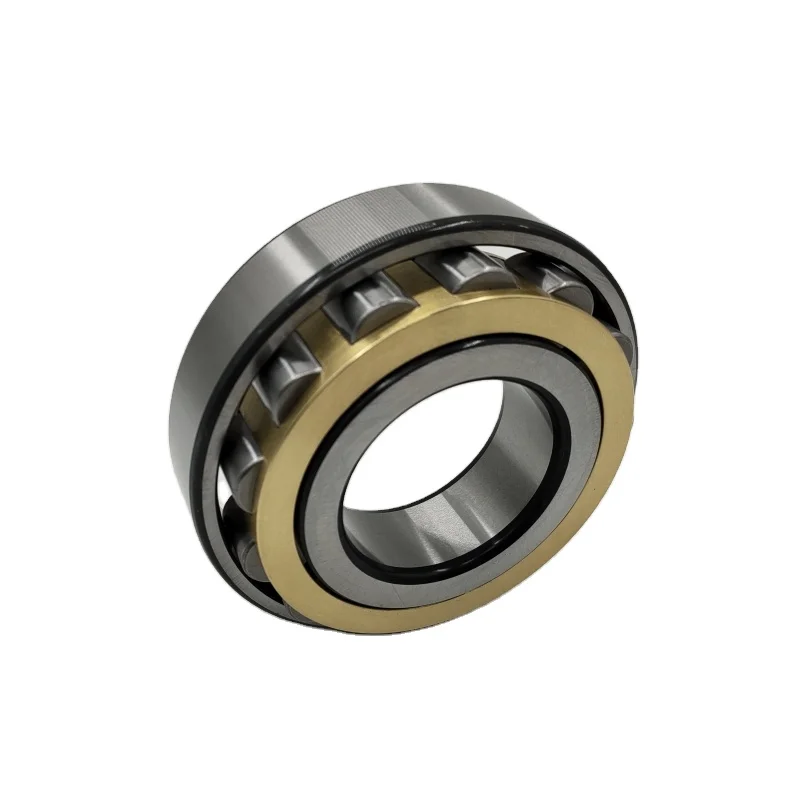

Machine parts N series cylindrical roller bearings

The rolling body is the centripetal rolling bearing of cylindrical roller. The inner structure of cylindrical roller bearing adopts rollers to be arranged in parallel, and there is a spacer or isolation block between rollers, which can prevent the tilt of rollers or friction between rollers, and effectively prevent the increase of rotating torque. Cylindrical roller and raceway line contact, radial load capacity. Suitable for bearing heavy load and impact load as well as high speed rotation.

characteristics：
1. Roller and raceway are in line contact or downline contact, radial bearing capacity is large, suitable for
bearing heavy load and impact load.
2. Small friction coefficient, suitable for high speed, limit speed close to deep groove ball bearings.
3. N type and NU type can be moved in axial direction, can adapt to the change of the relative position between the shaft and the shell caused by thermal expansion or installation error, can be used as free end support.
4. The processing requirements for shafts or seat holes are high. After bearing installation, the relative deviation of the outer ring axis should be strictly controlled to avoid contact stress concentration.
5. The inner ring or outer ring can be separated, easy to install and disassemble.


Why Choose Us


1. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
2. OEM or Non Stand Bearings: Any requirement for Non-standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.It specializes in.
3. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.




Product Paramenters




Model
d(mm)
D(mm)
B(mm)
Weight(g)
C(N)
Co(N)
N1008
40
68
15
223
27300
29000
N1009
45
75
16
289
32500
35500
N1010
50
80
16
306
32000
36000
N1011
55
90
18
445
37500
44000
N1012
60
95
18
477
40000
48500
N1013
65
100
18
560
41000
51000
N1014
70
110
20
693
58500
70500
N1015
75
115
20
731
60000
74500
N1016
80
125
22
994
69000
86500
N1017
85
130
22
1040
74500
95500
N1018
90
140
24
1340
88000
114000
N1019
95
145
24
1400
90500
120000
N1020
100
150
24
1460
93000
126000


We do not only cylindrical roller bearings, there are other bearings, if you do not find your needs here, please contact me
directly!




Large and medium-sized electric motors, rolling stock, machine tool spindles, internal combustion engines, generators, gas turbines, gearboxes, rolling mills, vibrating screens, and hoisting and transporting machinery, etc.

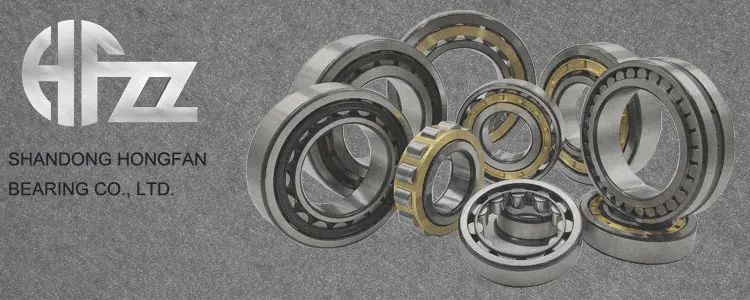

Company Profile




Shandong Hongfan Bearing Co., Ltd. is located in Shandong Province, China. The company has a high standard factory and high level production equipment. In addition, the company also has a professional engineer team and foreign trade team, with a full process service from production to after-sales.
The company adheres to customer demand orientation, technological innovation as the source, closely follows the international cutting-edge technology, and constantly develops high-tech products with high cost performance, strong practicality and high degree of marketization.






Packing & Shipping






Product Packing:
1.Carton Package
2.Tray
3.According to your requirement.
Shipping:
1.DHL
2.Air
3.shipping and so on




FAQ


Q: Are you a trading company or a manufacturer?
A: We are a factory.

Q: How long is your delivery time?
A: If the goods are in stock, it is generally 3-7 days. If the goods are not in stock, then by quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we do not pay the freight.

Q: What are your strengths?
A: 1. Manufacturer, the most competitive price and good quality.
2. The perfect team of technical engineers provides you with the best support.
3. A well-trained international sales team provides the best service.
4. Rich inventory and fast delivery
5. We have established long-term cooperative relations with customers in many countries and regions in the world.
6. We have our own brand (HFZZ) products and can provide customized products, co processing and OEM services.
