L1 USB TF запись 4 потока H.264 H.265 HDMI 1080 60fps видео кодер iptv с hdmi-петли сто RTMP UDP
- Категории: TV Receivers & Accessories >>>
- Поставщик: Shenzhen,Haiwei,Vision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Related Products

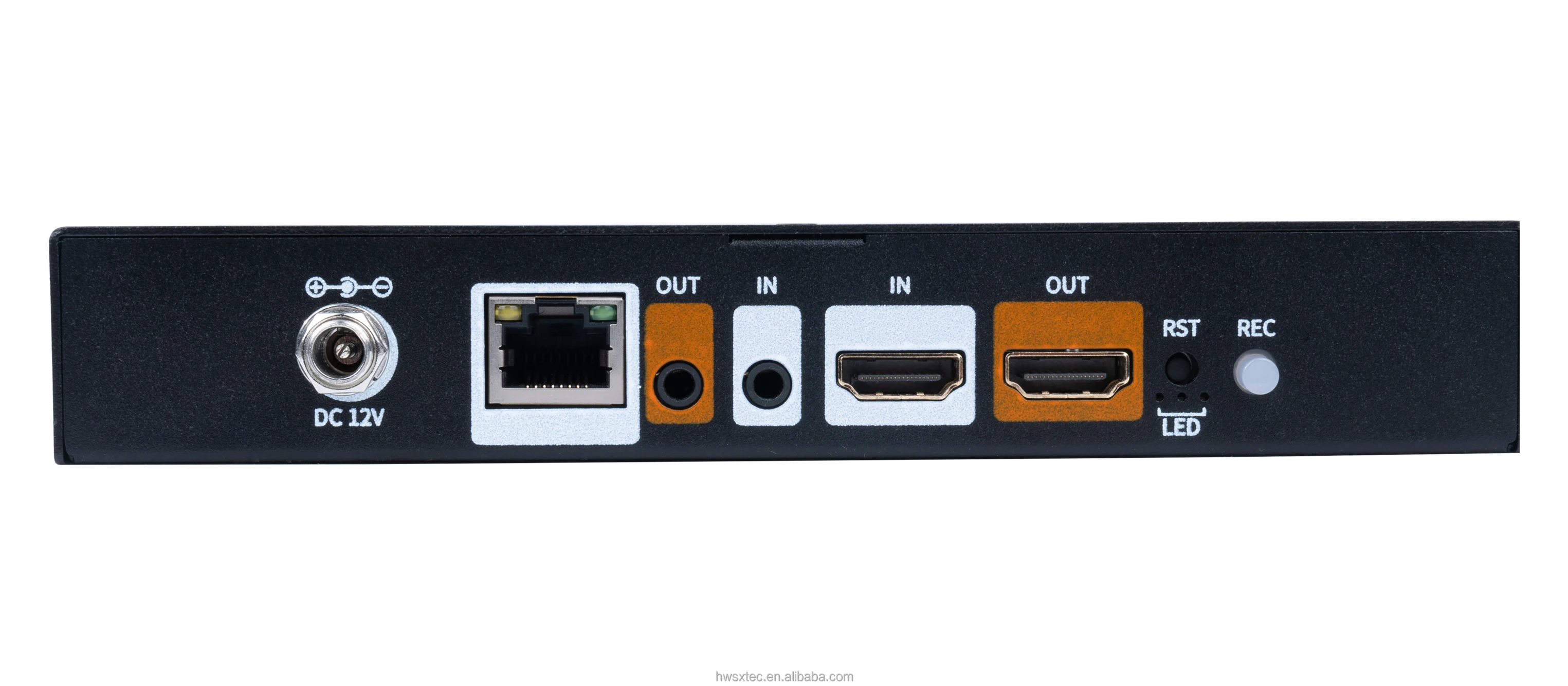

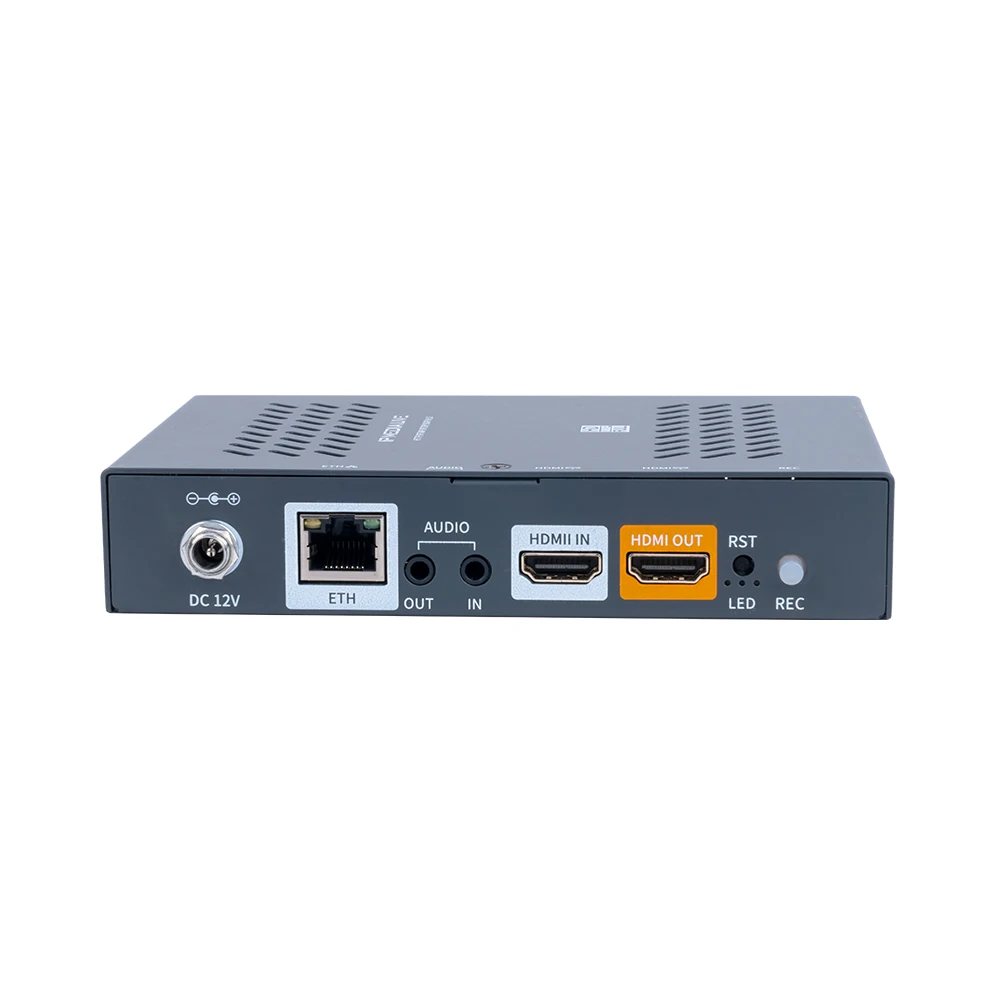

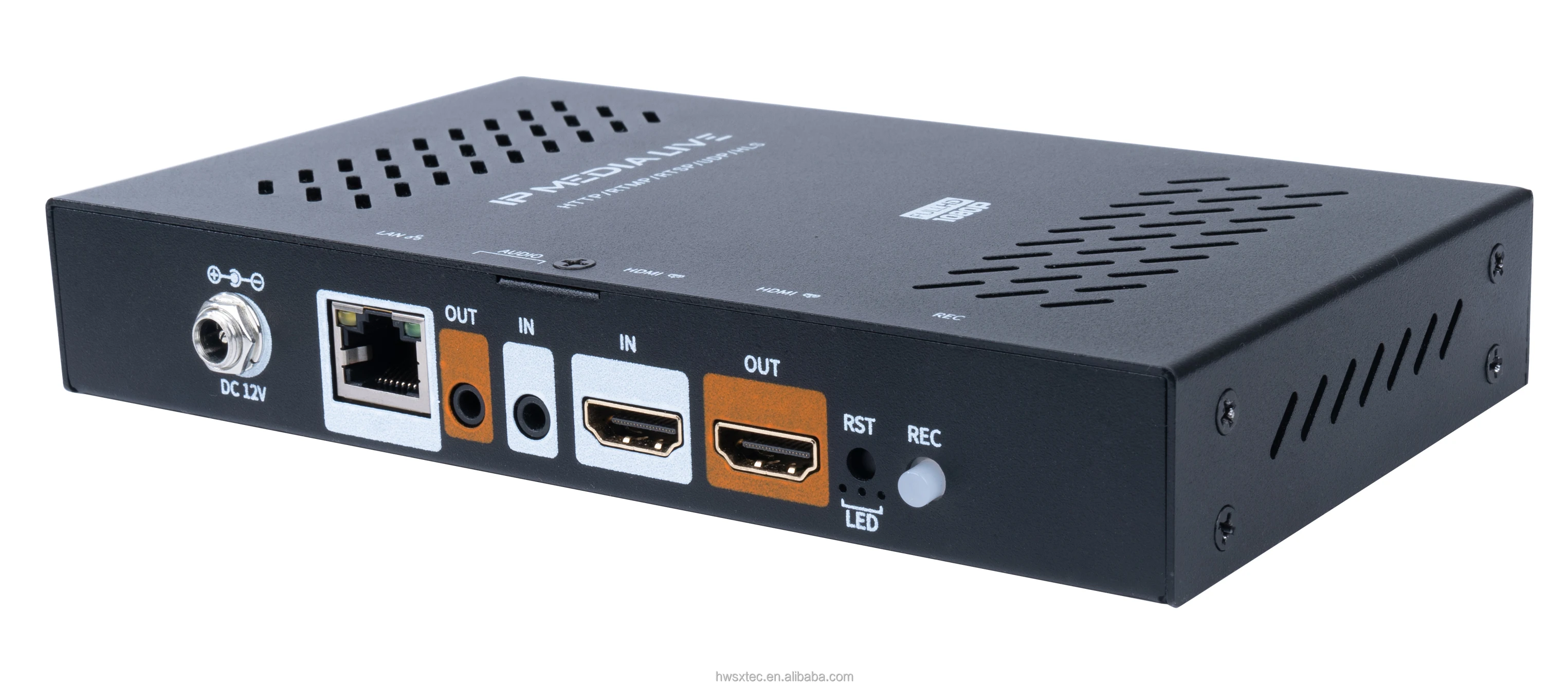

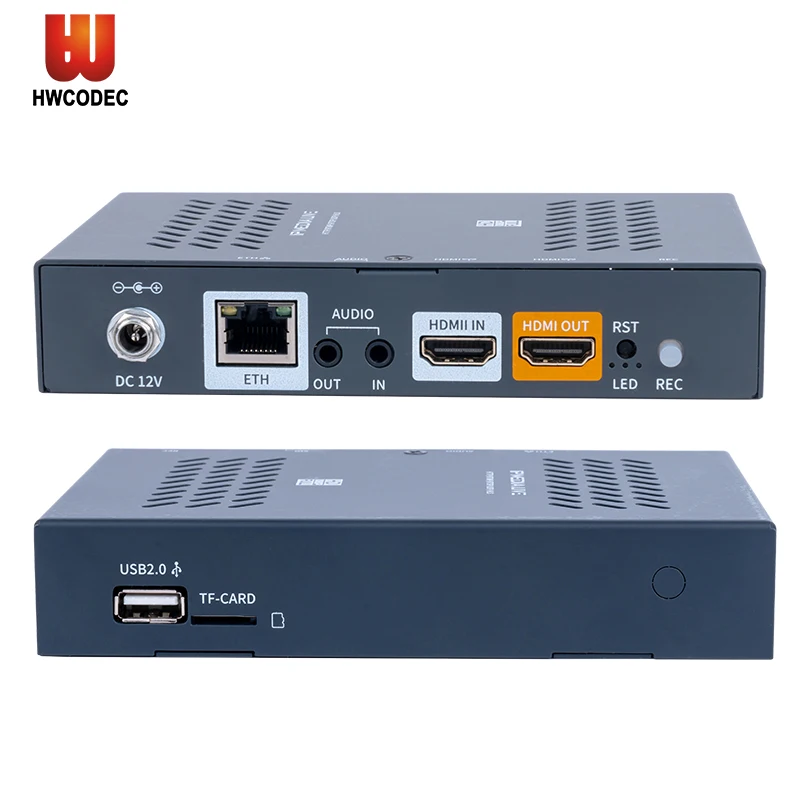

Ports(left to right)
1,DC12V
2,100/1000M LAN
3,Audio output
4,Audio Input
5,HDMI Input
6,HDMI loop out and HDMI decoding output
7,RST:reset button ;LED working status
8,REC:recording button

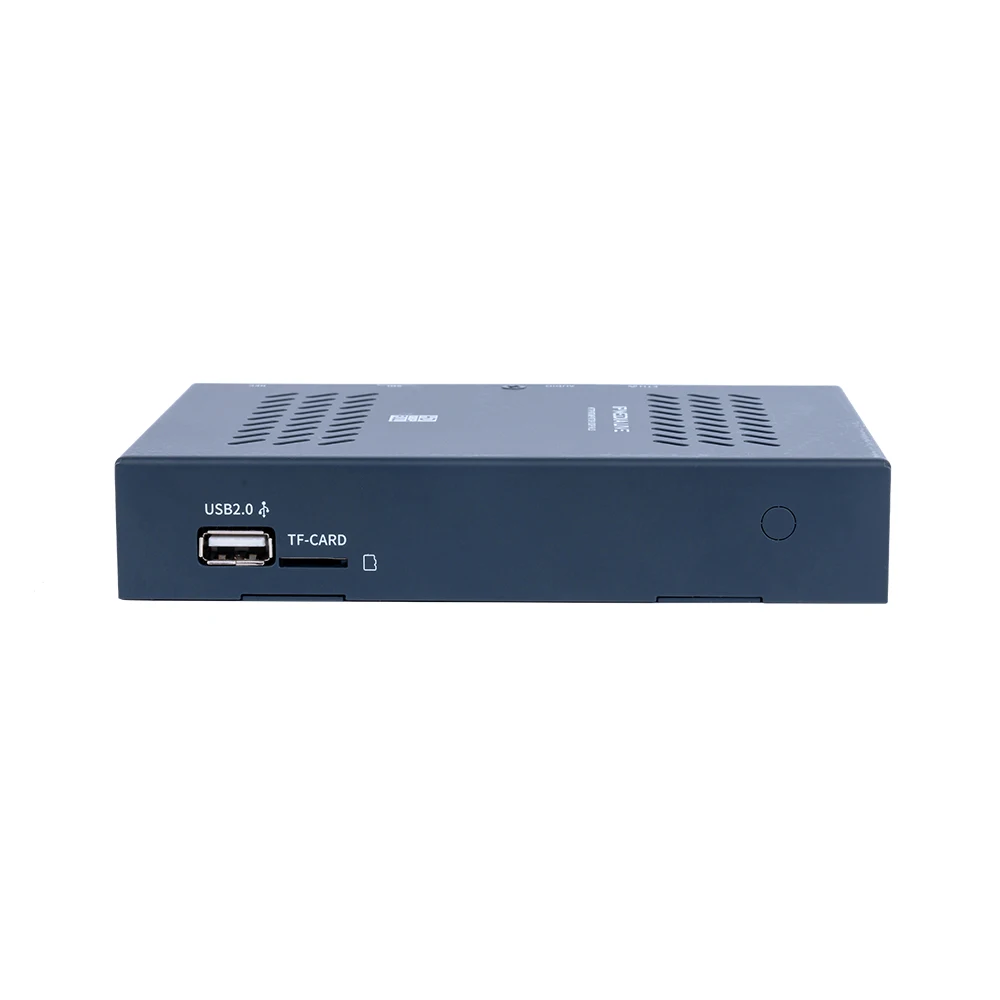

9,USB2.0
10,TF card recording
Item | L1 H.265/H.264 HDMI Video Encoder with HDMI loop Out | ||||
Input | 1* HDMI, 1* 3.5mm Audio | ||||
Output | 1* IP, 1* HDMI,1*Audio | ||||
Recode | TF card/USB recoding | ||||
Stream | 4 streams output at the same time | ||||
Video | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc. | |||
Coding standard | H.265 MAIN PROFILE H.264 BASELINE PROFILEH.264 MAIN PROFILE H.264 HIGH PROFILE | ||||
Coding level | Level 1, Level 2, Level 3, Level 4, Level 5 (the higher the level, the greater the stream volatility) | ||||
Output resolution | 1920*1080、1280*720、960*540、850*480、720*576、720*480、640*480、640*320、320*180 | ||||
Video bit rate | CBR/VBR bit rate control, 16KBIT/S~12MBIT/S | ||||
video frame rate | 5- 60fps | ||||
OSD | Word, Picture | ||||
Audio | Input | 1* HDMI with audio in，1* 3.5mm independent audio | |||
Audio coding | AAC/MP3/G.711 | ||||
Audio bit rate | 64Kb/s~384Kb/s | ||||
Sampling Rate | 32000、44100、48000 etc. | ||||
IP Output | 1* RJ 100M/1000M adaptive Ethernet port，TS standard stream，four-stream，O NVIF protocol | ||||
System | Network protocol | Support HTTP、RTSP、RTMP（S）、UDP、Multicast、Unicast、SRT、Onv if、HLS | |||
Configuration management | Support WEB configuration | ||||
Other | power supply | 12V~2A | |||
Power consumption | ＜5W | ||||
size | 150mm x 102mm x 28mm(L*W*H) | ||||
Operating temperature | -20℃+ 60℃ | ||||
Working humidity | <90%，no condensation | ||||
weight | 0.35KG | ||||

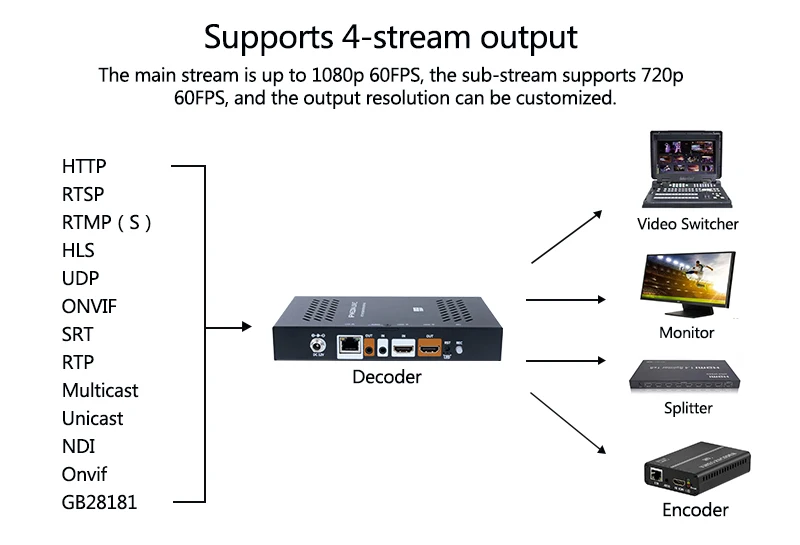

4 streams
HDMI main,2nd,3nd,4nd setting
Audio setting
RTMP+HLS
HDMI loop out
record

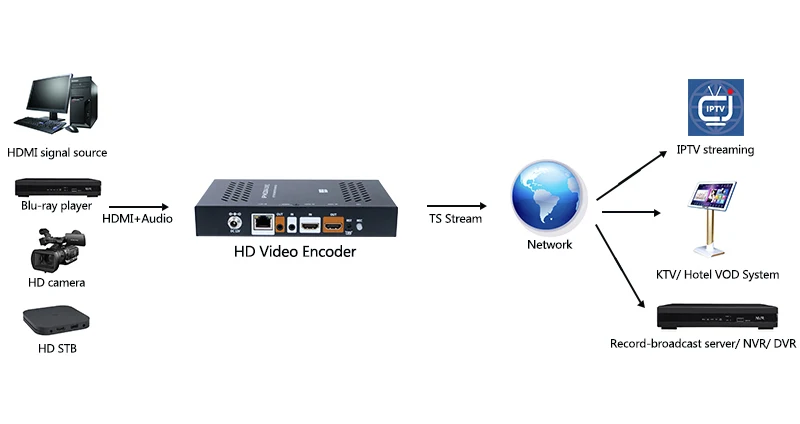

Connection Schematic Diagram
Application
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
