Цены на электрический Мусоровоз, система для отката мусора с шасси
US $20000-$40000
Бестселлер ISUZU GIGA 10 шин LHD 420hp дизельный 25 кубических ярдов сжатый мусоровоз для
- Категории: Garbage Truck >>>
- Поставщик: Hubei,Shengda,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
specification

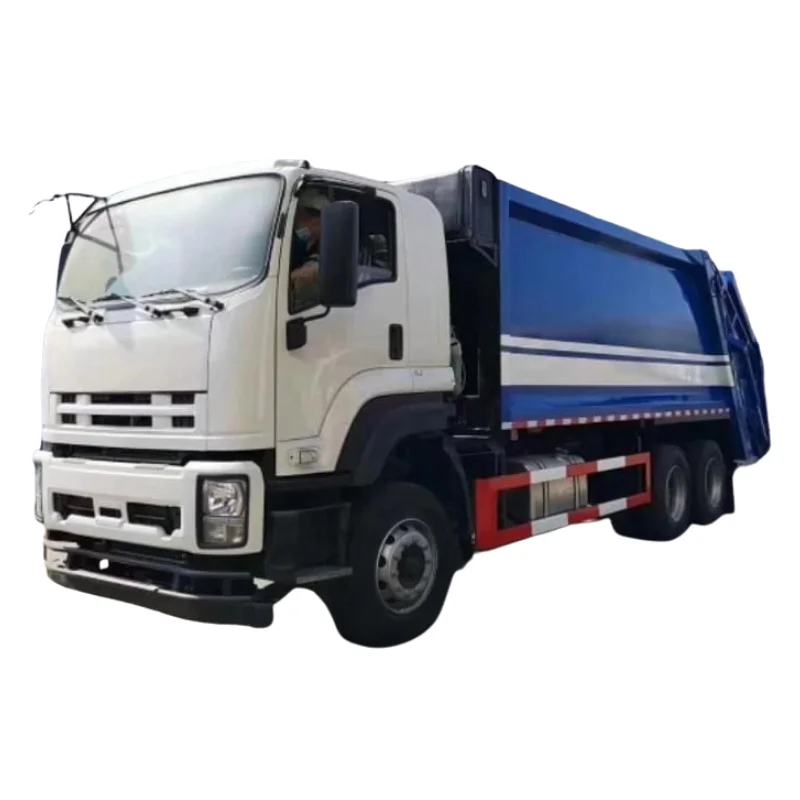

Customized ISUZU brand 6*4 LHD 420hp diesel 25 cubic yards garbage compactor truck for sale
Customized ISUZU brand 6*4 LHD 420hp diesel 25 cubic yards garbage compactor truck for EL Salvador for sale, adopts ISUZU brand VC61 heavy duty 6*4 LHD one row and a half driver cab with air conditioner + power steering + electric windows +central locks, 4565+1370mm wheelbase, 6WG1-TCG52 420hp Euro Ⅴ diesel engine, fastgear 12 speed manual gearbox, 12.00R22.5 rail tires, 7tons front axle/ 13T rear axles, ABS, etc.
The volume of ISUZU brand VC61 6*4 LHD garage compactor truck is 25 cubic yards(about 19cbm). The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Customized ISUZU brand 6*4 LHD 420hp diesel 25 cubic yards garbage compactor truck for EL Salvador for sale, adopts ISUZU brand VC61 heavy duty 6*4 LHD one row and a half driver cab with air conditioner + power steering + electric windows +central locks, 4565+1370mm wheelbase, 6WG1-TCG52 420hp Euro Ⅴ diesel engine, fastgear 12 speed manual gearbox, 12.00R22.5 rail tires, 7tons front axle/ 13T rear axles, ABS, etc.
The volume of ISUZU brand VC61 6*4 LHD garage compactor truck is 25 cubic yards(about 19cbm). The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita.
Products Description
Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs. It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
We can manufacture and sell 3cubic meters-23cubic meters compressed garbage trucks.
1 | Product name | ISUZU brand 6*4 LHD 19CBM garbage compactor truck for sale（25 cubic yards ） |
2 | Truck chassis model | QL1250 |
3 | Overall dimension(L*W*H) | 10270×2545×3380 |
4 | Total mass(kgs) | 25000 |
5 | Curb mass(kgs) | 16620 |
6 | Driver cab person | 3 included the driver |
7 | Volume | 19cbm |
8 | Volume | 25 cubic yards |
9 | Max speed | 85kw/h |
10 | Wheelbase | 4565+1370mm |
11 | Axle nos. | 3 |
12 | Driver cab | ISUZU brand VC61 heavy duty 6*4 LHD one row and a half luxurious driver cab |
13 | Approach/departure angle(°) | 17/12 |
14 | Front/rear suspension (mm) | 1370/2965 |
15 | Front/rear tread(mm) | 2065; 1855/1855 |
16 | Tire specification | 12.00R22.5 |
17 | Spring | 7/10 |
18 | Engine model | 6WG1-TCG52 |
19 | Rated power | 308KW/420hp |
20 | Displacement(ml) | 15681ml |
21 | Fuel type | Diesel |
22 | Emission standard | Euro Ⅴ |
23 | Gearbox | Fastgear 12 speed manual gearbox |
24 | Front/rear axle | 7tons front axle/ 13T rear axles |
25 | Color | Different color upon request |
26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
27 | Wastes van material | High quality China standard light duty steel |
28 | Operation way | PLC control way |
29 | Loading and discharging way | Rear overturning mechanism |
30 | Compacted way | Bi-directional compression |
31 | Wastes compacting density | ≥0.8tons/m3 |
32 | One working circle time for loading and discharging | ≤30s |
33 | Max compressing force | ≥150KN |
34 | Max passing force | ≥180KN |
Details Images
14cbm SHACMAN brand compressed garbage trucks
SINOTRUK HOWO compacted garbage truck 10T
4CBM FAW brand RHD refuse garbage truck for sale
Our Advantages
The rear loader garbage trucks, garbage compactor truck, refuse garbage truck, compression garbage truck, etc.
1. collecting waste easily, changing the
2. high compression ratio, large loading volume;
3. automatic working,
4. perfect economic
5. double insurance system
6. choosing changover mechanism: choosing changover mechanism.
1. collecting waste easily, changing the
2. high compression ratio, large loading volume;
3. automatic working,
4. perfect economic
5. double insurance system
6. choosing changover mechanism: choosing changover mechanism.
Manufacturing Technique
The working principles of compression garbage truck
Garbage basket：it is adopting the frame structure of welding the strengthen beam and steel, beatiful outlook, light weight, good load-carrying capability, non deformablity. The push shovel manufactured by steel skeleton and folded panel, not only delicate structure, but also making the garbage evenly, discharging clean thoroughly. The precompresser is made up of precompresser shell, operating slide, skimmer blade, etc. every compartment adopting good load carrying bean sheet or van structure, firm structure, ligh weight. The basket used phosphide anti-rust treatment, and coated with anti-rust painting.
Hydraulic system: using the eletronic control and hydrualic control through controlled converting to make sure every activity accuratly and reliably. Adopting leading hydraulic lifting safety circuit,improving the using reliablity and efficiency. The principle is installing holding balancing valve in the hydraulic lifting cylinder. The valve stops the direct connecting between lifting cylinder and hydraulic hose, even the pipeline bursts, the precompresser cannot fall down suddenly as an accident, improving the safety.
Charging and discharging way: flip bucket mechanism charging and discharging, non pollution to operation staff.
There is a special rubber strip sealing the garbage basket and precompresser, good sealing, without the second time pollution.
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid
East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid
East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
