Цена:1 500,00 $ - 2 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Video Description




Product Images








PRODUCT SPECIFICATIONS


No
Item
Data
1
Product Name

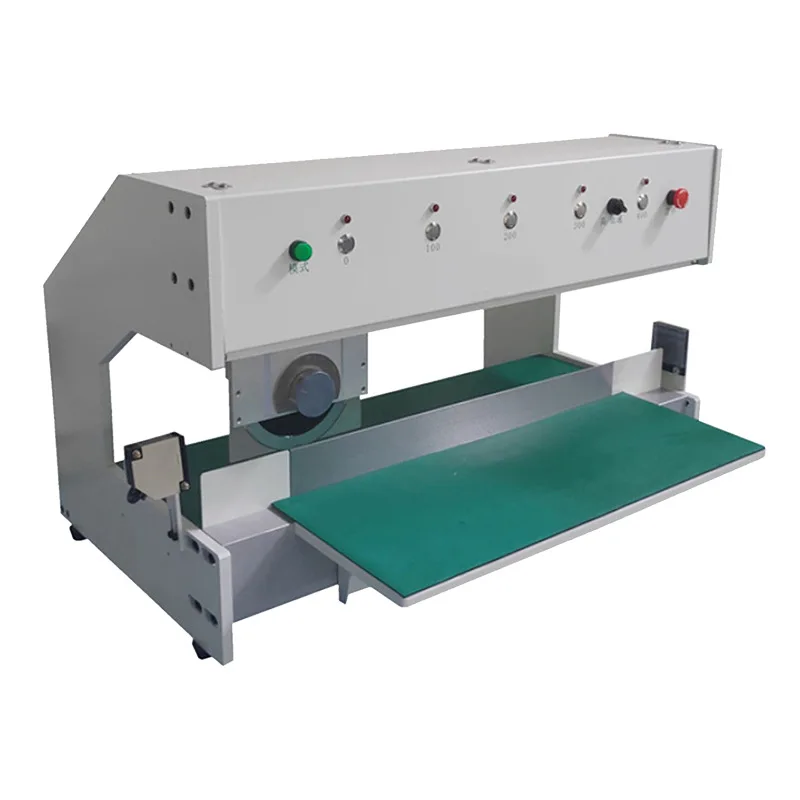

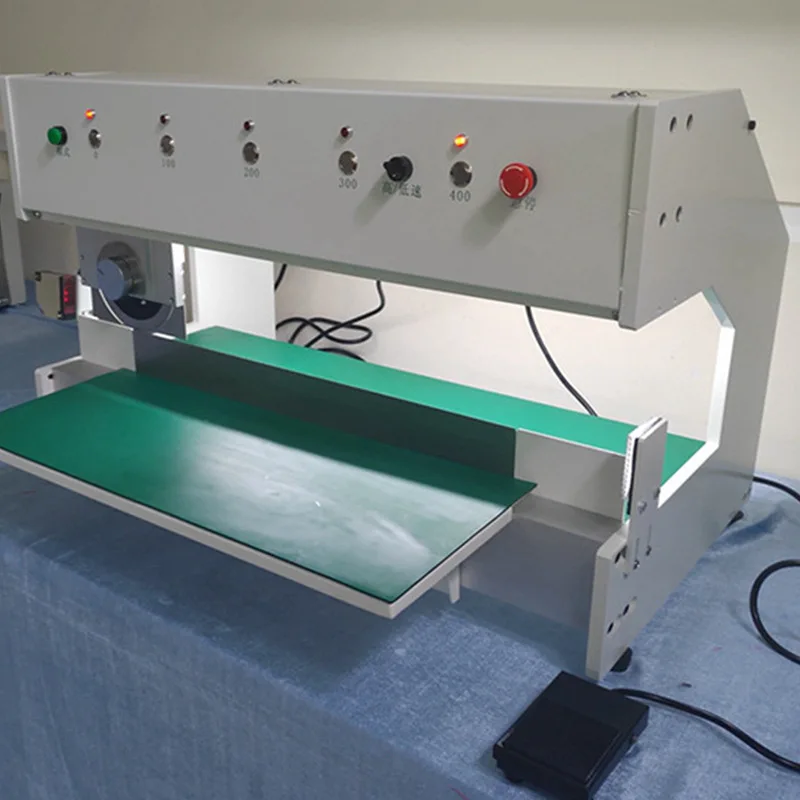

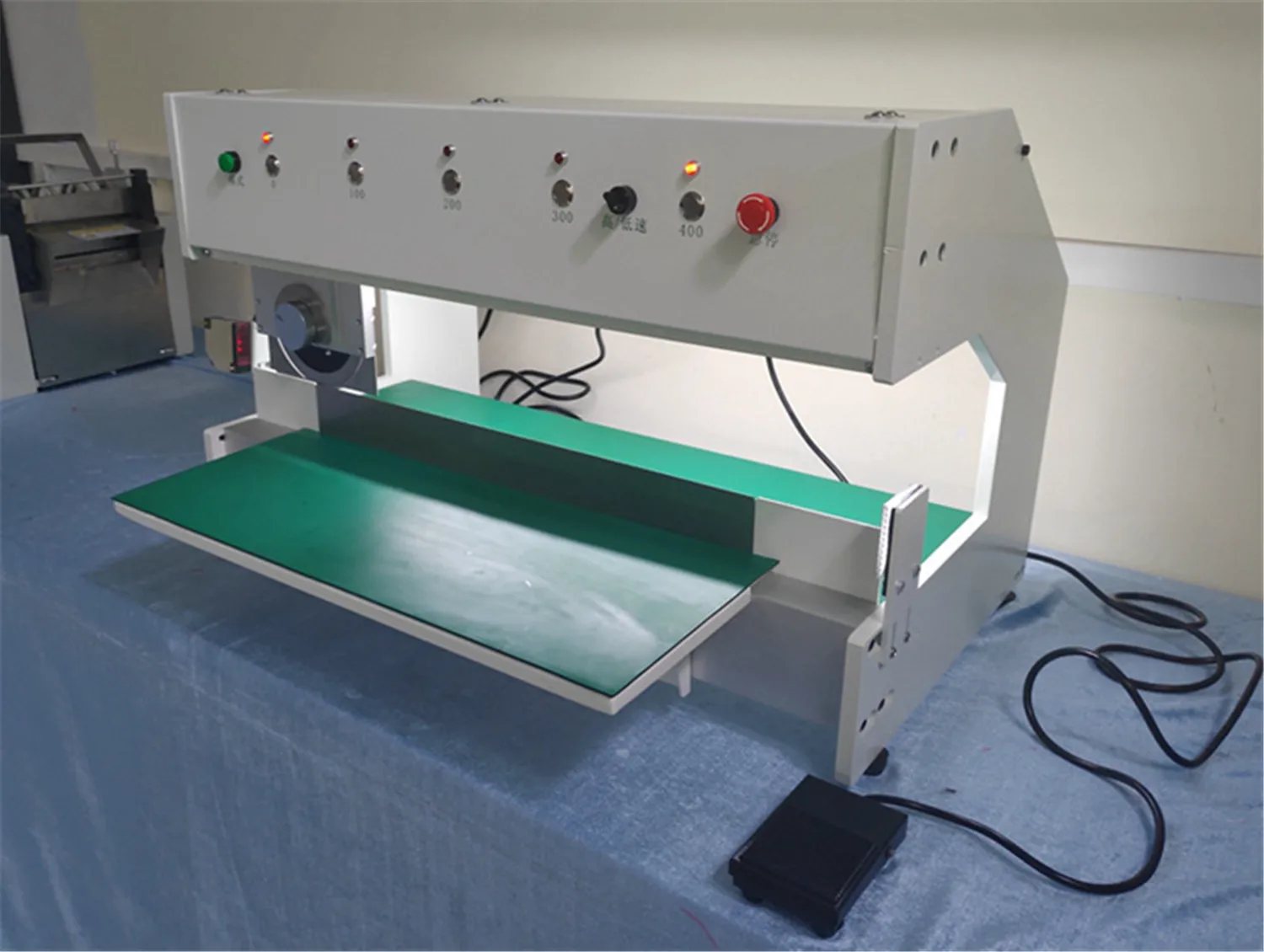

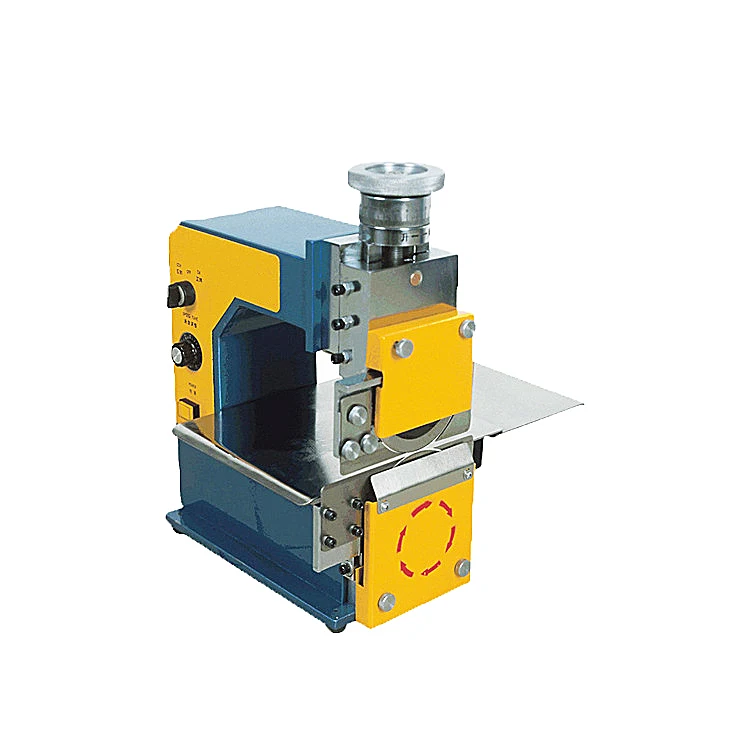

Manual PCB V-Cut Machine
2
Place of origin
China
3
Noise
below 75 decibels
4
Voltage power
110V,50－60HZ,40w
5
Dust collector size
Lower vacuum: 700(L)*630(M)*1800mm(H)
6
Dimensions
L600*W395*H425mm,37KG
7
Cutting accuracy
±0.05mm
8
Effective cutting area
Table size350mm(L)*350mm(W)
9
Scope of application
PCB off-line curve cutting
10
Power supply
AC220V,1.5KW(50-60HZ)


Advantage of Equipment


Advantages of V-Cut Cutting Machine

1. After connecting multiple boards with solder, breaking often will damage the circuit or break the electronic parts. The machine
is divided by knife cutting, which can completely reduce stress, prevent cracking of solder joints and breakage of parts, and
improve production efficiency and quality. . 2. Adopt the method of upper circular knife and lower flat knife. When the board is
on the lower flat knife, when the switch is pressed, the upper circular knife moves horizontally to the set point, that is, the
PCB board is cut and divided, and the cutting does not take off the wire, the incision is flat, and there is no burr


Feature and Function


1. Completely independent development, using microcomputer program control, precise fixed point and strong stability. Cut a single board within 0-360MM length with one knife.
2. The cutting speed of the cutting board can be adjusted to high and low. The speed is 500mm/S and 300mm/S. If the knife speed is fast, the product quality can be improved without burrs and burrs.

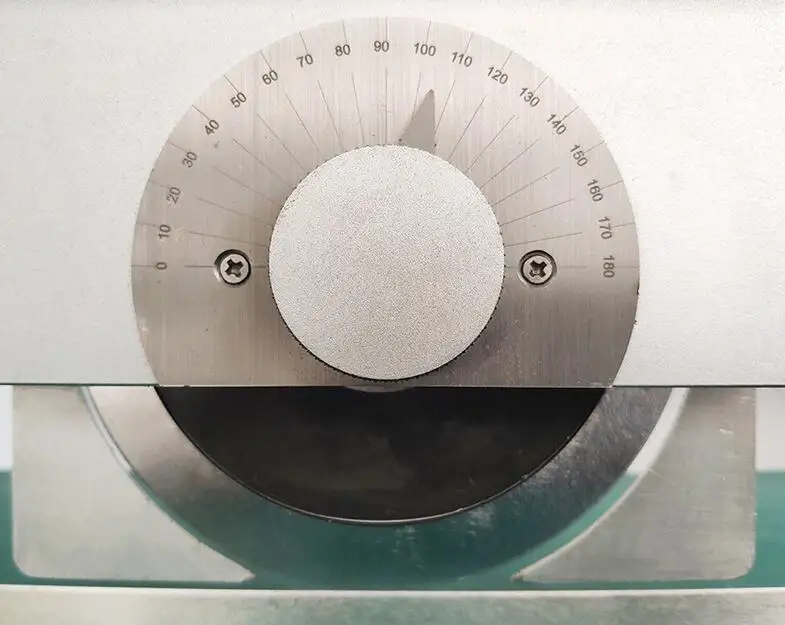

3. The travel of the cutter wheel: 0-360mm (the length of the cutter can be customized). The upper and lower height of the cutter wheel is fine-tuned:0-2mm to apply to various PCB board thicknesses, and to solve the problem of the depth of the V-CUT groove on the PCB board. The height of the console can be adjusted: 0-50mm.
4. The travel of the knife can be set with the length of the plate, and the fixed point of advance and stop can be set manually, and the fixed point of stop is manually set.
5. Tailgate depth range: Unlimited.Maximum board cutting width: unlimited, maximum board cutting length: 360mm, maximum board thickness: 0.2-5mm, maximum thickness between V grooves: 0.25-2.0mm.
6. The upper and lower knives are imported high-speed steel materials, which are extremely durable.When the knives are unfavorable, they can be reground.
7. It can be equipped with a conveyor belt to facilitate the automatic delivery of the cut PCB board.
8. The lifting of the platform and the height adjustment of the platform can affect the quality of the product, it is not easy to cut the product, and it can also reduce the stress .
9. The limit device can be applied to products of different sizes, thereby improving work efficiency.


SALES AND SERVICE NETWORK




Application

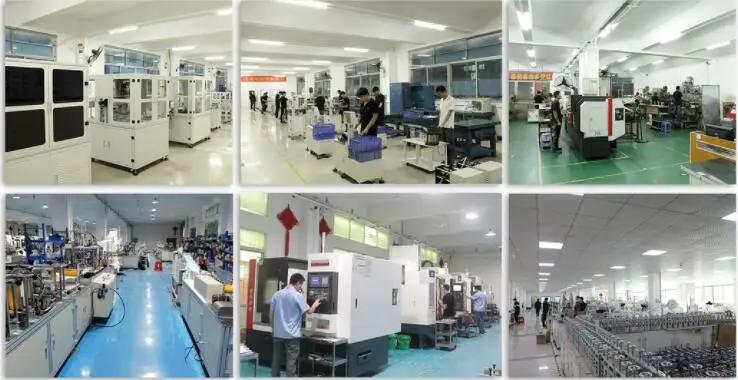

Factory to show
