Products Description

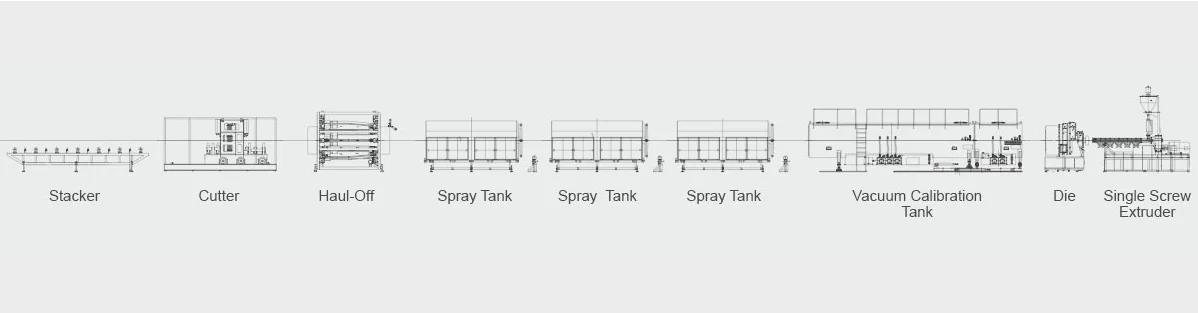

HDPE PIPE Extrusion Production Line
1 | Single Screw Plastic Extruder | 1set |
2 | Mould | 1set |
3 | Vacuum Calibration Tank | 1set |
4 | Hauling Machine | 1set |
5 | Pipe Cutting Machine | 1set |
6 | Stacker | 1set |
1.We are a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines, plastic
production line.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
3.Our plastic making machine can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.
4.Plastic Extruder is widely used in Plastic industry. It is the main part of Plastic Pipe Extrusion Line, Plastic Profile
Extrusion Line, Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe, machines to produce pellet, laminating machine, wooden window frames machine. Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery. Our plastic machine have long-life.
production line.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
3.Our plastic making machine can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.
4.Plastic Extruder is widely used in Plastic industry. It is the main part of Plastic Pipe Extrusion Line, Plastic Profile
Extrusion Line, Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe, machines to produce pellet, laminating machine, wooden window frames machine. Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery. Our plastic machine have long-life.
Product Appliaction

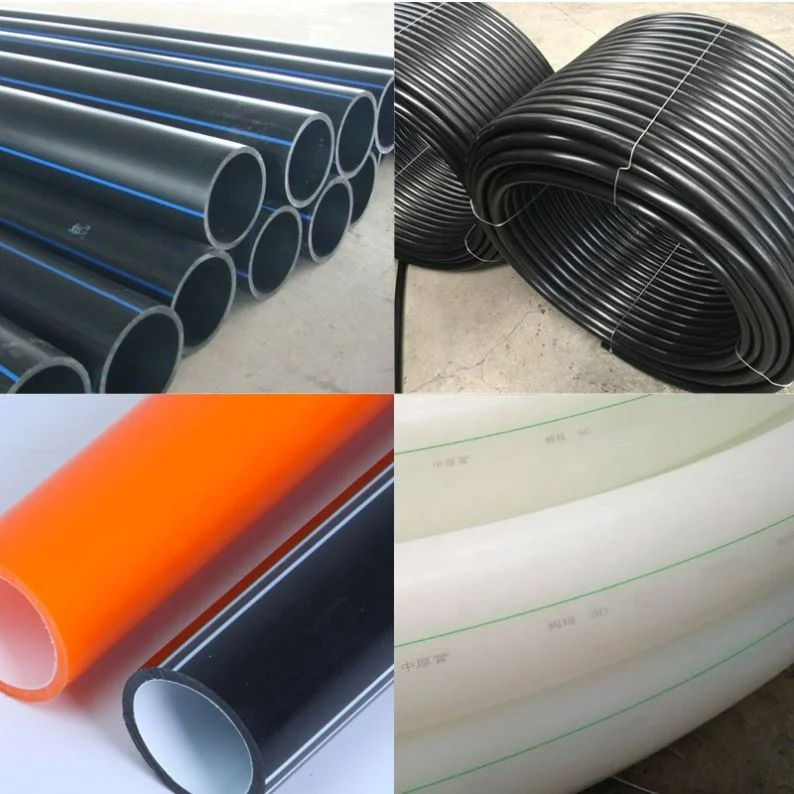

It is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable
laying,etc. and plastic PVC pipes of various pipe diameters and wall thicknesses. The unit consists of a conical (parallel)
twin-screw extruder, a vacuum setting table, a tractor, a cutting machine, a stacking rack, etc. and all of them are high-quality products.The tractor has two-claw, three-claw, four-claw, six-claw, eight-claw and other traction types.
laying,etc. and plastic PVC pipes of various pipe diameters and wall thicknesses. The unit consists of a conical (parallel)
twin-screw extruder, a vacuum setting table, a tractor, a cutting machine, a stacking rack, etc. and all of them are high-quality products.The tractor has two-claw, three-claw, four-claw, six-claw, eight-claw and other traction types.
Recommend Products
Technical Parameter
Specifications | ||||||||
Machine Model | FCPL | |||||||
Processed Material | PVC,PE,HDPE PPR and etc. | |||||||
Final Product Shape | Pipe | |||||||
Output Range(kg/h) | 120-1100 | |||||||
Diameter of screw | 50mm-130mm(standard) | |||||||
Voltage Standard | According to the Voltage of the Customer's Location | |||||||
Warranty | 12 months from the date of bill of lading | |||||||
Technical services | Project design, factory construction, installation and recommendations, commissioning | |||||||
Diameter scope(mm) | Conical twin-screw extruder | Motor(KW) | Max.Capacity(KG/H) | Max. Lineal speed(m/min.) |
20-63 | SJH50/38 | 55 | 150 | 30 |
20-110 | SJH60/38 | 90 | 350 | 20 |
40-160 | SJH60/38 | 110 | 400 | 15 |
75-250 | SJH75/38 | 132 | 500 | 12 |
110-315 | SJH75/38 | 160 | 600 | 12 |
110-450 | SJH90/38 | 250 | 850 | 8 |
315-630 | SJH90/38 | 280 | 1050 | 4 |
500-800 | SJH120/38 | 355 | 1300 | 2 |
700-1200 | SJH75/38 SJH90/38 | 160/250 | 1450 | 1 |
1000-1600 | SJH120/38 SJH90/38 | 355/280 | 1900 | 0.6 |
Details Images

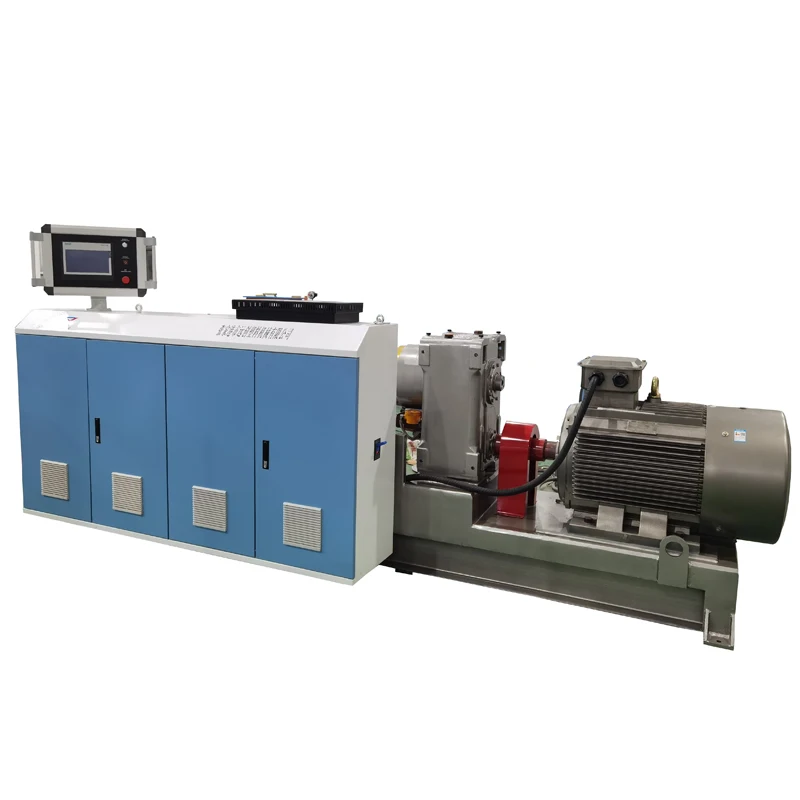

1.Far Creative Single Screw Extruder
The extruder of HDPE pipe line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system.
The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2.Die Mould
- Spacious flow channel design to guarantee highextrusion capacity and good melt.
- Optimized temperature control and flow channeldesign, precise melt temperature control.
3. Vacuum calibration tank
The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304.
The excellent vacuum system ensures the precise sizing for pipes;spraying
cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4.Haul-off Unit
For the different pipe size and different speed requirement, Far Creative developed kinds of haul-off unit accordingly.
For the large diameterpipe, a pipe winch device is equipped to the production line to reduced the waster material.
5.Cutter
Company Information
Zhangjiagang City Far Creative Plastic Machinery Co., Ltd. is a professional company specializing in the design and manufacture of plastic machines,such as single screw extruders, conical twin screw extruders, PVC, PE, PP and PP-R pipe extruders, PVC and WPC profile /board extruders,PVC and PE recycling machines, crushing,full biodegradable pelleting machines, and mixing machines for all kinds of plastics and other kinds of auxiliary equipment in the field.
Our company is well known both at home and abroad for high quality products and complete service systems. It is located in zhangjiagang city, and it only takes around two hours driving from Shanghai international airport. Welcome to visit our factory,and hope to cooperate with you in near future!
Our company is well known both at home and abroad for high quality products and complete service systems. It is located in zhangjiagang city, and it only takes around two hours driving from Shanghai international airport. Welcome to visit our factory,and hope to cooperate with you in near future!
Why Choose Us
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 yearsQ: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
