1 0 мм 2 POF PMMA Пластиковый оптический
- Категории: Communication Cables >>>
- Поставщик: Jiangsu,Tx,Plastic,Optical,Fibers,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

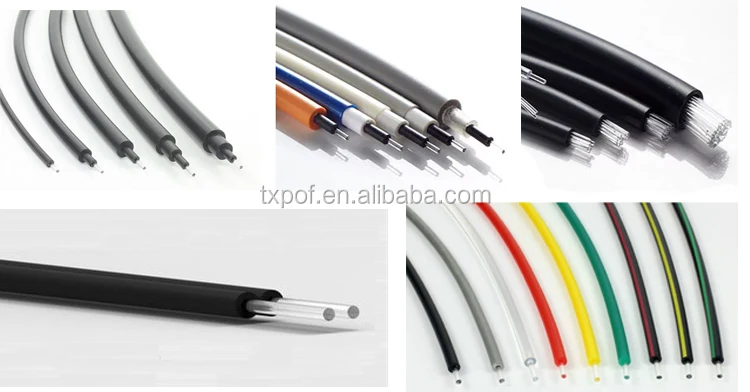

Product Details
Core | 1.0MM PMMA fiber *2 |
OD: | 2.2MM*4.4mm |
Attenuation: | ≤180dB/km |
Jacket: | black PE |

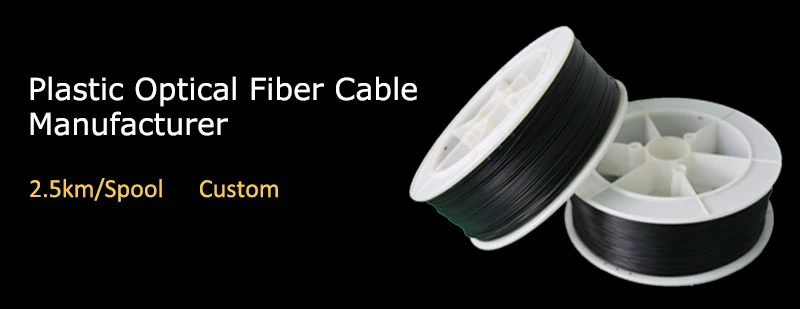

Spool length: | 2500m/roll or 5000m/roll |
Customization: | outer diameter, jacket material, jacket color, meters dot |
We have our own brand "TXPOF", and we also have cooperation with Toray/Avago/Mitsubishi. Below are some of our product list for your reference.
Model | Core diameter (mm) | OD (mm) | Attenuation (dB/km) | Jacket Material | Meters/roll （meter） | Temperature （℃） | ||||||
TX-CC0500-1B | 0.5mm×1 | 1.0mm±0.15 | ≤250 | PE | 1500/5000 | -55~85 | ||||||
TX-CC0500-1B/1.25 | 0.5mm×1 | 1.25mm±0.15 | ≤250 | PE | 1500/5000 | -55~85 | ||||||
TX-CC0750-1B | 0.75mm×1 | 2.2mm±0.07 | ≤200 | PE | 2500 | -55~85 | ||||||
TX-CC1000-1B/1.25 | 1.0mm×1 | 1.25mm±0.15 | ≤200 | PE | 1500/5000 | -55~85 | ||||||
TX-CC1000-1B | 1.0mm×1 | 2.2mm±0.07 | ≤200 | PE | 2500/5000 | -55~85 | ||||||
TX-CC1000-1A | 1.0mm×1 | 2.2mm±0.07 | ≤180 | PE | 2500/5000 | -55~85 | ||||||
TX-CC1500-1/3.0 | 1.5mm×1 | 3.0mm±0.1 | ≤240 | PE/PVC | 700 | -55~85 | ||||||
TX-CC2000-1/3.8 | 2.0mm×1 | 3.8mm±0.1 | ≤240 | PE/PVC | 350 | -55~85 | ||||||
TX-CC3000-1/4.5 | 3.0mm×1 | 4.5mm±0.1 | ≤240 | PE/PVC | 150 | -55~85 | ||||||
TX-CC3000-1/5.0 | 3.0mm×1 | 5.0mm±0.1 | ≤240 | PE/PVC | 150 | -55~85 | ||||||
TX-CC1000-2B | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤200 | PE | 1250 | -55~85 | ||||||
TX-CC1000-2A | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤180 | PE | 1250 | -55~85 | ||||||
TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC | 500 | -55~85 | ||||||
TX-CC1000-2A/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC | 500 | -55~85 | ||||||
TX-CC1000-2C/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC | 300 | -55~85 | ||||||
TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC | 300 | -55~85 | ||||||
TX-CC1000-2KB/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC+kevlar | 300 | -55~85 | ||||||
TX-CC1000-2KA/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC+kevlar | 300 | -55~85 | ||||||
TX-CC1000-1BV | 1.0mm×1 | 2.2mm±0.07 | ≤200 | UL VW-1 | 2500 | -55~85 | ||||||
TX-CC1000-1AV | 1.0mm×1 | 2.2mm±0.07 | ≤180 | UL VW-1 | 2500 | -55~85 | ||||||
TX-CC1000-2BV | 1.0mm×2 | 4.4mm±0.1 | ≤200 | UL VW-1 | 1250 | -55~85 | ||||||
TX-CC1000-2AV | 1.0mm×2 | 4.4mm±0.1 | ≤180 | UL VW-1 | 1250 | -55~85 | ||||||
TX-CC1000-1B/4.0 | 1.0mm×1 | 4.0mm±0.1 | ≤200 | PE+PVC | 1000 | -55~85 | ||||||
TX-CC1000-1B/5.0 | 1.0mm×1 | 5.0mm±0.1 | ≤200 | PE+PVC | 500 | -55~85 | ||||||
Please consult us for other specifications （email： yll@txpof.com phone&whatsapp: +86 19505282863） | ||||||||||||
Application
- Sensor signal transmission
- Medical and sensor system
- Industrial control signal transmission
- Audio signal transmission
- Special LAN or access network
- Auto multimedia signals or control signal transmission
Related Products

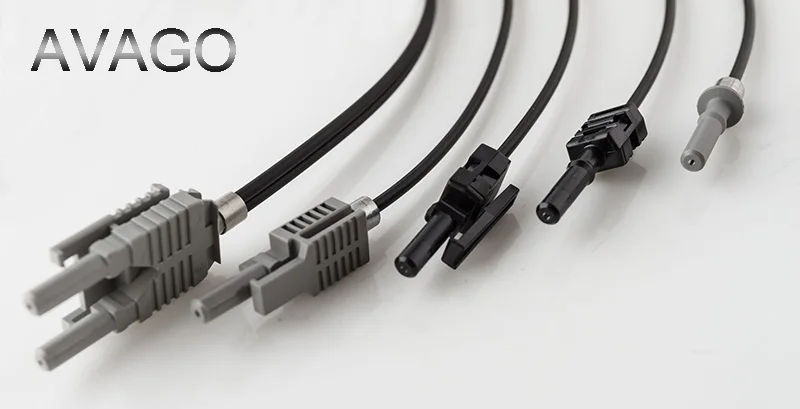

AVAGO series:
Model | Core diameter (mm) | OD (mm) | Attenuation (dB/km) | Jacket Material | Meters/roll （meter） | Temperature （℃） |
HFBR-RUS100Z | 1.0mm×1 | 2.2mm±0.07 | ≤220 | PE | 100 | -55~85 |
HFBR-RUS500Z | 1.0mm×1 | 2.2mm±0.07 | ≤220 | PE | 500 | -55~85 |
HFBR-EUS100Z | 1.0mm×1 | 2.2mm±0.07 | ≤190 | PE | 100 | -55~85 |
HFBR-EUS500Z | 1.0mm×1 | 2.2mm±0.07 | ≤190 | PE | 500 | -55~85 |
HFBR-RUD500Z | 1.0mm×2 | 2.2/4.4mm±0.07 | ≤220 | PE | 500 | -55~85 |
HFBR-EUD500Z | 1.0mm×2 | 2.2/4.4mm±0.07 | ≤190 | PE | 500 | -55~85 |

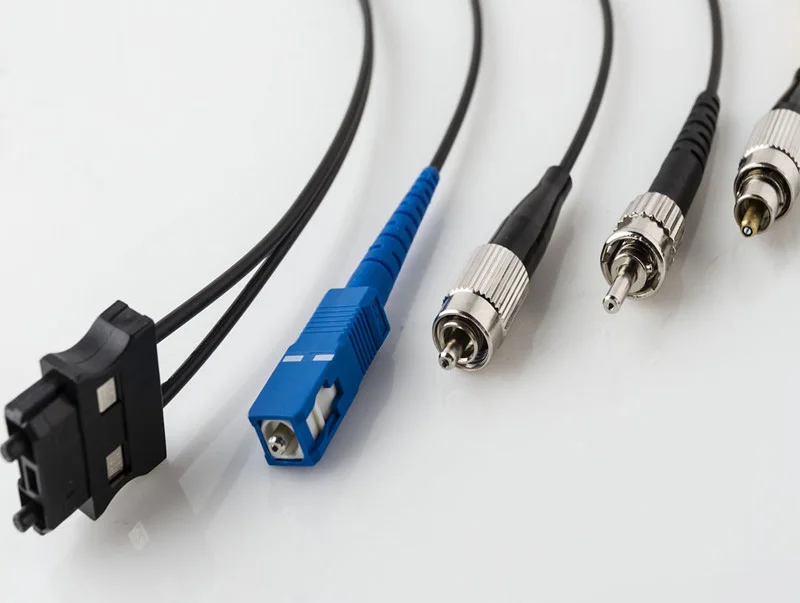

AMP and Industrial control pof patch cable
POF Industry Sensing

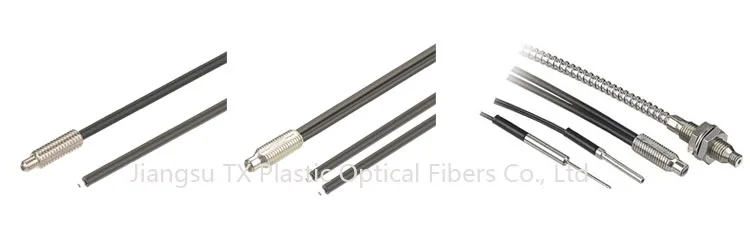

M3/M4/M6 Fiber Optic Sensor Cable
High grade industrial grade plastic optical fiber cables for industrial and medical application
Mitsubishi Series：
Model | Core diameter (mm) | OD (mm) | Attenuation (dB/km) | Jacket Material | Meters/roll （meter） | Temperature （℃） |
SH-1001 | 0.25mm×1 | 1.0mm±0.05 | ≤700 | PE | 500 | -55~70 |
SH-2001 | 0.5mm×1 | 1.0mm±0.05 | ≤210 | PE | 1000 | -55~70 |
SH-2002 | 0.5mm×2 | 2.0mm±0.1 | ≤210 | PE | 500 | -55~70 |
SH-1009 | 0.25mm× 9 | 1.25mm±0.05 | ≤650 | PE | 500 | -55~70 |
SH-1010 | 0.25mm×10 | 1.25mm±0.05 | ≤650 | PE | 500 | -55~70 |
SH-1016 | 0.25mm×16 | 2.2mm±0.07 | ≤650 | PE | 500 | -55~70 |
SH-4001 | 1.0mm×1 | 2.2mm±0.07 | ≤190 | PE | 1000 | -55~70 |
SH-4002 | 1.0mm×2 | 4.3mm±0.1 | ≤190 | PE | 500 | -55~70 |
GH-4001 | 1.0mm×1 | 2.2mm±0.07 | ≤170 | PE | 500 | -55~85 |
GH-4002 | 1.0mm×2 | 4.3mm±0.1 | ≤170 | PE | 500 | -55~85 |
BH-2001 | 0.5mm×1 | 0.95mm±0.05 | ≤250 | PE | 1000 | -55~105 |
BH-4001 | 1.0mm×1 | 2.18mm±0.05 | ≤200 | PE | 500 | -55~105 |

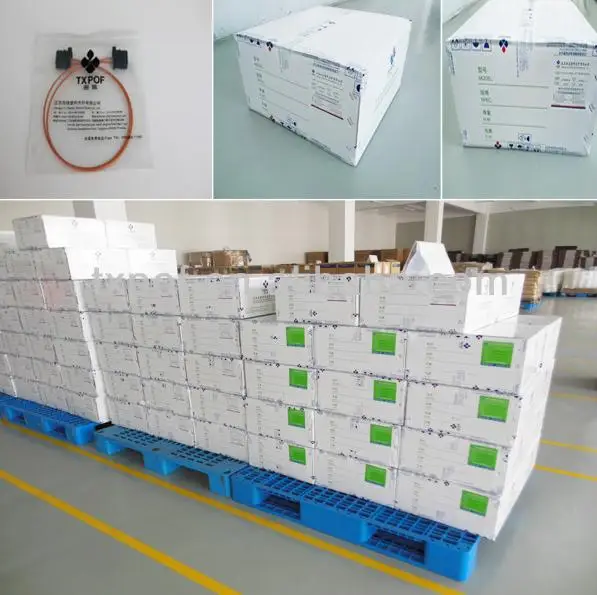

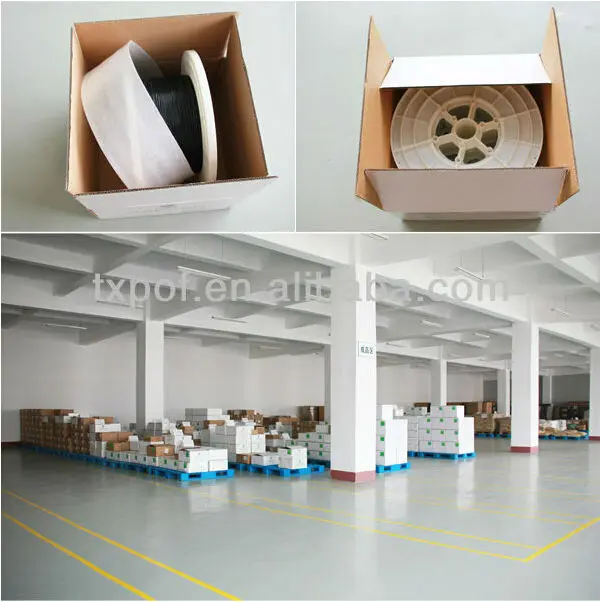

Packing & Delivery

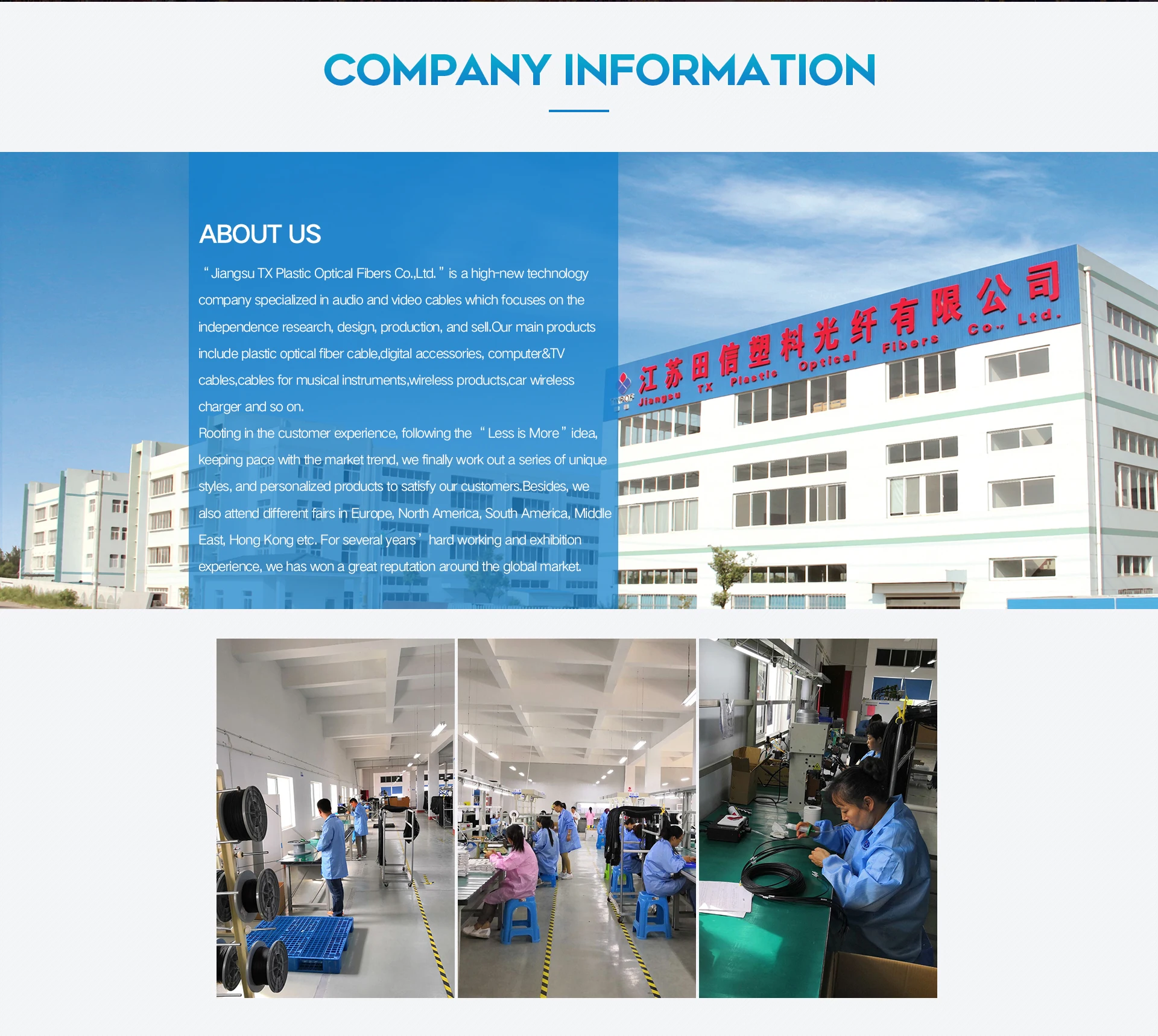

Factory and team
Certificates
Exhibitions
