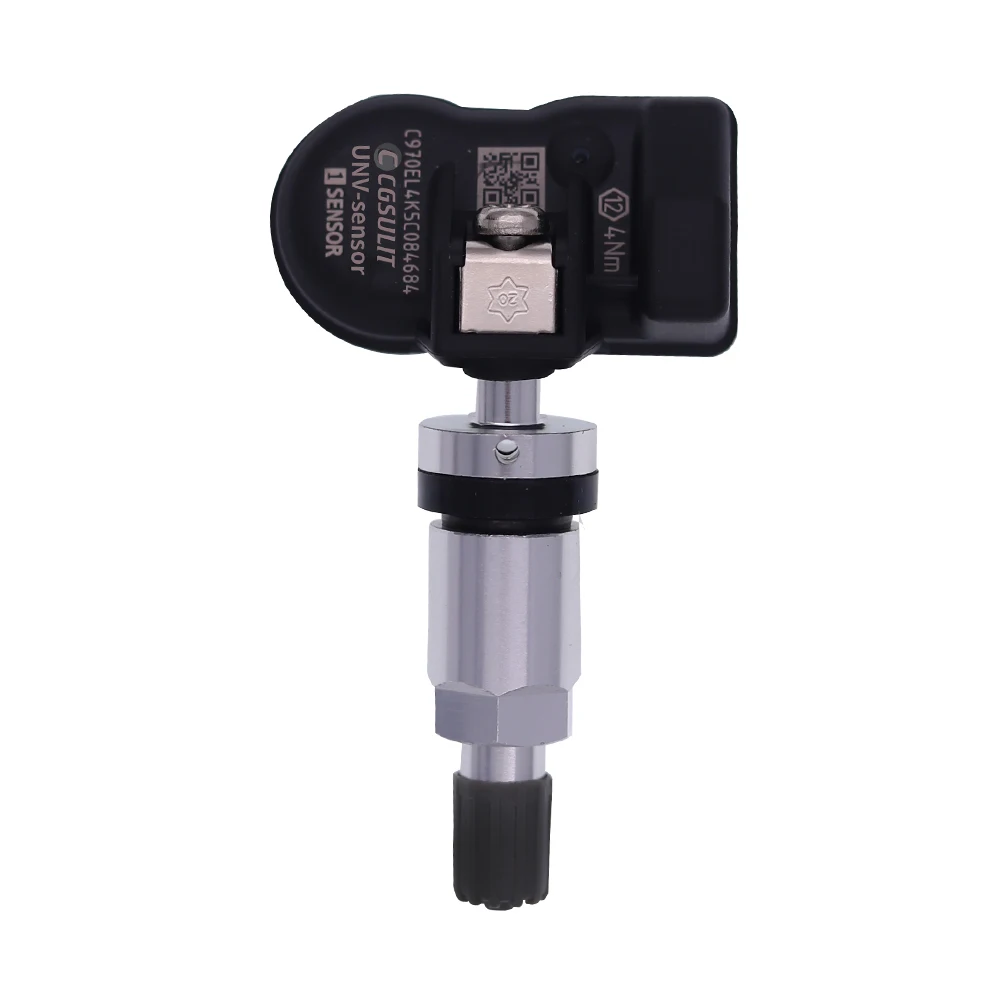

Product Description
Product Name | 2022 autel mx sensor 315MHz-433MHz universal car TPMS Sensors programmable tire pressure gauge sensor tpms |
Batteries | 1 CR2 batteries required. (included) |
Package includes | 1pcs x CGSULIT TS01 433 & 315 MHZ TPMS Sensor 1pcs x User manual |
Package Dimensions | 2.6 x 1.2 x 1.2 inches |
Product performance description
Specifications:
Battery Life: 4-6 years
Operating Temperature: -40°C to +125°C
Storage Temperature:-40°C to +35°C
Operating Humidity: ≤90%

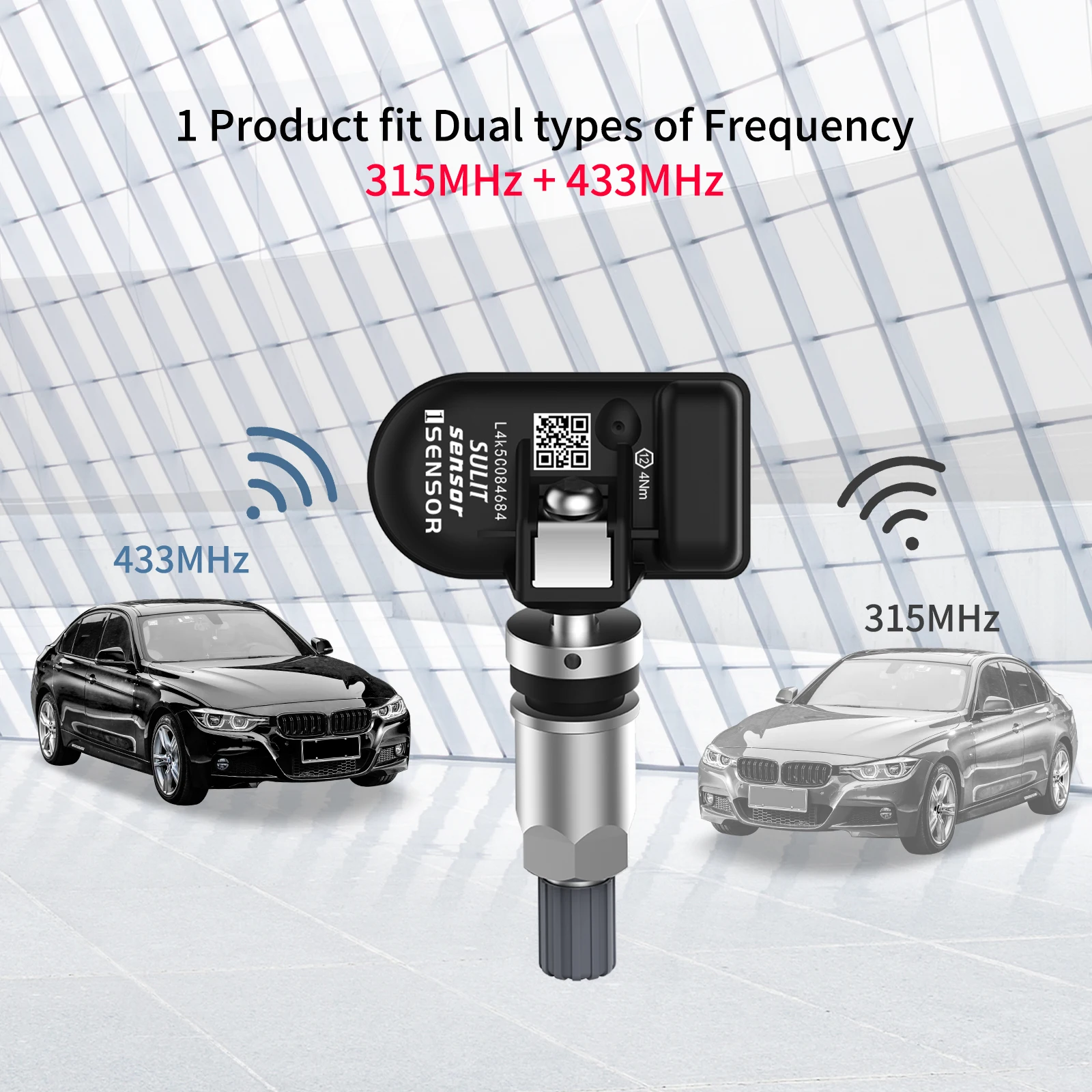

Operating Frequency: 315 MHz / 433 MHz
Pressure Monitoring Range: 0 to 800 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm Battery
Battery: 3.0 V
Item Weight: 0.91 ounces
Battery Life: 4-6 years
Operating Temperature: -40°C to +125°C
Storage Temperature:-40°C to +35°C
Operating Humidity: ≤90%
Operating Frequency: 315 MHz / 433 MHz
Pressure Monitoring Range: 0 to 800 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm Battery
Battery: 3.0 V
Item Weight: 0.91 ounces
Product Usage
Product usage introduction
How to install the sensor:
1.Connect the sensor body and valve stem at a suitable angle (normally use the maximum angle of 30°)
2.Remove the screw nut from the valve stem.
3.Slide the valve stem through the valve hole of the rim with the sensor on the inside of the rim.
4.Assemble the screw nut back on the valve stem with 4.0 Nm power, then tighten the cap.
1.Connect the sensor body and valve stem at a suitable angle (normally use the maximum angle of 30°)
2.Remove the screw nut from the valve stem.
3.Slide the valve stem through the valve hole of the rim with the sensor on the inside of the rim.
4.Assemble the screw nut back on the valve stem with 4.0 Nm power, then tighten the cap.
Description of product use effect
Please note:
The TPMS sensor assemblies are replacement or maintenance parts for vehicles with factory installed TPMS. Please make sure to
program the specific vehicle make, model and year before installation.
The sensors are safety-relevant part, so we recommend the installation by the professional.
TS01 TPMS Sensor can be programmed before or after installation, but we recommend to program it before installation. If install it
after installation, please ensure the tire pressure is deflated to 0kpa.
Do not install programmed TPMS sensors in damaged wheels.
The TPMS sensor assemblies are replacement or maintenance parts for vehicles with factory installed TPMS. Please make sure to
program the specific vehicle make, model and year before installation.
The sensors are safety-relevant part, so we recommend the installation by the professional.
TS01 TPMS Sensor can be programmed before or after installation, but we recommend to program it before installation. If install it
after installation, please ensure the tire pressure is deflated to 0kpa.
Do not install programmed TPMS sensors in damaged wheels.
Customer Service
FAQ
Q1. What is the MOQ?
----Sample order is available.
Q2. What is the Delivery time?
----About 3-7 days
Q3. Can you customize it?
----Welcome, you can send your own design of automotive product and logo, we can open new model and print or emboss any logo for yours.
Q4. How to pay?
----We support multiple payment methods, if you have any questions, pls contact our sales.
Q5. What's the price? Is the price fixed?
----The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry please let us know the quantity you want.
Q6. Will you provide a warranty?
----Yes, We provide a three-year warranty.
----Sample order is available.
Q2. What is the Delivery time?
----About 3-7 days
Q3. Can you customize it?
----Welcome, you can send your own design of automotive product and logo, we can open new model and print or emboss any logo for yours.
Q4. How to pay?
----We support multiple payment methods, if you have any questions, pls contact our sales.
Q5. What's the price? Is the price fixed?
----The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry please let us know the quantity you want.
Q6. Will you provide a warranty?
----Yes, We provide a three-year warranty.
