Заготовка из стали цена Q235 Q275 Q255 3sp 5sp120mm X 120mm квадратная стальная заготовка размер
- Категории: Billets >>>
- Поставщик: Shandong,Ganquan,Import,and,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Steel Billet Price Q235 Q275 Q255 3sp 5sp Prime Concast Square Steel Billet Size 100*100 120*120

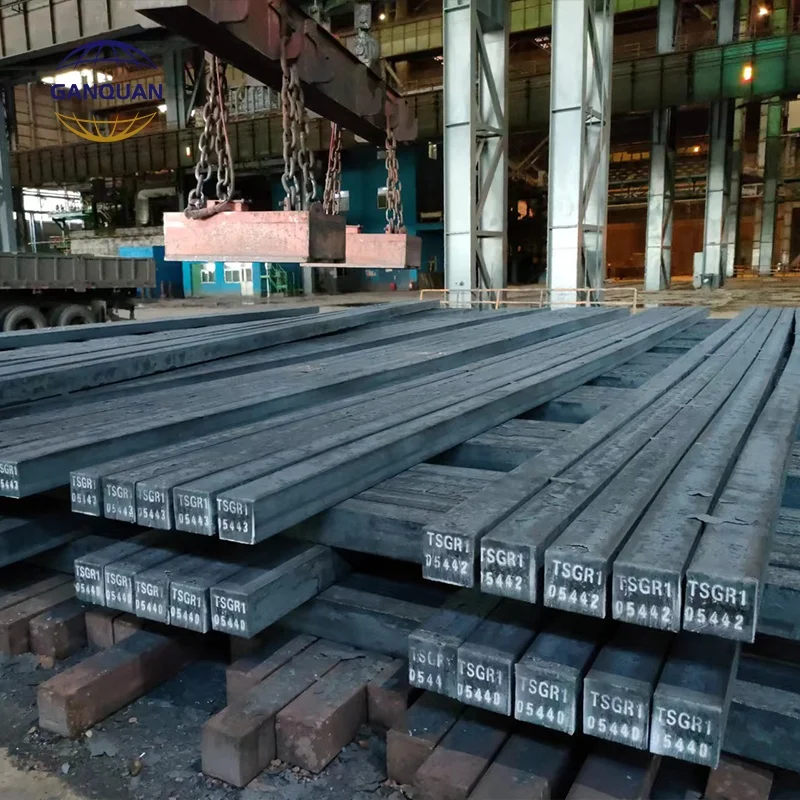

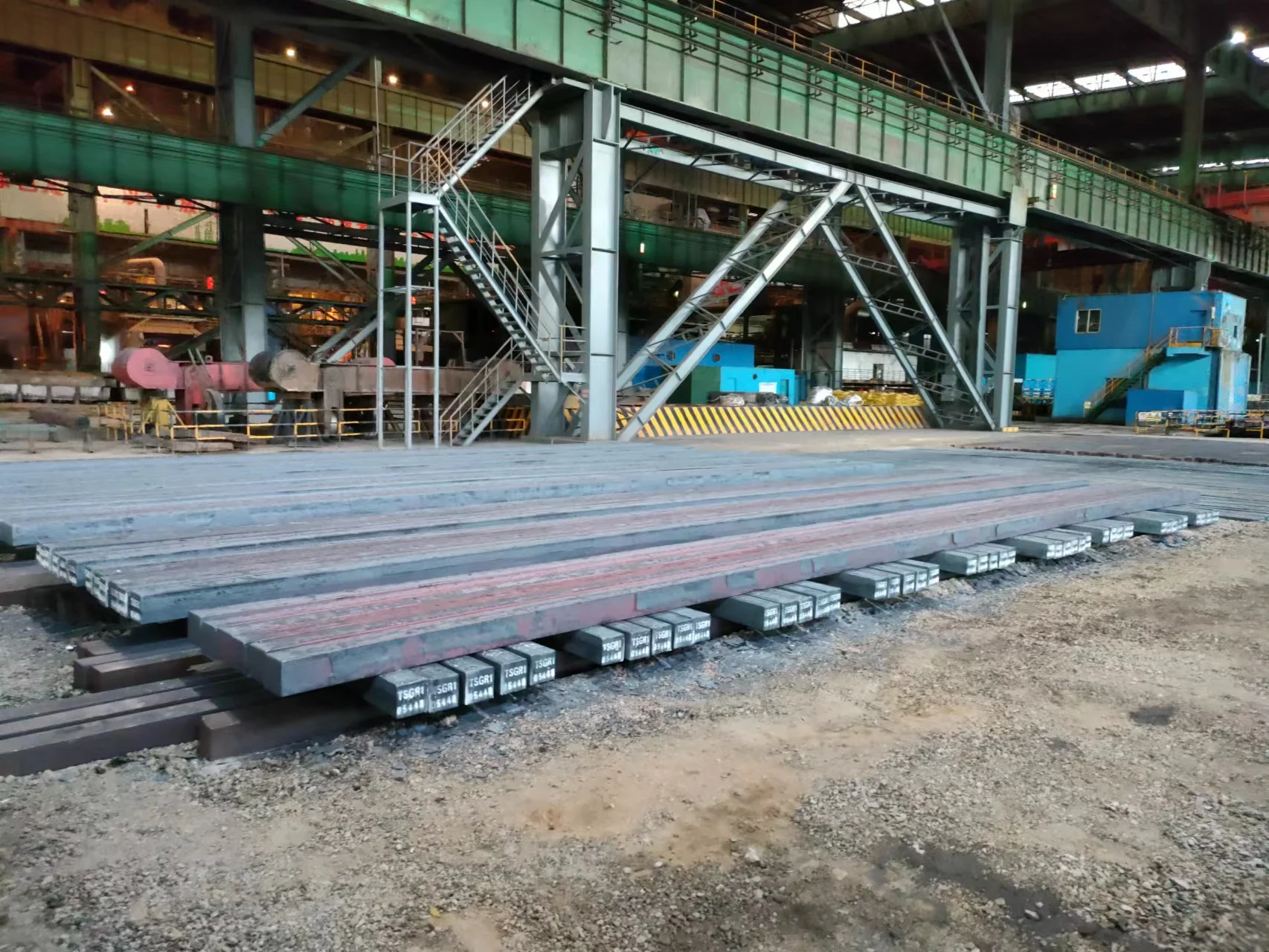

Product Show

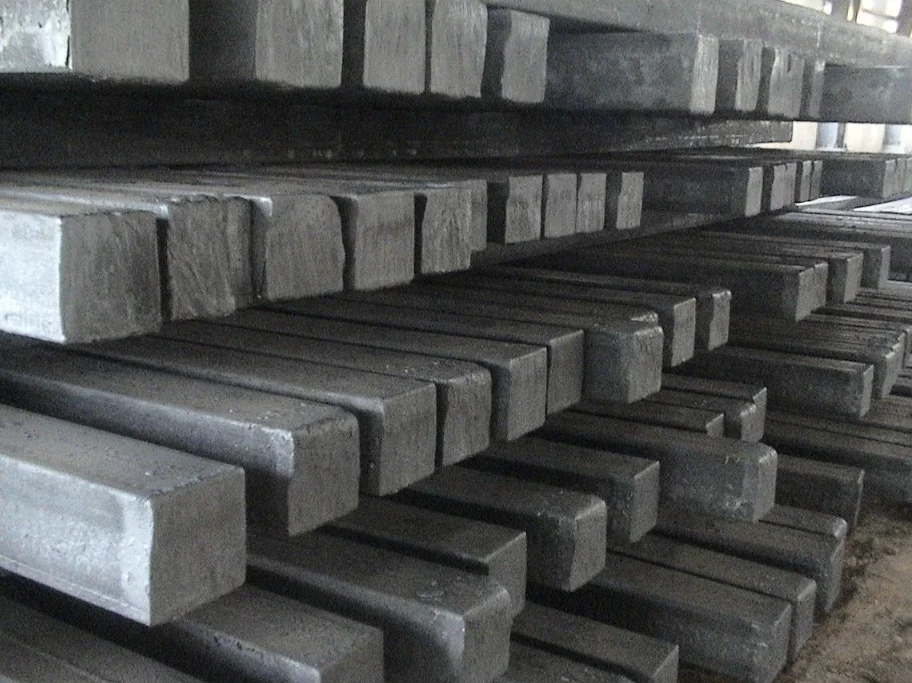

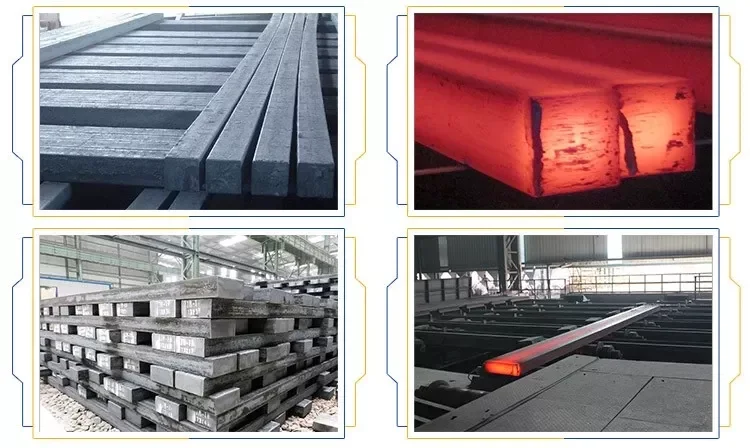

Square Billets
Steel billet is originally steel, and after processing, it can be used as mechanical parts, forgings, processing various steels, section steel Q345B channel steel, and wire is the role of the billet. Steel billets refer to semi-finished products used in the production of steel, which generally cannot be directly used by society. There are strict classification standards for billets andsteel products, which cannot be determined by whether they are the final products of the enterprise, but must be implemented according to the unified standards of the whole society. Usually, billets and steels are relatively easy to distinguish, but for some billets, which have the same specifications and the same use as steel (such as rolled tube billets), it can be determined by
whether they are used in other industries and whether they have undergone the steel processing process. , Whether it has been processed by the finished rolling mill to distinguish.
whether they are used in other industries and whether they have undergone the steel processing process. , Whether it has been processed by the finished rolling mill to distinguish.
There are mainly two types of shapes:
1. Slab: the ratio of section width to section height is large, which is mainly used for rolling plates.
2. Square billet: the section width and height are equal, or the difference is small, and it is mainly used for rolling section
steel and wire rod.
1. Slab: the ratio of section width to section height is large, which is mainly used for rolling plates.
2. Square billet: the section width and height are equal, or the difference is small, and it is mainly used for rolling section
steel and wire rod.
Product Paramenters
Item | Hot rolled steel billet |
Types | Square steel billet, flat steel billet |
Standard | GB, JIS, ASTM |
Grade | Q195, Q215, Q235, Q275, Q345, HRB335, 20MnSi, 3SP, 5SP |
Size | 80*80mm, 90*90mm, 100*100,120*120mm and so on |
Square steel billet tolerance | +1.0/-2.0----+3.0/-1.0mm |
Square steel billet tolerance | +/-2.0MM refer to width; +/-3.0MM refer to thickness |
Thickness range: | 150-240mm+/- 5mm |
Width range: | 880-1530mm+/- 20mm |
Length range: | 3700-10000mm+/- 500mm |
Cross section size: | 64 * 64; 82*82； 98*98； 124*124； 120*150； 152*164； 152*170mm |
Section tolerance: | Square billet (+1.0/- 2.0 ----+3.0/- 1.0mm); Slab (width:+/-2.0MM, thickness:+/-3.0MM) |
Surface inclination: | not more than 0.1 of the billet section |
Curvature: | no more than 10MM per 1M length |
Twist: | length<=5M,<=11; Length<=7.5M,<=5. |
Material 3SP/PS Chemical composition%: | C, Mn, Si, S, P |
ASTM A 615 Grade 40 and 60 and BS 4449 Grade 460 | ||
Cross Section | Weight | |
130 mm X 130 mm | 132 kg/meter for 130 mm X 130 mm | |
150 mm X 150 mm | 175 kg/meter for 150 mm X 150 mm | |
Length | Nominal Corner Radius | |
3.5 meter to 12 meter | 6 mm max. for 130 mm X 130 mm | |
8 mm max. for 150 mm X 150 mm | ||
Allowable Variation on Size | ||
Face Length | ± 3 mm | |
Difference in Diagonals | < 8 mm | |
Cut Length | ± 50 mm | |
Type | Cross Section (mm) | Length (m) |
Steel Billets | 100 x 100 | 6 ~12m |
Steel Billets | 120 x 120 | 6 ~12m |
Steel Billets | 130 x 130 | 6 ~18m |
Steel Billets | 140 x 140 | 6 ~18m |
Steel Billets | 150 x 150 | 6 ~18m |
Steel Billets | 180 x 180 | 6 ~18m |
Steel Billets | 200 x 200 | 6 ~18m |
Chemical Properties | ||||||||||||
Element | BS 4449 Grade 460 | ASTM A 615 Grade 40 | ASTM A 615 Grade 60 | |||||||||
min. | max. | min. | max. | min. | max. | |||||||
C% | 0.18 | 0.23 | 0.22 | 0.31 | 0.32 | 0.38 | ||||||
Si% | 0.16 | 0.30 | 0.15 | 0.30 | 0.16 | 0.30 | ||||||
Mn% | 0.85 | 1.25 | 0.75 | 1.10 | 1.00 | 1.40 | ||||||
P% | - | 0.045 | - | 0.045 | - | 0.040 | ||||||
S% | - | 0.045 | - | 0.045 | - | 0.040 | ||||||
Cr% | - | 0.30 | - | 0.30 | - | 0.30 | ||||||
Ni% | - | 0.30 | - | 0.30 | - | 0.30 | ||||||
Mo% | - | 0.10 | - | 0.15 | - | 0.10 | ||||||
Cu% | - | 0.50 | - | 0.50 | - | 0.45 | ||||||
V% | - | 0.10 | - | 0.050 | - | 0.05 | ||||||
Sn% | - | 0.05 | - | 0.05 | - | 0.045 | ||||||
Ca% | - | 0.10 | - | 0.10 | - | 0.005 | ||||||
N ppm | - | 115 | - | 115 | - | 115 | ||||||
CE | 0.42 | 0.50 | 0.40 | 0.50 | 0.56 | 0.65 | ||||||
Other Hot Selling Products
Application
Application
Wide Application of Channel Steel
1. Building (such as glass curtain wall, power tower, water and gas transmission, wire sleeve, scaffold, house, etc.), bridge and transportation;
1. Building (such as glass curtain wall, power tower, water and gas transmission, wire sleeve, scaffold, house, etc.), bridge and transportation;
2. Industry (such as chemical equipment, metal structure, power transmission, shipbuilding, etc.);
3. Agriculture (such as sprinkler irrigation, warming room), etc.
Packing & Delivery
Package | Standard export seaworthy package,suit for all kinds of transport, or as required. |
Water-proof Paper + Edge protection + Wooden Pallets | |
Bulk Size | Any size |
Loading Port | Tianjin, Qingdao Port or any China Seaport |
Container | 1*20ft container load Max. 25 Ton, Max. length 5.8m |
1*40ft container load Max. 25 Ton, Max. Length 11.8m | |
Delivery Time | 7-15 days or according to the order's quantity |
