Product Description
V-MARK™ Reflective Material - Micro Prismatic Reflective Reflector use SAE A and DOT approved reflex reflectors to reduce cost in your reflector application program. These reflectors are easy to install, cannot be knocked off like plastic reflectors, and save time with their quick peel & stick application.
V-MARK™ Reflective Material -Micro Prismatic Reflective Reflector feature a highly reflective prismatic lenses in a durable transparent resin. The backing is coated with a permanent aggressive pressure sensitive adhesive with a clear poly easy remove liner.
Product Overview
Material
PC
Durability
4+ Years

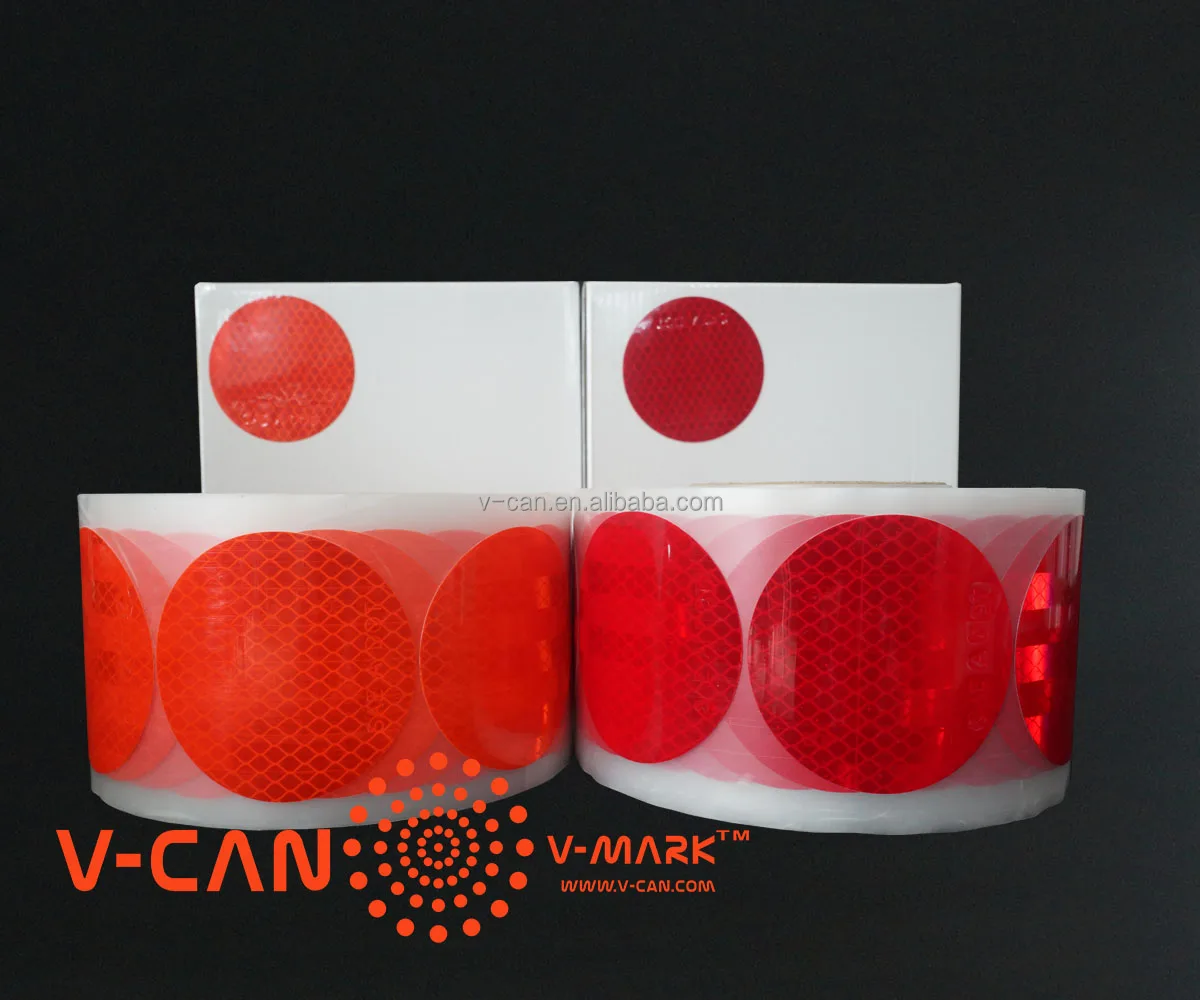

Red, White, Amber
OEM Colors
Reflective Technology
Microprism Technology
High Reflective Brightness
750+ cd/lumix/sqm
SAE A Mark
DOT Approved

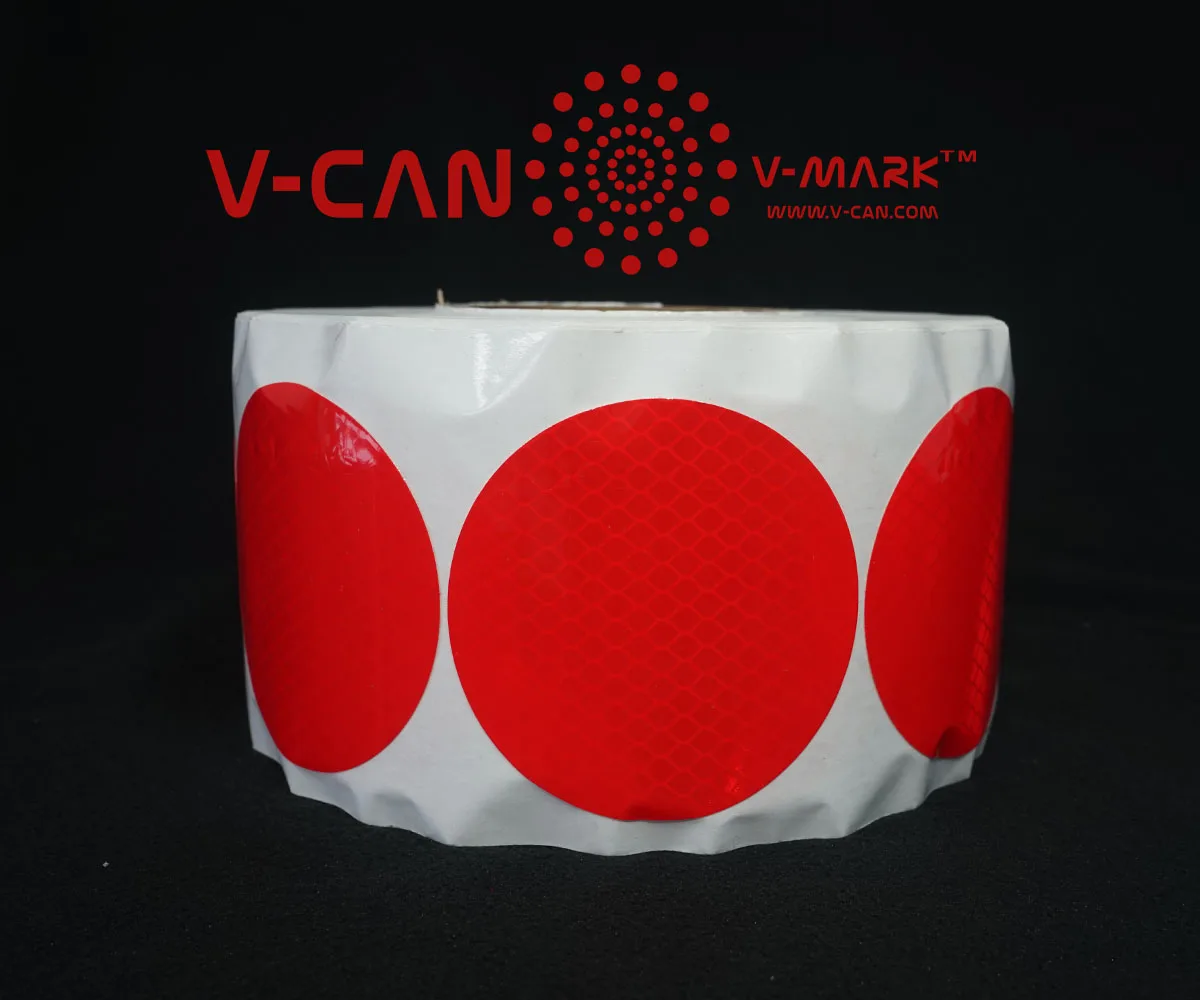

3” Round reflector

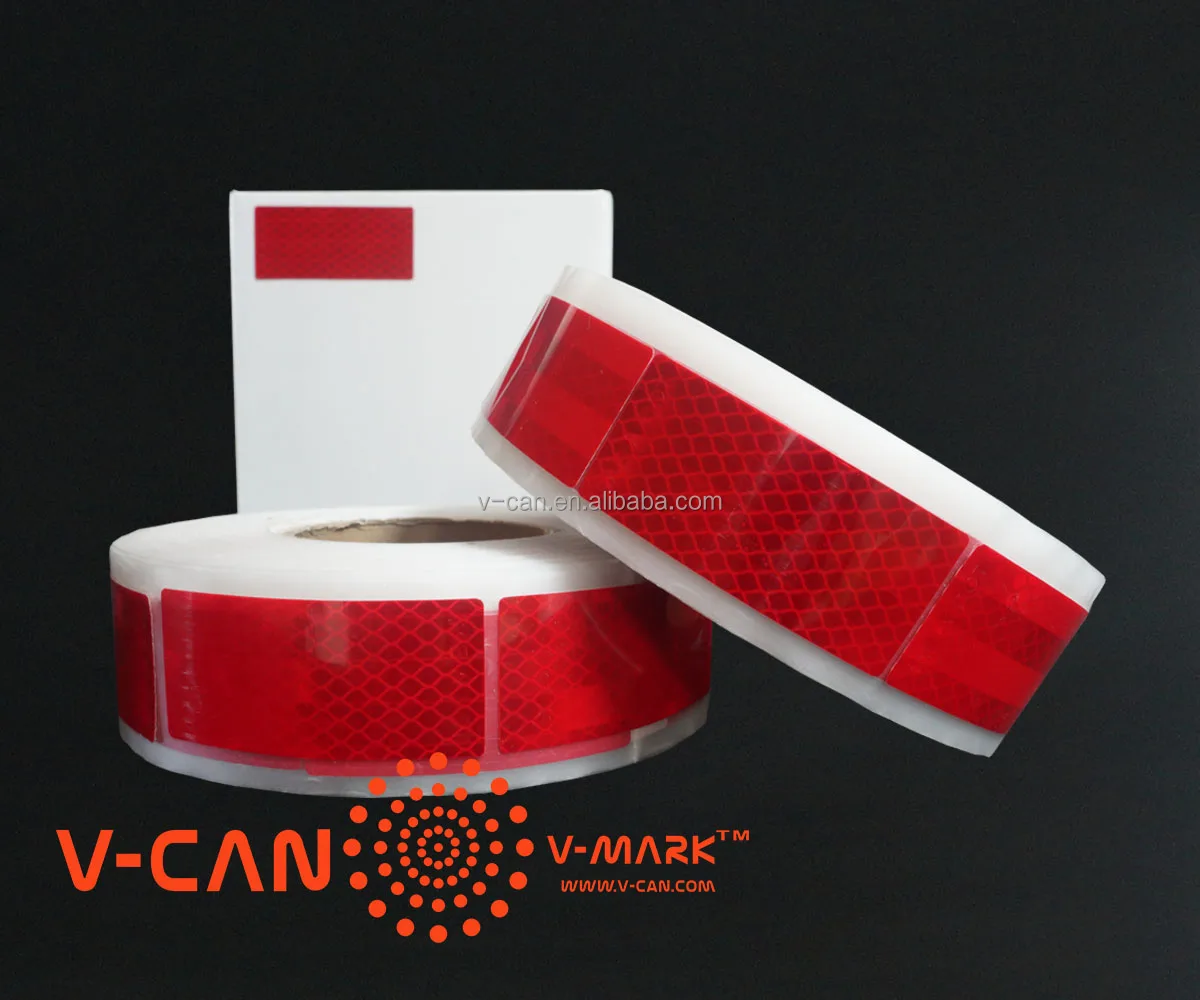

2” x 3.15” Rectangular
Application

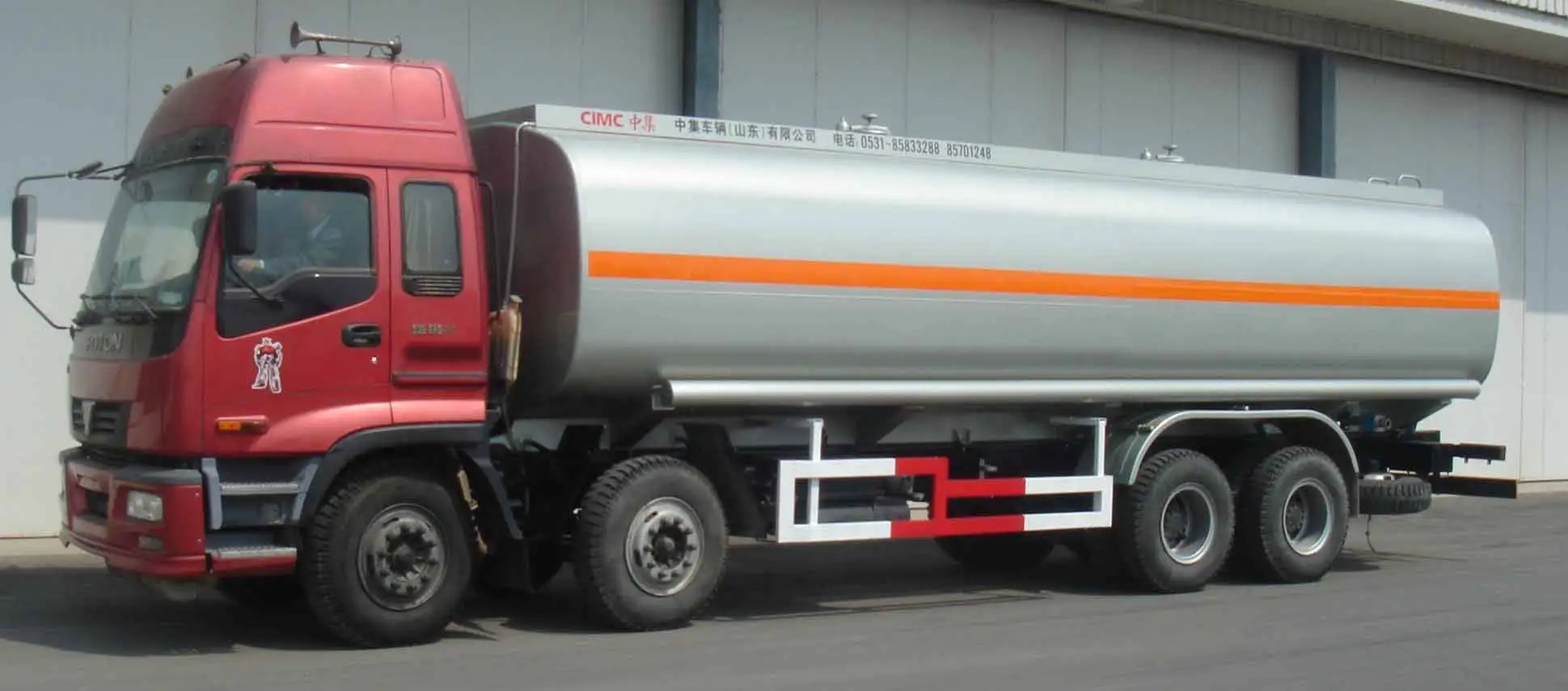

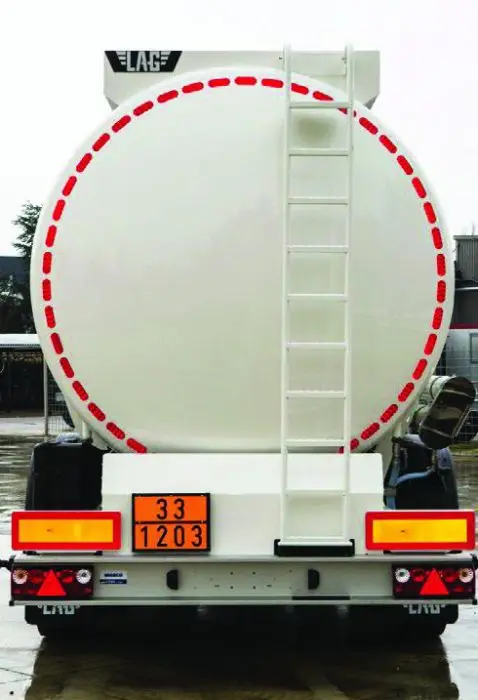

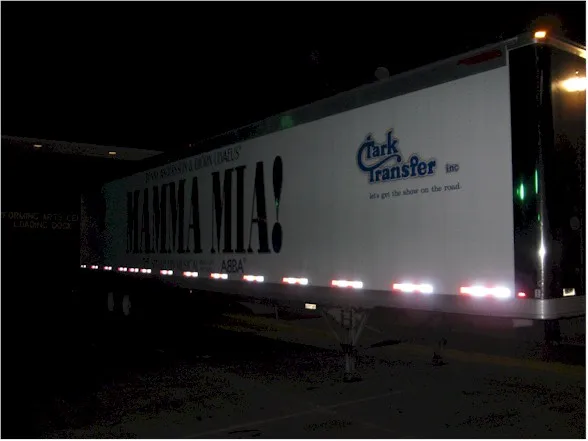

Trucks&Trailers, Oil tanker, Pick-up
Logo Imprinting
Kiss-cutting, Die-cutting
OEM Size
Farm equipment, Industrial equipment
Perforating
Product Code
RR-EGP-7550-3R
RR
Reflective Reflector
EGP
Engineering Grade Prismatic
7550
No Practical Meaning
3R
3" Red Color
Application and Installation Instructions
V-MARK™ Reflective Material – Vehicle Conspicuity Markings can be applied to new and used trucks and trailers with painted rigid sides, as well as unpainted surfaces e.g.stainless steel
Tools Required
* Clean cloths
* Craft knife
* Squeegee covered with a clean cloth to avoid scratching the material
* Old vehicles only: Abrasive pad
* Solvent Cleaner: Isopropyl alcohol (IPA)
* Craft knife
* Squeegee covered with a clean cloth to avoid scratching the material
* Old vehicles only: Abrasive pad
* Solvent Cleaner: Isopropyl alcohol (IPA)
Application temperature
* To ensure proper adhesion between the tape and the cleaned substrate, bonding materials must be applied when both the substrate and tape temperature is between 15° C and 38° C. The temperature needs to be consistent for at least one hour after application.
* It is recommended that vehicle conspicuity markings are stored at temperatures between 18° C and 28° C.
* It is recommended that vehicle conspicuity markings are stored at temperatures between 18° C and 28° C.
Where to apply
* Use the guidelines provided in Regulations (such as: ECE 104, DOT FMVSS 108) to ensure that the markings (tapes) are in general positioned correctly on the vehicle.
* The user is responsible for determining whether the V-MARK™ product is fit for a particular purpose and suitable for the user’s application.
* Users are urged to carefully evaluate substrates for material adhesion and compatibility.
Listed below are guidelines for selected substrates. Material failures caused by the substrate or improper surface preparations are not the responsibility of manufacturer or its distributors.
* The user is responsible for determining whether the V-MARK™ product is fit for a particular purpose and suitable for the user’s application.
* Users are urged to carefully evaluate substrates for material adhesion and compatibility.
Listed below are guidelines for selected substrates. Material failures caused by the substrate or improper surface preparations are not the responsibility of manufacturer or its distributors.
Two-part polyurethane paints
* Two-part polyurethane paints must be cured before applying V-MARK™ markings (tape). If the paint is not properly cured,
outgassing will cause bubbles to form under the applied material and the adhesive will not adhere adequately.
* Two-part polyurethane paints must be cured before applying V-MARK™ markings (tape). If the paint is not properly cured,
outgassing will cause bubbles to form under the applied material and the adhesive will not adhere adequately.
* V-MARK™ recommends testing for outgassing prior to applying vehicle conspicuity markings (tape).
* For drying times, paint manufacturers’ guidelines are to be followed in all instances. While most paints are usually touch-dry within a few hours, dependent upon the primer, paint mixture and thickness, proper curing may make significantly longer, up to one week. GRP (Glass Reinforced Plastics) and/or gelcoated surfaces
* Similar guidelines to the above will apply for composite materials such as GRP substrates and/or gelcoated surfaces, in that the substrate must be properly and fully cured before applying, otherwise outgassing may result.
* For drying times, paint manufacturers’ guidelines are to be followed in all instances. While most paints are usually touch-dry within a few hours, dependent upon the primer, paint mixture and thickness, proper curing may make significantly longer, up to one week. GRP (Glass Reinforced Plastics) and/or gelcoated surfaces
* Similar guidelines to the above will apply for composite materials such as GRP substrates and/or gelcoated surfaces, in that the substrate must be properly and fully cured before applying, otherwise outgassing may result.
Outgassing Plastics
* Polycarbonates, Polyprenes and other plastics can interact with the environment absorbing or outgassing moisture, or outgassing processing aids and solvent carriers for additives, which might cause the formation of bubbles on the film. Preliminary tests are essential to ensure that no adverse effects arise from this interaction.
Stainless Steel
* The same application guidelines and warranty as the standard product apply.
Surface cleaning
* The purpose of cleaning the substrate is to remove any dirt or contamination.
* It is very important that the surface is free of dust and grease, and ideally the surface should be smooth.
* Use a clean cloth with isopropyl alcohol to wipe the surface in one direction only to avoid spreading contamination. With a dry clean cloth wipe away the cleaner before evaporation.
* Repeat this process until the surface is clean, i.e. when there is no visual dirt or contamination transfer onto the cloth.
Ensure the surface is dry and the isopropyl alcohol has completely evaporated before commencing application.
* It is very important that the surface is free of dust and grease, and ideally the surface should be smooth.
* Use a clean cloth with isopropyl alcohol to wipe the surface in one direction only to avoid spreading contamination. With a dry clean cloth wipe away the cleaner before evaporation.
* Repeat this process until the surface is clean, i.e. when there is no visual dirt or contamination transfer onto the cloth.
Ensure the surface is dry and the isopropyl alcohol has completely evaporated before commencing application.
General Maintenance Guidelines
Routine washing is recommended for maximum performance. The following cleaning methods are recommended.
* Wash with sponge, cloth or soft brush using water and detergent.
* Automatic truck/car wash or standard high-pressure hand spray:
Maximum pressure-1200 PSI/ 80 bar.
Maximum water/wash solution temperature- 140°F/ 60°C.
Minimum of 12 inches/ 30cm distance of cleaning jet(s) from markings.
* Cleaning wand or jets to be at no greater angle than 45 degrees from perpendicular to the marking surface.
* Automatic truck/car wash or standard high-pressure hand spray:
Maximum pressure-1200 PSI/ 80 bar.
Maximum water/wash solution temperature- 140°F/ 60°C.
Minimum of 12 inches/ 30cm distance of cleaning jet(s) from markings.
* Cleaning wand or jets to be at no greater angle than 45 degrees from perpendicular to the marking surface.
When using metal brighteners, follow manufacturer’s recommendations for dilution.
When using cleaners/degreasers, make sure the product is suitable for vehicles and follow the manufacturer’s recommendations for dilution. Thoroughly rinse after soaking vehicle. Prolonged exposure to cleaners/degreasers can in some circumstances affect the material negatively. Prolonged exposure in combination with sunlight can reinforce cleaners/degreasers negative effect.
Do not use solvents to clean the film, as they can adversely affect the product. If soap or detergent does not sufficiently clean the markings, vehicle conspicuity markings (tapes) can be gently rubbed with a cloth soaked in isopropyl alcohol to remove the stains.
Do not use solvents to clean the film, as they can adversely affect the product. If soap or detergent does not sufficiently clean the markings, vehicle conspicuity markings (tapes) can be gently rubbed with a cloth soaked in isopropyl alcohol to remove the stains.
Important:
* The suitability of the intended care process must be determined by the end user.
