Поршневой разветвитель для разрушения бетона гидравлический камня с усилием разделения 400 тонн
- Категории: Construction & Building Machinery >>>
- Поставщик: Xiamen,Bestlink,Factory,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Banner
Product Overviews

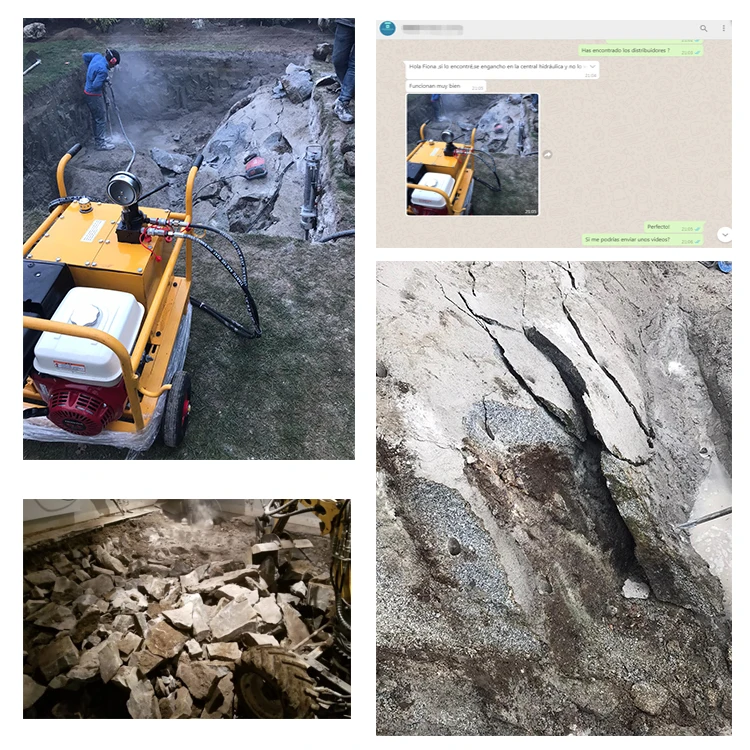

It is our newly developed products for quarrying and civil construction, which is mainly applicable to the secondary breaking of large boulders, squaring breaking of large boulders ,squaring blocks. Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.
BS36/38/40 uses Iron Cylinders, BS42/45 have both Iron and Aluminium Alloy cylinders. Aluminium Alloy cylinder is ighter and stronger. Besides, we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it is with the same shape,same parts and same performance as the original one.
Features:
1)Enormous splitting force up to 410 tons
2)Dust free and near silent operation
3)Vibration free
4)Light weight
5)Precision work
6)Always controllable
7)For use in close quarters and hard to access places.
8)Easy handling
Specifications:
| Type | C 2 S | C 4 S | C 4 S | C 9 | C 9 | C 12 | C 12 | C 12 |
| Wedge Set | N | N | WL | N | L | N | L | W |
| Req. Bore hole-diameter mm | 32 | 34 - 36 | 35 - 38 | 45 - 48 | 48 - 50 | 45 - 48 | 45 - 48 | 45 - 48 |
| Min. Bore hole-depth mm | 270 | 430 | 540 | 410 | 580 | 610 | 680 | 550 |
| Split.- distance mm | 9 | 10 - 40 | 14 | 18 - 44 | 18 - 40 | 20 - 50 | 15 - 35 | 24 - 56 |
| Th. Split. Force | 3490 kN 355 to | 4524 kN 461 to | 3267 kN 333 to | 2995 kN 305 to | 2995 kN 305 to | 6061 kN 618 to | 8082 kN 824 to | 4849 kN 494 to |
| Eff. Split. Force | 1913 kN 195 to | 2256 kN 230 to | 1864 kN 190 to | 1962 kN 200 to | 1962 kN 200 to | 3507 kN 358 to | 4048 kN 413 to | 3150 kN 321 to |
| Weight kg | 18 | 22 | 23 | 22 | 23 | 31 | 32 | 31 |
| Length Split.-Cylinder mm | 745 | 995 | 1145 | 1020 | 1190 | 1290 | 1360 | 1250 |
| Length Wedge Set mm | 140 | 250 | 400 | 230 | 400 | 380 | 450 | 340 |
| Order-No. | 8381 0402 10 | 8381 0405 25 | 8381 0405 40 | 8381 0409 00 | 8381 0409 40 | 8381 0412 38 | 8381 0412 45 | 8381 0412 50 |

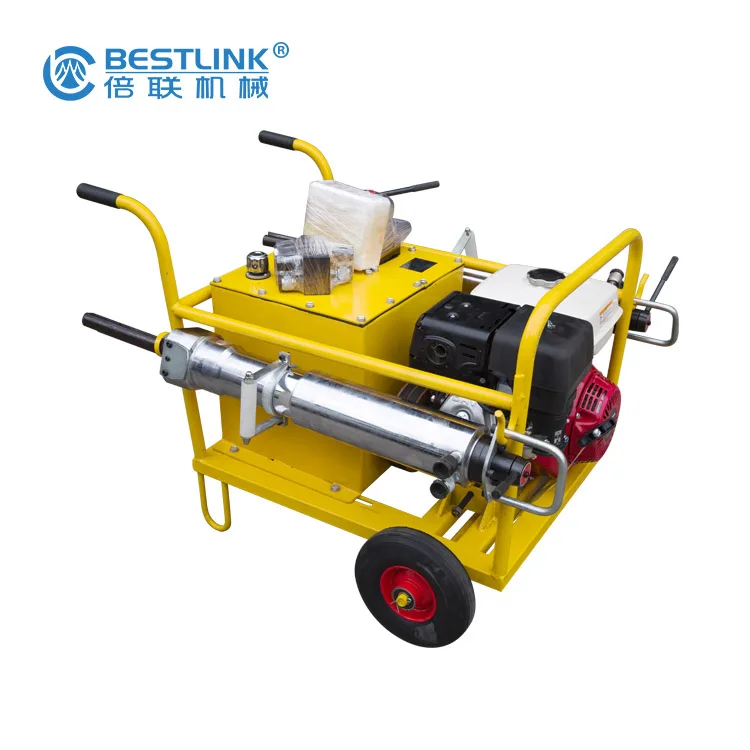

Driven type:
| Motor type | Specification | Weight | Capacity of tank | Working Pressure(Mpa) | Power | Oil | Work Flow | towable cylinder (Piece) |
| (MM) | (KG) | (L) | (L/M) | |||||
| Diesel Type | 1150*750*800 | 120 | 25 | 55-60 | 4HP | 46 or 68 anti-wear hydraulic oil | 2-13 | 1-3 |
| 1280*1180*940 | 145 | 45 | 55-60 | 7.7HP | 2-13 | 3-6 | ||
| Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(220V/380V) | 2-13 | 1-10 | |
| 384*280*620 | 75 | 30 | 55-60 | 4KW(380V) | 13 | 1-10 | ||
| 450*410*700 | 100 | 40 | 55-60 | 5.5KW(380V) | 2-13 | 1-10 | ||
| Anti-explosion Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(380V/660V) | 2-13 | 1-10 | |
| 384*280*620 | 75 | 30 | 55-60 | 4KW(660V/1140V) | 2-13 | 1-10 | ||
| Pneumatic Type | 284*285*620 | 100 | 40 | 55-60 | 2000r/m, 4.04KW,5.5HP | 2-13 | 1-10 | |
| 2-13 | 1-10 | |||||||
| Gasoline Type | 1200*1170*800 | 100 | 40 | 55-60 | 7.5HP | 2-13 | 1-10 |

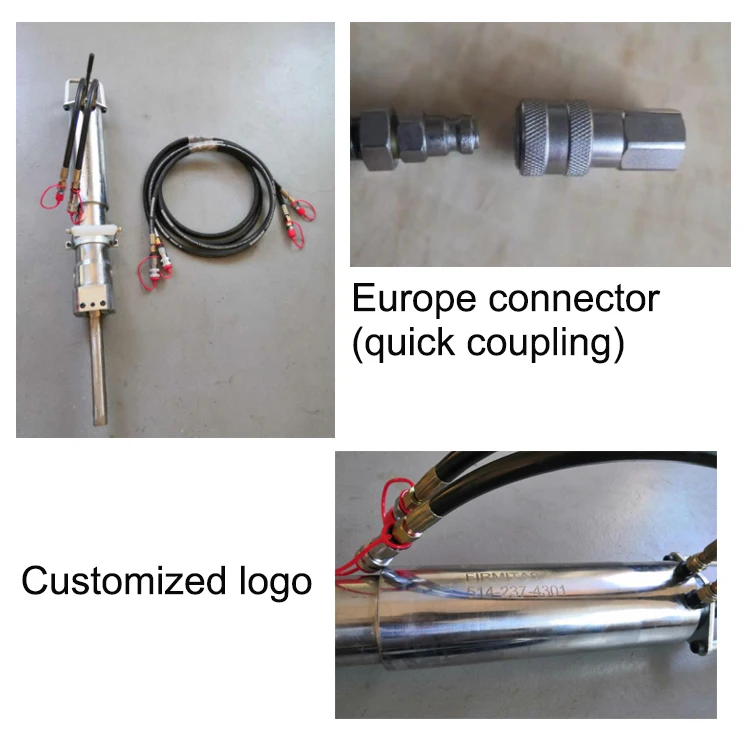

Hydraulic cylinder:
| bore diameter required | Min. bore depth required | Splitting distance | Splitting time | Theoretic spliting power | Actual split power | Cylinder weight |
| Φ32-35mm | ≥300mm | 10-30mm | 5-12s | 380T | 220T | 20kg |
| Φ35-38mm | ≥400mm | 10-35mm | 5-12s | 560T | 310-320T | 25kg |
| Φ38-42mm | ≥500mm | 10-40mm | 5-12s | 680T | 410-120T | 32kg |
