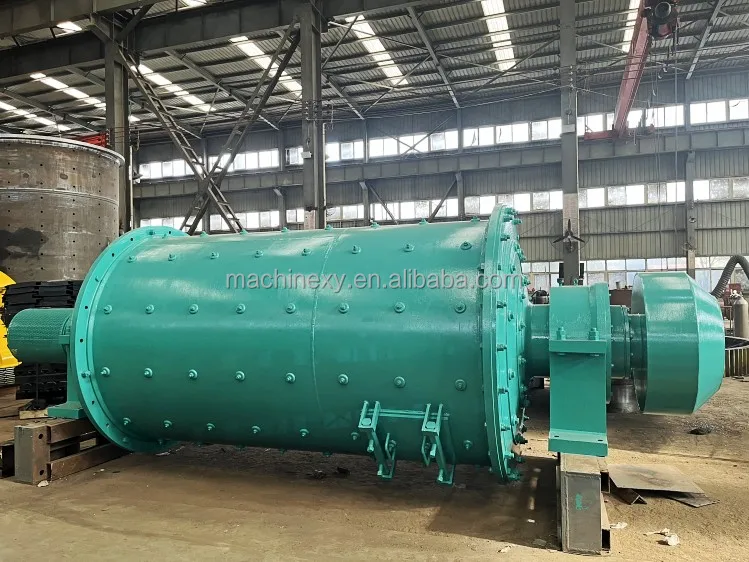

This ball mill is made up of feeding part, discharging part, transmission part (transmission part includes motor, reducer, pinion, couping and electrical control cabinet) and so on. It enjoys features like good abrasive resistance, stable and reliable operation.

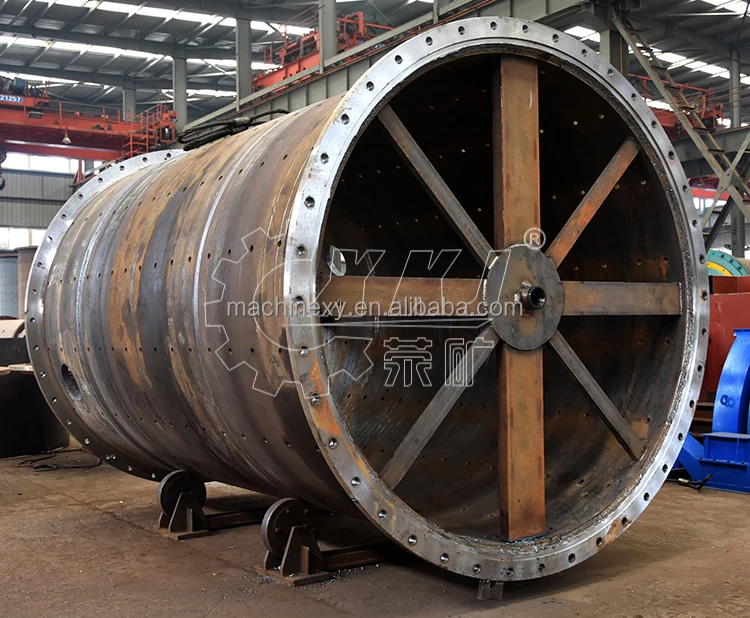

The ball mill shell :

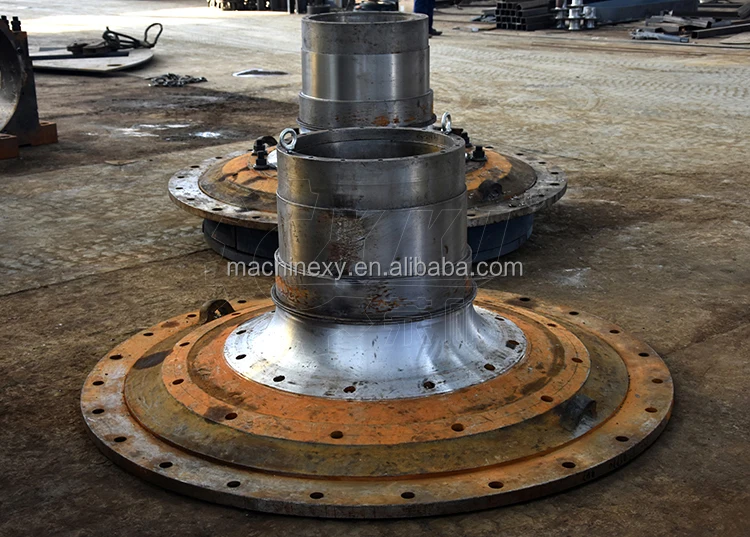

The ball mill both end cover:

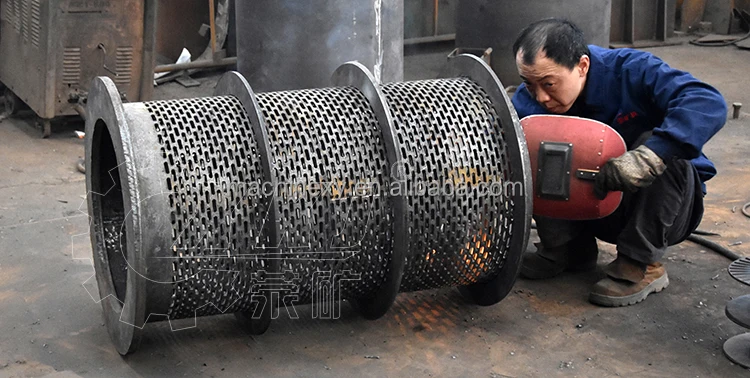

The discharge screen :

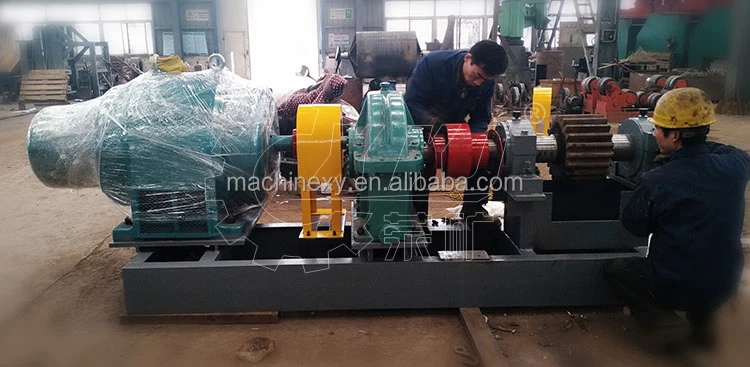

The transmission part (motor, reducer, pinon, coupling )

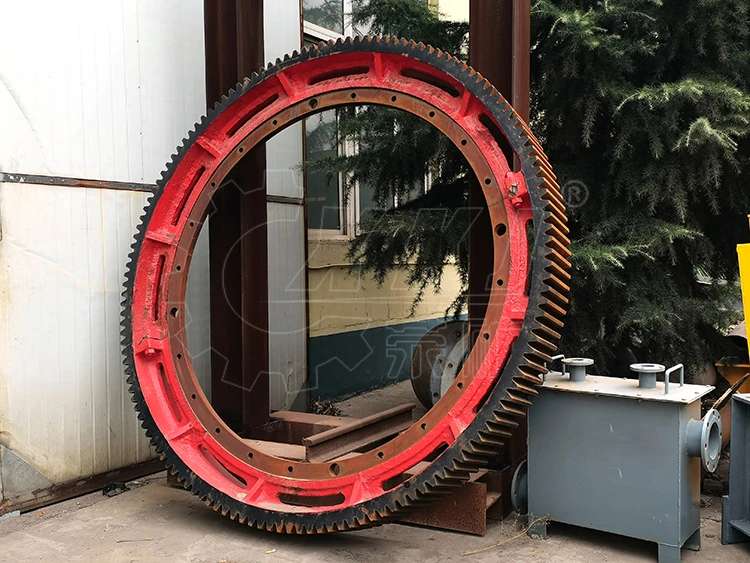

The ball mill Gear:

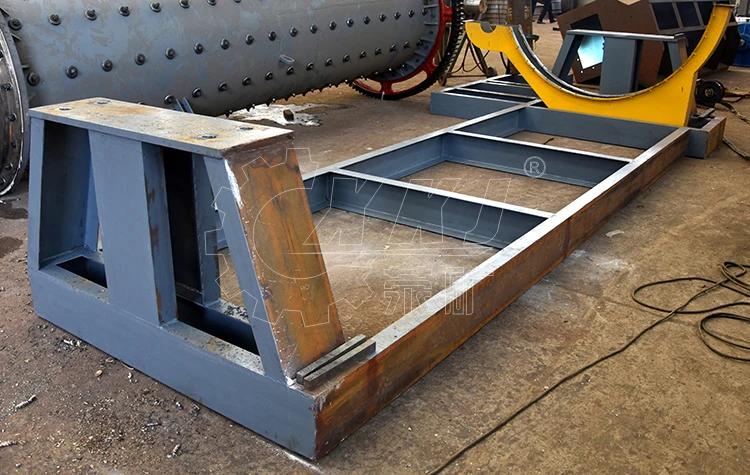

The ball mill Frame:
| Model | Speed rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
| Ø900*1800 | 36--38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ø1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 38 |
| Ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Ø2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ø2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ø2400*3000 | 21 | 23 | <=25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | 25-130 | 800 | 137 |

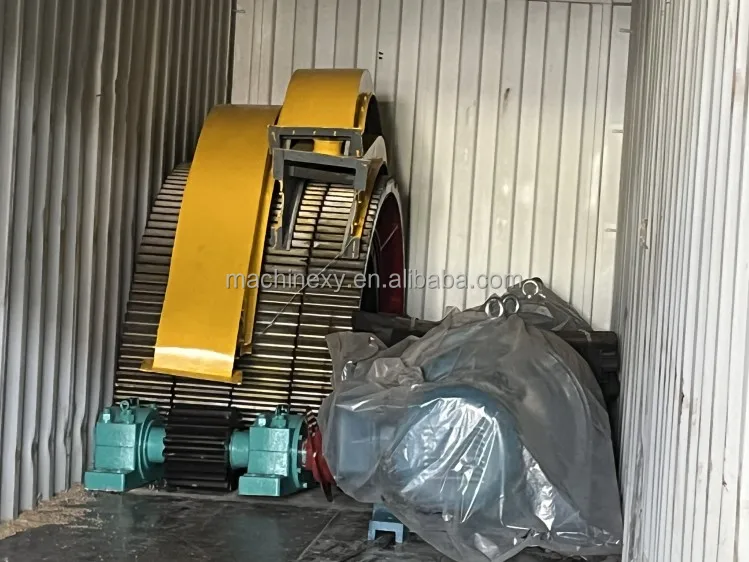

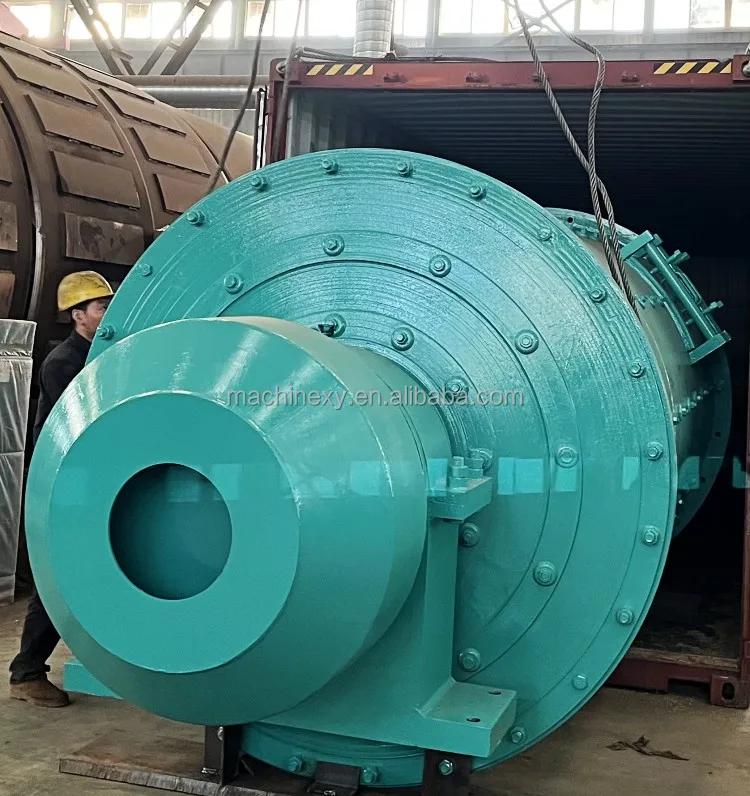

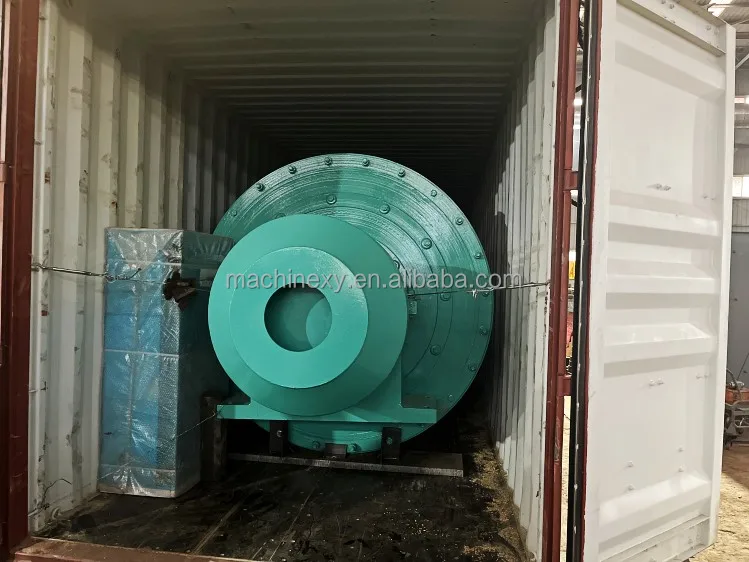

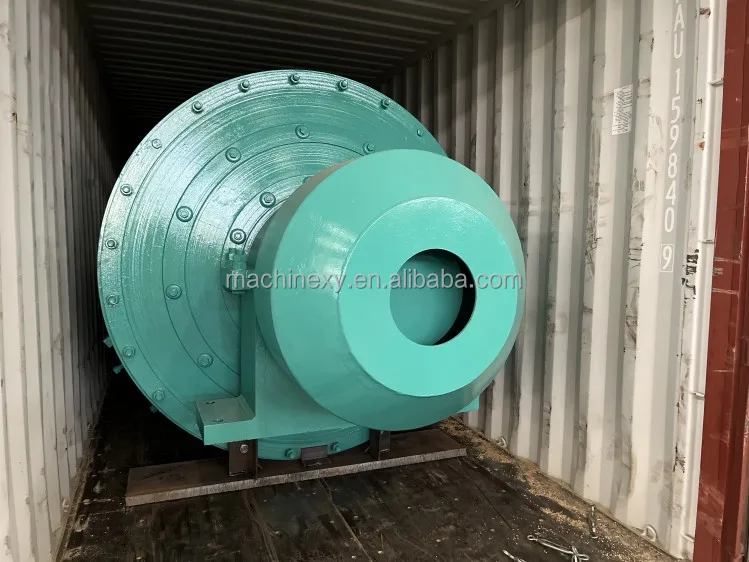

Packaging & Shipping
Henan Xingyang Mining Machinery Manufactory is a large sized joint-stock enterprise integrated with the scientific research,production and sales of heavy mining machinery. The company have five standard heavy industrial workshops covering 80,000 square meters,more than 160 machines used for gold processing,plug welding and assembling with large and medium sizes, and more than 500 works including over 50 administrators with intermediate and senior title and engineering technicians.
Our company main products:
