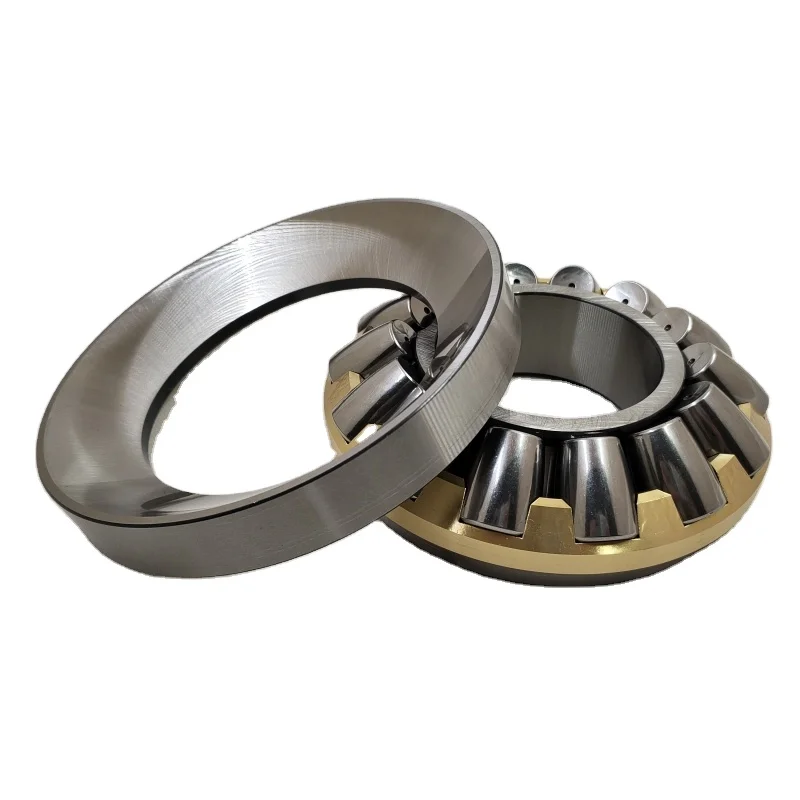

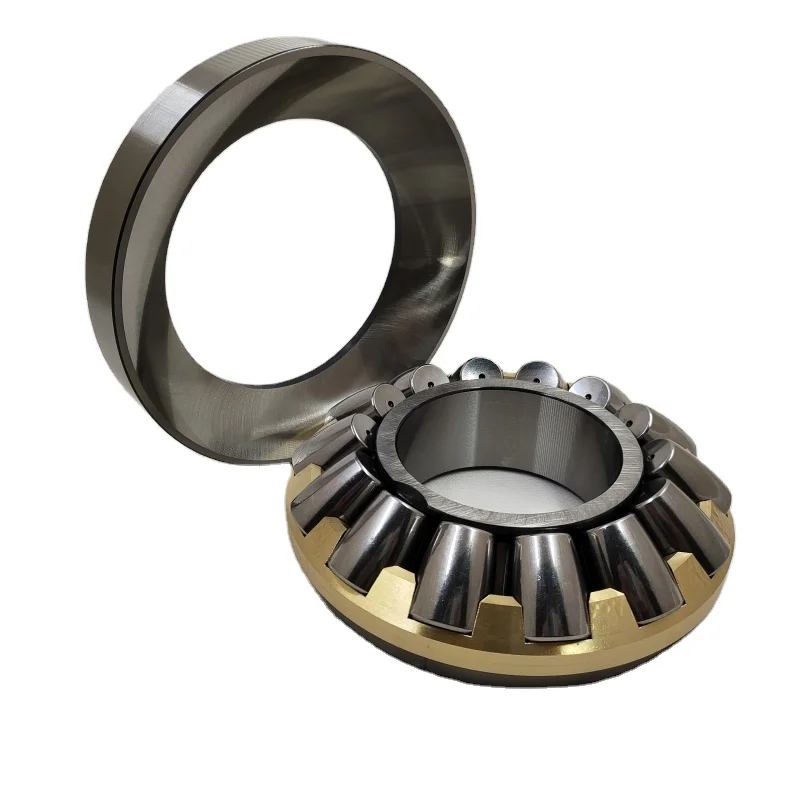

Heavy Machine 29330EM 29324EM Oil Drilling Rig Thrust Roller Bearing
Products Description
Product Name | Spherical Trust Roller Bearing |
Model | 29330EM 29324EM |
Material | Chrome Steel, GCR15 |
Type | Double Row |
Size | 180x360x109 mm |
Grade | PO,P6,P5,P4,P2 |
Cage | Steel Cage,Cooper Cage |
Used For | Paper machine, deceleration device, railway vehicle axle, rolling mill gearbox seat, rolling mill roller track, crusher, vibrating screen, printing machine, woodworking machinery |
Warranty | 1 year |
Brand | OEM or HFZZ |
Packing | According to the buyer requests for packaging |
Structure:

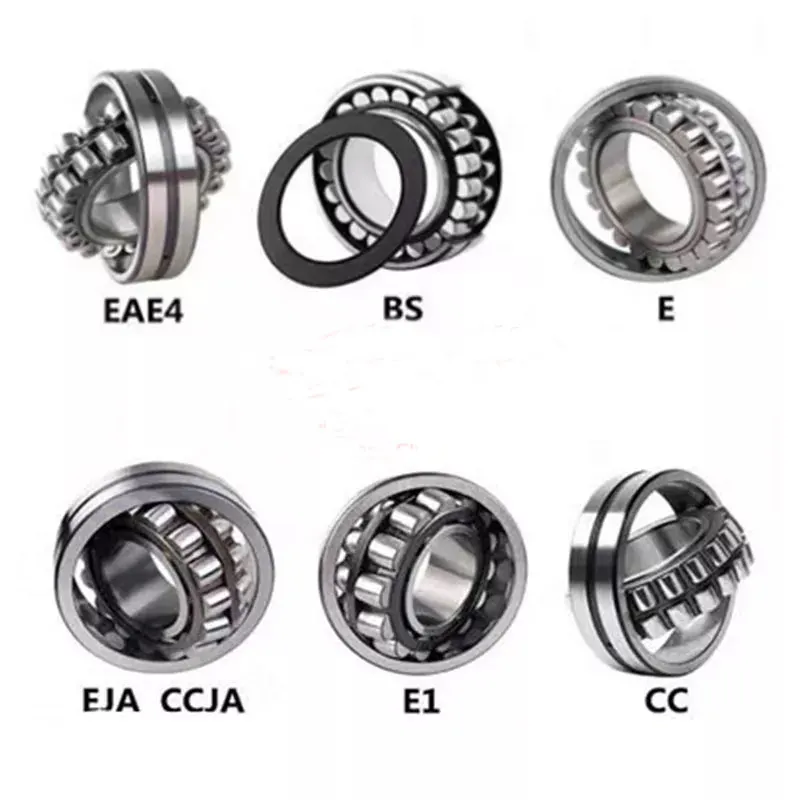

Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.
Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.
Details Images
Description：
Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
Materials:
1. Material of ring : GCr15,
2.Material of Cage: Steel, brass, polyamide, nylon
3.Material of Roller: chromium steel
Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
Materials:
1. Material of ring : GCr15,
2.Material of Cage: Steel, brass, polyamide, nylon
3.Material of Roller: chromium steel
Product Paramenters

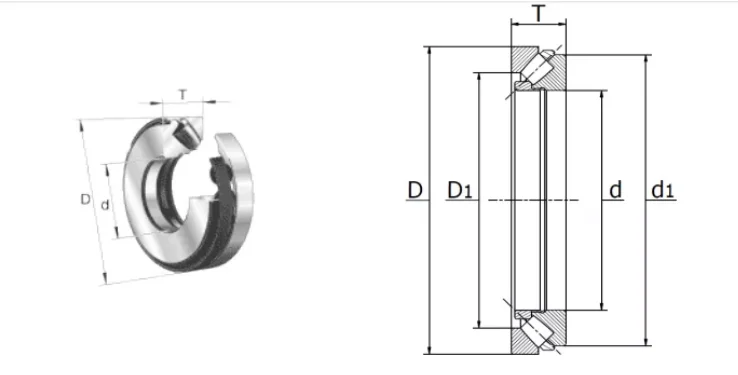

Model | d(mm) | D(mm) | B(mm) | Weight(g) | C(N) | Co(N) |
29436 | 180 | 360 | 109 | 52900 | 1840000 | 6200000 |
29322E | 110 | 190 | 48 | 5670 | 470000 | 1680000 |
29324E | 120 | 210 | 54 | 7900 | 565000 | 2030000 |
29426E | 130 | 270 | 85 | 23500 | 1140000 | 3850000 |
29330EM | 150 | 250 | 60 | 11700 | 735000 | 2840000 |
29324EM | 120 | 210 | 54 | 7900 | 565000 | 2030000 |
We do not only spherical trust roller bearings, there are other bearings, if you do not find your needs here, please contact me directly!
Why Choose Us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept 5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
2.Wide Array of Applications
3.Large Inventories
4.Small order accept 5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Wind energy, mining, mineral processing and cement, materials transportation, pulp and paper industries, industrial transmission, metallurgy, Marine
Company Profile
Shandong Hongfan Bearing Co., Ltd. is located in Shandong Province, China. The company has a high standard factory and high level production equipment. In addition, the company also has a professional engineer team and foreign trade team, with a full process service from production to after-sales.
The company adheres to customer demand orientation, technological innovation as the source, closely follows the international cutting-edge technology, and constantly develops high-tech products with high cost performance, strong practicality and high degree of marketization.
Packing & Shipping
Packing:
Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with us)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as ollowing.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with supplier)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as ollowing.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with supplier)
FAQ
Q: Are you a trading company or a anufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: If the goods are in stock, it is generally 3-7 days. If the goods are not in stock, then by quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we do not pay the freight.
Q: What are your strengths?
A: 1. Manufacturer, the most competitive price and good quality.
2. The perfect team of technical engineers provides you with the best support.
3. A well-trained international sales team provides the best service.
4. Rich inventory and fast delivery
5. We have established long-term cooperative relations with customers in many countries and regions in the world. 6. We have our own brand (HFZZ) products and can provide customized products, co processing and OEM services.
Q: How long is your delivery time?
A: If the goods are in stock, it is generally 3-7 days. If the goods are not in stock, then by quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we do not pay the freight.
Q: What are your strengths?
A: 1. Manufacturer, the most competitive price and good quality.
2. The perfect team of technical engineers provides you with the best support.
3. A well-trained international sales team provides the best service.
4. Rich inventory and fast delivery
5. We have established long-term cooperative relations with customers in many countries and regions in the world. 6. We have our own brand (HFZZ) products and can provide customized products, co processing and OEM services.
