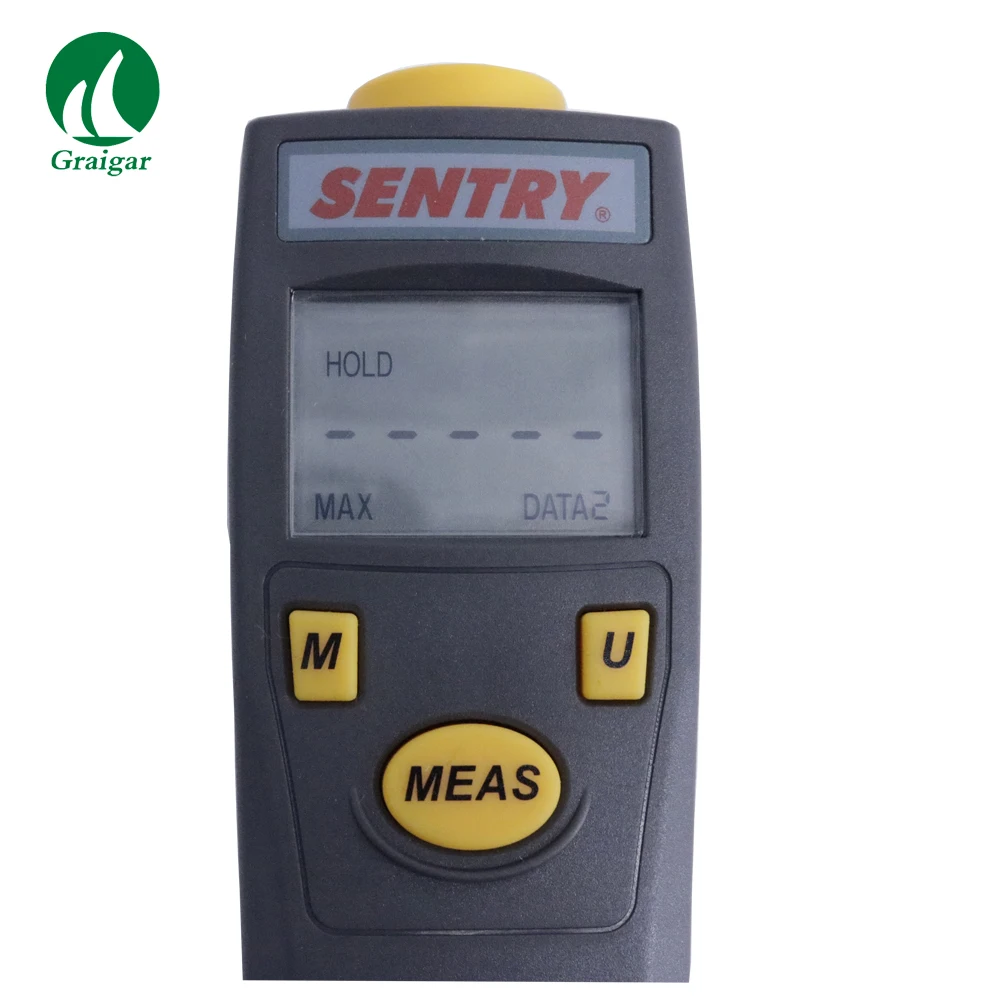

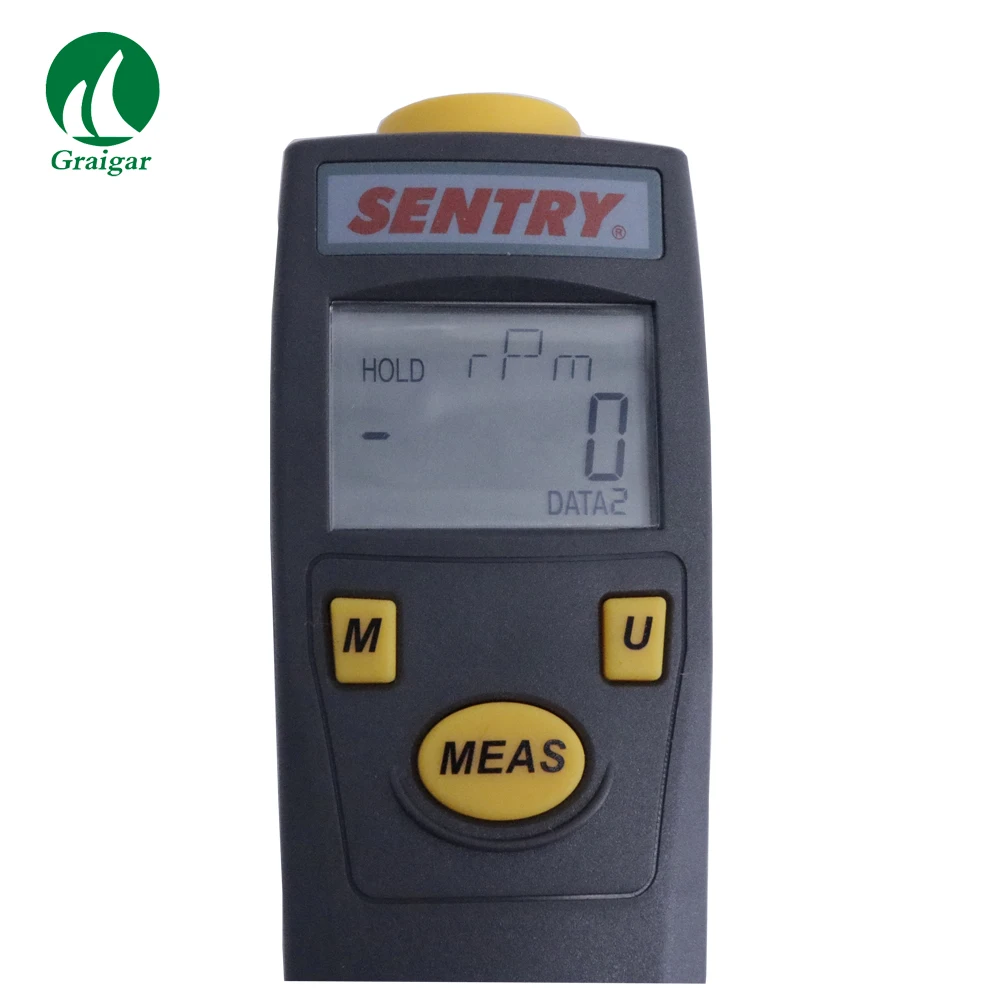

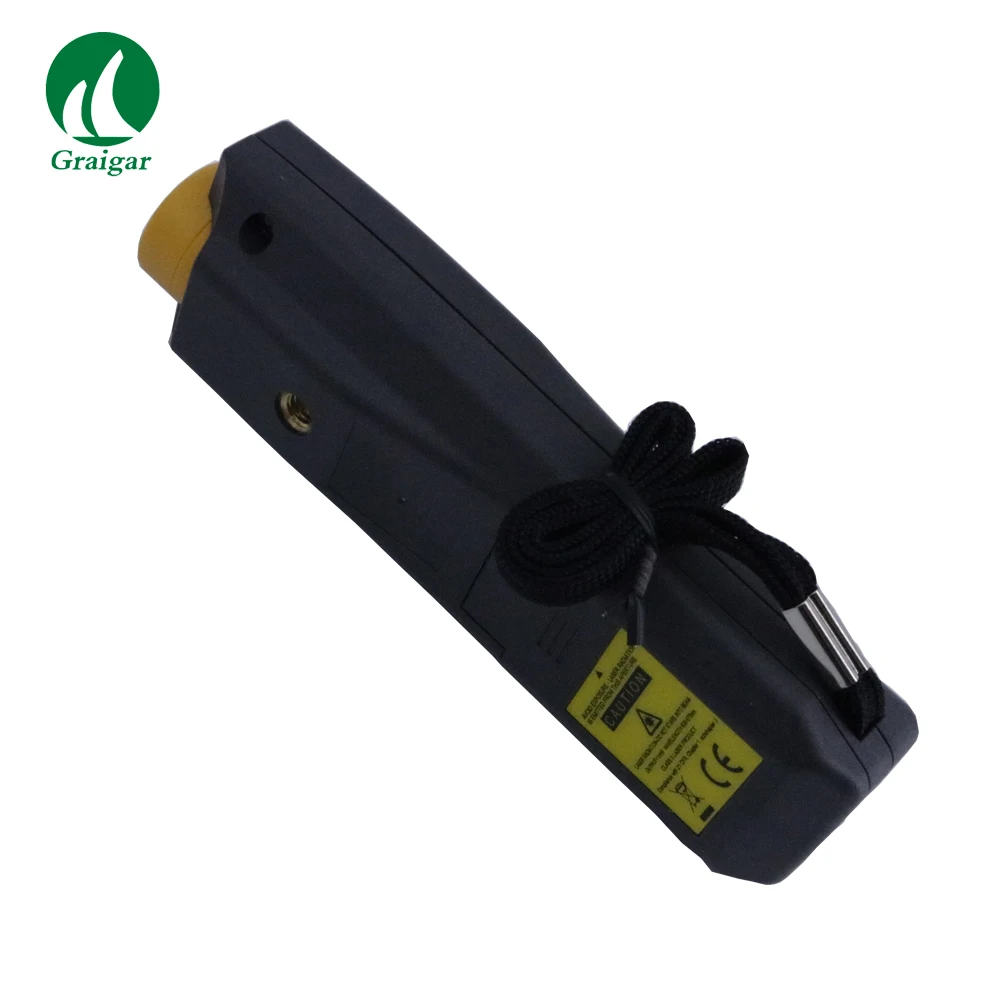

Sentry ST723 Non-contact Tachometer For Measuring and Recording the Rotational Linear and Surface Speed
The revolutionary ST-72x series tachometer offers the accurate capabilities for measuring and recording the rotational, linear and surface speed. The non-contact concept is applied to both models in the series for hard-to-reach environment. Meanwhile, the easy-to-handle palm size designed for users who like to maneuver it with traditional method by contacting the object while the most accurate data is needed.
Features
Non-Contact and Contact Mode1

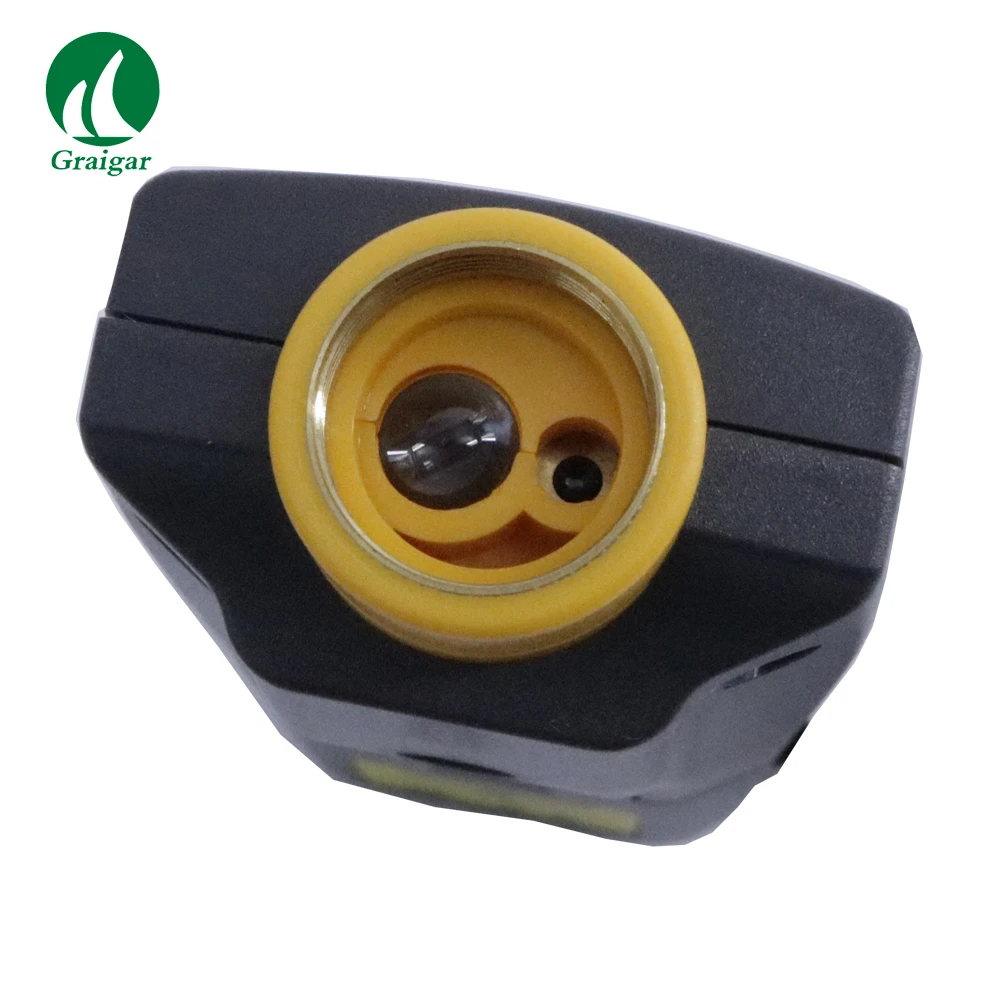

Laser Sighting Operating Range up to 40 inches / 100 cm (Laser)
Auto Ranging / Fixed Decimal

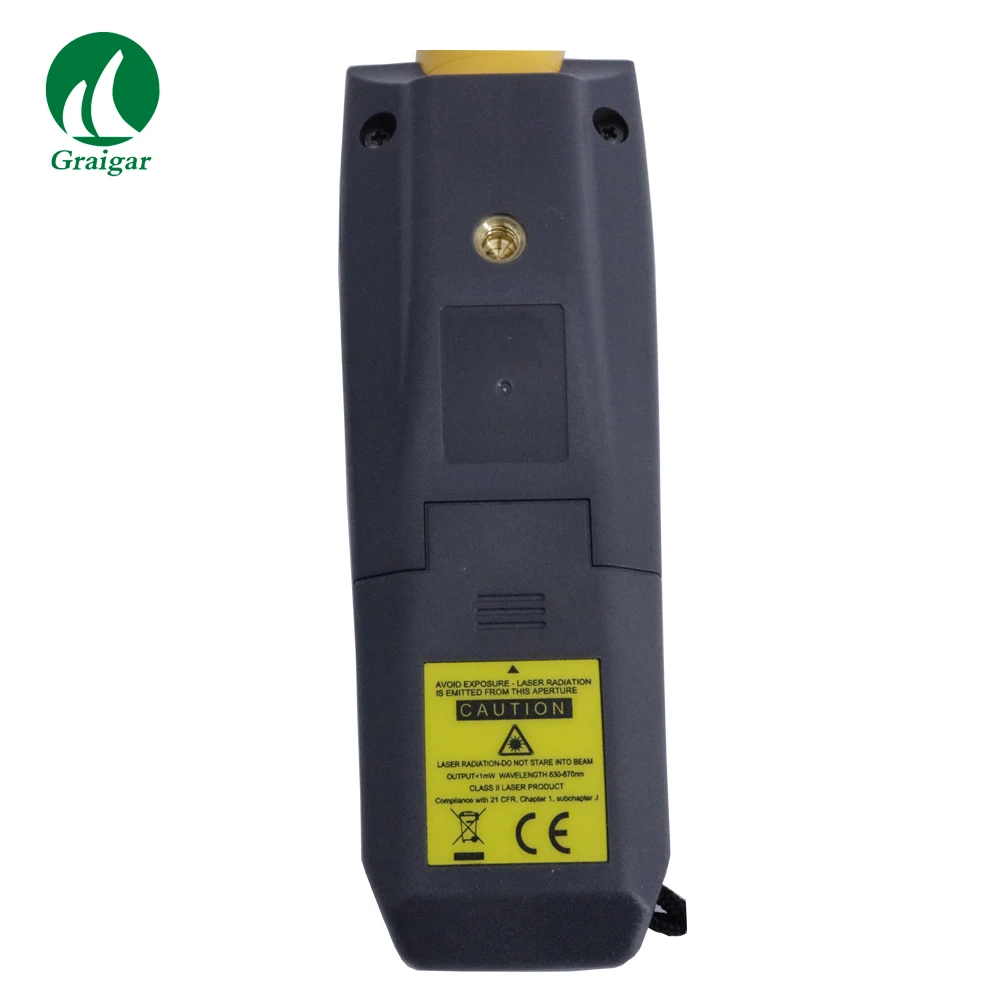

Tripod Mounting Bushing
Low Battery Indicator
| Specifications | ST722 | ST723 |
| Rotation Speed (non-contact) | 6.0 - 99999 rpm (rev/min) | 6.0 - 99999 rpm (rev/min) |
| Rotation Speed (contact) | 6.0 - 25000 rpm (rev/min) | |
| Surface Speed (contact) | 0.6 - 2500.0 M/M (m/min), 0.7 - 2734.0 Y/M (yard/min), 23.6 - 98425 I/M (inch/min), 2.0 - 8202.1 F/M (feet/min) | |
| Length (contact) | 0.1 - 9999.9 M (m) 0.1~10936 YD(yard) 0.3~32808 FT(feet) | |
| Total number of revolutions | 1-99999REV(rev) | |
| Accuracy | 6.0 - 5999.9 rpm: ±0.01% and ±1 digit, 5999.9 - 99999 rpm: ±0.05% and ±1 digit) | 6.0 - 5999.9 rpm: ±0.01% and ±1 digit, 5999.9 - 99999 rpm: ±0.05 and ±1 digit, Surface Speed,Length 0.5%and ± 1 digit |
| Detection | Laser diode | Laser diode |
| Resolution | 6.0 - 9999.9RPM 10000 - 99999RPM: 1 (RPM) | 6.0 - 9999.9: 0.1 RPM 10000 - 99999 rpm: 1 RPM |
| Response Time | 1 secend | 1 secend |
| Operating Temp. | 0~50oC (32 to 122oF), 10 to 90% RH | 0~50oC (32 to 122oF), 10 to 90% RH |
| Auto Power Off | Automatically after approx. 30s | Automatically after approx. 30s |
| MAX/MIN/AVG | YES | YES |
| Memory | 40 Points | 40 Points |
| Battery Type | 9V(006P,IEC6F22,NEDA1604) | 9V(006P,IEC6F22,NEDA1604) |
| Dimensions | 147 x 49 x 29 mm (5.79'' x 1.93'' x 1.14'') | 147 x 49 x 29 mm (5.79'' x 1.93'' x 1.14'') Include Contact Adapters. |
| Weight | 95g (3.35oz) Approx (without battery) | 95g (3.35oz) Approx (without battery) Contact Adapters : 50g(1.76oz) |

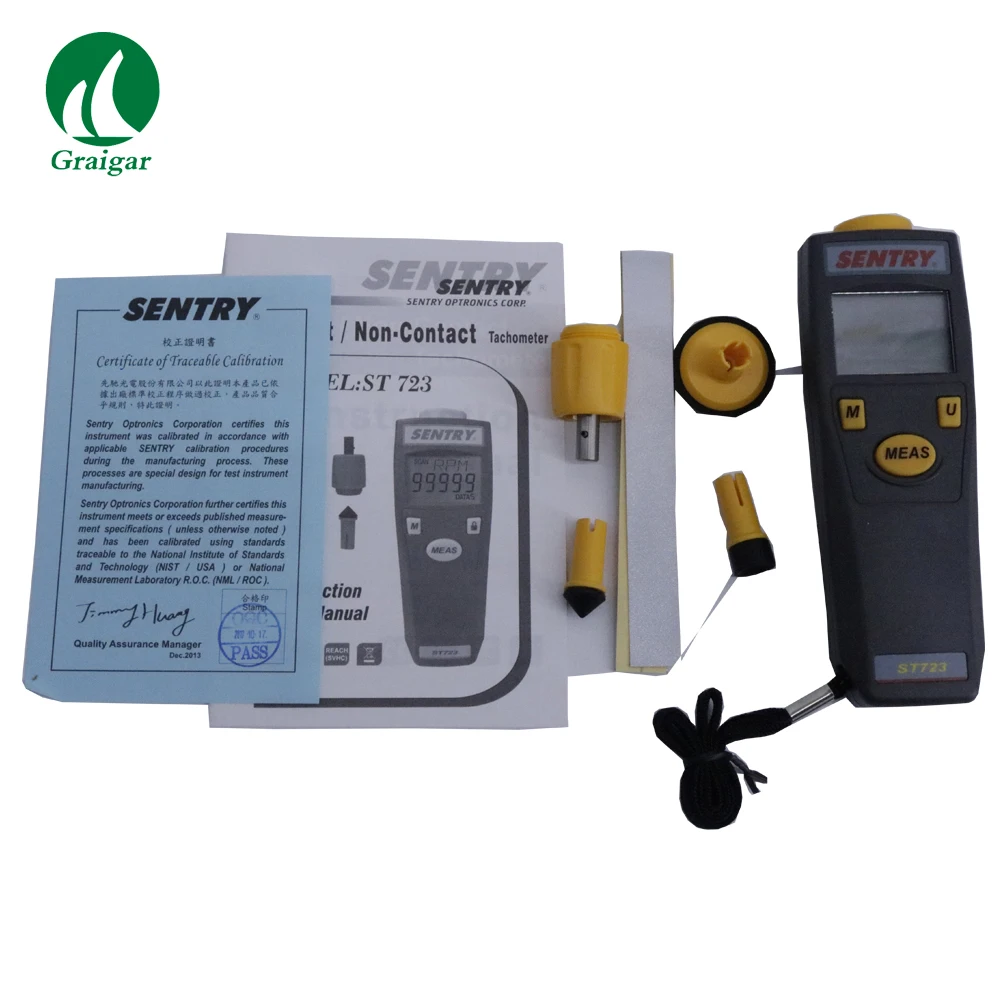

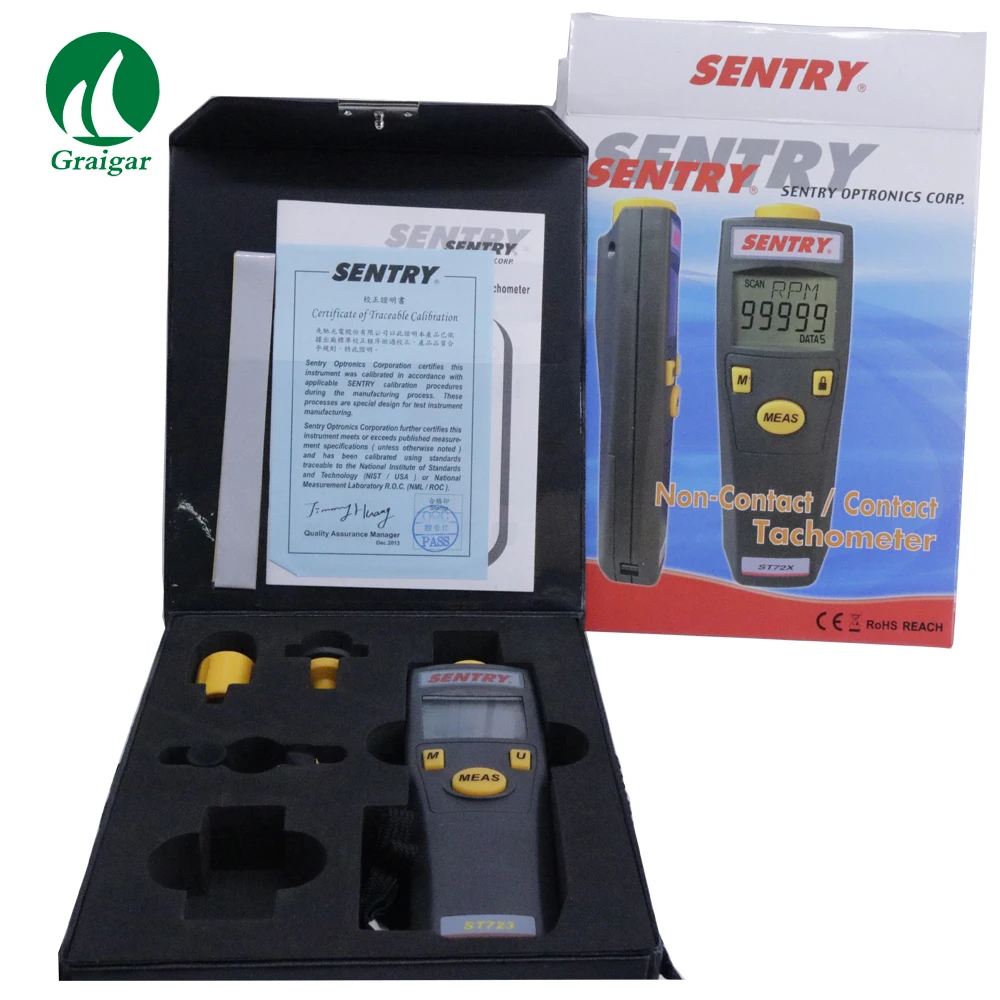

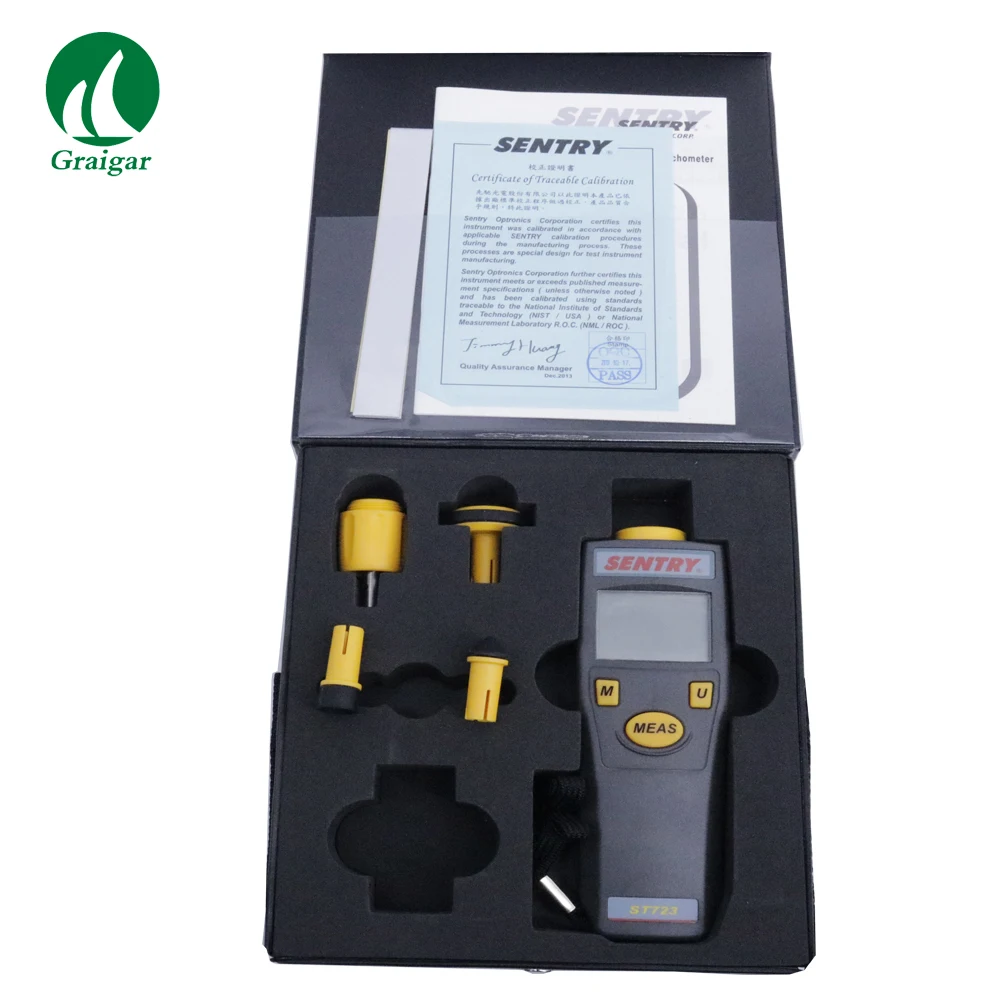

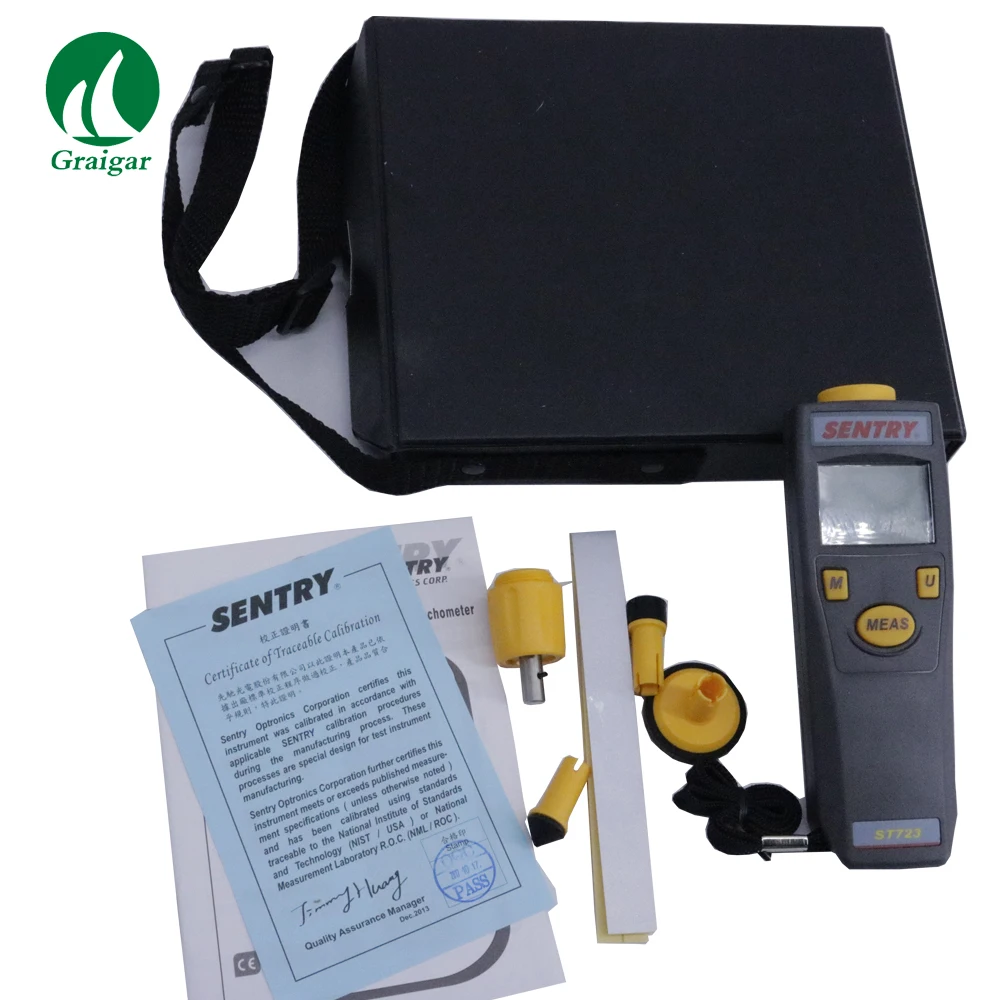

| Standard Accessories | Instruction manual,Reflective tape 15 x525 mm (0.59'' x 20.67'' ), Carryimg Case | Instruction manual, Cone adapter, Funnel adapter, Contact adapter, Master Wheel (10cm), Reflective tape 15x525mm (0.59”x20.67”), Carrying Case |
