TESmart 2x1 HDMI KVM переключатель 4K 60 Гц Поддержка HDCP2.2 L/R аудио USB2.0 клавиатура мышь проходные 2 порта автоматические
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Zhichuang,Liangyi,Information,Technology,Co,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 2x1 HDMI KVM Switch supports USB 2.0 device, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility.
The 2x1 HDMI KVM Switch supports USB 2.0 device, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility.
Features:

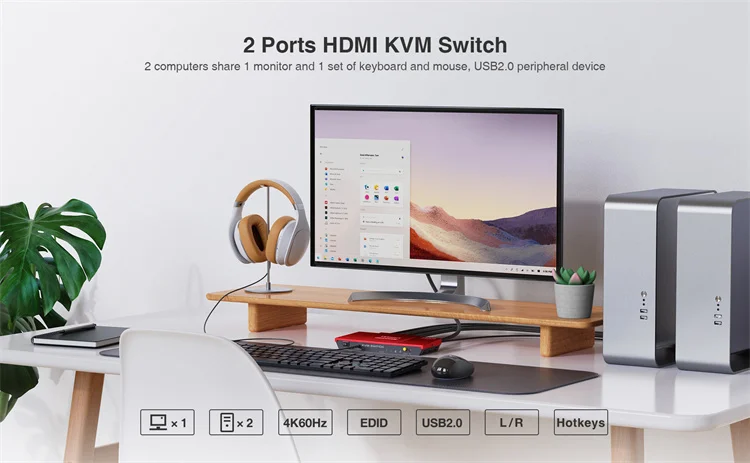

●Using only 1 set of keyboard, mouse and monitor to control 2 PCs
●Support auto switching to monitor computers in a specified time interval
● Support front panel buttons, IR signals, keyboard hot keysand mouse gesture to control KVM to switch inputs
● Available to use keyboard andmouse without any delay after switch input sources
●Support resolution up to 3840*2160@60Hz 4:4:4
● HDCP 2.2 compliant
● Support USB0 for printers, USB drives, etc
● With EDID emulators in eachinput port, keep PCs always having correct display information
●Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems.
●Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
●Support analog L/R audio output
●Support HDR 10 and Dolby Vision

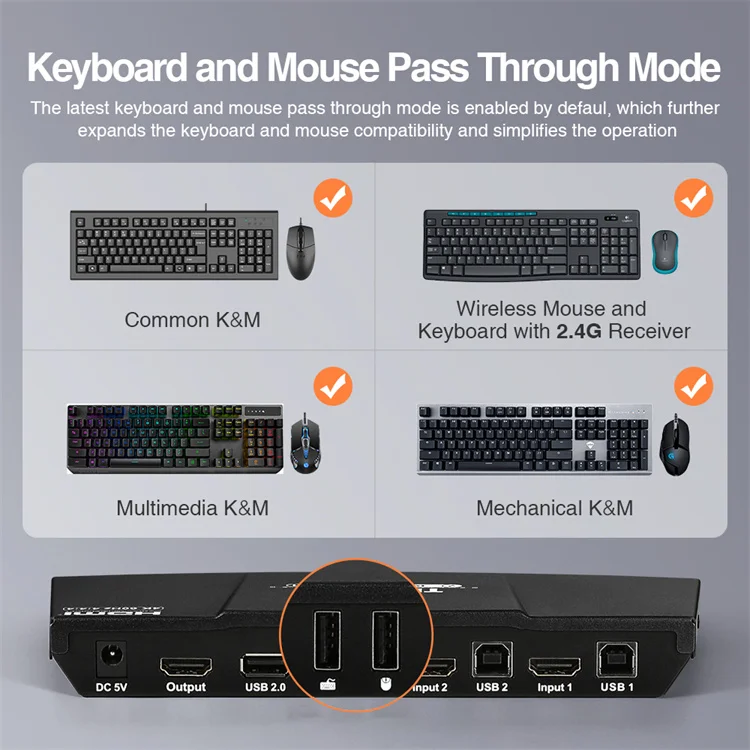

●Support keyboard and mouse pass through mode to improve KM compatibility
●Support auto switching to monitor computers in a specified time interval
● Support front panel buttons, IR signals, keyboard hot keysand mouse gesture to control KVM to switch inputs
● Available to use keyboard andmouse without any delay after switch input sources
●Support resolution up to 3840*2160@60Hz 4:4:4
● HDCP 2.2 compliant
● Support USB0 for printers, USB drives, etc
● With EDID emulators in eachinput port, keep PCs always having correct display information
●Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems.
●Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
●Support analog L/R audio output
●Support HDR 10 and Dolby Vision
●Support keyboard and mouse pass through mode to improve KM compatibility
Specification
HKS0201A2U | 2x1 HDMI KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 5~254 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | USB Data | 2 * USB Type B | ||
L/R Audio output | 1 * AUX | |||
Video / Audio | 2 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product | Dimension | 198 (L) x 82 (W) x 26 (H) mm | ||
Weight | 265g | |||
Item | Dimension | 245 (L) x 135 (W) x 90 (H) mm | ||
Weight | 814g | |||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||
Quantity | 20pcs | |||
Total Weight | 17.13kg | |||
