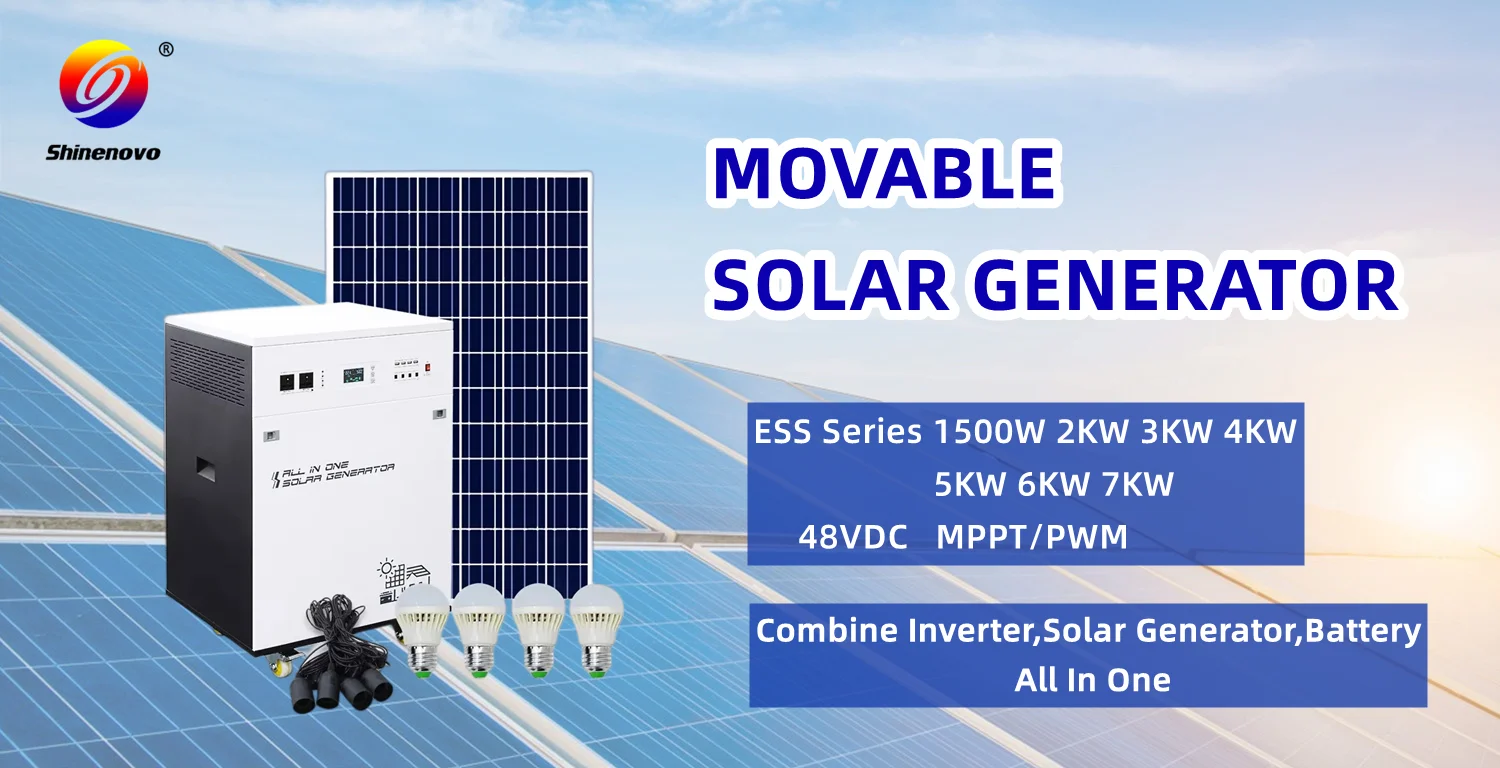

Off Grid 5kw USB Loads 5000watt 48v RS485 LED LCD Display Solar Battery Powered Inverter Generator
Products Features
1. 3 times peak power, excellent loading capability.
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-10A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Added fault codes query function,facilitate user to monitor the operation state in real time;
10. Digital LCD and LED for visualization of operation status of the equipment.
11. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-10A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Added fault codes query function,facilitate user to monitor the operation state in real time;
10. Digital LCD and LED for visualization of operation status of the equipment.
11. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
Off Grid 5kw USB Loads 5000watt 48v RS485 LED LCD Display Solar Battery Powered Inverter Generator
Specfication
Model : ESS | 152 P8/W8 | 202 P8/W8 | 302 P8/W8 | 402 P/W | 502 P/W | 602 P/W | 702 P/W | |||||||
Capacity | Rated power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | ||||||
Peak power（20ms） | 4500VA | 6000VA | 9000VA | 12KVA | 15KVA | 18KVA | 21KVA | |||||||
Input | Stardard battery voltage | 48VDC | ||||||||||||
AC input voltage range | 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC) | |||||||||||||
AC input frequency range | 45Hz~55Hz（50Hz);55Hz~65Hz（60Hz) | |||||||||||||
Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||||||||||||
AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /240VAC±10%(AC mode) | |||||||||||||
AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||||||||||||
AC Output waveform | Pure Sine Wave | |||||||||||||
THD | ≤3%（Linear load) | |||||||||||||
DC Output voltage | 4*DC 12V; 4*USB（5V） | |||||||||||||
AC charger | AC charging current | 0~30A(Depends on model) | ||||||||||||
AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||||||||||||
solar charger (Optional) | Charging mode | PWM/MPPT | ||||||||||||
Max PV input voltage(Voc) (At the lowest temperature) | PWM: 100V; MPPT: 150V | |||||||||||||
PV input voltage range | PWM: 60V-88V; MPPT: 60V-120V | |||||||||||||
Charge & discharge current | 60A | |||||||||||||
Max PV input power | 3360W | |||||||||||||
Inbuilt battery | Capacity | 4*200AH | ||||||||||||
Battery size(LxWxH)/pcs | 522*240*218（244） | |||||||||||||
Other | Transfer time | ≤4ms | ||||||||||||
Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||||||||||||
Display | LCD & LED | |||||||||||||
Cooling way | Cooling fan in intelligent control | |||||||||||||
Communication (Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||||||||||
Working mode (selectabl) | d1 | AC priority mode | ||||||||||||
d2 | ECO mode | |||||||||||||
d3 | Solar priority mode | |||||||||||||
Work environment | Operating temperature | -10℃~40℃ | ||||||||||||
Storage temperature | -15℃~60℃ | |||||||||||||
Elevation | 2000m（More than derating） | |||||||||||||
Humidity | 0%~95% ,No condensation | |||||||||||||
Physical | Dimention LxWxH(mm) | 610*535*960 | ||||||||||||
Net weight(kg) (without battery) | 53 | 55 | 59 | 61 | 63 | 64 | 66 | |||||||
Packing | Dimention LxWxH(mm) | 688*612*1093 | ||||||||||||
Gross weight(kg) (without battery) | 68 | 70 | 74 | 76 | 78 | 79 | 81 | |||||||
Quantity/CTN | 1pcs per wooden case | |||||||||||||
Off Grid 5kw USB Loads 5000watt 48v RS485 LED LCD Display Solar Battery Powered Inverter Generator

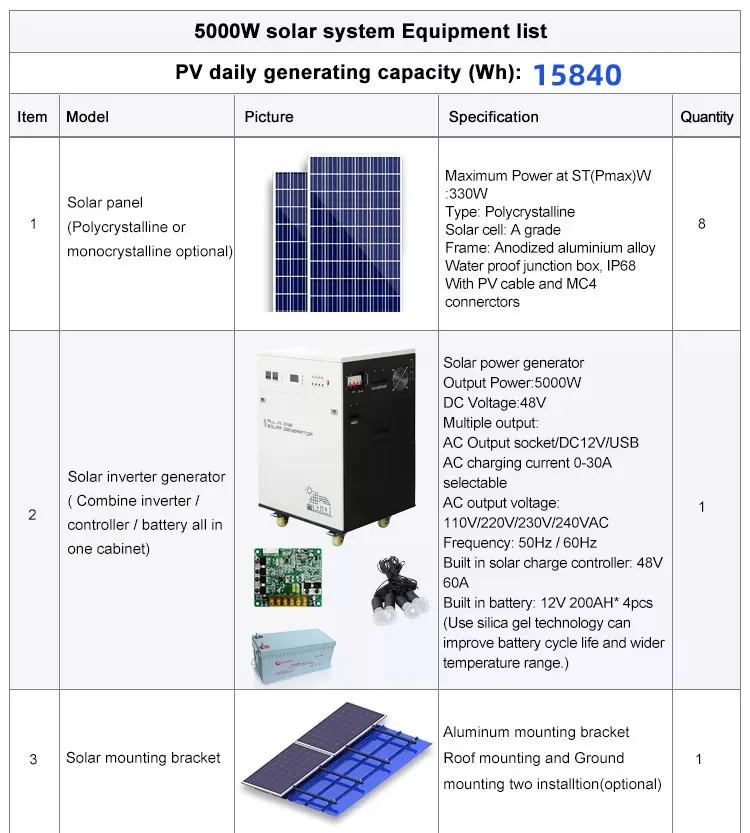

Product Details
Off Grid 5kw USB Loads 5000watt 48v RS485 LED LCD Display Solar Battery Powered Inverter Generator

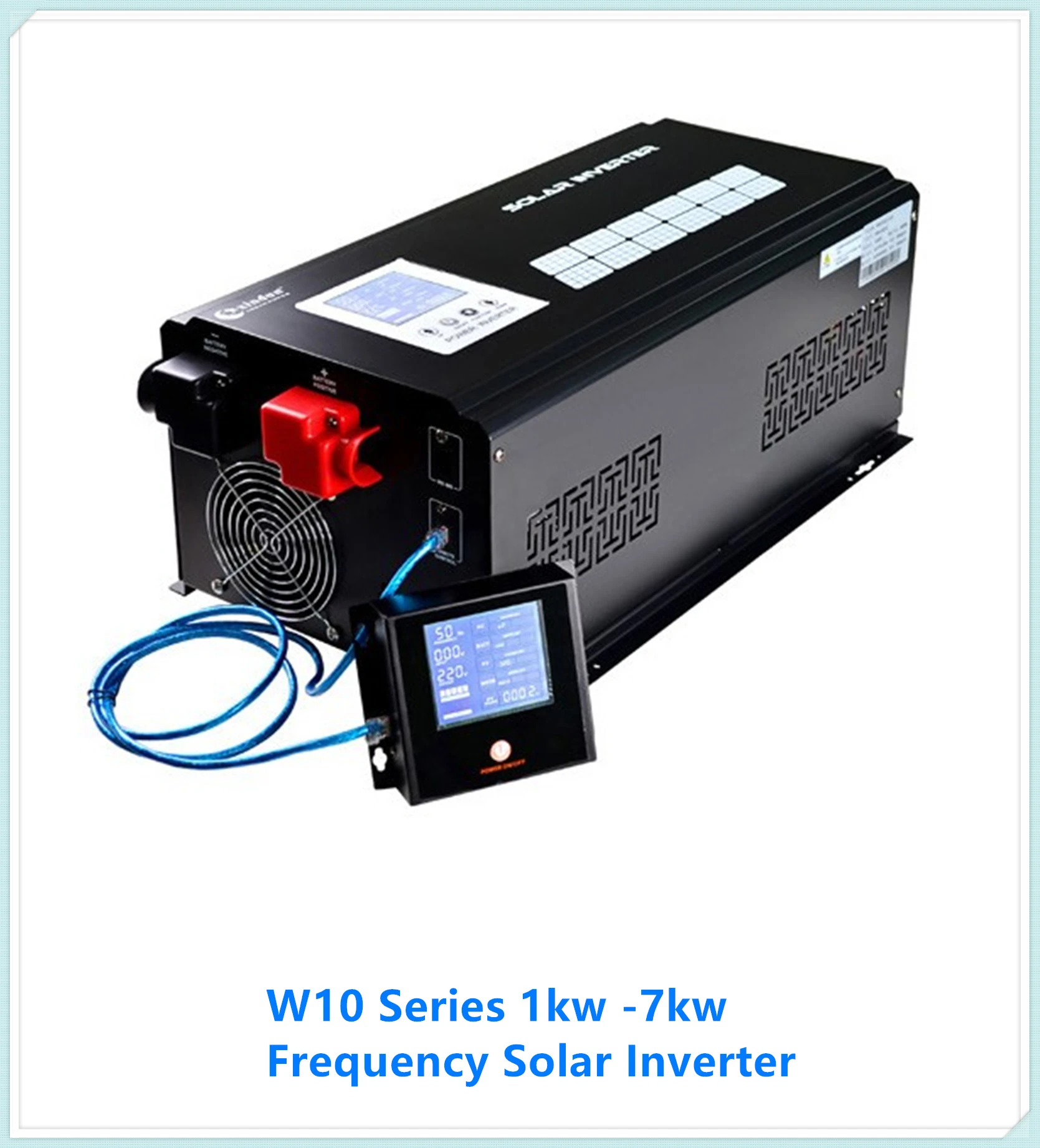

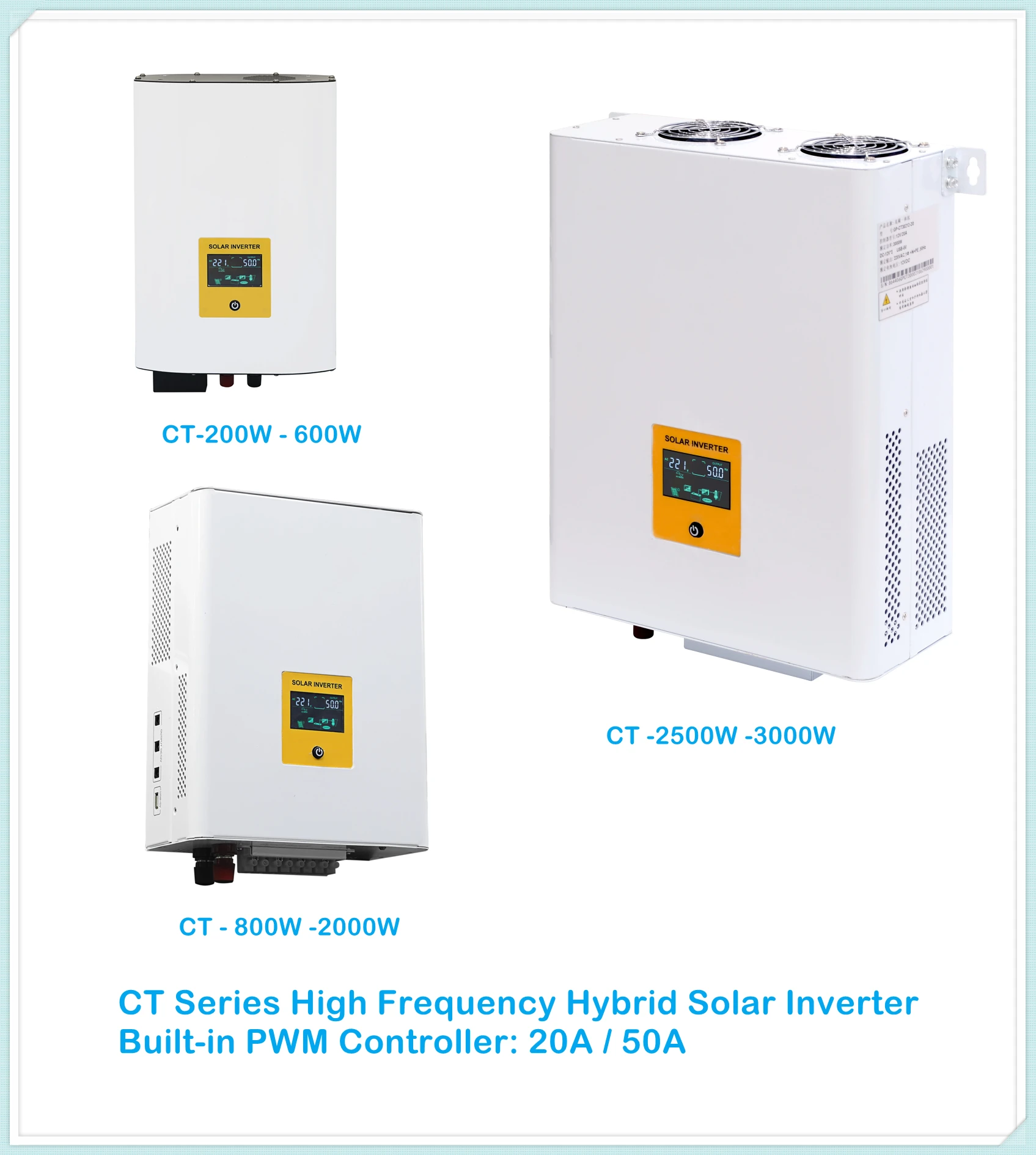

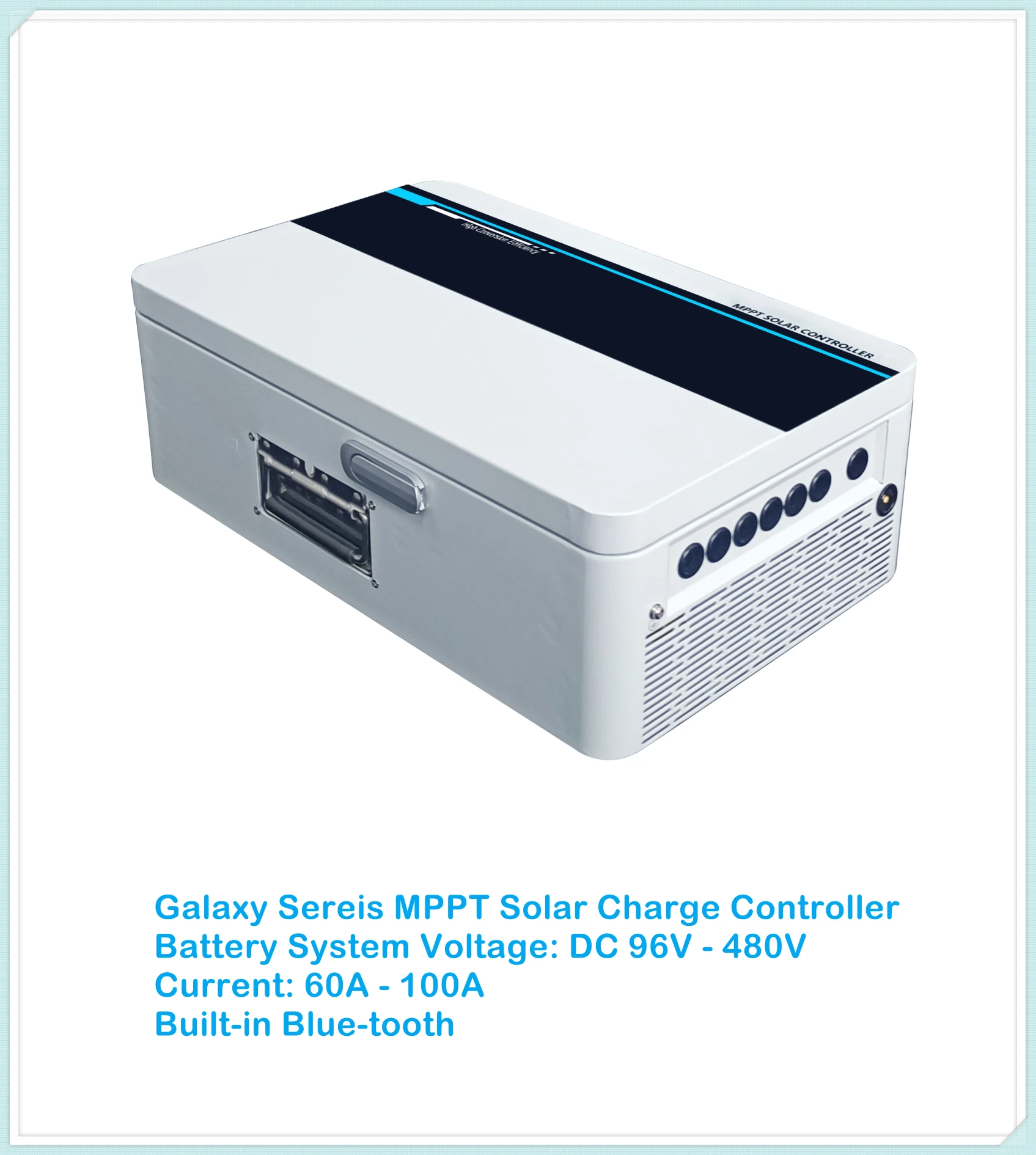

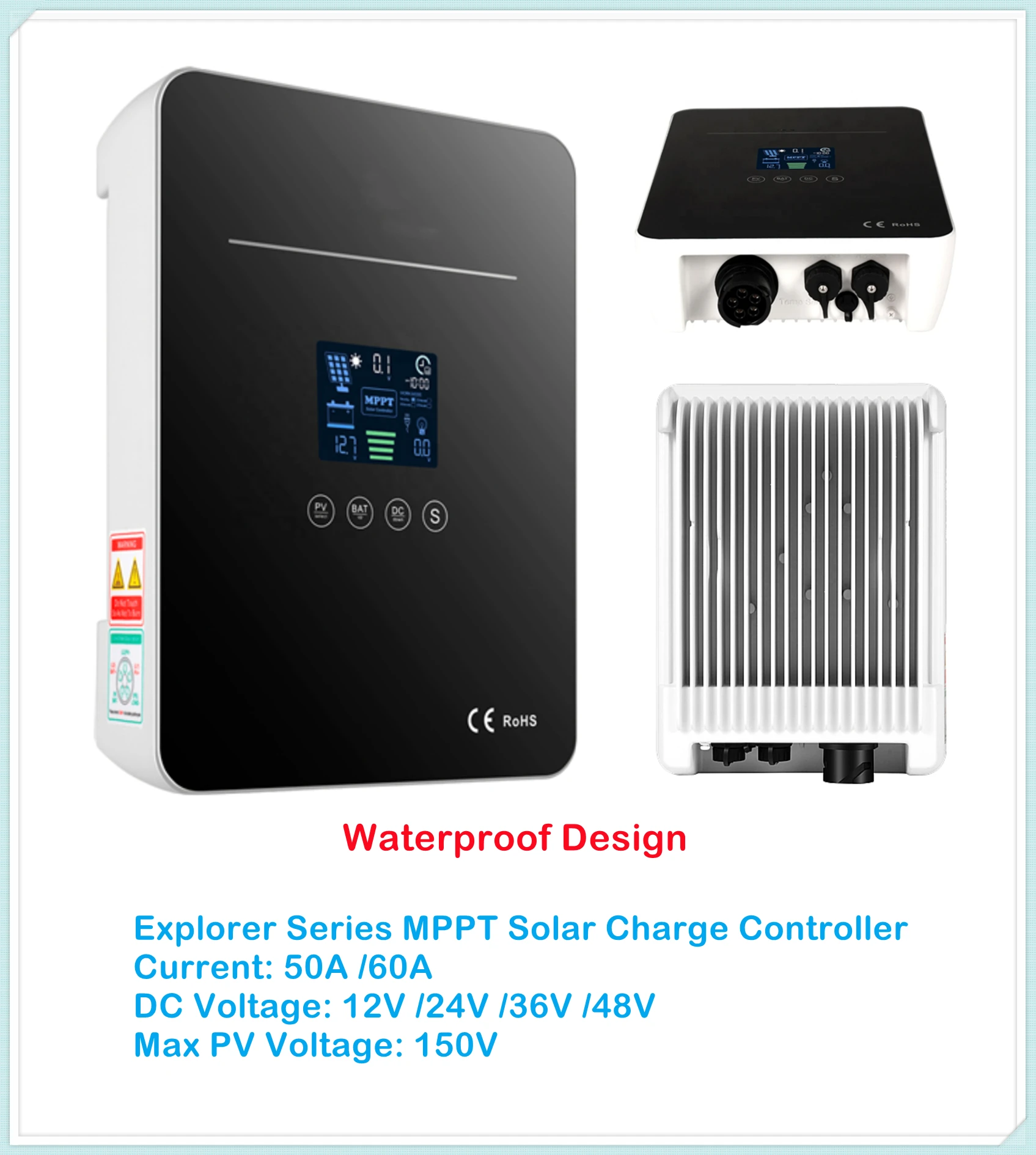

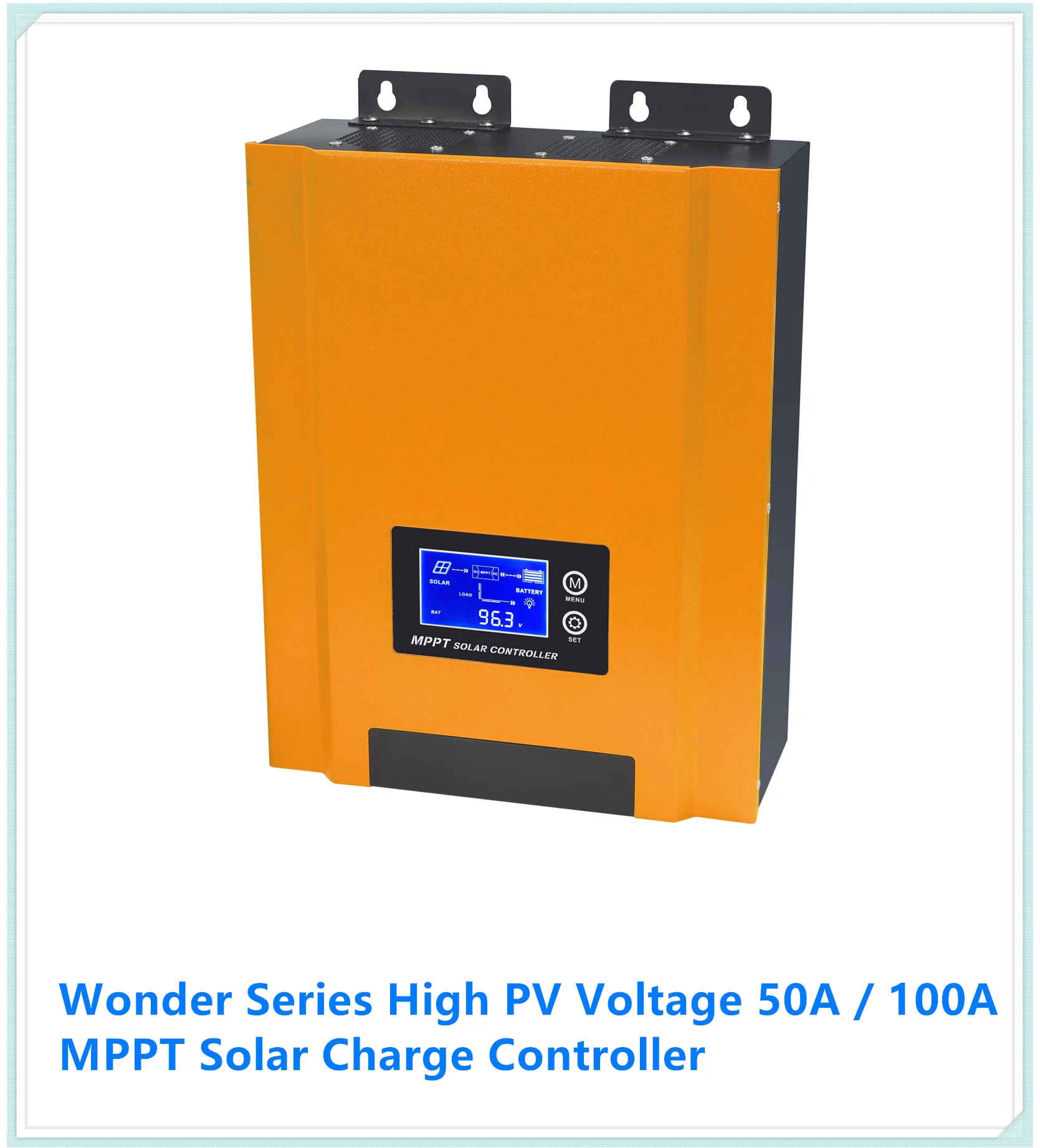

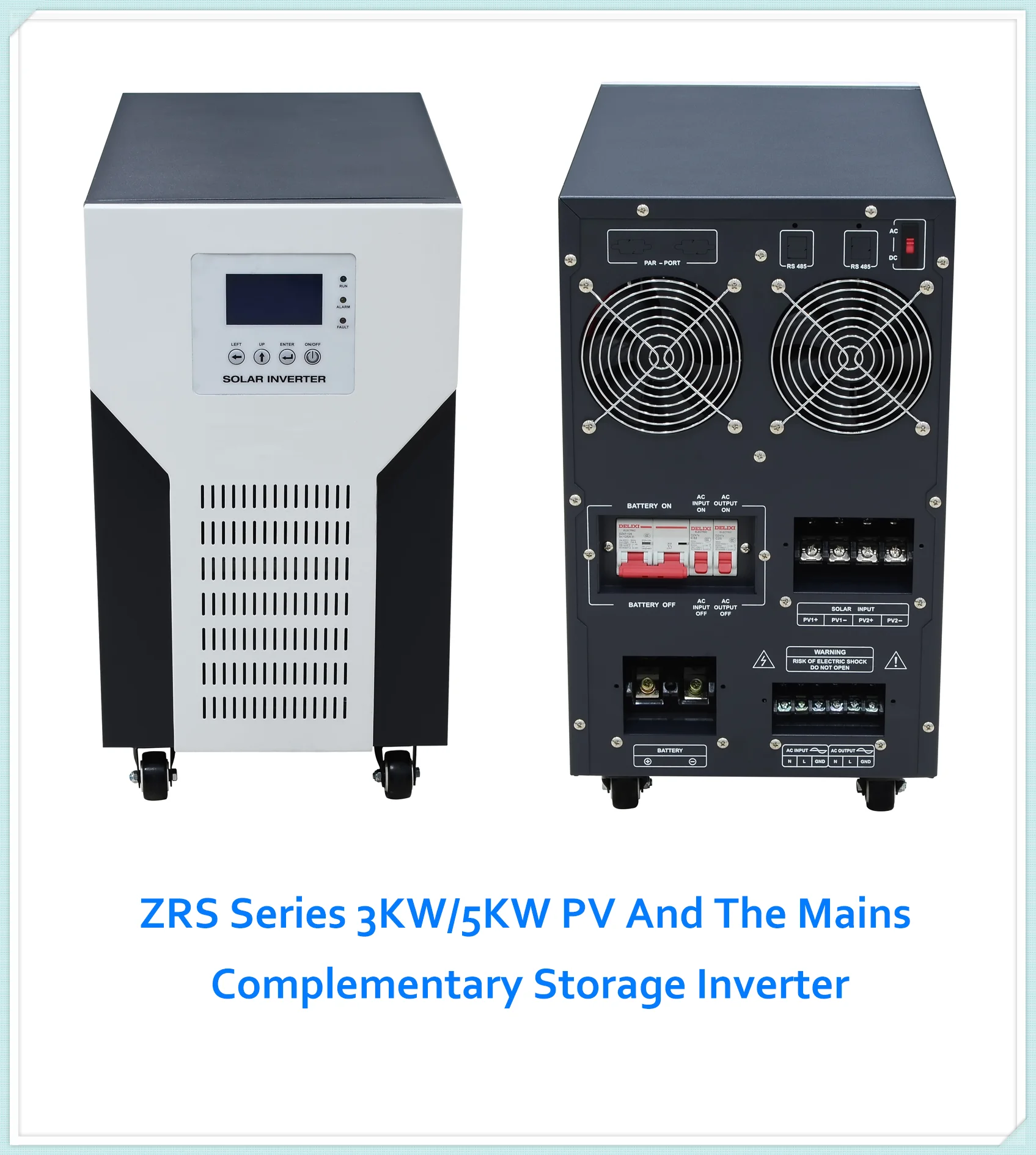

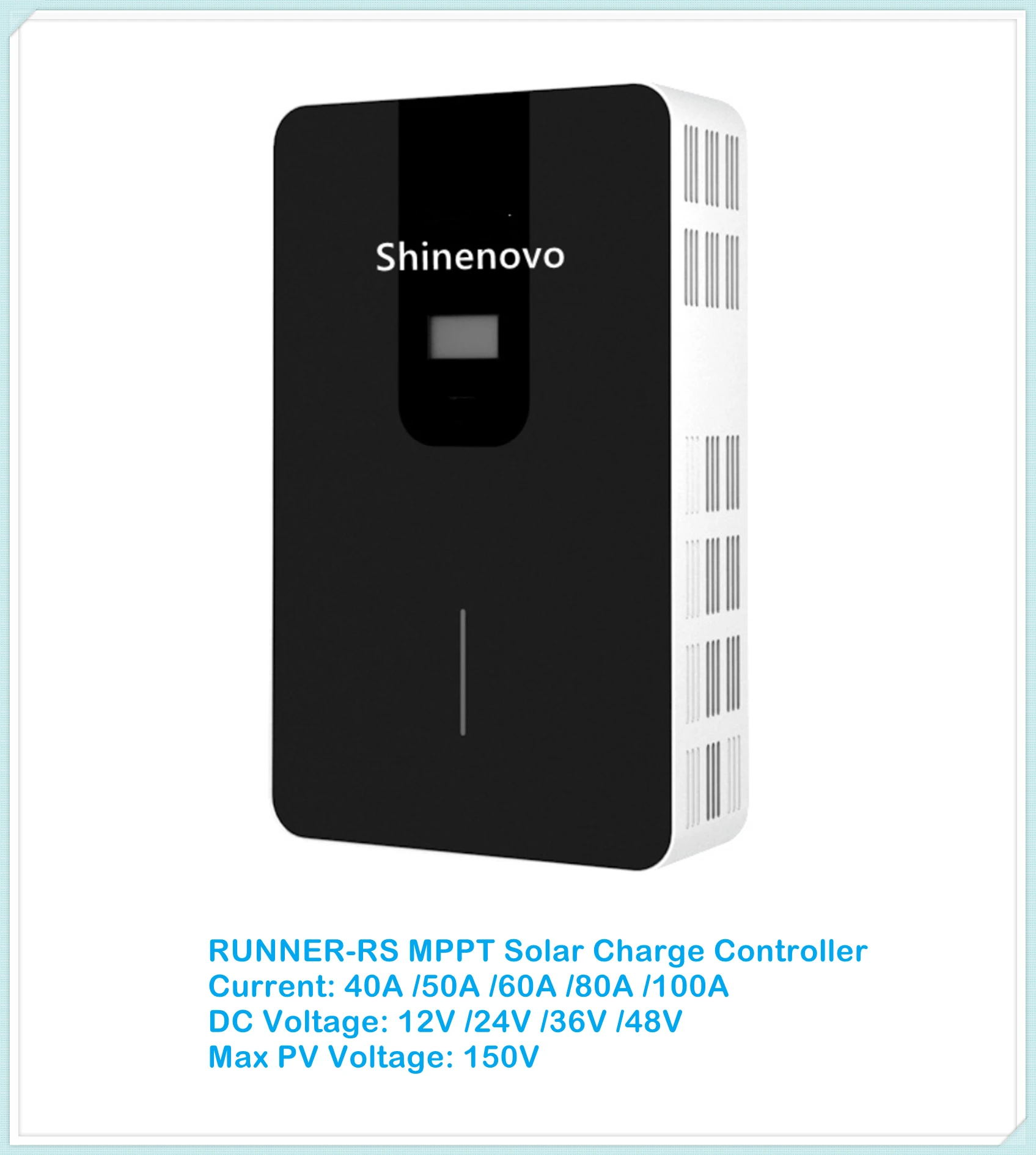

Hot Sales
