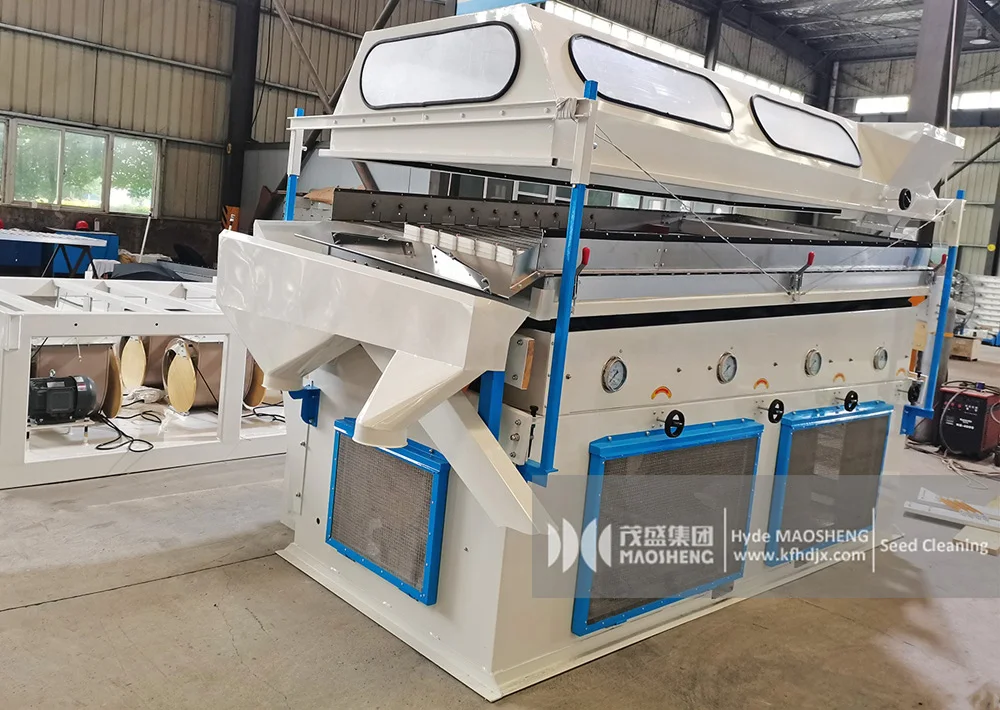

 5XZ Gravity Separator:

1) Function:fine cleaning,sorting,separting to remove bad, immature,insect damaged,molay and germinated seeds,imppurities,and admixtures such as same-size stones but with different specific weight.

2)Application:granular grains and seeds.

3)Capacity:3t/h, 5t/h, 15-20t/h(wheat).



 Gravity Separator,also know as gravity separation table,specific gravity separator,or density separator, is key procedding machine for the perfect separation of products which are already terated by air screen cleaner and indented cylinder.







Wide Application of 5xz Seed Gravity Separator:



 Wheat Seed Ceaning Mchine Agricultural Machinery Other Farm Machine Gravity Separator Maize Beans Gravity Table

5xz series gravity separator is widely used to remove impurities,admixture,insect damage and immature kernels from cereal grains such as wheat,barley,oliseed rape,peas,beans,cocoa beans,hazelnuts,Iiseed.

Paddy Separator Machine Grain Seed Cleaning Machine Beans Gravity Table.





 Variable Screen Configuration:





Screen Specification(mesh)                                                      Processing MATERIAL

10                                                                                          Beans,Peas,Maize

16                                                                                          Rice,WHEAT,Oats

30                                                                                          Alfalfa,Clover,Vegetable Seeds

Silk                                                                                        Small grass seeds

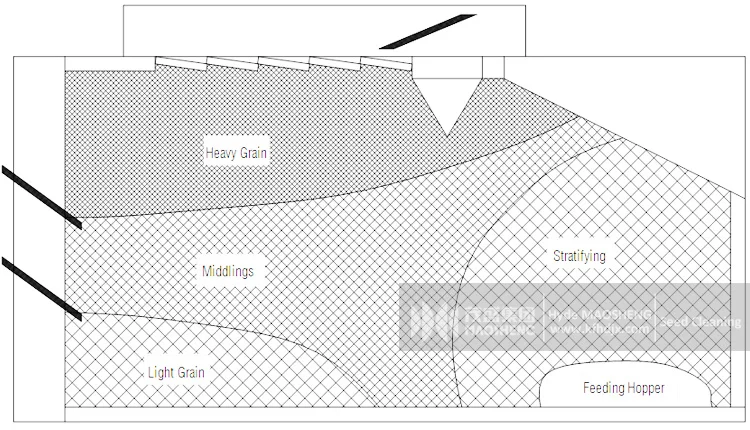

Working Principle Of 5 XZGravity Separator



Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator MaizeBeans Gravity Table
Seeds and grains can be separated and graded by the suspension and friction characteristics.
Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.
Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.

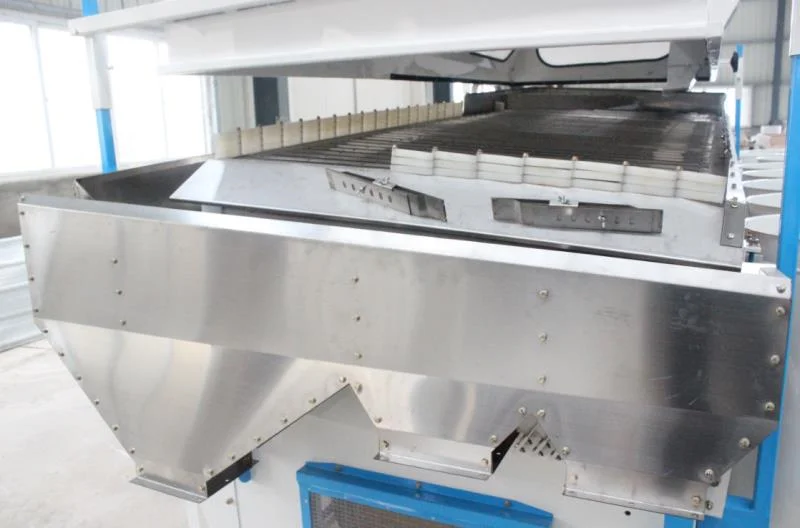

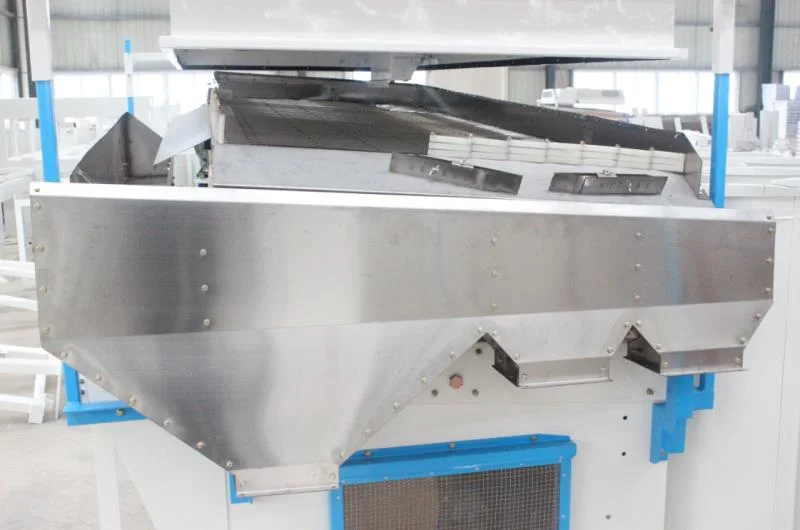

Advantages of 5XZ Gravity Separator:



Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator Maize
Beans Gravity Table
Hyde 5XZ seed gravity separators are designed with accuracy in separation of as slight as 0.5% difference in specific density.

Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.

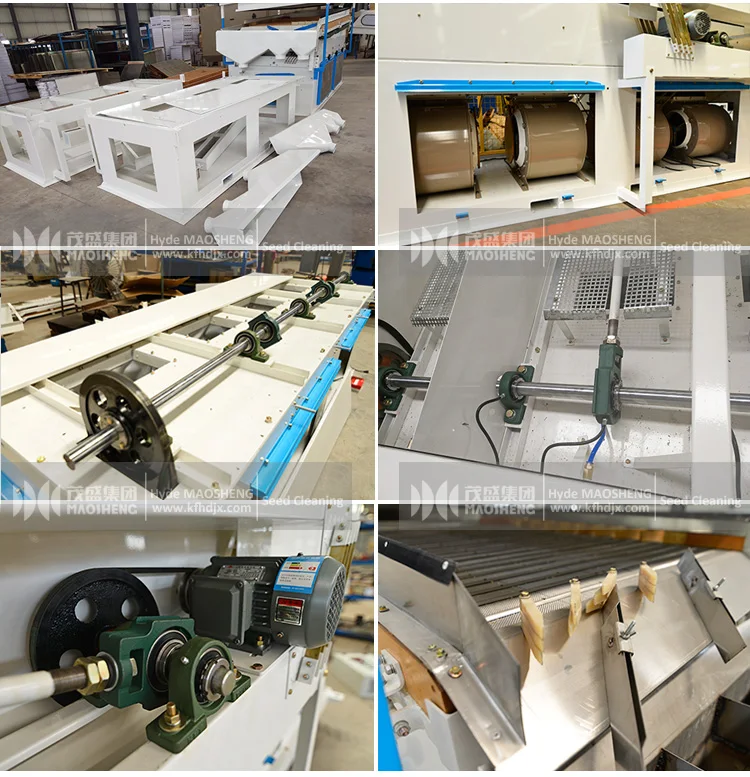

Structural Features:
1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.

Special Features:

1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.







Technical Specification of 5XZ Seed Gravity Separator:

Item		Unit	Specification
Model			5XZ-3	5XZ-5	5XZ-10	5XZ-15/20
Dimension(LxWx H)		mm	2050*1350*1200	3840*2110*1710	4300*2300*2500	5100*2300*2700
Total Weight		kg	1650	1900	2150	3500
Rated Capacity		t/h	3.0	5.0	10.0	15-20
Total Power		km	7.45	9.55	14.7	21.3
Amplitude		mm	7	7	7	7
Dip Angel			30	30	30	30
Frequency		1/s	300-800	300-800	300-800	300-800
Screen Area		m2	2.24	3.4	5.36	8
Selection Efficiency		%	≥98.5	≥98.5	≥98.5	≥98.5
Cleaning Efficiency	Light	%	≥95	≥95	≥95	≥95
	Heavy	%	≥90	≥90	≥90	≥90

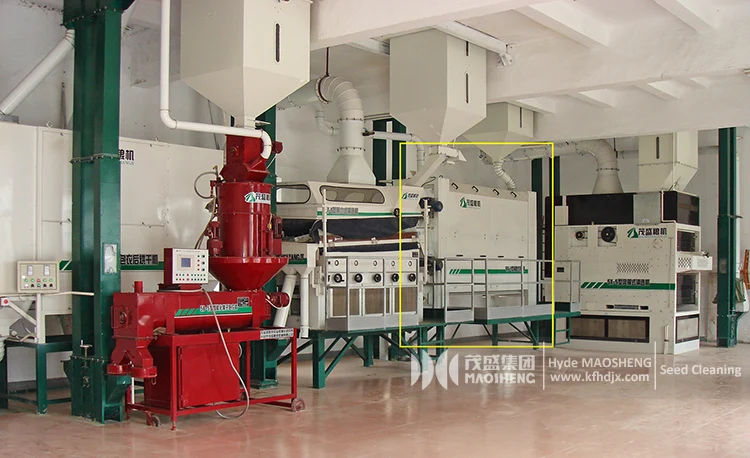

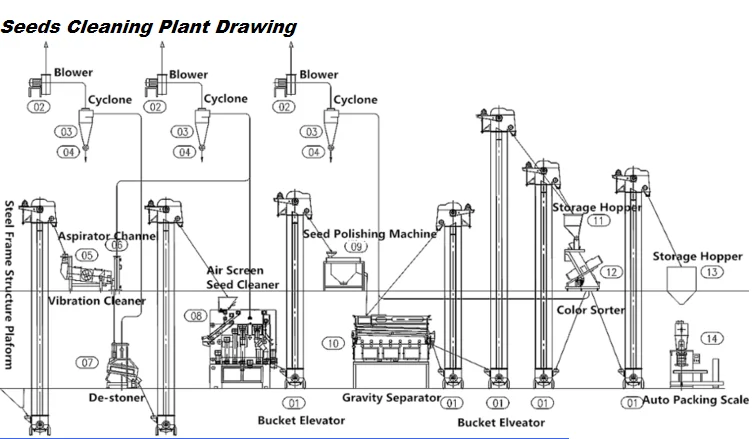

5XZ Seed Gravity Separator in Seed Cleaning Plants:





Our main products are:

- Seed cleaning machines

Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.

- Flour mill complete plants: 40~1000 t/d.

- Dryer and grain handling

Seed cleaning machines:



     Air Screen Fine Cleaner                    Seed Gravity Separator                    Indented Cylinder Separator



           Stone Separator                 Vibration Screen Cleaner Separator                Rotary Cleaner

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.



With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.



Kaifeng Hyde Machinery, separated in 2000 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines.



Seed Processing Machines from Hyde Machinery



Cooperation of Maosheng Group Hyde Machinery

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013 and NoroGard Sweden in 2016.

Our partners and clients in China:



Honors of Maosheng Group Hyde Machinery

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.

Member of 13 China national standards DRAFTER in grain industry. 75 patents including 4 inventions (till 2017).
