Product Description

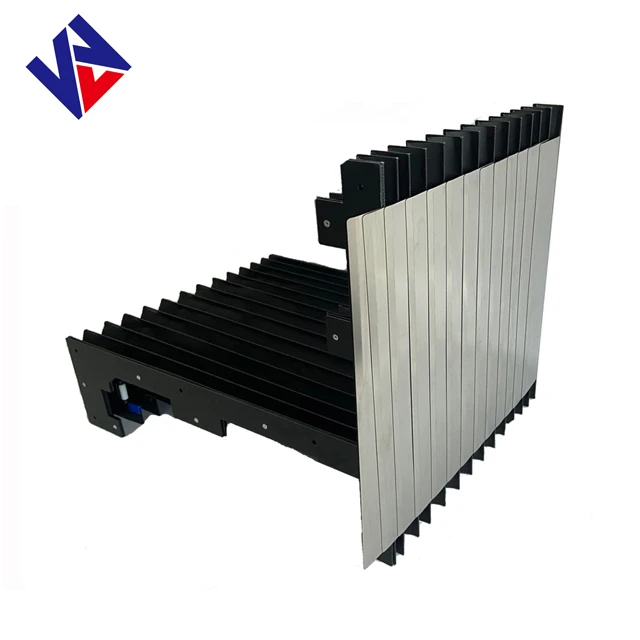

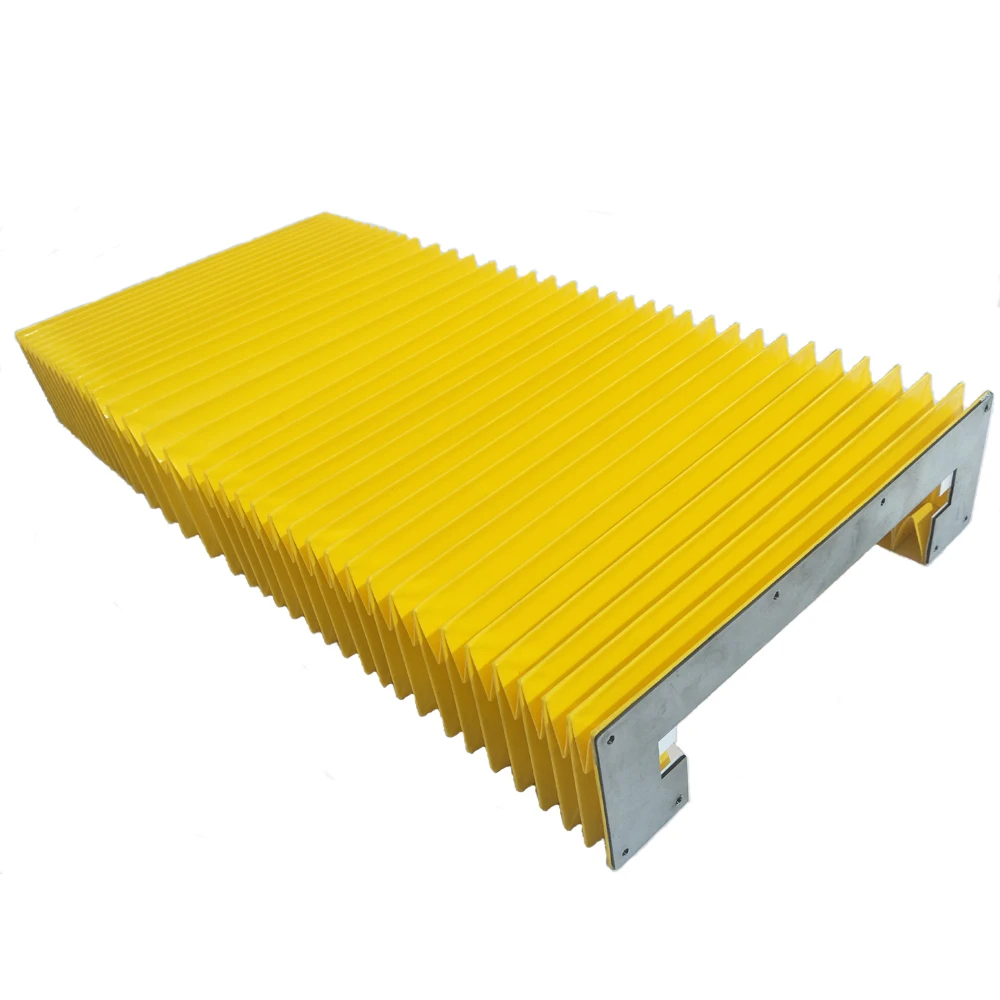

plastic bellow cover
Its surface is smooth, regular shape, beautiful appearance, adding infinite color to the overall shape of the machine tool. Therefore, it provides practical protection for your machine tool, but also adds more visual aesthetic feeling for the machine tool, so that the overall value of the machine tool has been improved. Organ shield adopts the German advanced technology, external German nylon cloth, plus PVC plate support, oil resistance, corrosion resistance, hard collision without deformation, long life, good sealing, walking smoothly, durable, mainly used for all kinds of mechanical confidential parts protection, extend the service life of mechanical important parts and machinery.

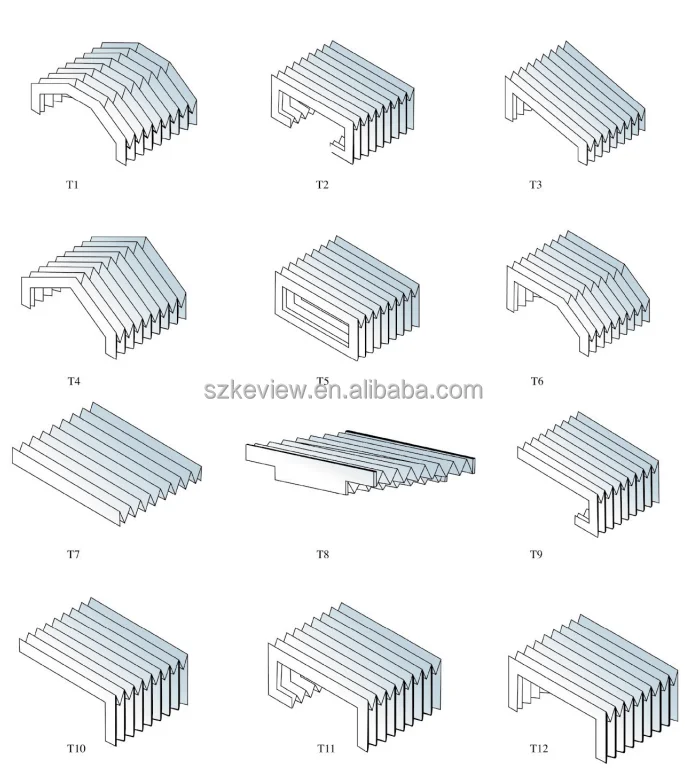

Reference shape
Standard fold height: 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm.
The minimum distance between the guide rail surface and the shield of the mechanical equipment is 5mm, and the maximum distance is 10mm
The maximum size of the shield fold surface when opening is equal to twice the height of the fold surface
The thickness of the compressed fold surface is equal to 4mm



Get the production notice and drawings.Make the fabric and skeleton according to the drawings.Welding First close and preheat the equipment for about 30 minutes, and set the welding time and current according to the thickness of the product to be welded.Skeleton thickness (mm)weld period welding temperature (℃)0.8 4~5 130-~140 1.0 4~5 130~140 booking Prepare the booking machine, fabric, skeleton and booking gear, place the fabric in the booking gear, and then put the skeleton into the surface fold, measure whether the length, with a hammer neatly, tied firmly, with the reservation machine reservation.The ordered semi-finished products will be sent to the hot closing machine for folding and welding. After the welding edge shall not exceed 5mm, the inspector shall inspect it one by one. They can only pass the packaging and handle the warehousing procedures.


Specification


Type
Guard Shield
Material
Nylon ， Plastic，High temperature resistance, fire prevention
Marketing Type
Ordinary Product
Brand
keview
Model
Customized
Product Name
Plastic Machine Accordion Bellows
Application
factory
Color
black,yellow，white，cusomized
Protective
Protect Machine Guide Rail
Shape
Cusomized
Characters 3
Heat resistance, dust prevention, high temperature resistance
Keywords
flexible bellows
Type
Custom tailor


Packing & Delivery






Company Profile







Suzhou Keview Mechanical &Electrical Equipment Co., Ltd is a powerful electrical equipment company. The company integrates R&D,production, and sales. It has advanced production technology and equipment, and innovates a high-quality and efficient production model. "Products: equipment maintenance series, machine tool series (towing chain series, machine tool protective cover series,chip conveyor series, machine tool work lamp series), operating parts series, machine oil mist collector series, cantilever boxseries), electronic products and series




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2021,sell to North America(30.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Western Europe(10.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

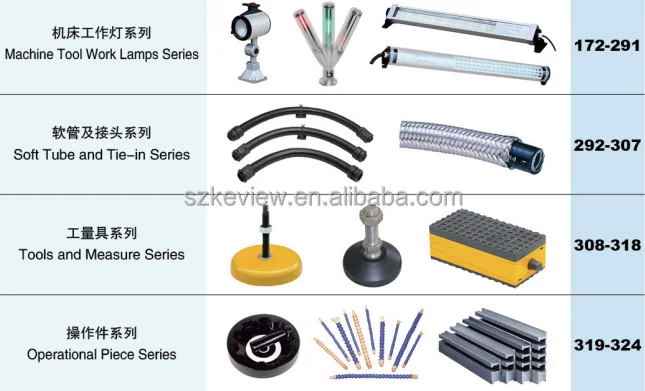

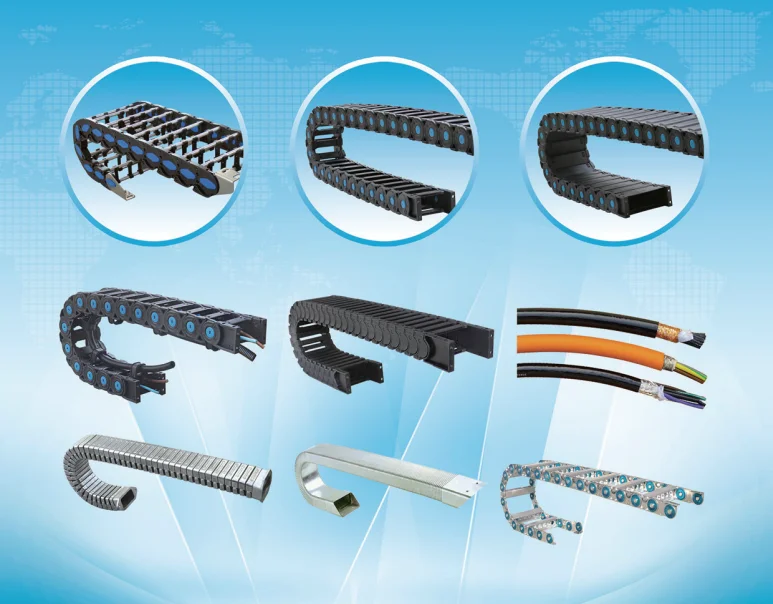

Cable drag chain,Bellows cover,Chip conveyor,Oil mist collector,Other product

4. why should you buy from us not from other suppliers?
Professional technical team, good service system, active after-sales service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German
