Гранулятор GK для специй из нержавеющей стали высокой емкости гранулятор сухих
- Категории: Other Chemical Equipment >>>
- Поставщик: Jiangyin,Lingling,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
GK high capacity stainless steel spice granules feed dry pellet
granulator granulation machine for sale
Products Description
This is a new equipment to make granules directly from the target material using the crystal water in the material. The finished
granules can be made to troches or capsules. It adopts the electromagnetic timing and features the simple structure, stable
capability, easy cleaning, convenient maintenance.
granules can be made to troches or capsules. It adopts the electromagnetic timing and features the simple structure, stable
capability, easy cleaning, convenient maintenance.
Characteristic
Dry powder particles with uniform density, good disintegration, high yield. Special feeding structure to ensure effective feeding.
Roller cooling water circulation, to ensure that there will be no sticky roll phenomenon. Do not need water or ethanol and other
wetting agent, do not need a two heating drying, less process, high efficiency, low cost. Using advanced electric hydraulic,
simple and reliable operation, high degree of automation. Sealing operation without pollution, meet the health requirements of the
drug. It’s particularly suitable for wet granulation.
Roller cooling water circulation, to ensure that there will be no sticky roll phenomenon. Do not need water or ethanol and other
wetting agent, do not need a two heating drying, less process, high efficiency, low cost. Using advanced electric hydraulic,
simple and reliable operation, high degree of automation. Sealing operation without pollution, meet the health requirements of the
drug. It’s particularly suitable for wet granulation.
Technical Data:
MODEL | 80 | 100 | 120 | 200 | |||
CAPACITY（Kg/h） | 20-200 | 50-400 | 60-500 | 100-800 | |||
ROLL SIZE（mm） | 200×80 | 200×100 | 200×120 | 250×200 | |||
Roll Max Pressure（T） | 10×2 | 10×2 | 15×2 | 25×2 | |||
ROLL SPEED（rpm） | 2-20（adjustable） | ||||||
FEEDING SPEED（rpm） | 6-60（adjustable） | ||||||
Roll Drive Motor（Kw） | 4 | 7.5 | 11 | 15 | |||
Feed Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 | |||
Granule Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 | |||
Oil Pump Drive Motor（Kw） | 0.75 | 1.1 | 1.1 | 2.2 | |||
MAX WORKING PRESSURE OF HYDRAULIC（Mpa） | 20 | 25 | 30 | 50 | |||

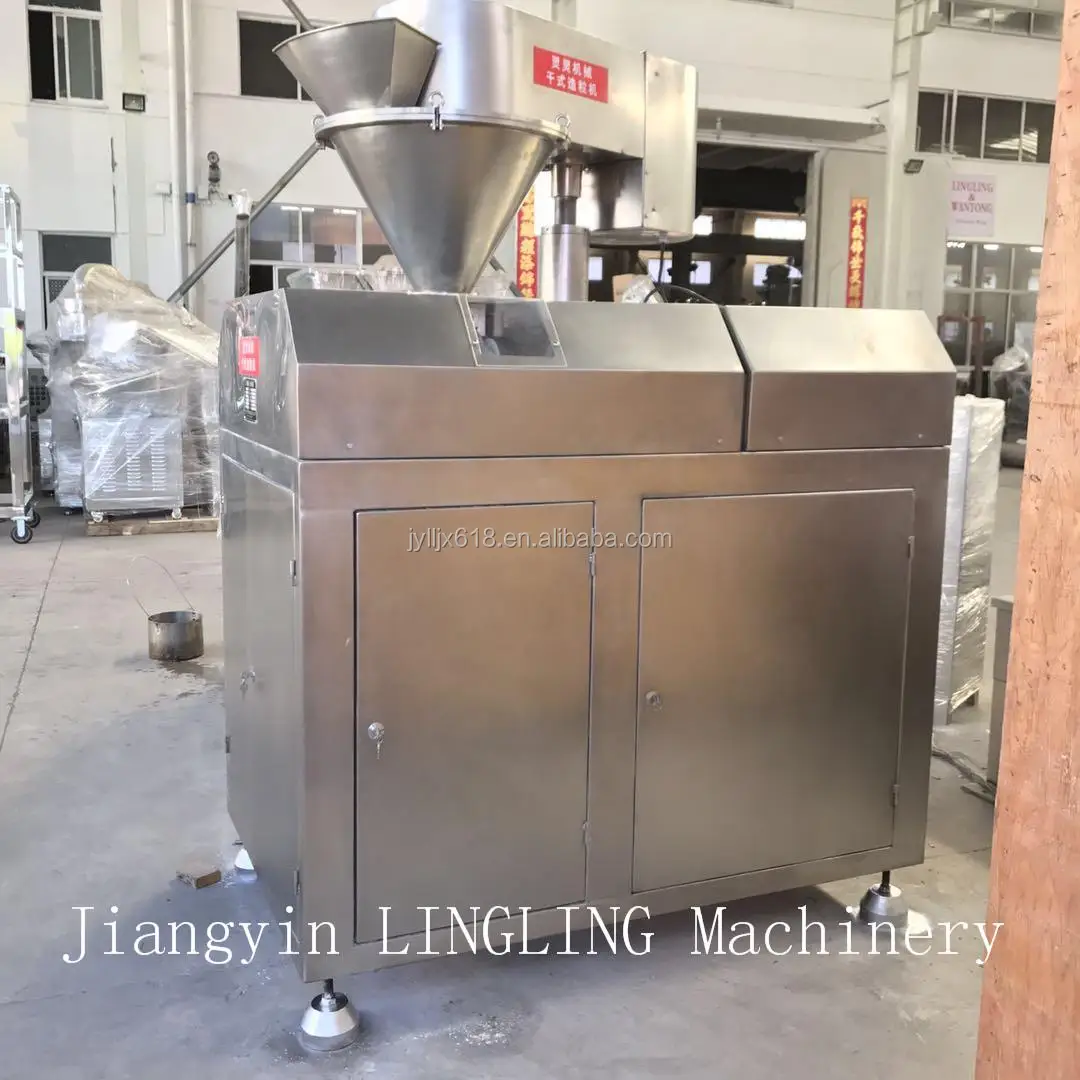

Details Images

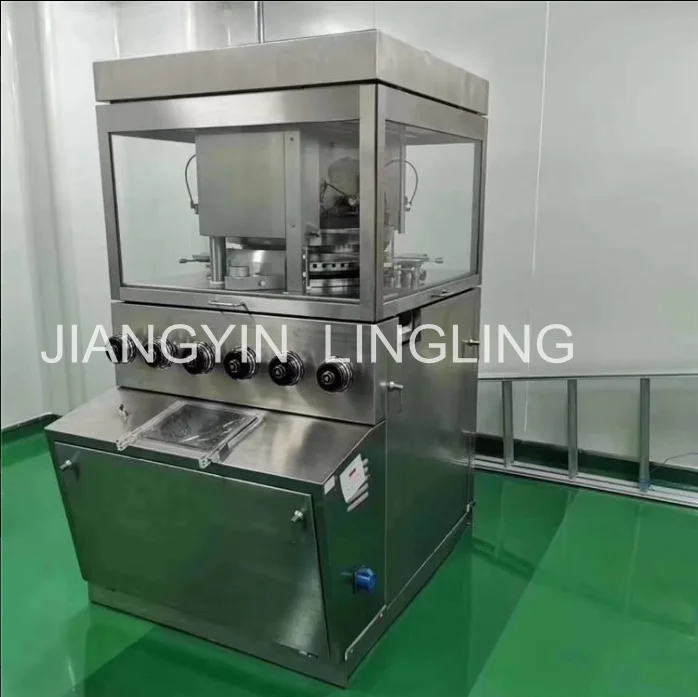

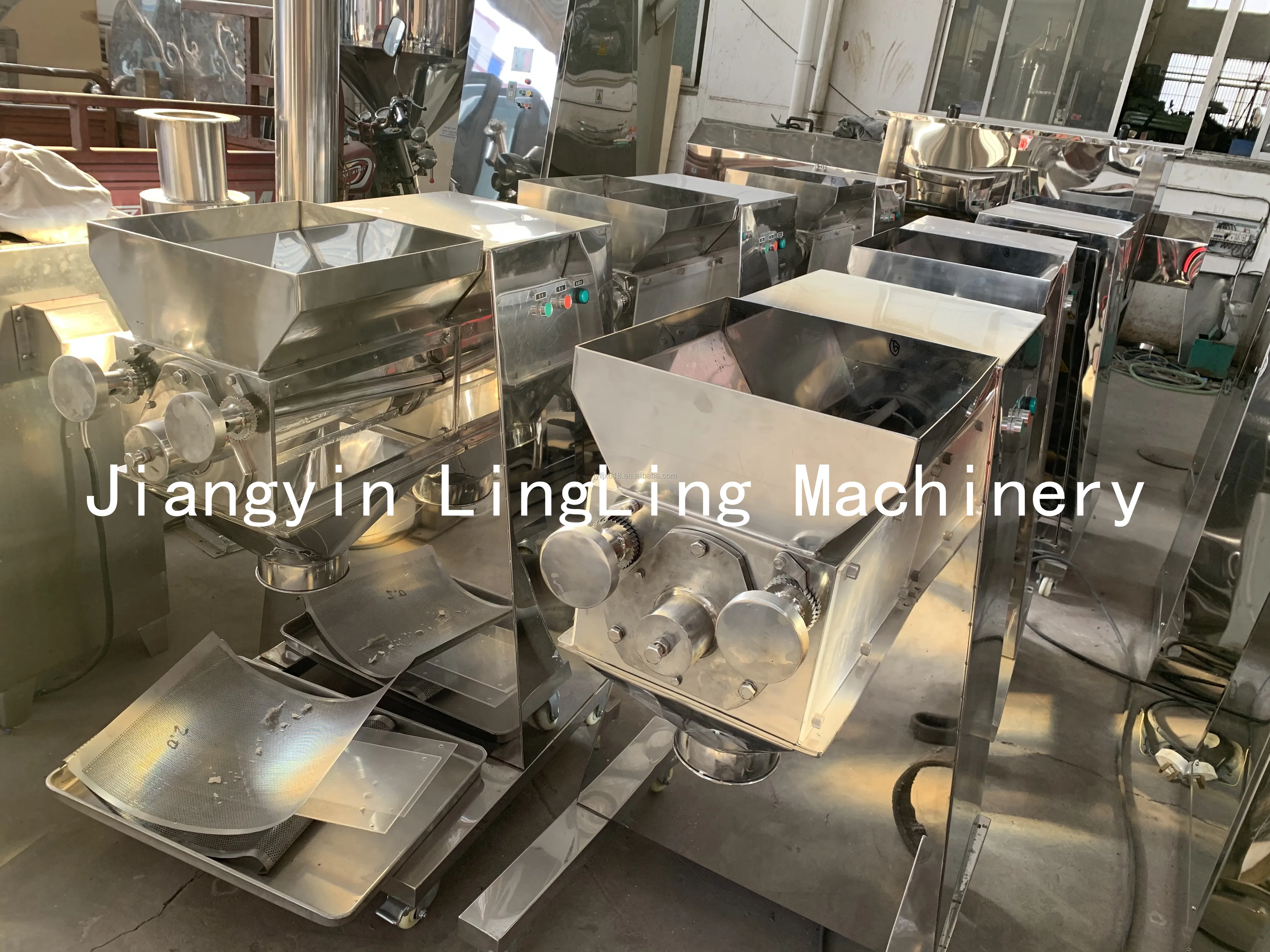

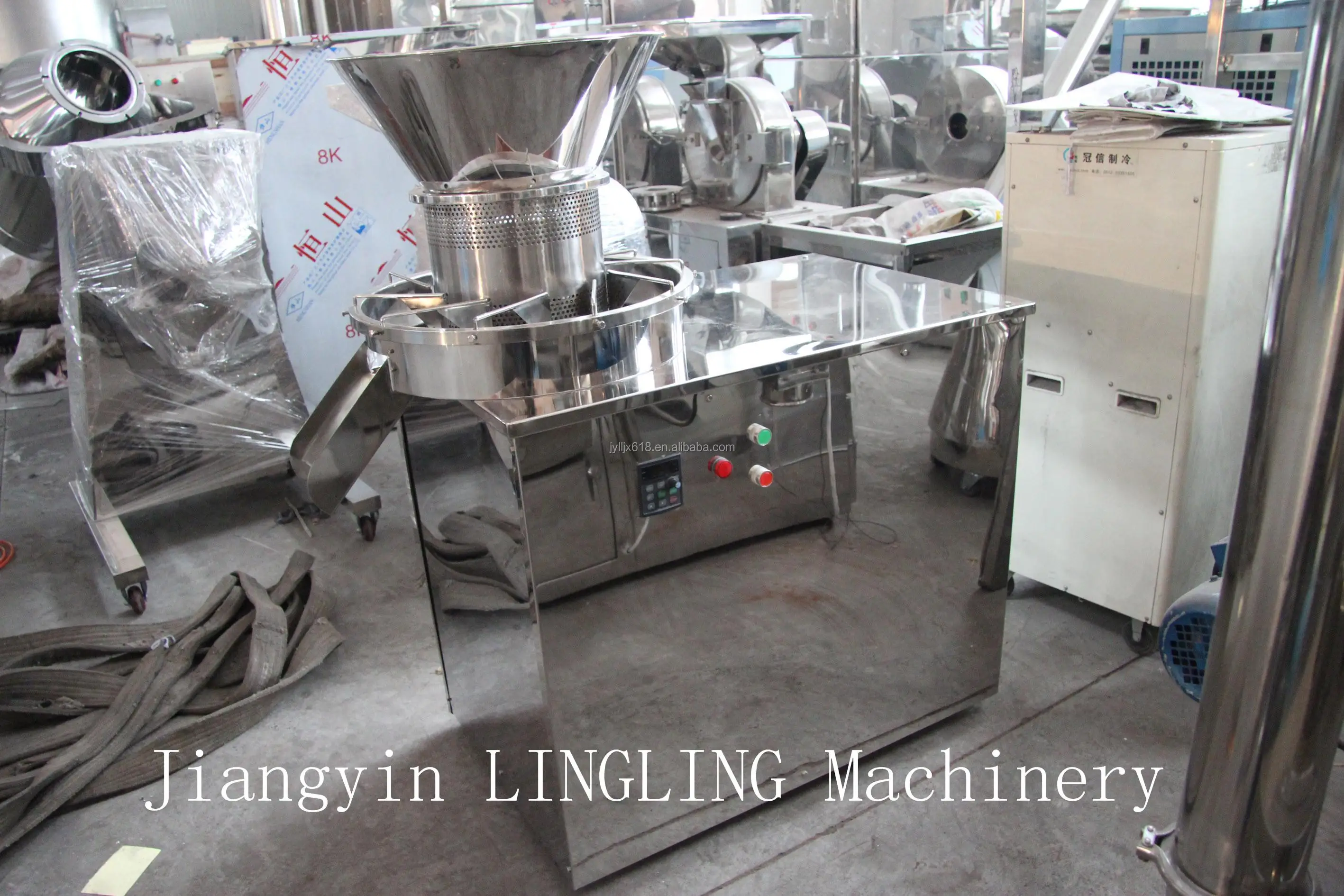

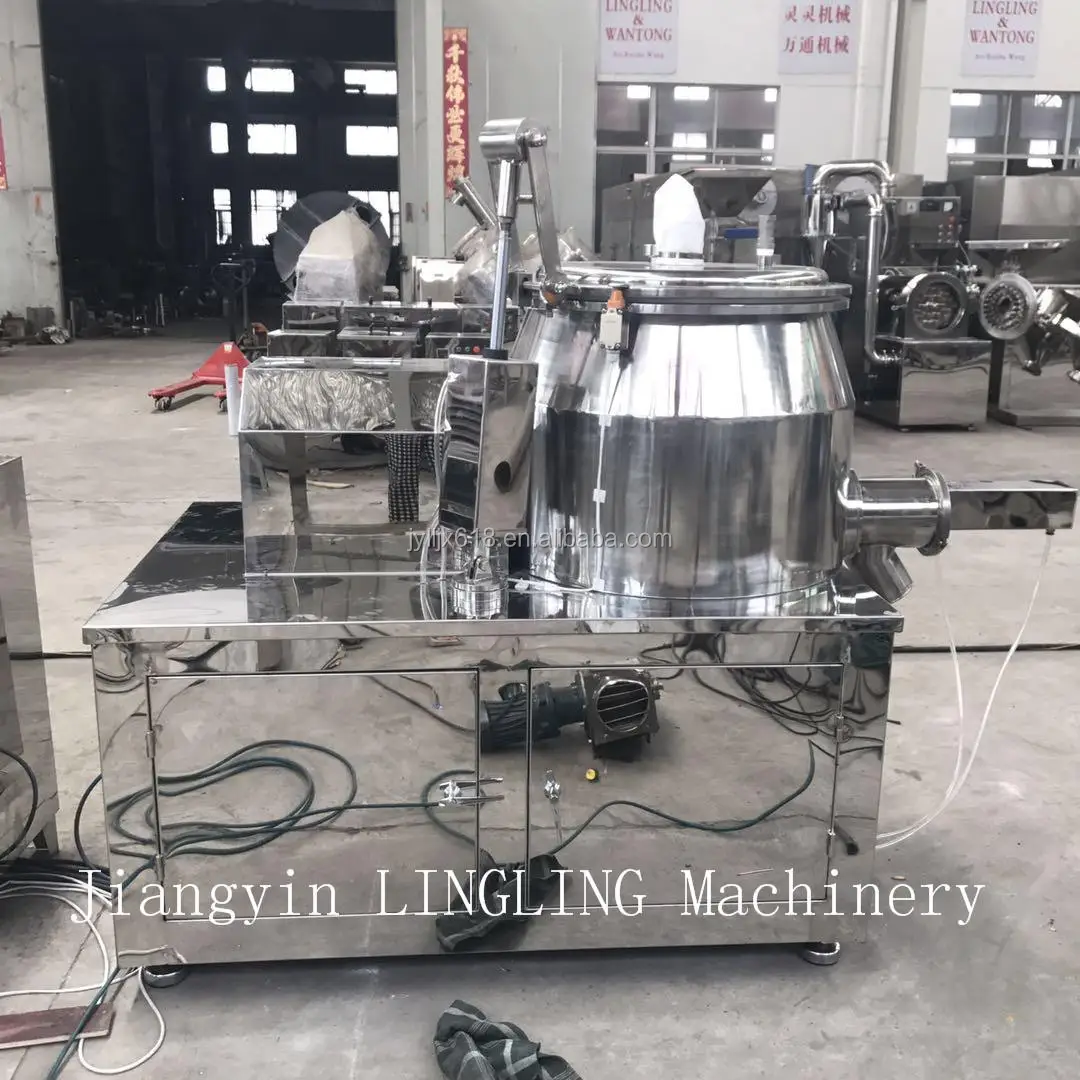

Related Products

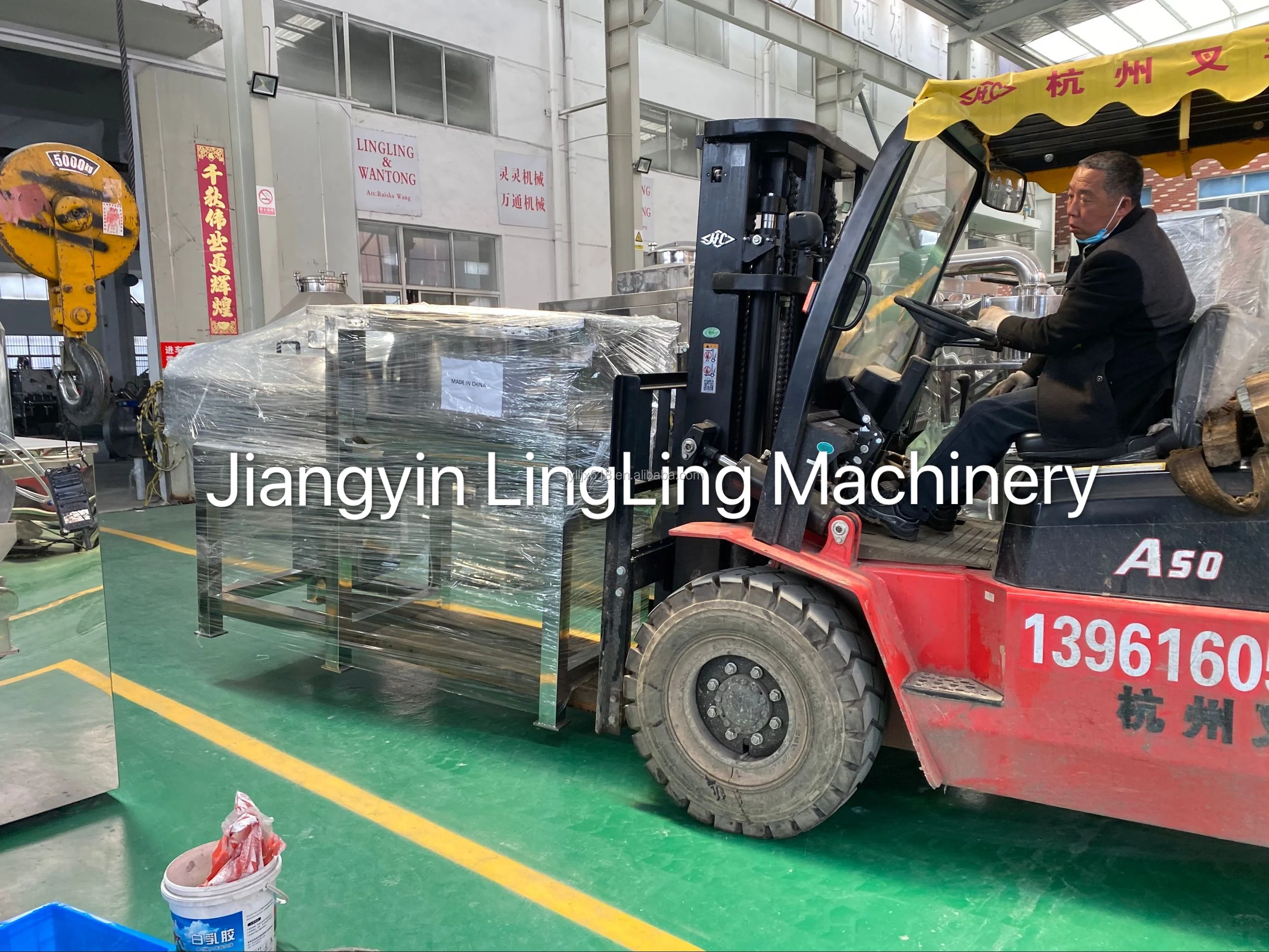

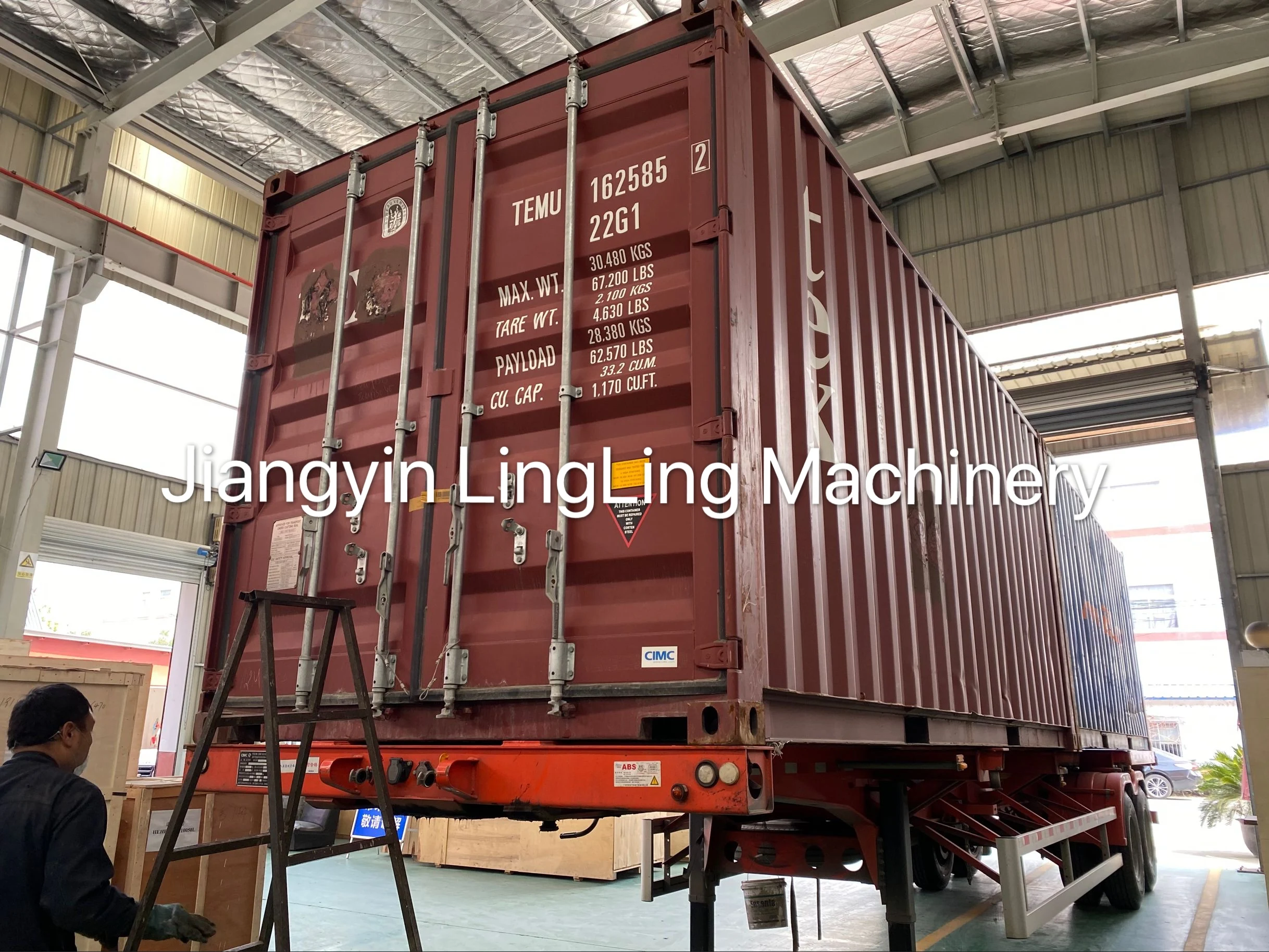

Packing&Shipping

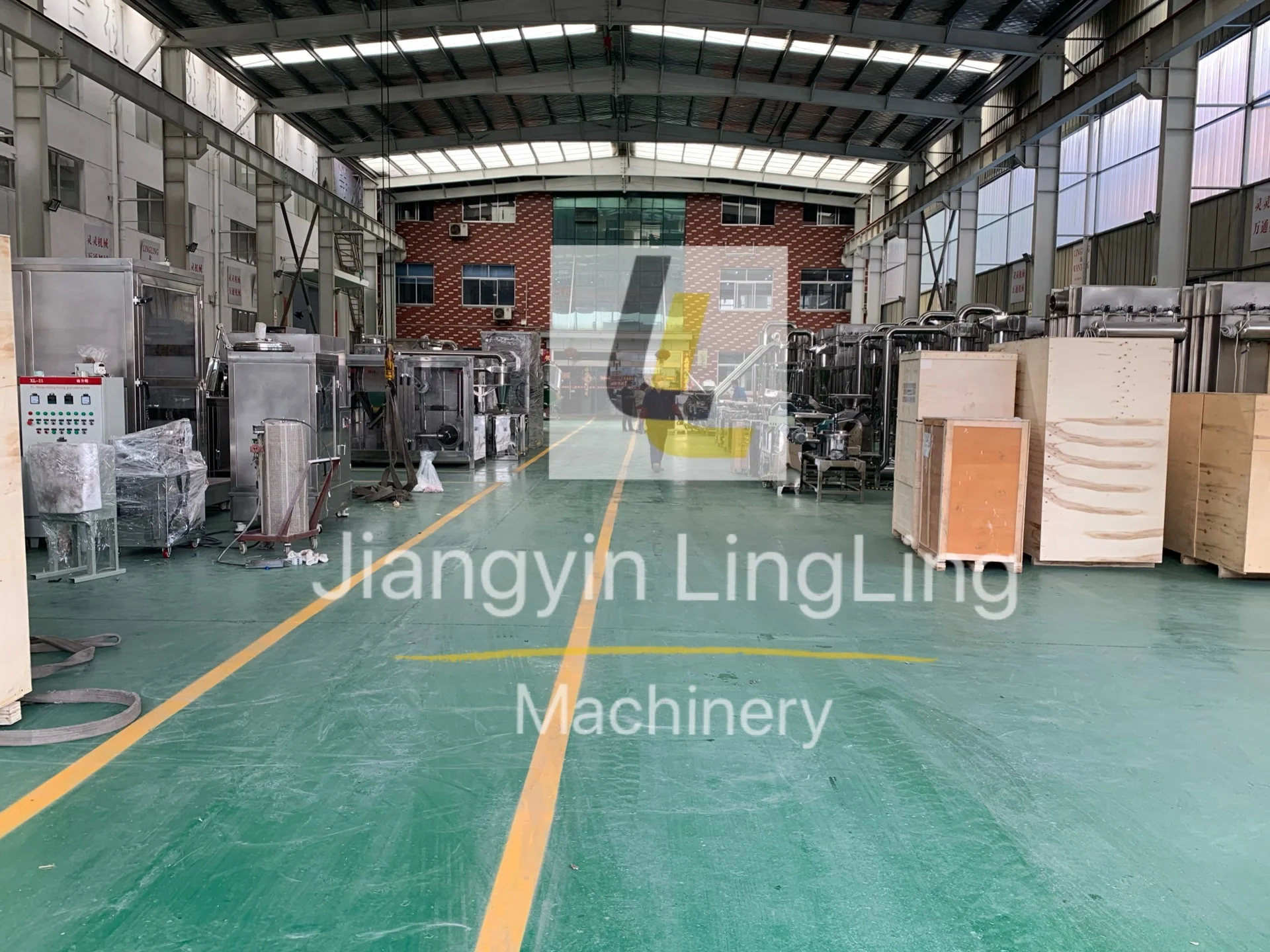

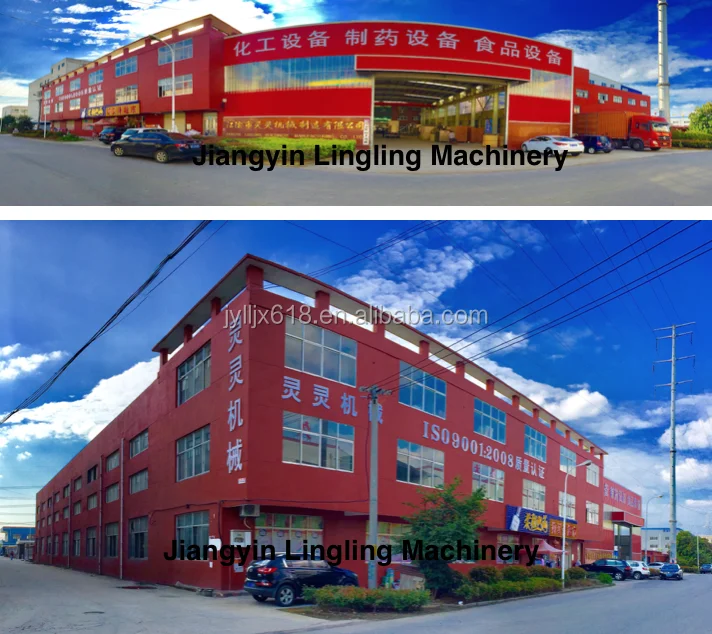

Company Introduction
Jiangyin City Lingling Machinery Manufacturing Co., Ltd. (Jiangyin City BOND drug of mechanical equipment factory) is the ISO9001 (2000) international quality system certification enterprises. In recent years the Chinese authorities granted the”National Quality Inspection Standards Enterprise", "Chinese famous brand shredders Top Ten", "Top Ten Chinese famous brand mixer", "National customer satisfaction with product quality, service and satisfaction the top ten enterprises. "
