Фронтальный сервис P6 P8 P10 наружные Рекламные Электронные Водонепроницаемые светодиодные телевизоры светодиодная вывеска наружный IP68 цифровой матричный экран
- Категории: >>>
- Поставщик: Shenzhen,Aoweled,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
AOWE A32 Series
Pixel Pitch | 6.67mm, 8mm, 10mm | P8 | P10 | ||
Module design | fully enclosed module | 15625 | 10000 | ||
LED lamp | SMD3535 | SMD3535 | SMD3535 | ||
Module size | 320 x 320mm | 320 x 320mm | 320 x 320mm | ||
Module service | front service | 40 x 40 | 32 x 32 | ||
Viewing distance | 4m~150m | 7m~150m | 9m~150m | ||
Refresh rate | 3840Hz | ||||
Brightness | 6,500~7,500nits | ||||
IP rating | IP68 | ||||
viewing angle | 140 V/140H | ||||
Average power | 300W/sq,m | ||||
Max power | 800W/sq.m | ||||
Working tempreture | -40 degree ~ 60 degree | ||||
Control system | Asynchronous/Synchronous system | ||||
Warranty | 2 years | ||||
Detailed Images
Waterproof IP68 LED module
Size 320mm x 320mm / cam-lock design, front service

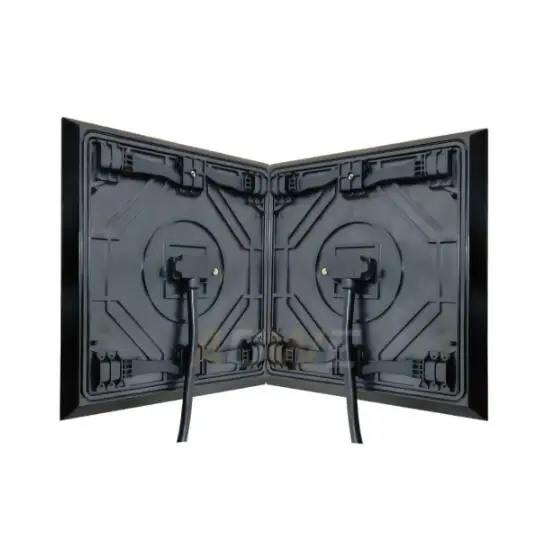

bevel module design
It's perfect for corner building screen in 90 degree

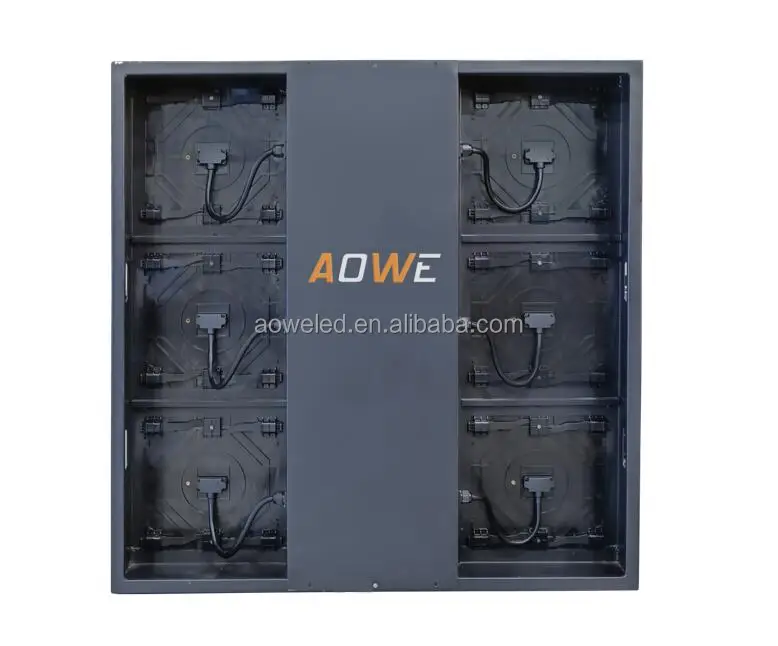

Hollow cabinet design
Cabinet size 960mm x 9600mm (smaller and bigger available
Ultra slim 6 inch / Light weight 28kg / Front maintenance
Signal and power two in one design

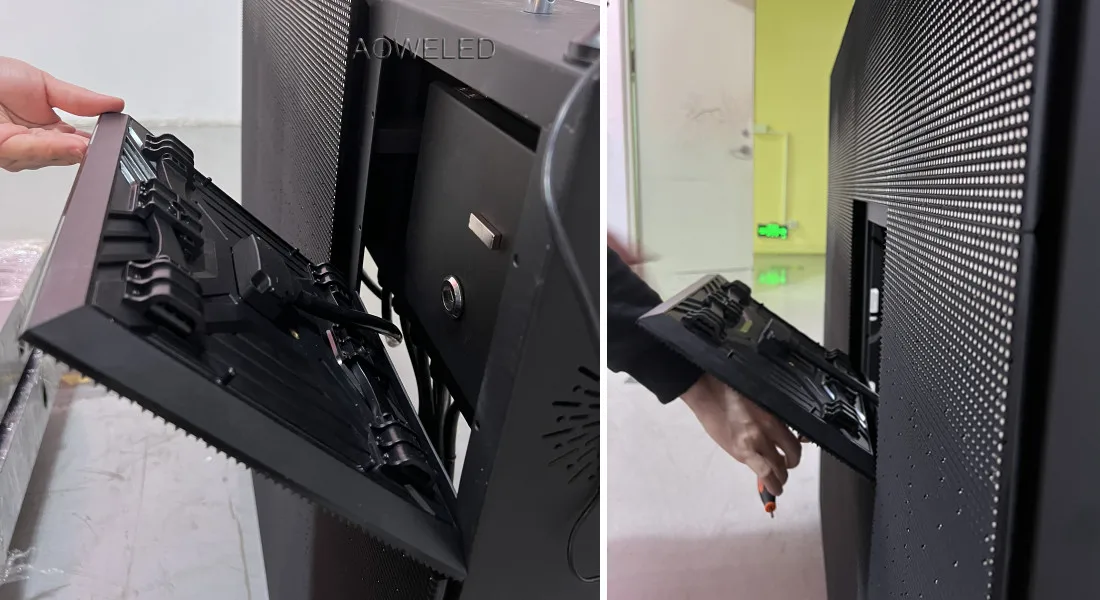

Easy for replacement
Without any screws, just using Allen key to remove module

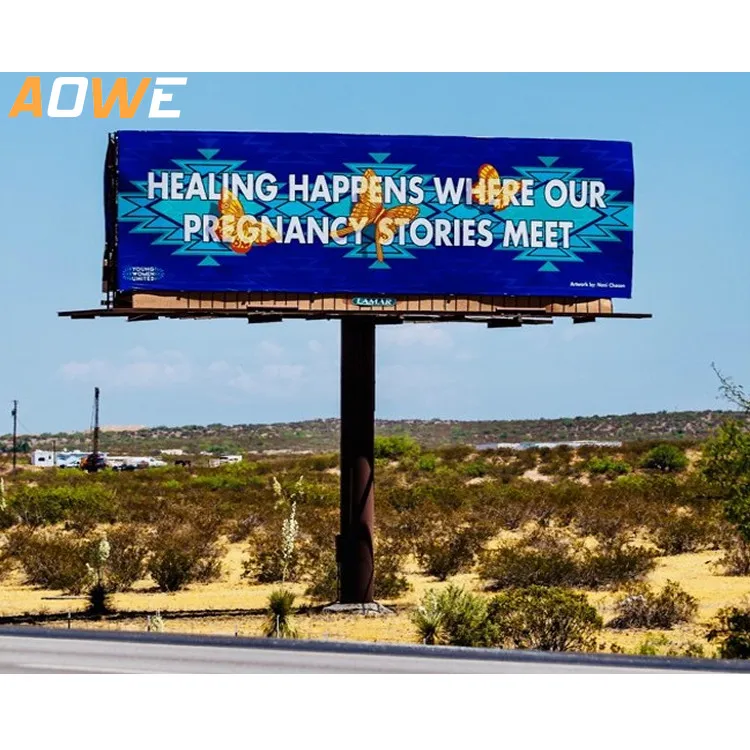

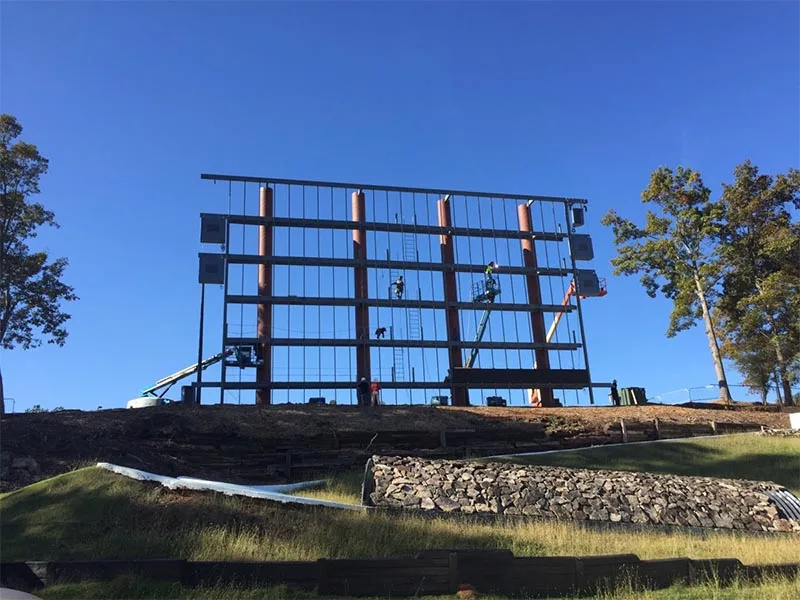

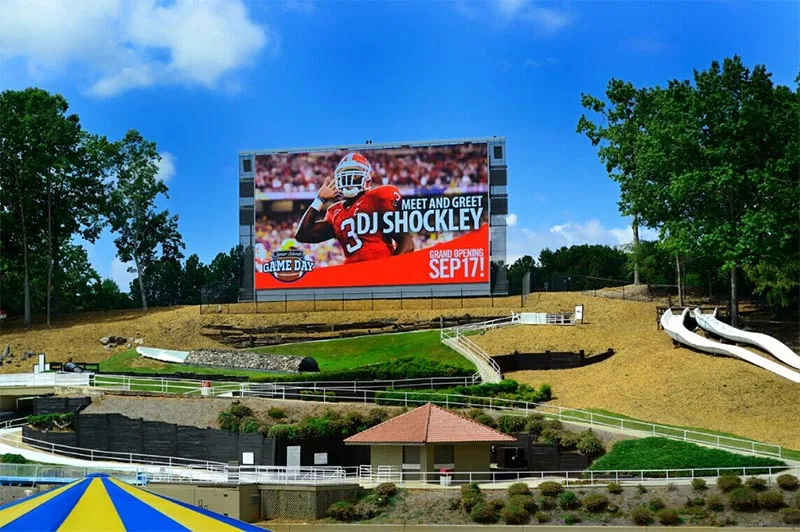

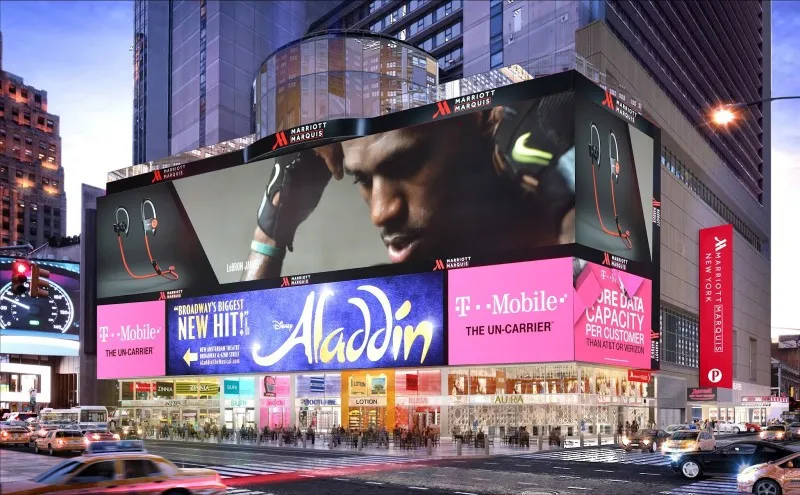

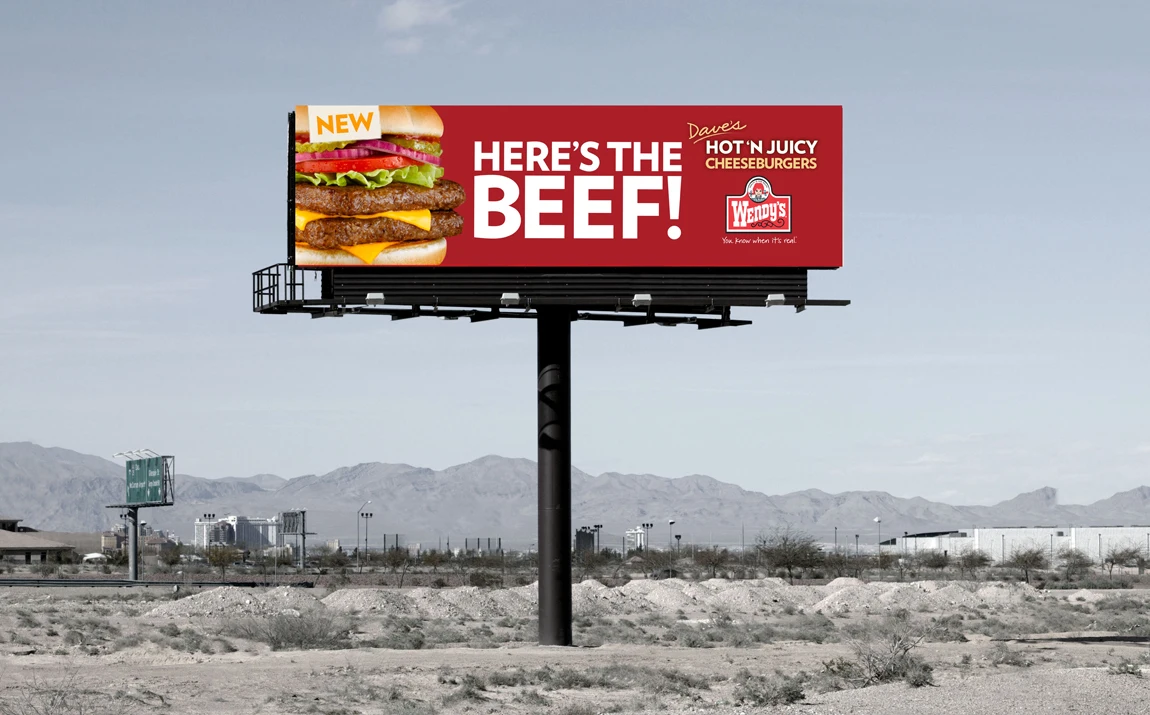

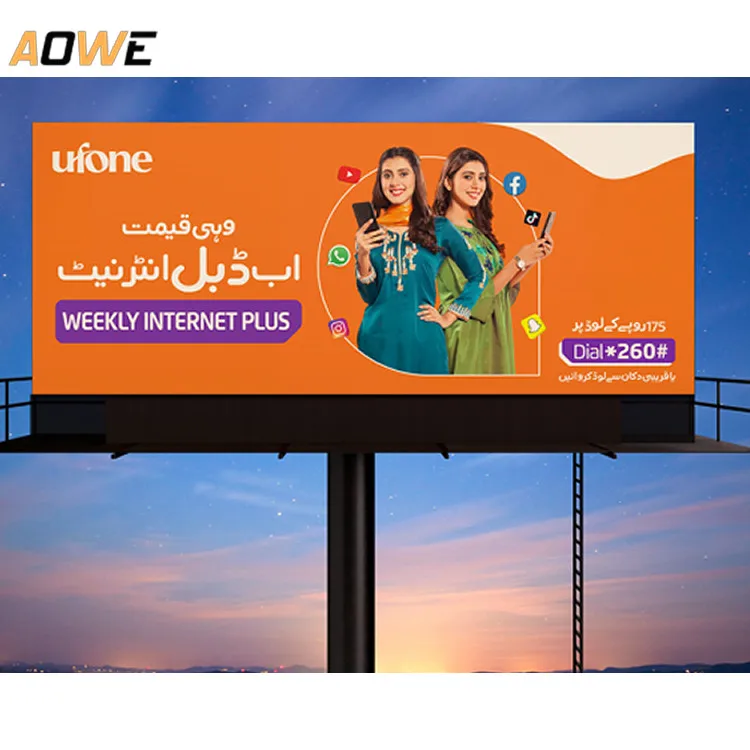

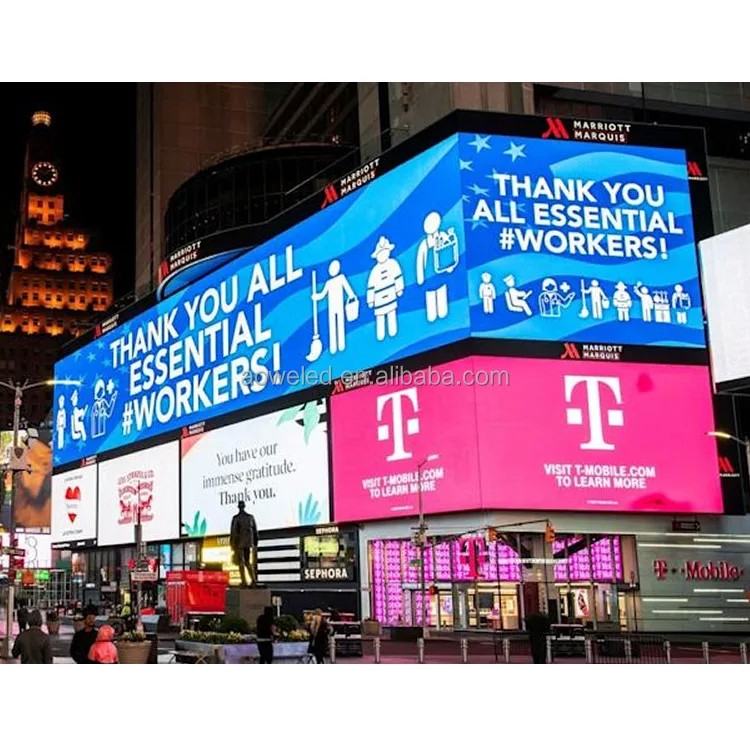

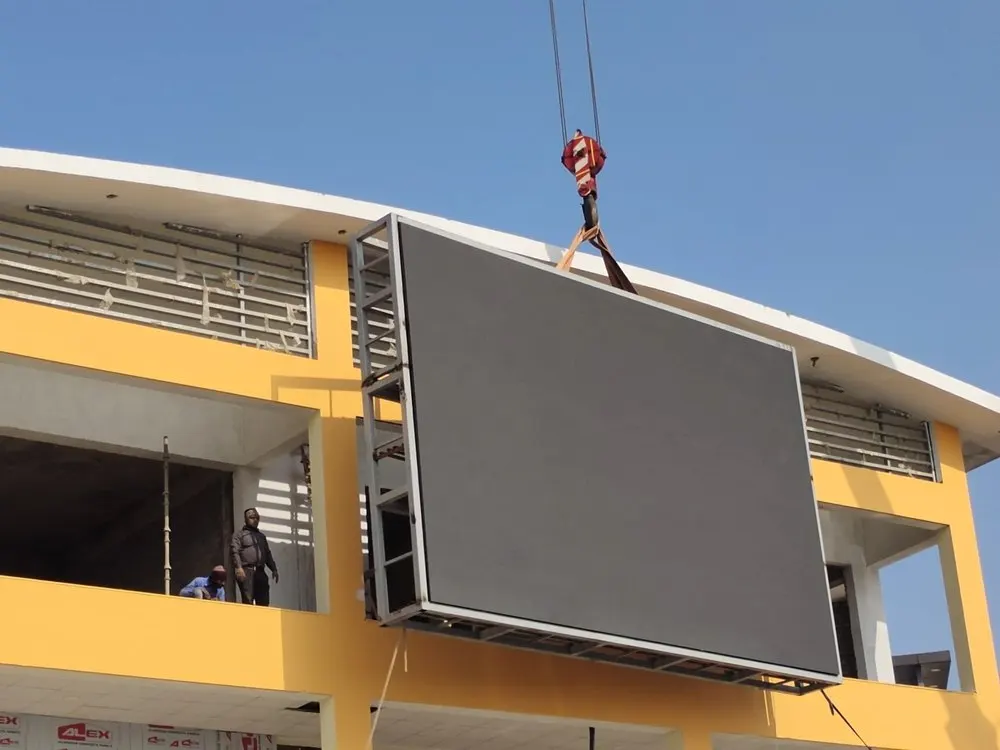

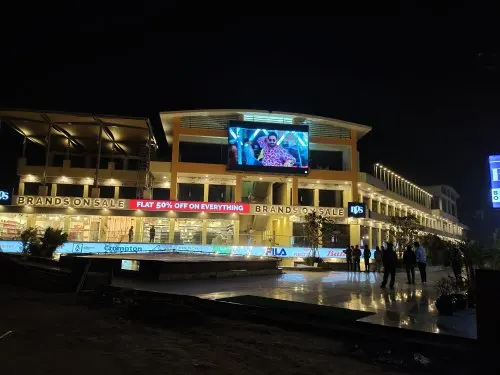

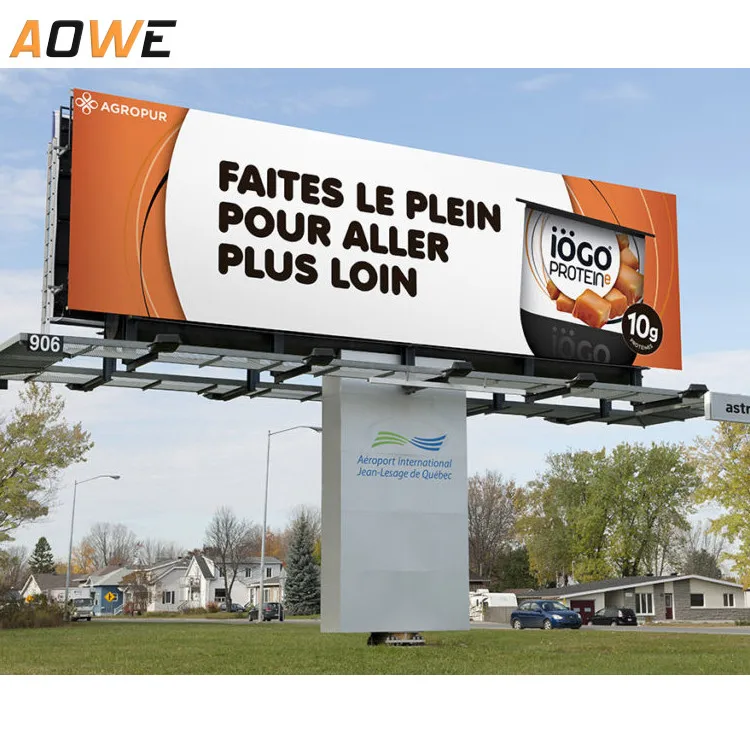

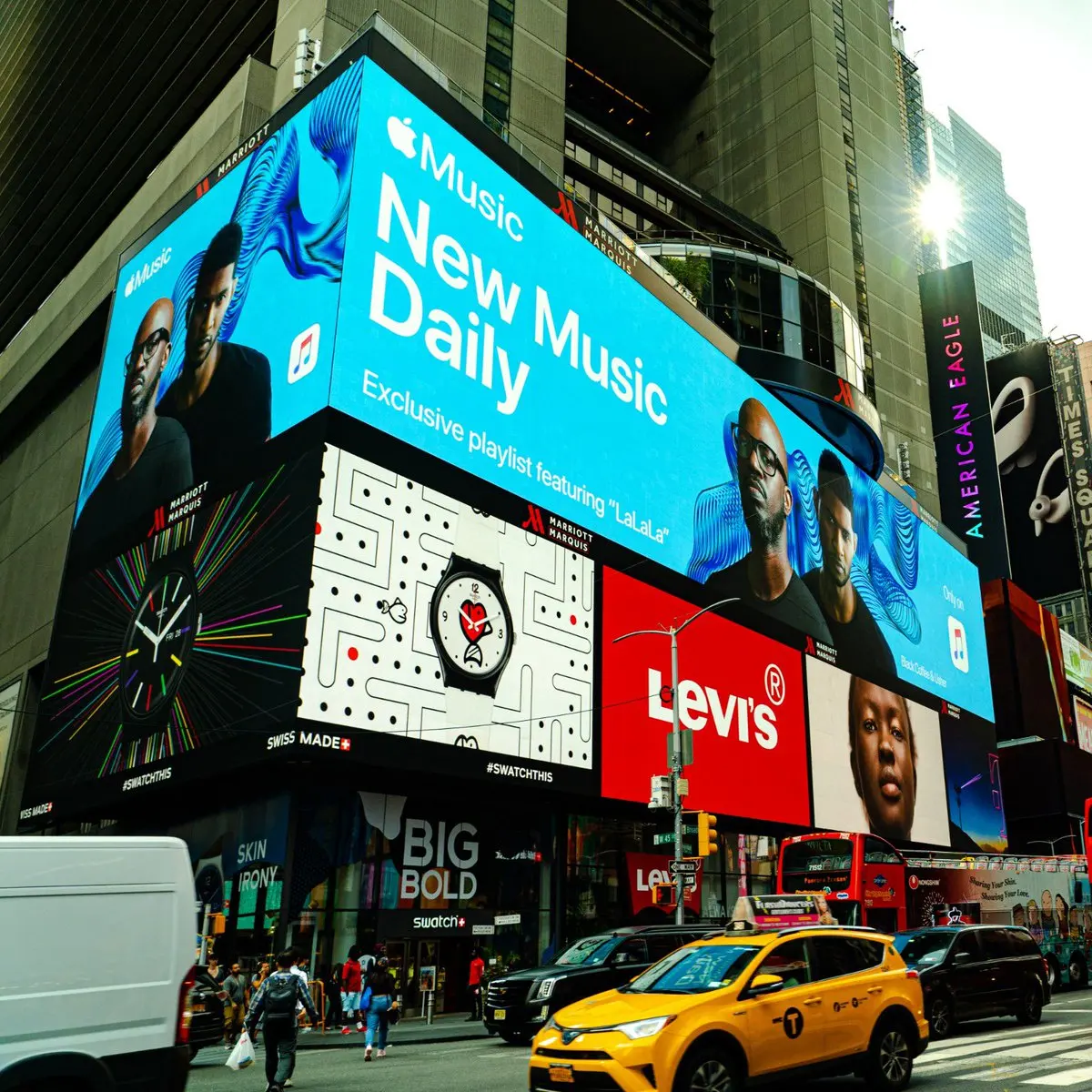

AOWELED Project
Related Products
Company Introduction
AOWEled is a high-tech enterprise, specilize in manufacturing LED display since 2007. AOWEled owns independent purifying workshop, R&D center, most advanced producing and inspection equipment. Quality and service is our belief. we are ISO certificed, with strong R&D team, SMT lines, Assembly lines.
client reviews
Packing&Shipping
FAQ
(1) What about the warranty?
Warranty is 3 years.
(2) Are you manufacturer?

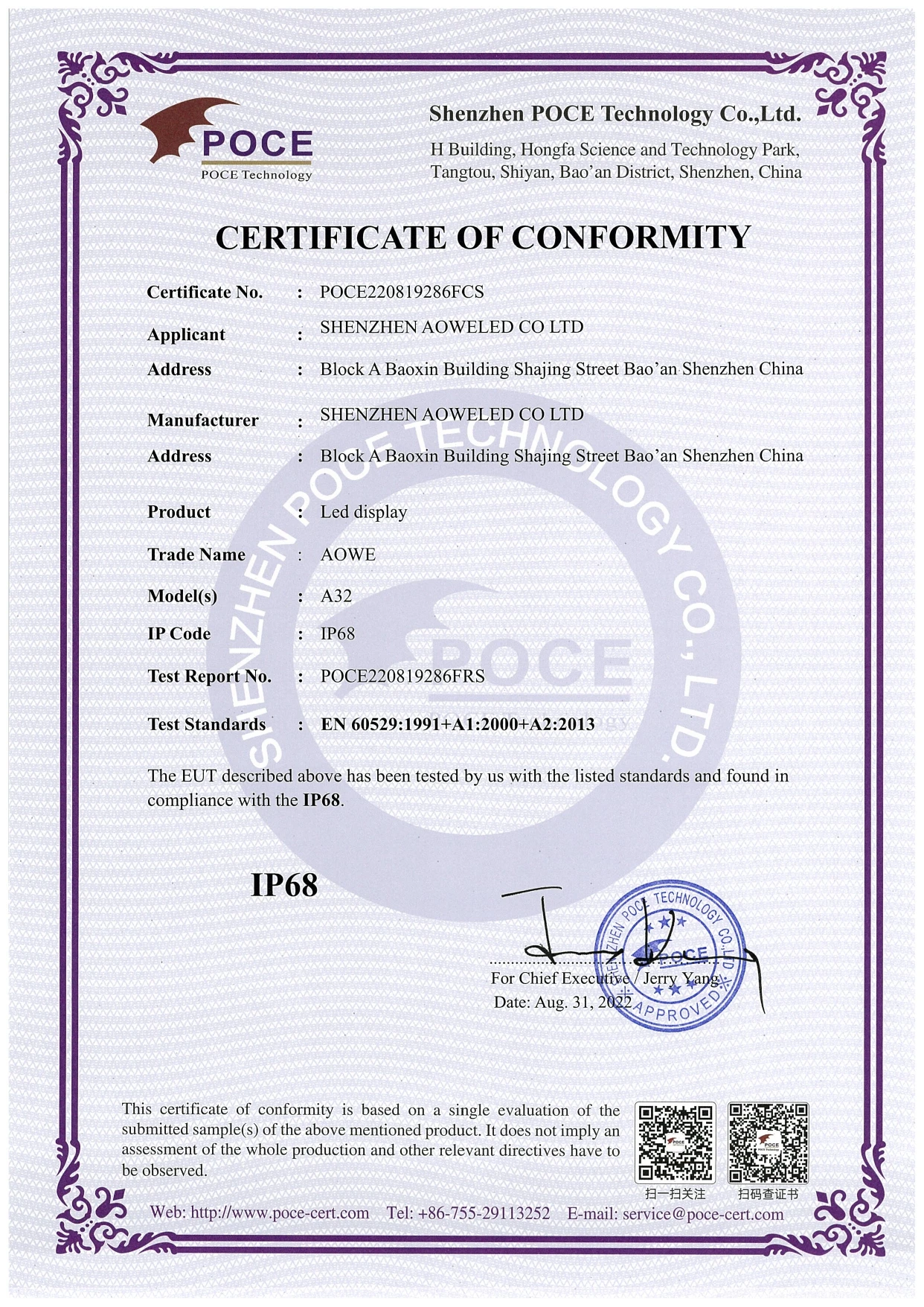

(3) What certificates do you have?
CE, RoHs, FCC, ISO, UL
(4)pixel pitch capability
P1.2, P1.5, P1.8, P1.9, P2, P2.5, P2.9, P3, P3.9, P4, P4.8, P5, P5.9, P6, P6.67, P8, P10, P16, P20
(5) Guidance service
We customized user manual for every single order including video and documents.
Warranty is 3 years.
(2) Are you manufacturer?
Yes, we are factory company in Shenzhen china, found in 2007
(3) What certificates do you have?
CE, RoHs, FCC, ISO, UL
(4)pixel pitch capability
P1.2, P1.5, P1.8, P1.9, P2, P2.5, P2.9, P3, P3.9, P4, P4.8, P5, P5.9, P6, P6.67, P8, P10, P16, P20
(5) Guidance service
We customized user manual for every single order including video and documents.
