Product Description
Forede Ductile Iron Gate valve
Forede Ductile Iron PN16 Gate Valve For Water is widely used in various industries such as water supply and drainage, sewage treatment, construction of building, industry environmental protection, food production, medicine, chemical, paper making, ship building, oil etc for open/close or regulation of various non-corrosive or corrosive fluid, gas, powder pipeline.
Features:
-Flange End: ANSI150LB/JIS 10K /BS 5404;
-Stem Material: 2CR13 Stainless Steel;
-Support Material: Ductile Iron,QT450;
-Body Material: Ductile Iron,QT450;
-Seal Material: Ductile Iron,QT450,COVERD BY NBR;
-Surface Finishing : Epoxy Red or Blue.
-Flange End: ANSI150LB/JIS 10K /BS 5404;
-Stem Material: 2CR13 Stainless Steel;
-Support Material: Ductile Iron,QT450;
-Body Material: Ductile Iron,QT450;
-Seal Material: Ductile Iron,QT450,COVERD BY NBR;
-Surface Finishing : Epoxy Red or Blue.
Flange | ANSI 150LB/BS 5404/JIS 10K | ||||
Size | DN50-DN400 | ||||
Stem material | 2CR13 Stainless steel | ||||
Body material | Ductile Iron, QT450 | ||||
Hand wheel material | Ductile Iron, QT450 | ||||
Surface | Epoxy powder, red or blue | ||||
* Any requirements or questions just contact to supplier
* Products accept OEM & ODM
OS＆Y Flange End Rising Stem Gate Valve | ||||||
Model Number | Inch | Working Pressure | Color | |||
Z41X-16Q-50 | 2 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-65 | 2.5 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-80 | 3 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-100 | 4 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-125 | 5 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-150 | 6 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-200 | 8 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-250 | 10 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-300 | 12 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-350 | 14 | 1.0/1.6Mpa | Red/Blue | |||
Z41X-16Q-400 | 16 | 1.0/1.6Mpa | Red/Blue | |||

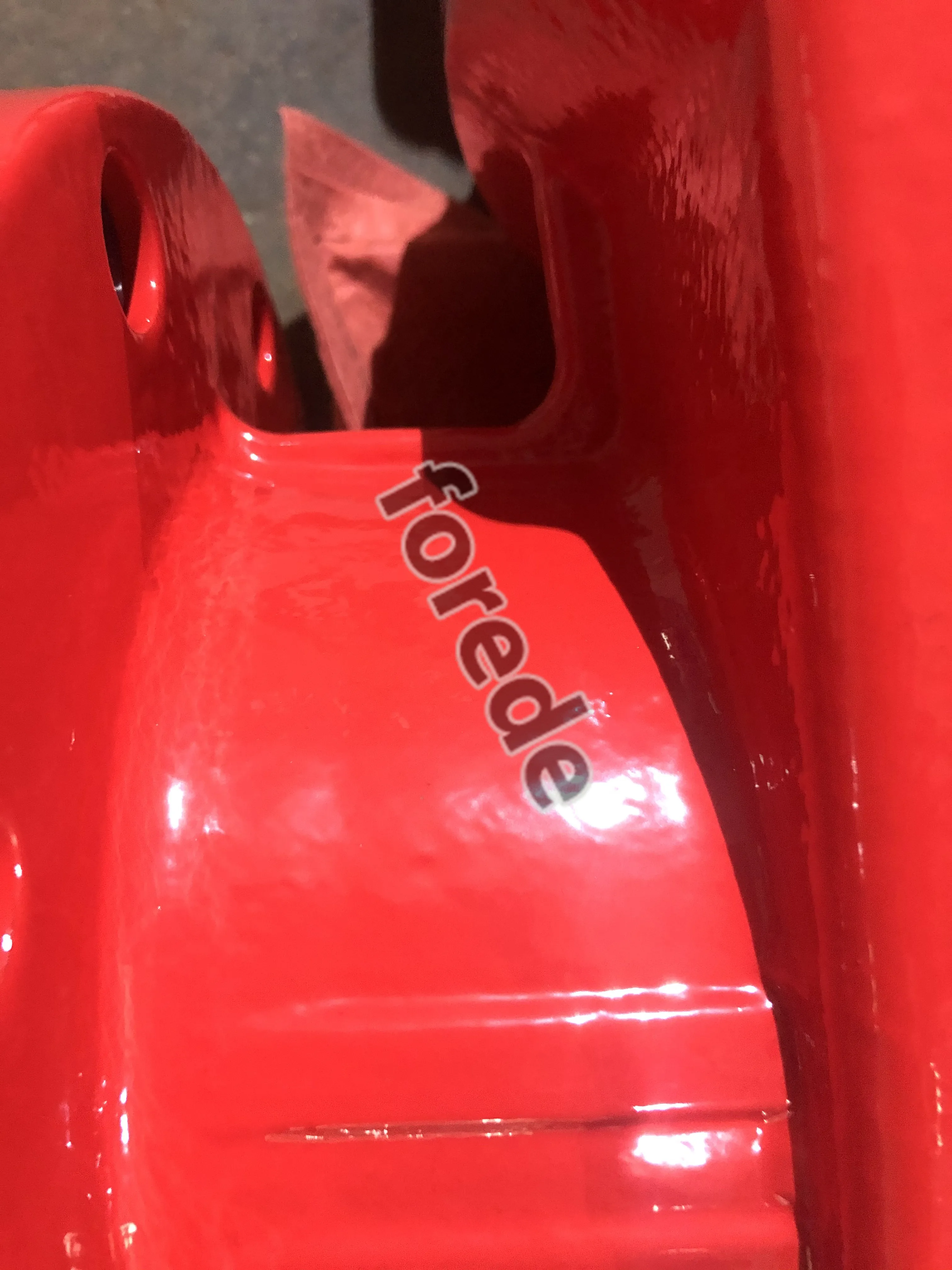

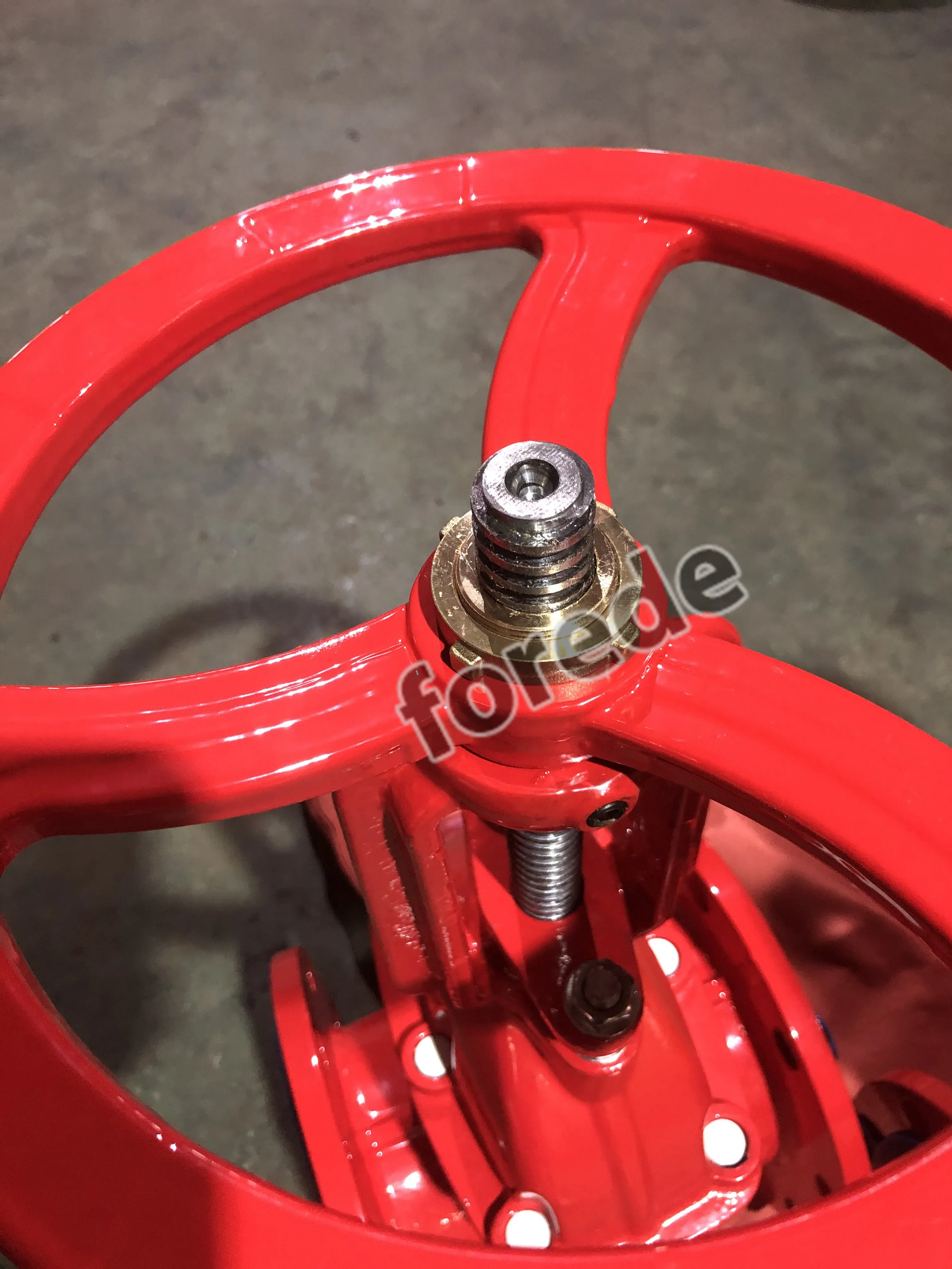

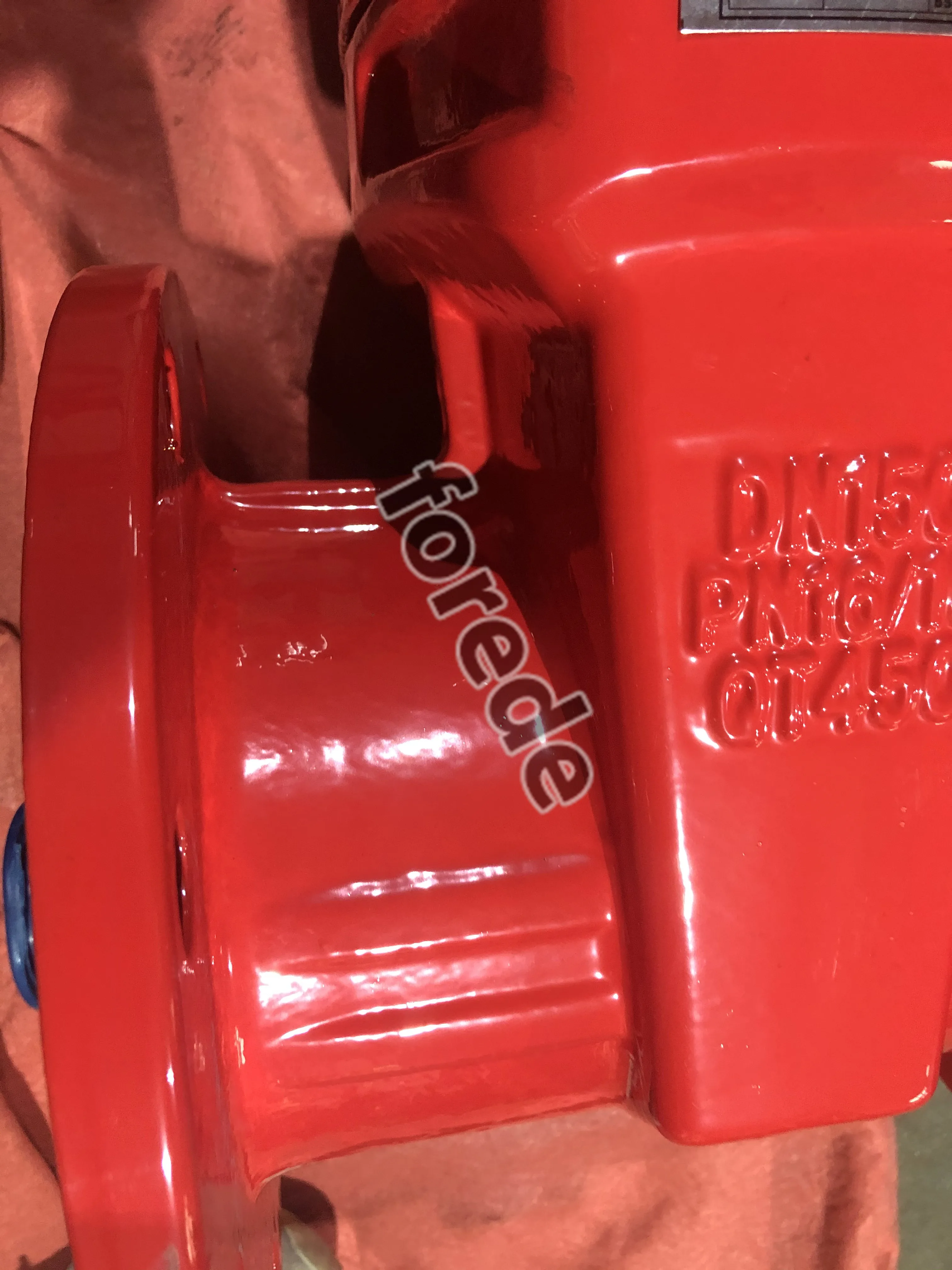

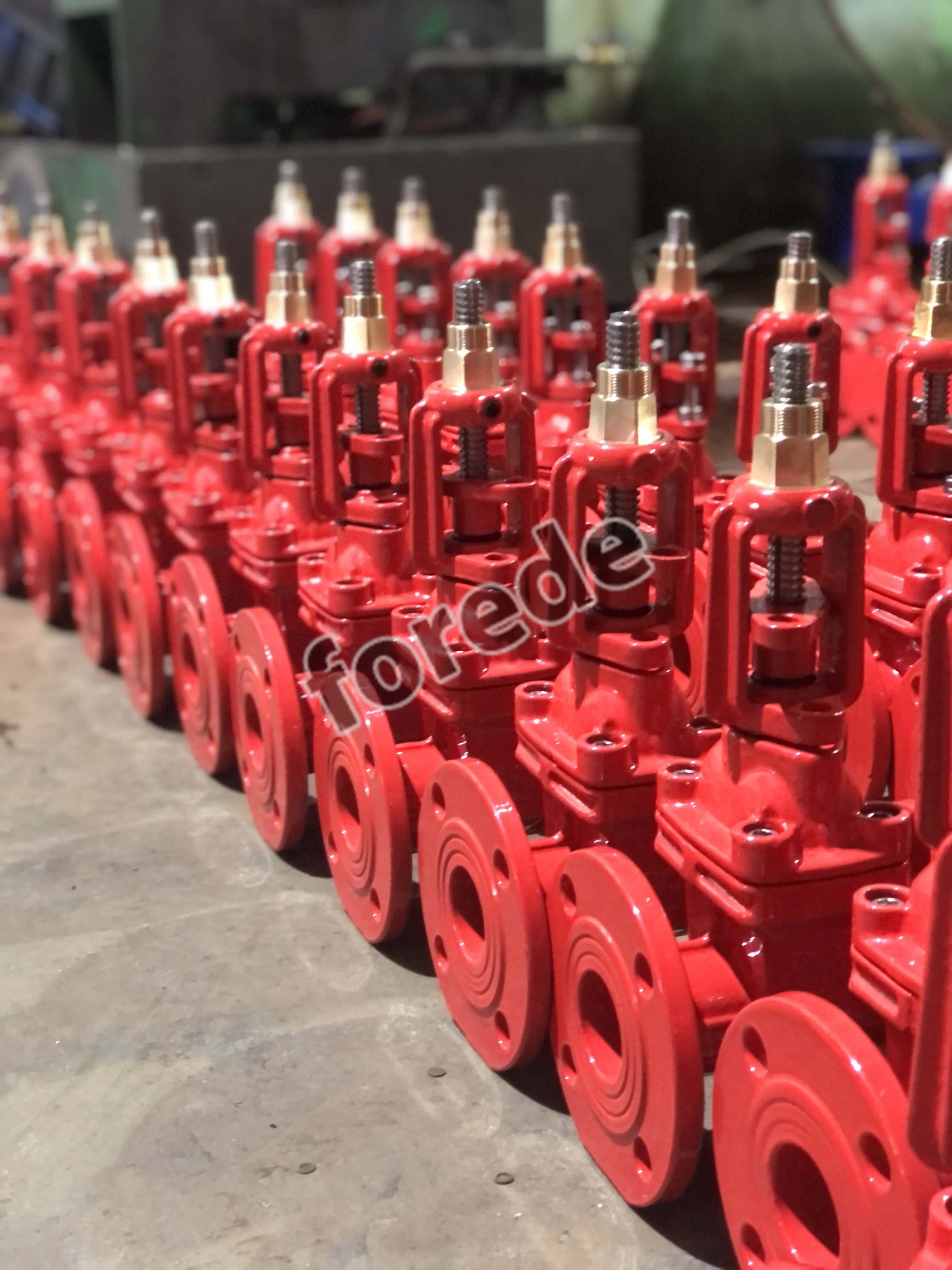

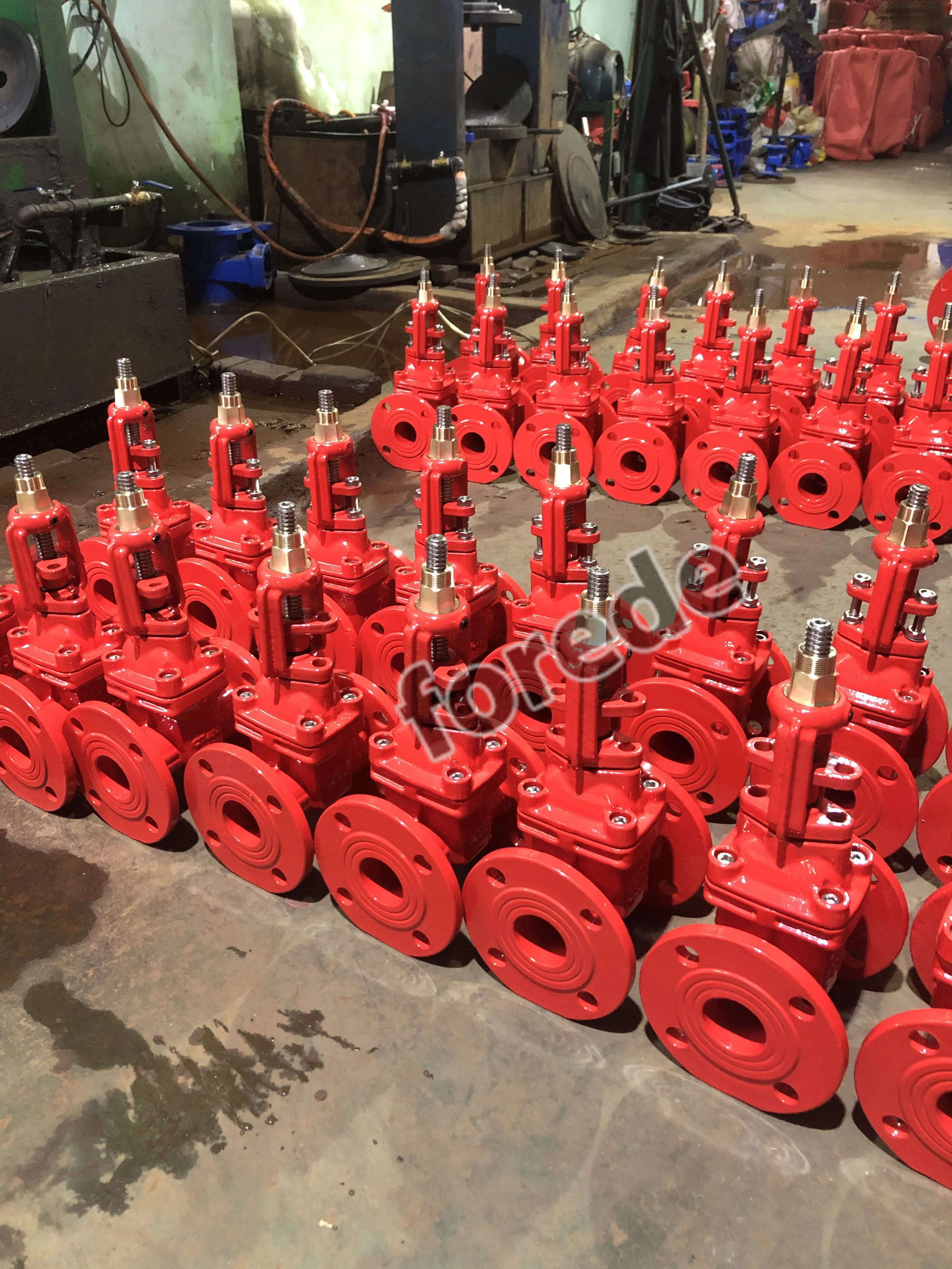

Detail Image
Packing & Delivery
Recommend Products
Our Advantage
Technical Experience
Quality Guarrance
OEM Workable
FAQ
Q.What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q.What's your payment terms?
A:We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
Q.Do you have technical support?
A: Yes, we have a professional engineering team.
Q.Do you have warranty?
A:Yes, all products have one year warranty.
Q.Can you accept OEM?
A:Yes, we do customized design for our clients..
A:Our MOQ is one (1) piece/set.
Q.What's your payment terms?
A:We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
Q.Do you have technical support?
A: Yes, we have a professional engineering team.
Q.Do you have warranty?
A:Yes, all products have one year warranty.
Q.Can you accept OEM?
A:Yes, we do customized design for our clients..
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
