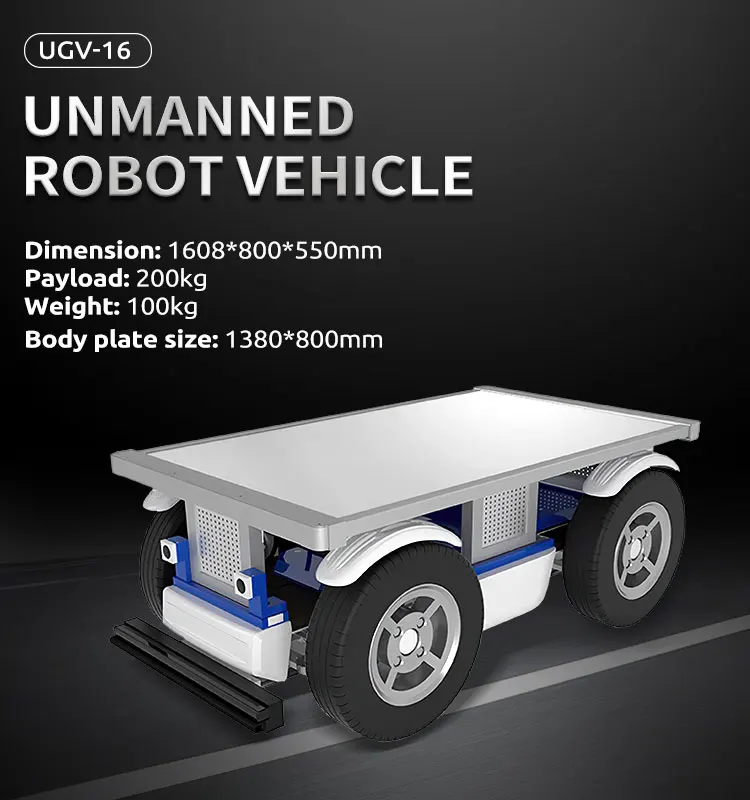

UGV-16 Регулируемая скорость колесный умный робот шасси автомобиля колесные открытые sdk

The flatbed vehicle is equipped with a table top capable of carrying 200kg on the basis of the chassis. The table top is 1385mm long and 820mm wide. It can be used as a workbench, and can also be used for secondary development of industrial transport vehicles.

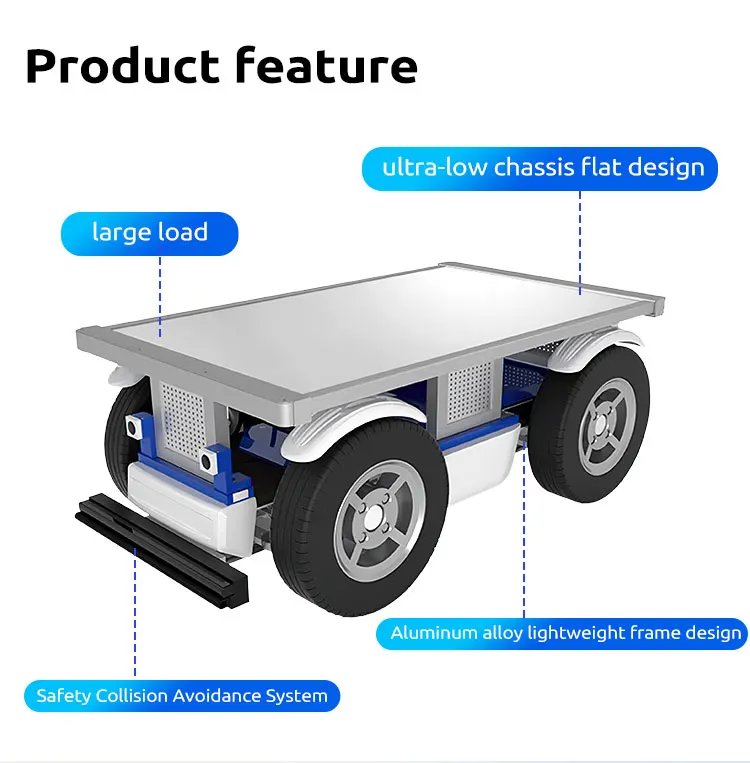

Product feature:

(1)Independent research and development of vehicle-grade VCU

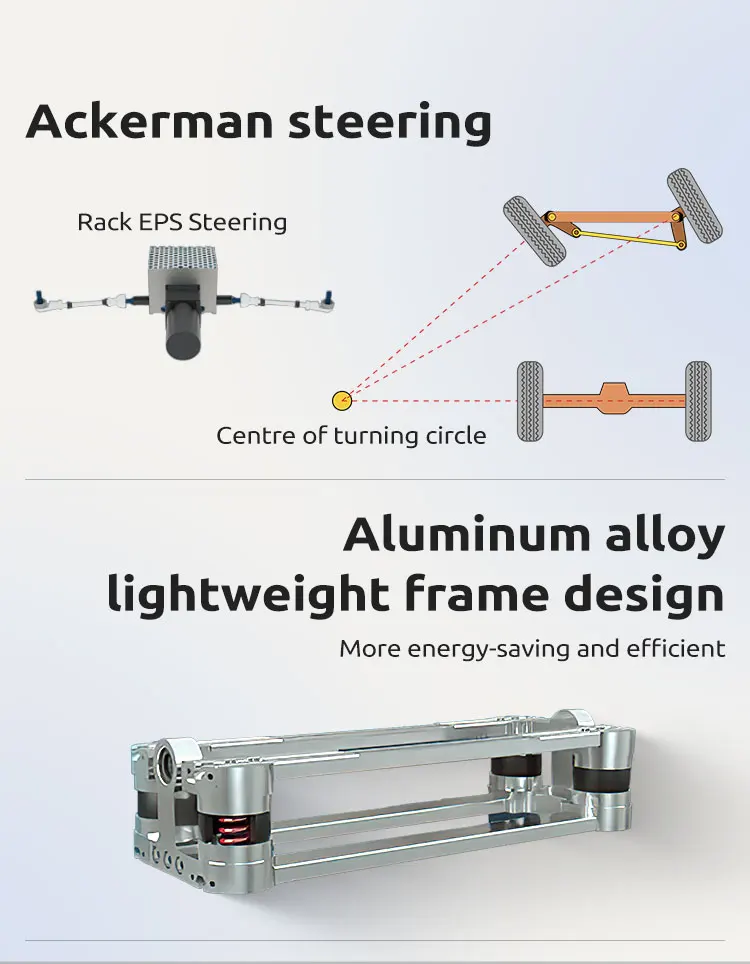

(2)Ackerman steering mechanism

(3)Rack and pinion electric steering system

(4)Bilateral hub motor drive

(5)Aluminum alloy lightweight frame design, ultra-low chassis flat design

(6)Hidden air spring shock absorption, large load

(7)Three-level safety anti-collision system to reduce collision safety hazards.

Core hardware:

1.High configuration core hardware

2.High Power Hub motor

3.High power/high efficiency/sample structure/easy control

4.The hub motor has the characteristics of independent driving of a single wheel, so whether it is front-wheel drive, rear-wheel drive or four-wheel drive, it can be implemented relatively easily.

5.Two 800W high power hub motors

6.Appearance speed is 5km/H (general standard for low-speed automatic driving).

7.Adjustable max high speed 10km/H or 30km/H.

8.Rail Level Drive Controller (MCU)

9.MCU control / fast response / stable and reliable

10.Rail-level drive-by-wire chassis control system (VCU)

11.Electronic control logic design more suitable for autonomous driving needs

12.Read parameters, coordinate power output, intelligent body system

13.High-performance hydraulic disc brake system

14.The braking distance of sudden braking is less than 0.3m

Specification:

1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
