Products Description

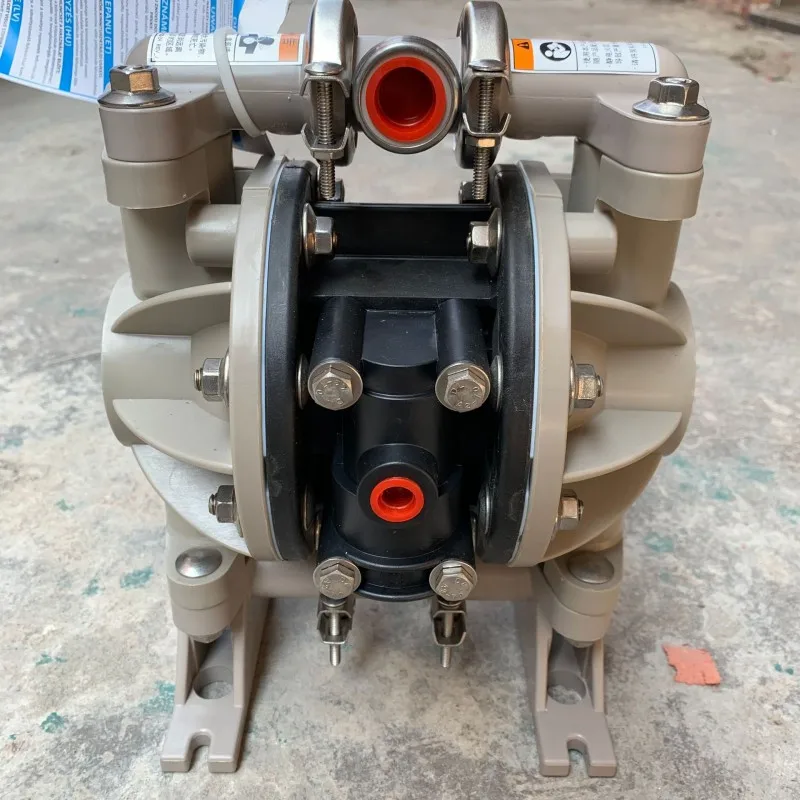

Transfer Industry fluid aro 666053 Diaphragm Air-operated Pneumatic AODD Pumps with PP shell




Product Name
Pneumatic Diaphragm Pump
Brand
aro
Model
666053-3EB
Max Pressure
6.9 Bar
Max Solid Size
(ball) 3/32” (2.4-mm)
(duckbill) fibers
Max Flow
(ball) 13 g.p.m. (49.2 l.p.m.)
(duckbill) 10 g.p.m. (37.9 l.p.m.)
Max Dry Suction lift
15 (4.6)
Diaphragm material
Santoprene
Shell material
Polypropylene






Part of our Compact Series of pumps, our 1/2” classic pumps feature big performance in a small package. With flow rates up to 13
GPM (49.2 LPM) and a wide range of material and porting configurations.
Features
* ARO has the world's best selling 1/2" ported diaphragm pump.
* Designed to meet your OEM application needs.
* Efficiency - Motor design delivers optimum air efficiency
* Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
* Versatility - Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
* Evironmentally Sound - Bolted construction for leak-free fluid handling
* Serviceability - Ease of service through modular design

Accessories
* 76763 Wall Mount Bracket
* 67165-X Cycle Actuation Kit
* P29122-600 Piggyback Filter-Regulator
* 637141 Air Section Service Kit
* 637140-XX Fluid Section Service Kit

Pump Casing Materials
* Polypropylene
* Groundable Acetal
* PVDF (Kynar)

Diaphragm Materials
* Neoprene
* Nitrile
* Viton
* PTFE / Santoprene
* E.P.R.
* Polyurethane
* Hytrel
* Santoprene


Details Images

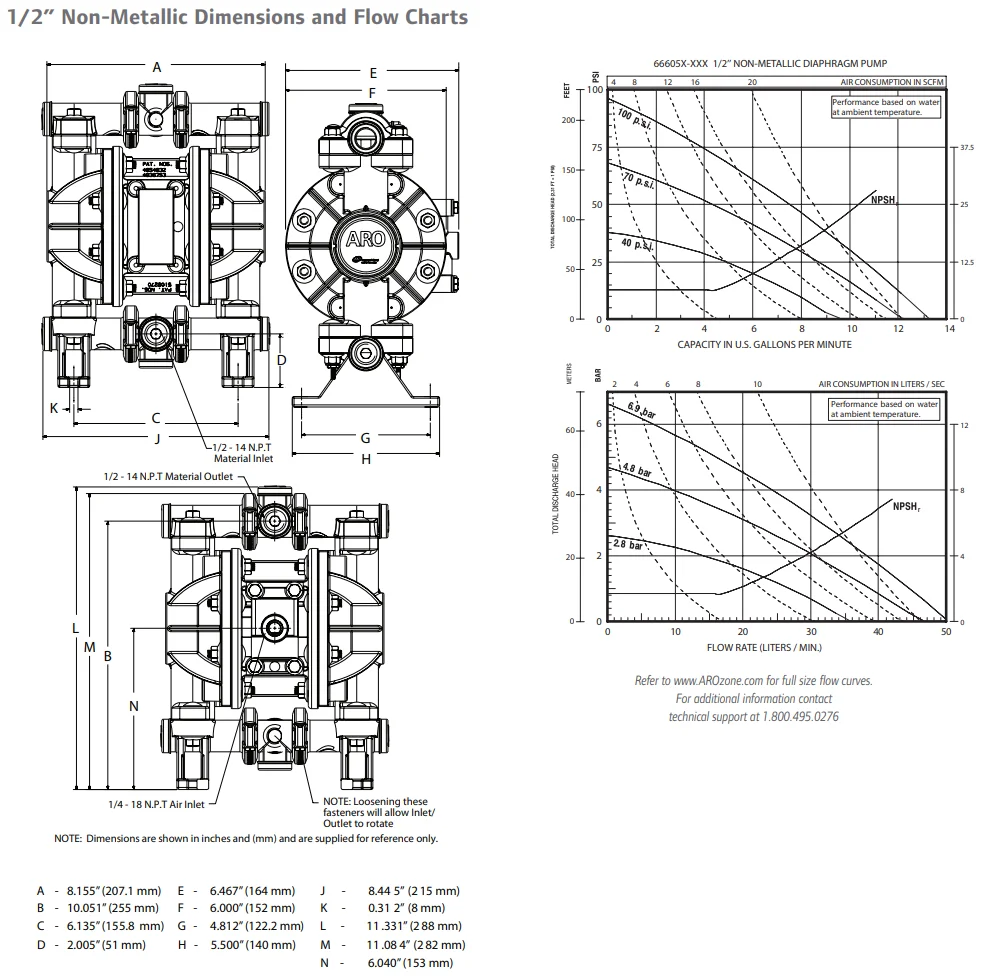

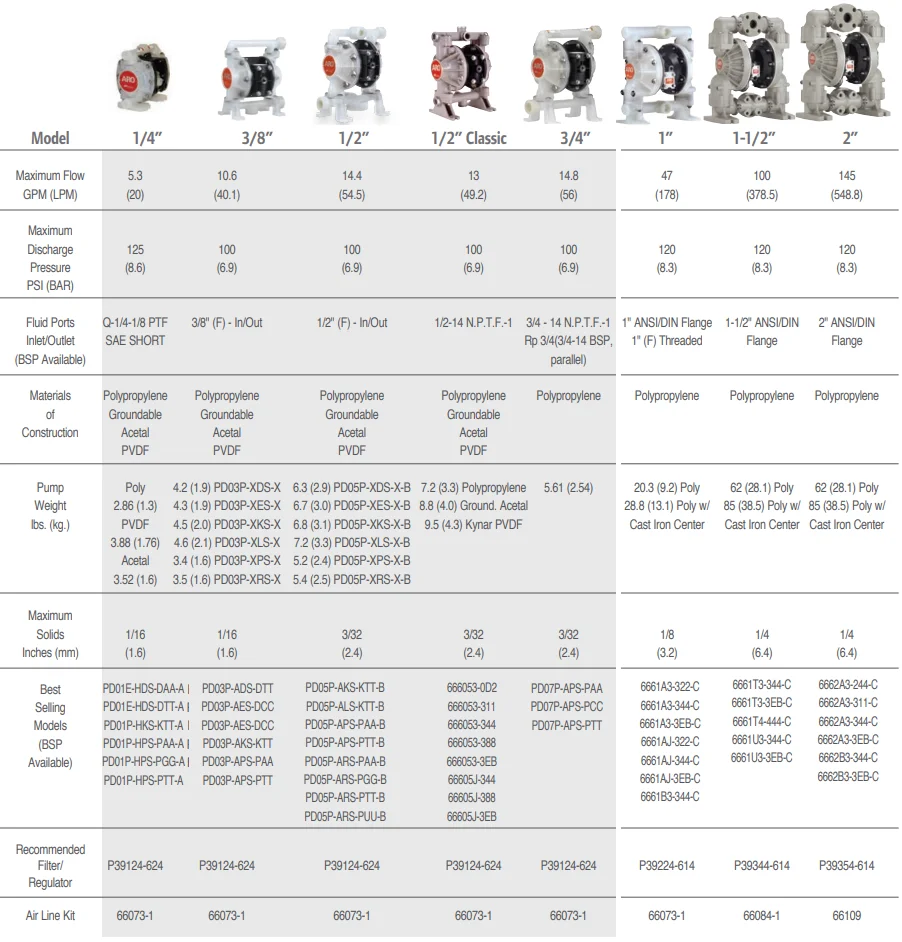

Non-Metallic Model Overview




Leading worldwide manufacturer of fluid handling products-Pneumatic Diaphragm AODD Pumps
aro Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they could be used in potentially explosive areas. Most of the ARO® diaphragm pumps are ATEX certified (CE Ex11 2GD X).

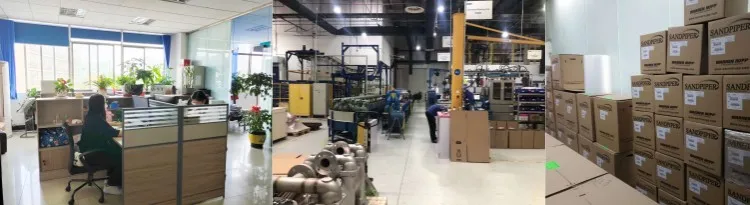

Company Profile


Guangzhou Aomei Machinery Equipment Co., LTD.
Guangzhou Aomei Machinery Equipment Co., LTD. is a trustworthy agent of high-quality imported Pneumatic Diaphragm Pumps, Metering Pumps, Portable Pump and a professional service provider of fluid solutions. The products we provide are all well-known and outstanding branded in many industries. In addition to product guarantee, our professional team is able to provide both pre-sales care services and after-sells care services with professional, reliable and experienced assistance in terms of model selection, how to operate, service and maintenance. We have a number of engineering and technical personnel in the field of fluid metering transportation has more than 10 years of industry experience, can provide customers with fluid transportation and metering system solutions.




Exhibition




FAQ


Q1: What's your business range?
A: We are professional in the field of fluid metering and transmission and can provide customers
with fluid transmission and metering system solutions.

Q2: What is your MOQ?
A: One unit.

Q3: What're your payment terms?
A: We can accept pay via T/T bank charge, PayPal, Western Union, Credit Assurance. If you need other terms, we can have a discuss.

Q4: Why choose us?
1. We have more than 10 years' experience in the transfer fluid industry. Main Products Pneumatic diaphragm pumps, Metering Pumps, Portable pumps.
2. High quality products good service and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
