Product Overview
Ⅰ-Discription for manual briquette maker coal press machine
1, The manual briquette maker coal press machine is an important part of the complete dry powder briquetting machine production line.
2, Manual briquette maker coal press machine is transmitted to the reducer through the belt, and the reducer is transmitted to the driving shaft through the coupling, and then a pair of open gears to ensure that the two rollers are synchronized (constant speed reverse).
3, Entering the forming hopper, the unit forming pressure of the material changes from small to large.
4, The forming pressure at the center of the pair of rollers reaches the maximum value.
5, After the material passes through the line, the forming pressure quickly decreases and the material enters the ball-off state, and the ball is off-ball smoothly.
6, This manual briquette maker coal press machine compares easily materials such as coke powder, iron oxide scale, dust removal, coal slime, various metallurgical powders, sponge iron carbon products and other materials with obvious effect and extraordinary effect.
7, Mainly used for: coal powder molding; dry powder molding; desulfurized gypsum molding; coke powder molding; iron filings and various metal ore powder molding.
7, Mainly used for: coal powder molding; dry powder molding; desulfurized gypsum molding; coke powder molding; iron filings and various metal ore powder molding.

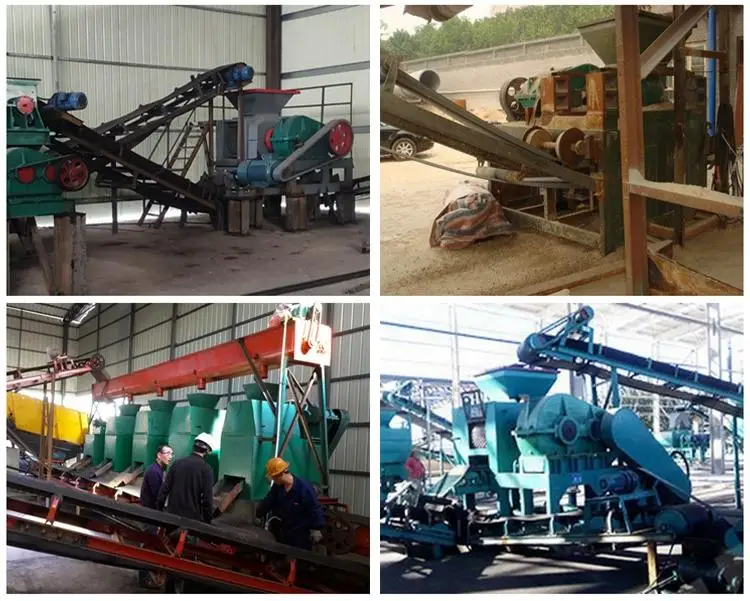

Customer Sites
1. Our CHENG JINLAI team has more than 100 formulas of honeycomb coal, barbecue charcoal, smokeless carbon, flammable carbon,npulverized coal, anthracite, bituminous coal and more than 20 years of experience in ball press charcoal equipment industry.
2. Charcoal ball briquette machine has high production per hour and low power consumption.
3. According to customers' needs, plant size, capital situation.
4. We cancustomize a complete and reasonable set of production line, teach experience and formula for free.
3. According to customers' needs, plant size, capital situation.
4. We cancustomize a complete and reasonable set of production line, teach experience and formula for free.

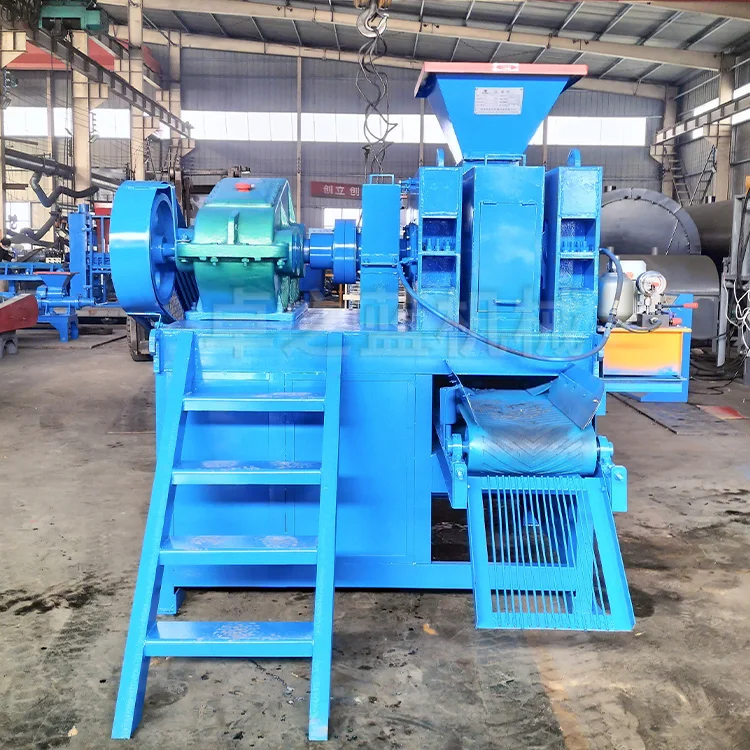

Details Display

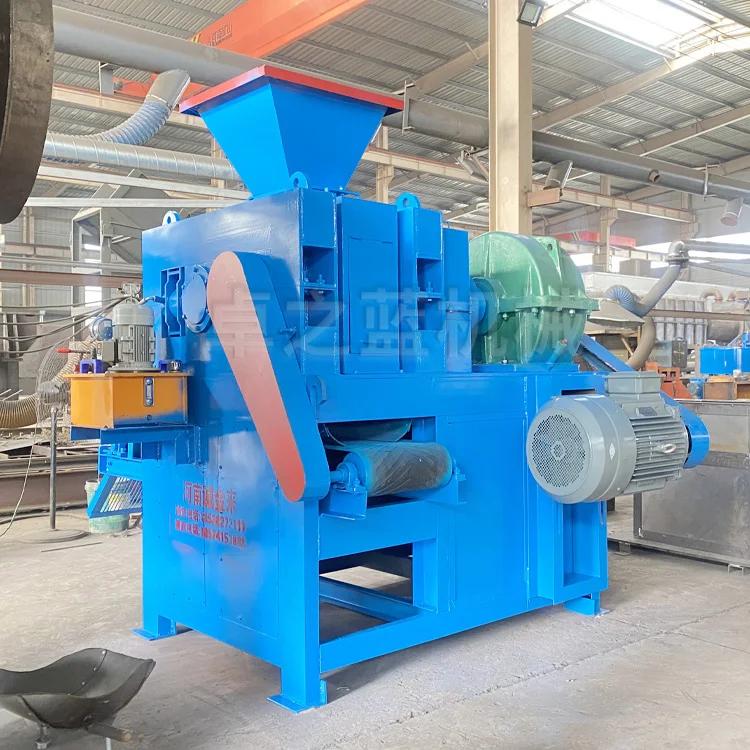

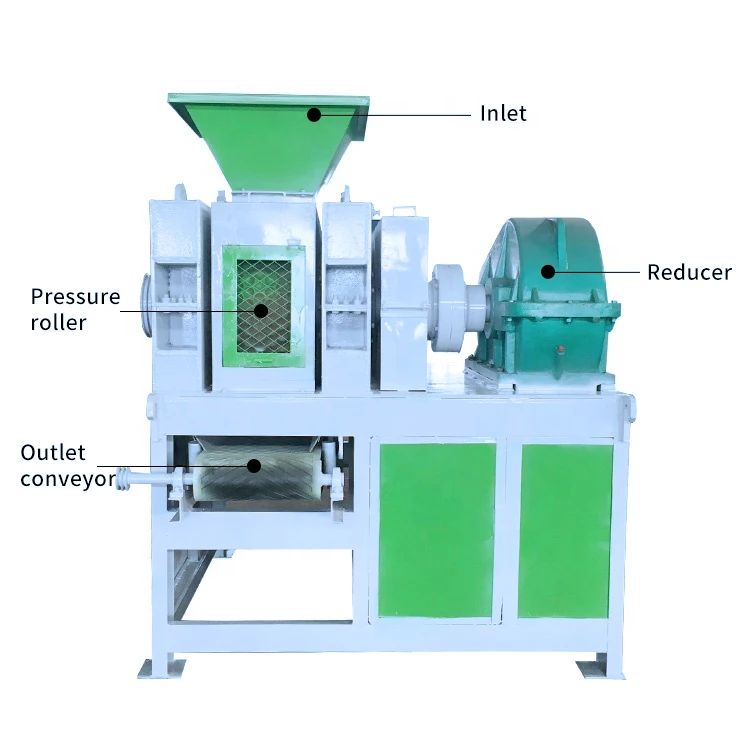

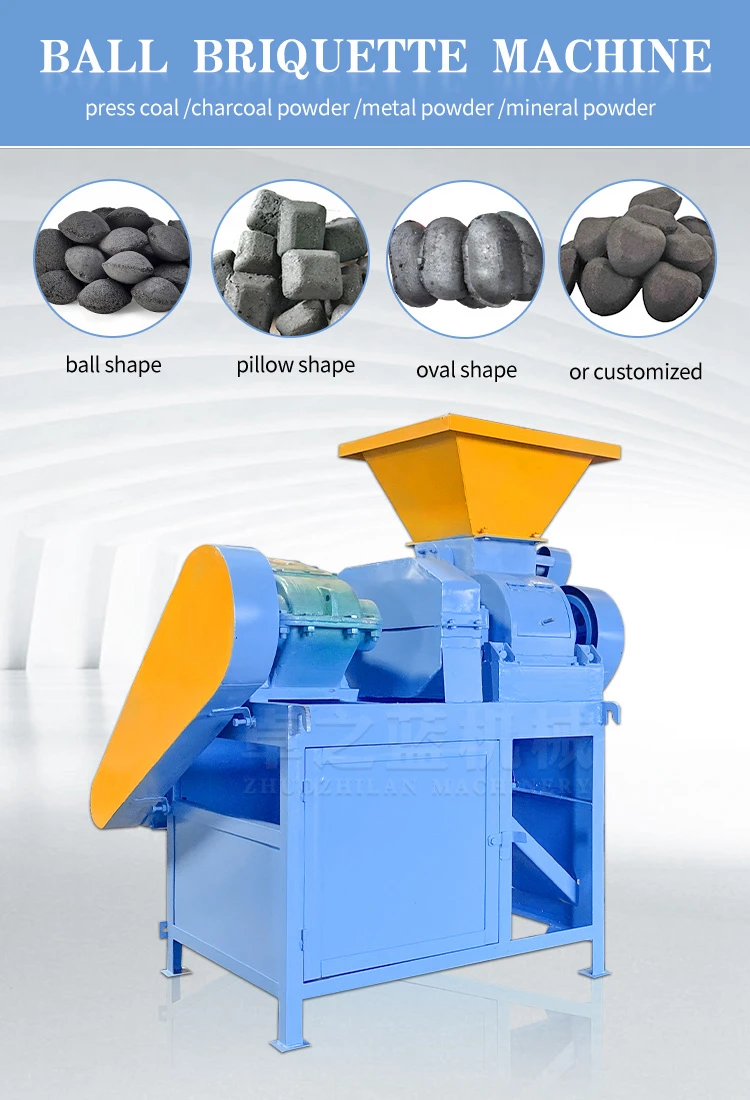

Ⅱ-The structure of the manual briquette maker coal press machine consists of three parts:
1. The screw feeding part :
It is driven by an electromagnetic speed-regulating motor and rotates through the pulley and worm reducer to force the pressed material into the main feed port.
2. The transmission part:
The main transmission system is: motor-triangle belt-reducer-open gear-roll.
3. The forming part:It mainly refers to the host part, and the core part is the drum. When too much material is fed between the two pressure rollers, increase the gap between the pressure rollers to allow hard objects to pass through the pressure rollers.
Product Paramenters
Model | Capacity（t/h) | Motor (kw) | Roller Diameter(mm) | Oversize (m) |
360 | 2-3 | 11 | φ360*240 | 1.7*1.6*1.8 |
430 | 4-5 | 22 | φ430*280 | 1.8*1.9*2.2 |
550 | 5-7 | 37 | φ550*320 | 2.4*2.2*2.3 |
650 | 8-10 | 45 | φ650*388 | 2.6*2.2*2.5 |

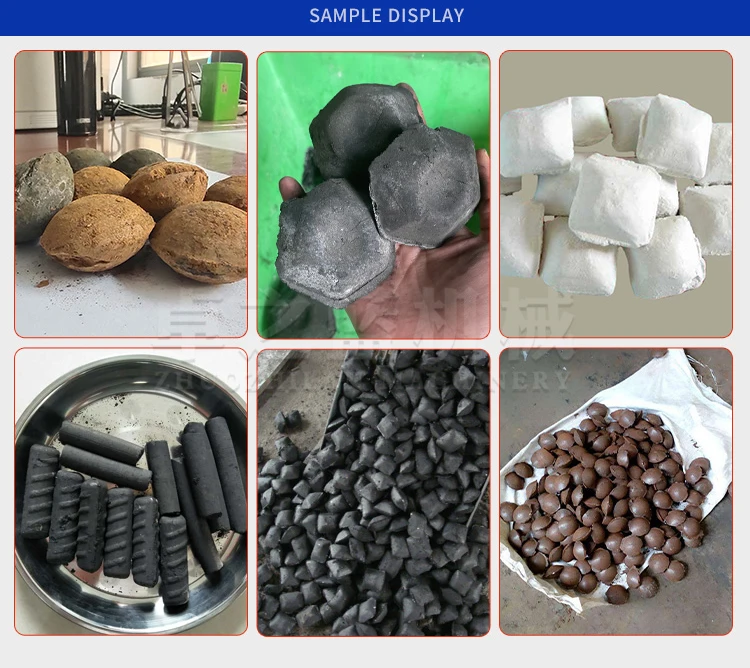

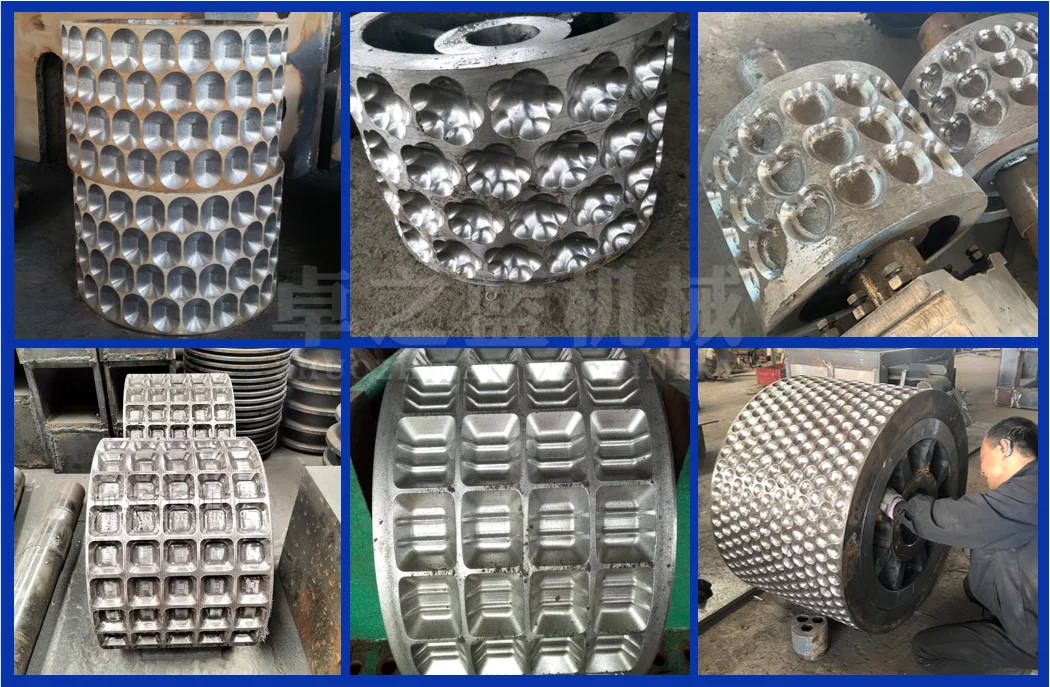

Changing molds for same machine produce different shape and size charcoal briquettes.
1. After changing the mold, the material can be pressed into sheet-like (1.5-50mm) square, rectangular, ring, diamond, triangle, cylindrical and other geometric products.
2. It can also emboss words, trademarks, patterns and various special shapes.
3. Mould shapes can be cubic, round, hexagonal, finger shape on customized. Also one machine can match with different moulds for different shapes of briquettes.

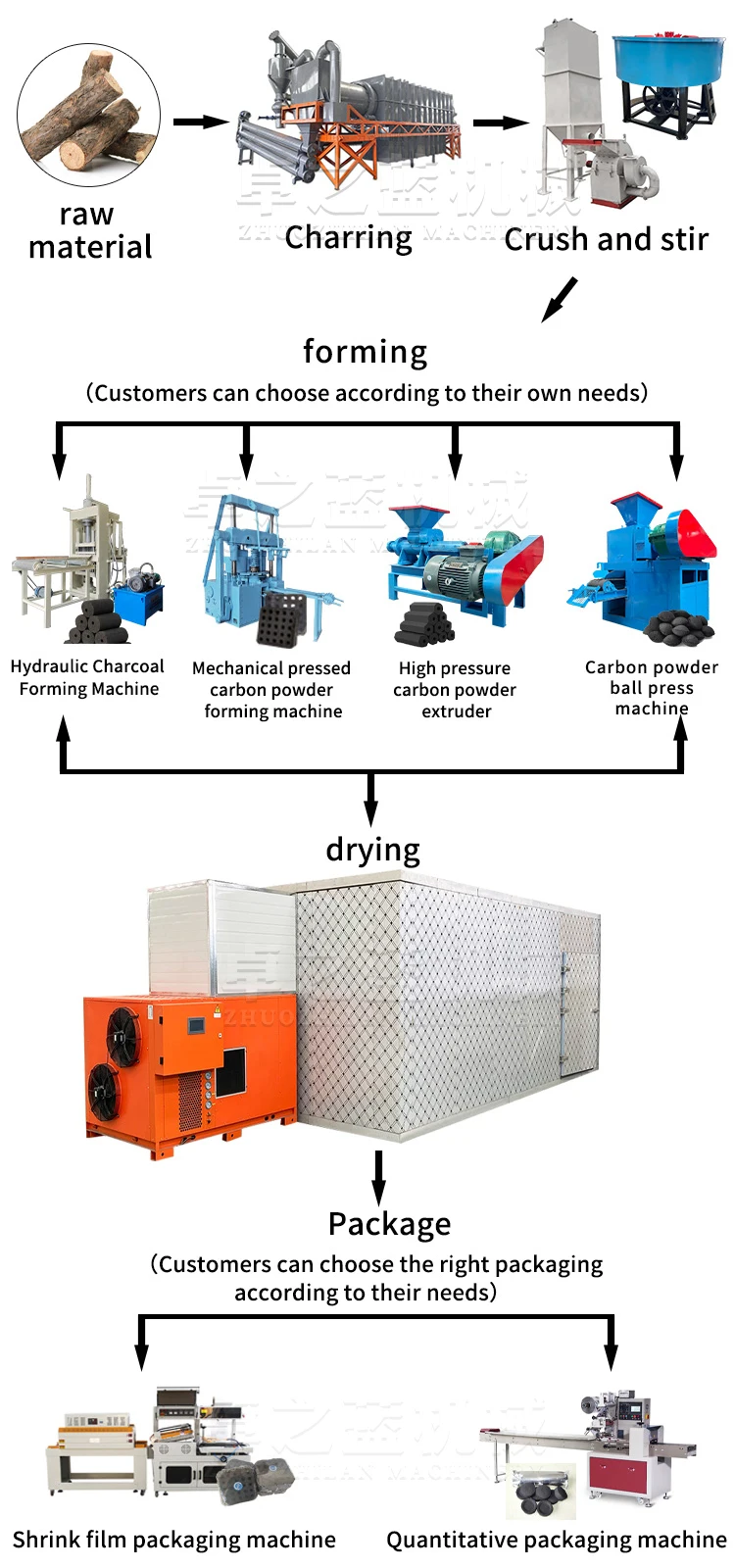

CHENG JINLAI machinery can provide a complete charcoal processing solution for customers who want to invest in a barbecue charcoal plant.
A whole barbecue charcoal plants usually include:
►Charcoal crusher
Crush charcoal to powder(below 3mm)
►Automatic feeder
In stock charcoal powder
►Double shaft mixer
Mixed charcoal power with binder
►Charcoal briquette making machine
Press charcoal briquettes
►Dryer
Drying wet charcoal briquettes
Client Feedback
☻Customers from Lebanese praise us:
Since purchasing the ball pressing machine from their company, it has saved us about $200,000 in manpower and material resources every year.
Because the roller adopt high -quality manganese steel materials, greatly improving the productivity wear resistance and pressure ability,make the hydraulic briquette machine has a long service life.
They improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service.
It is perfect to choose them!!!
Because the roller adopt high -quality manganese steel materials, greatly improving the productivity wear resistance and pressure ability,make the hydraulic briquette machine has a long service life.
They improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service.
It is perfect to choose them!!!

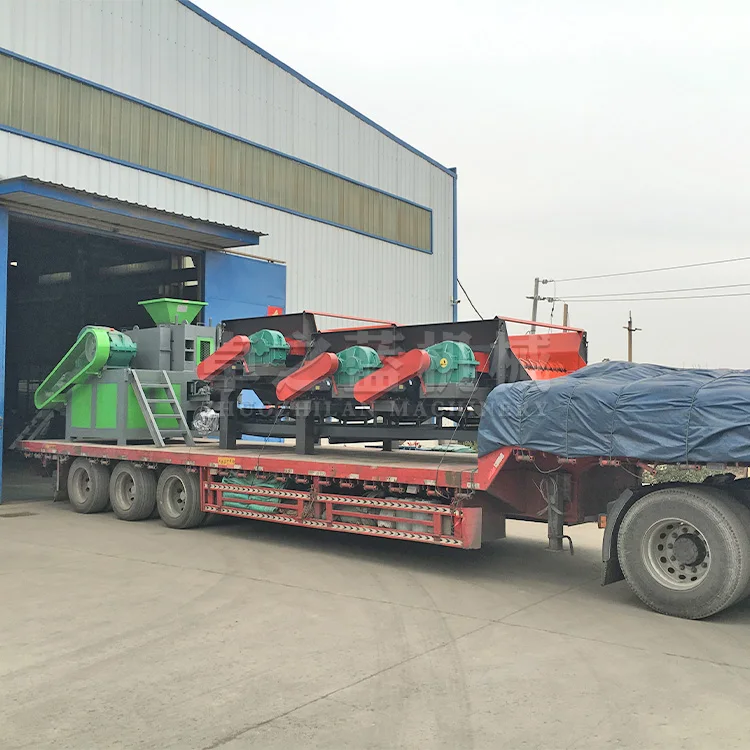

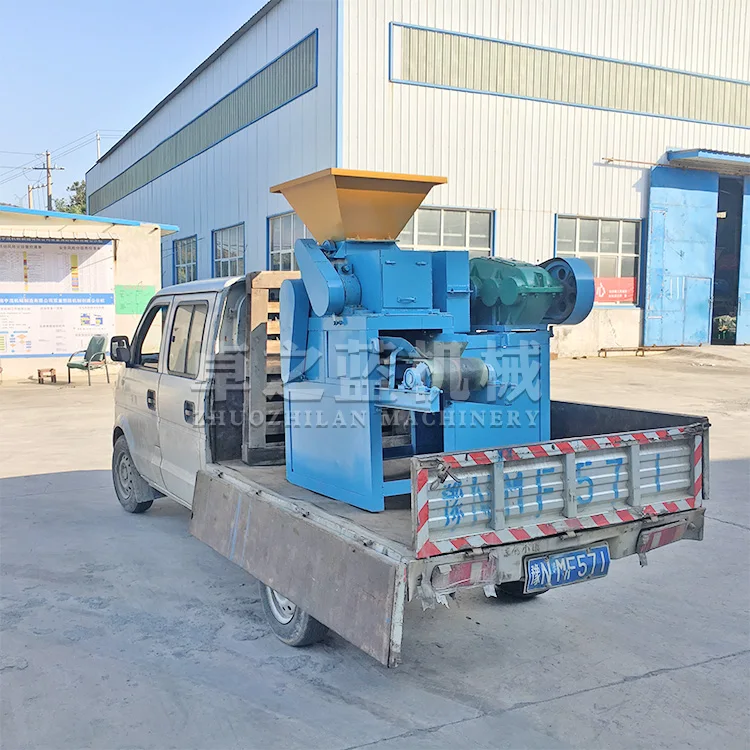

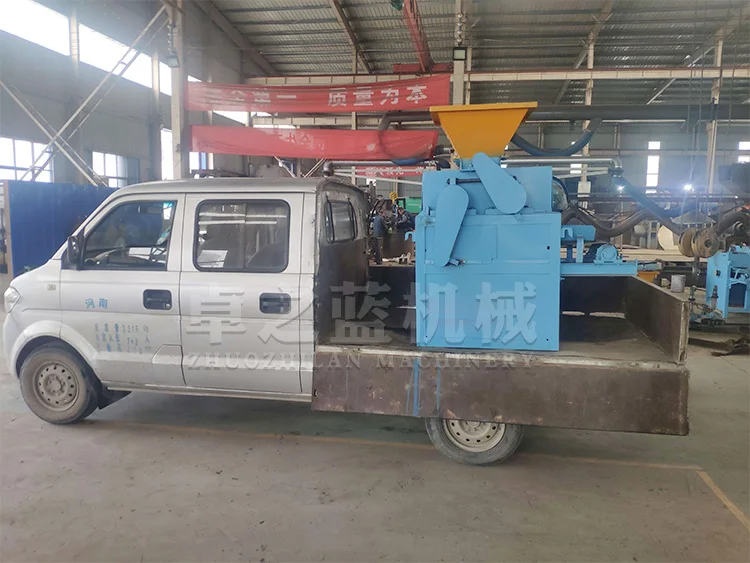

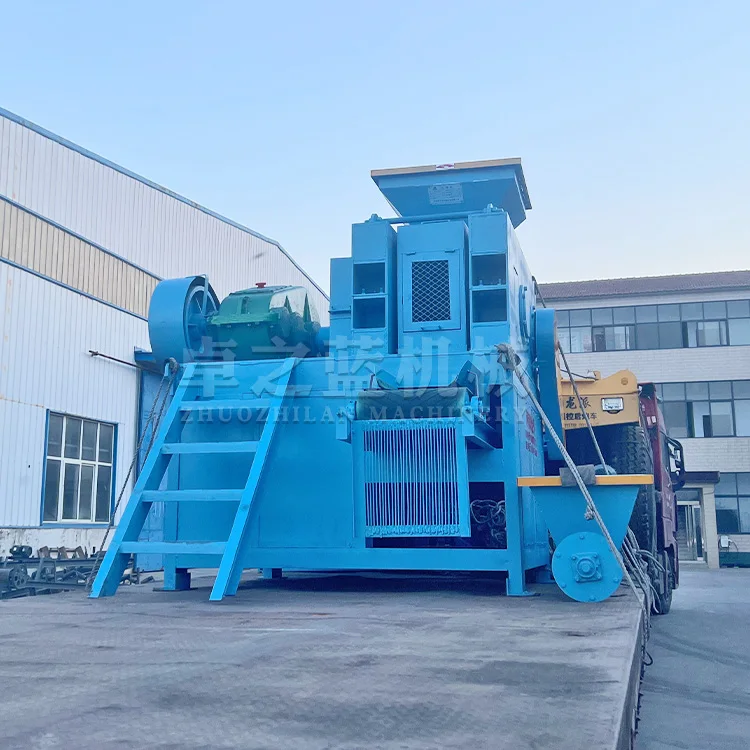

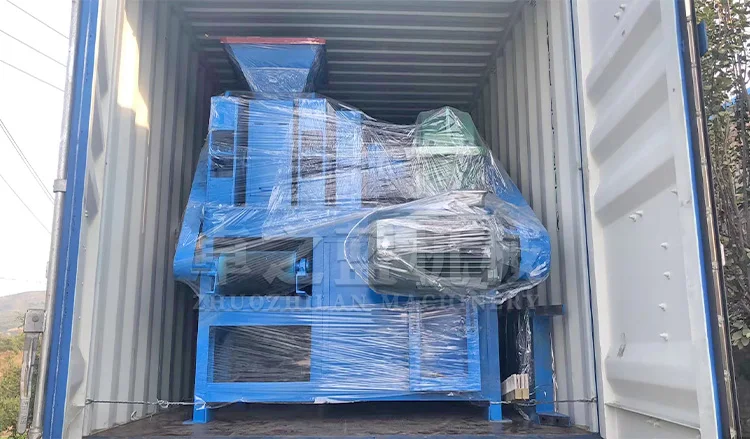

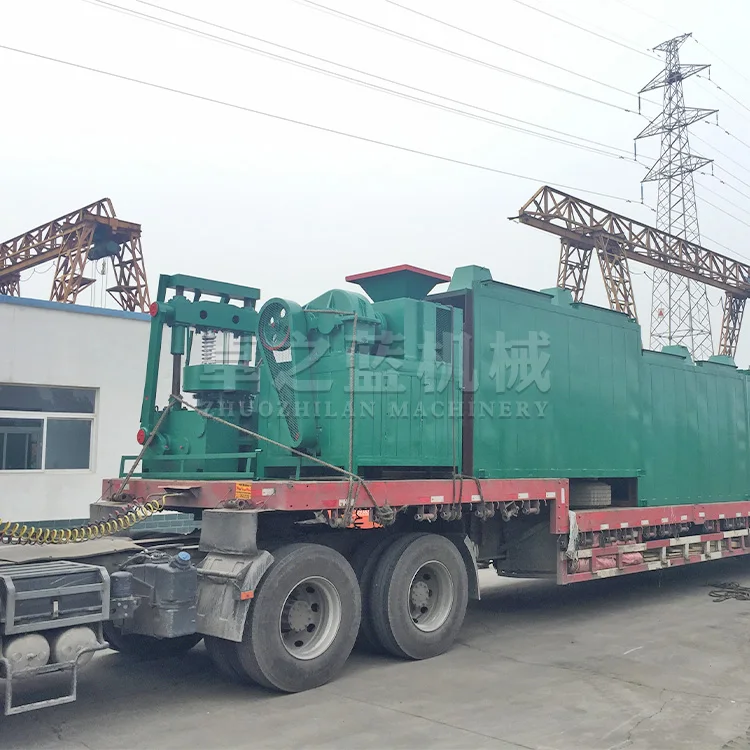

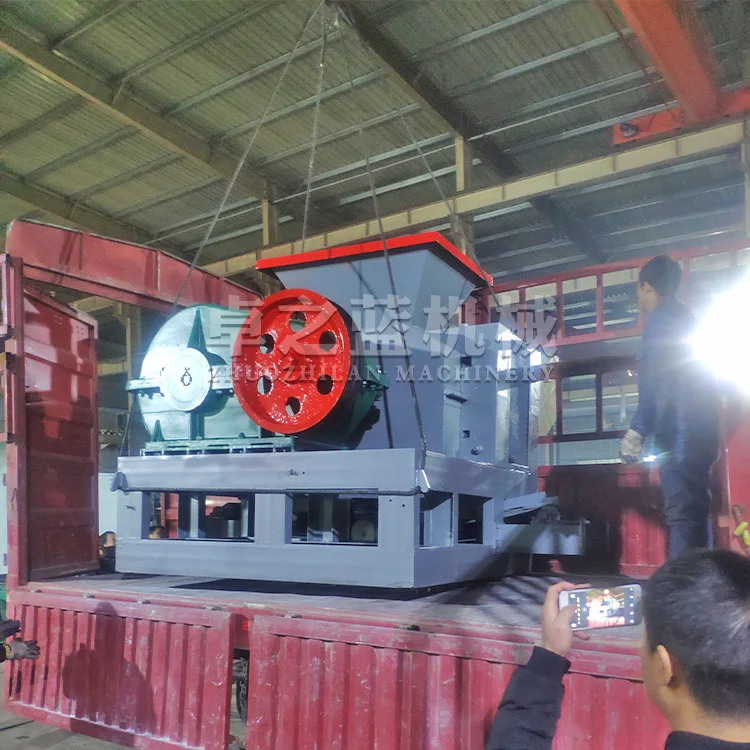

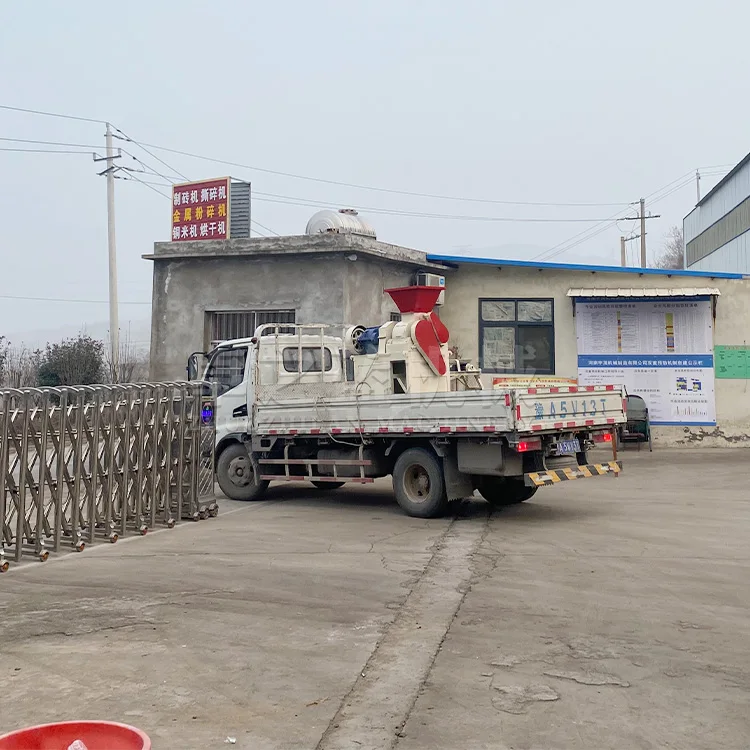

Packing&Shipping

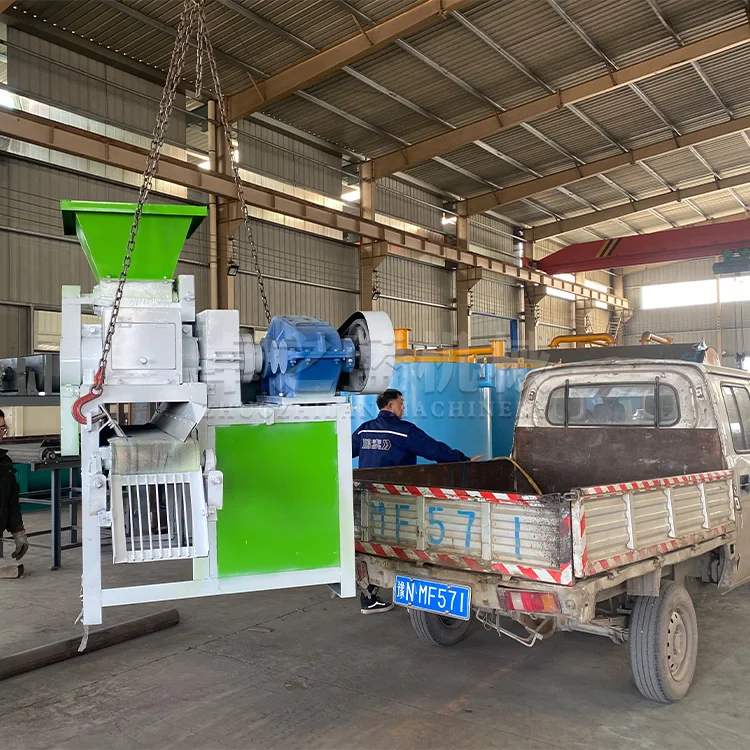

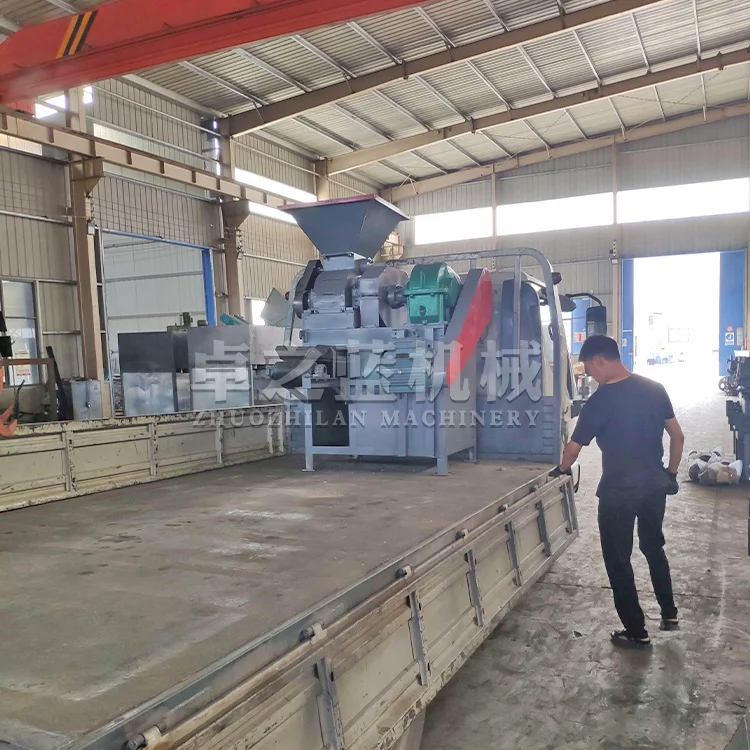

1. Every month we shipping machine to different country.machine will be packed by plastic or plywood case.
2. We accept T/T and L/C,or others payment term.
3. T/T: 30% in advance as deposit, balance should be paid before delivery.
4. The machine and wear parts will protect by the wooden case.
5. MSK/MSC/APL/EMC/WANHAL/KLINE
6. Finally, We will remind you before your boats arrive.
2. We accept T/T and L/C,or others payment term.
3. T/T: 30% in advance as deposit, balance should be paid before delivery.
4. The machine and wear parts will protect by the wooden case.
5. MSK/MSC/APL/EMC/WANHAL/KLINE
6. Finally, We will remind you before your boats arrive.
Gold Services
☺Pre-sale service: enthusiasm
We provide you with early planning, process design and manufacturer equipment according to your special needs.
☺Sales service: intimate
Send technicians to the site to guide the installation and adjustment, make sure that the equipment can operate normally, and ensure that you have the correct operating method.
☺After-sales service: integrity
We provide a one-year warranty to ensure that your machine is always running. When there is a problem with the operation of the machine, help you solve the problem in time.
We provide you with early planning, process design and manufacturer equipment according to your special needs.
☺Sales service: intimate
Send technicians to the site to guide the installation and adjustment, make sure that the equipment can operate normally, and ensure that you have the correct operating method.
☺After-sales service: integrity
We provide a one-year warranty to ensure that your machine is always running. When there is a problem with the operation of the machine, help you solve the problem in time.
If you choose us, you will have these excellent experiences:
1. Visit company for free test machine.
2. Free design and test machine energy saving machine.
3. Free inquiry and get quotation, customized design.
4. Technical go to customer factory for guiding installation.
5. Free for offering formula.
If you are interested in our Coal briquette ball press machine coal making machine , please contact me to get a better cheap price and video than other machinery factory~
