Хладагент R32 A +++ 10 кВт моноблочный тепловой насос инверторный для подогрева пола
- Категории: Water Heaters >>>
- Поставщик: Guangzhou,Mikee,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

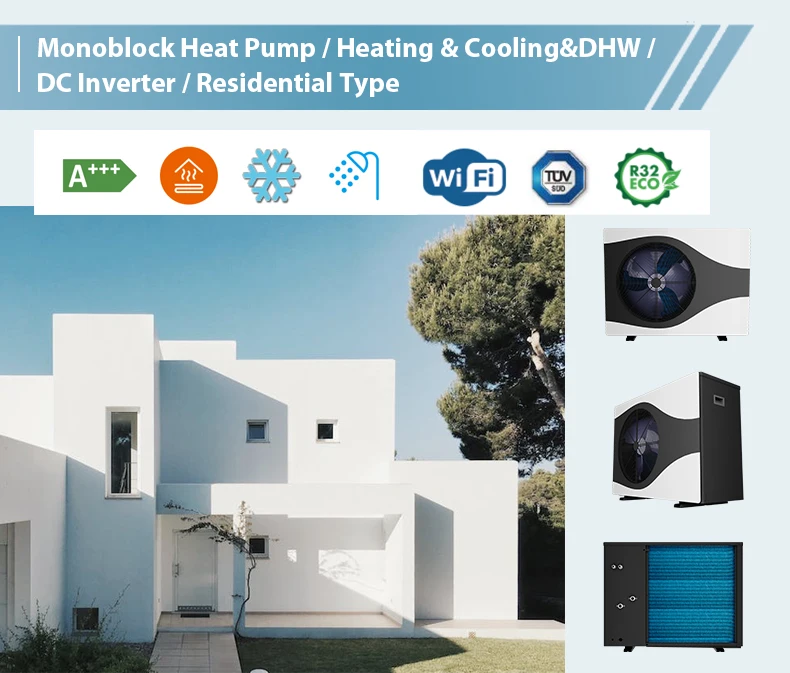

Products Description
○Energy class: A+++

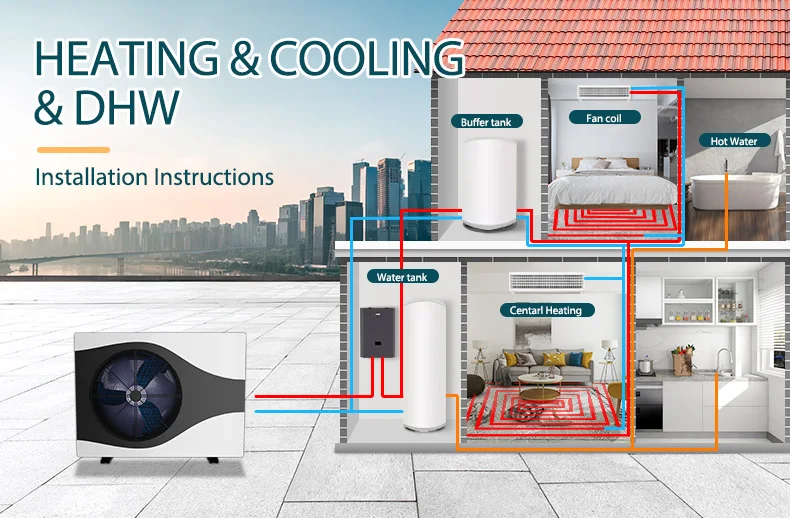

○Heating+Cooling+DHW
○Full DC inverter Panasonic compressor and fan motor
○-30℃ inverter EVI
○WIFI smart control
○R32 refrigerant, environmental friendly
○Outlet water temperature up to 60℃
○Heating+Cooling+DHW
○Full DC inverter Panasonic compressor and fan motor
○-30℃ inverter EVI
○WIFI smart control
○R32 refrigerant, environmental friendly
○Outlet water temperature up to 60℃
Reducing and preventng global warming an important mission of Power World R32 used in has GWP of only one third comparing to R410A. Besides. 30% amount of refrigerant less needed for R32 heat pump systems than R410A ones.
According to different needs of users, we have developed a variety of operating modes: users can choose different operating frequency modes according to actual needs, which helps users save a lot of electricity bills.

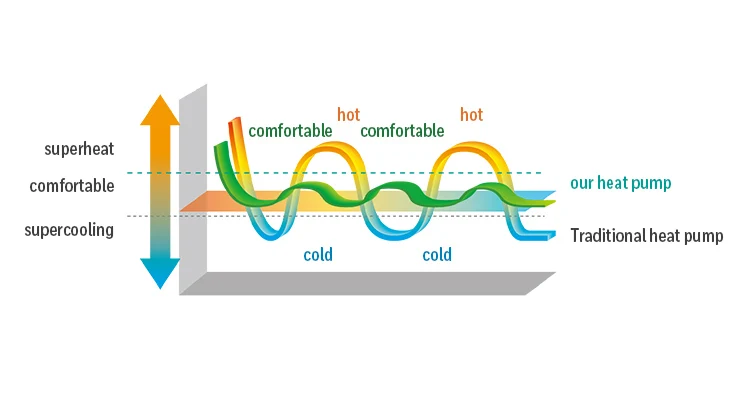

Full DC Frequency Conversion Technology, with a Pleasant "0" Fluctuation
The heat pump adopts full DC frequency conversion technology to lock in a comfortable temperature range. It can adjust the operating temperature range in real time and adjust the operating power in real time. At the same time, it can achieve soft wind in summer and constant temperature and comfort in winter.

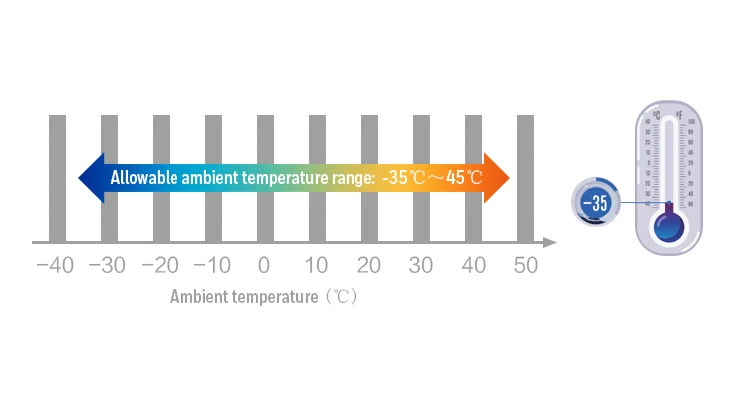

Stable operation of jet enthalpy enhancement technology at -35°C
Innovative use of the international leading level of jet enthalpy enhancement technology, the technology adopts the internationally renowned ultra-low temperature compressor, jet enthalpy enhancement technology, the use of a compressor, to achieve quasi-two-stage compression, -35 °C extremely cold weather can also operate normally.
The dual-rotor compressor operates steadily with 3D stereo noise reduction. It can run quietly like a library, allowing us to enjoy a quiet home environment.

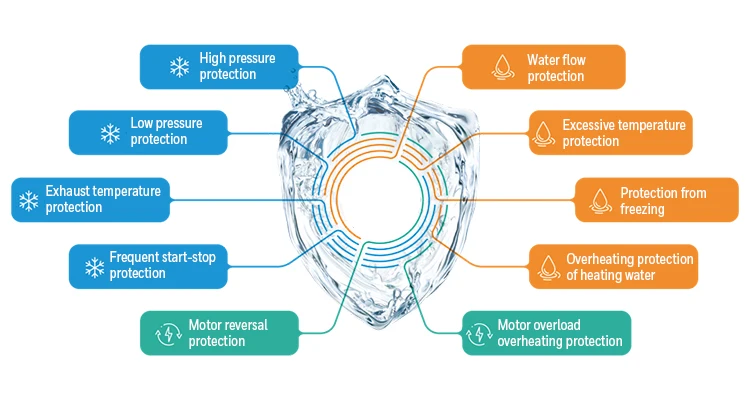

From refrigerant, water flow to power supply, set up a ten-item all-round safety protection system, all-time and all-round escort, so that the equipment can operate more safely and stably.

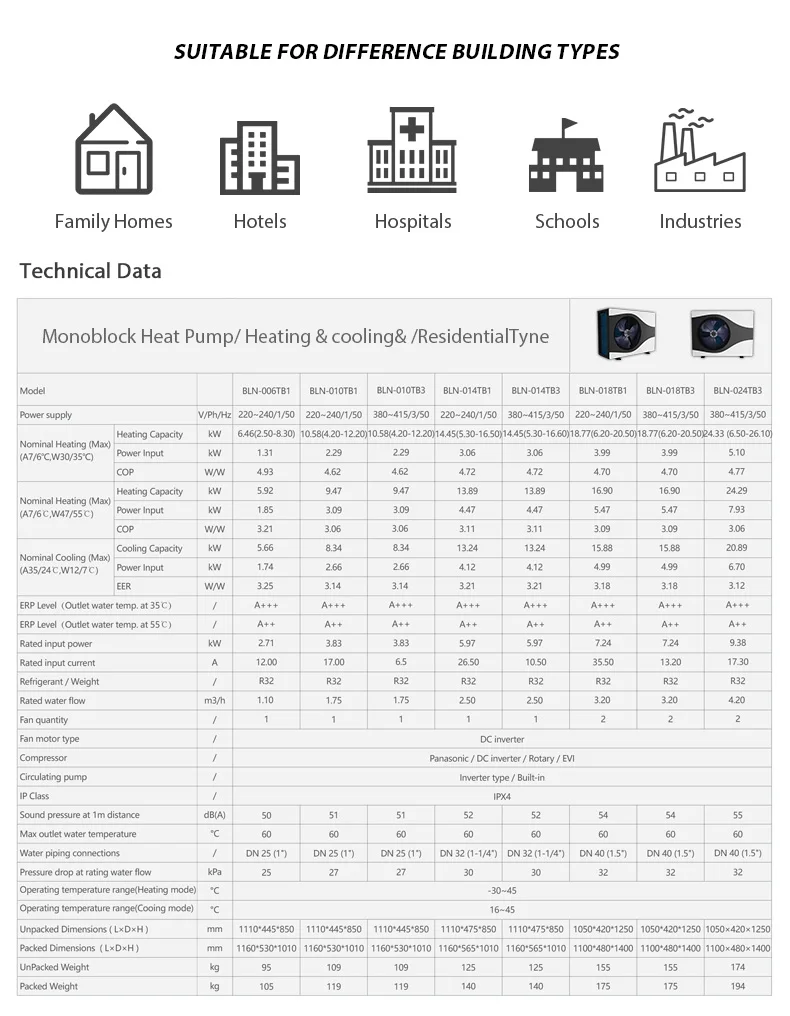

Product Paramenters
Model | BLN-006TB1 | |||
Power supply | V/Ph/Hz | 220~240/1/50 | ||
Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | KW | 6.46(2.50-8.30 | |
Heating Capacity | KW | 1.31 | ||
COP | W/W | 4.93 | ||
Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | KW | 5.92 | |
Heating Capacity | KW | 1.85 | ||
COP | W/W | 3.21 | ||
Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | KW | 5.66 | |
Power Input | KW | 1.74 | ||
EER | W/W | 3.25 | ||
ERP Level（Outlet water temp. at 35℃） | / | A+++ | ||
ERP Level（Outlet water temp. at 55℃） | / | A++ | ||
Rated input power | kW | 2.71 | ||
Rated input current | A | 12 | ||
Refrigerant/Weight | / | R32 | ||
Rated water flow | m3/h | 1.1 | ||
Fan quantity | / | 1 | ||
Fan motor type | / | DC inverter | ||
Compressor | / | Panasonic / DC inverter / Rotary / EVI | ||
Circulating pump | / | Inverter type / Built-in | ||
IP Class | / | IPX4 | ||
Sound pressure at 1m distance | dB(A) | 50 | ||
Max outlet water temperature | ℃ | 60 | ||
Water piping connections | / | DN 25 (1") | ||
Pressure drop at rating water flow | kPa | 25 | ||
Operating temperature range( Heating mode) | ℃ | -30~45 | ||
Operating temperature range( Cooing mode) | ℃ | 16~45 | ||
Unpacked Dimensions(LxDxH) | mnm | 1110*445*850 | ||
Packed Dimensions (LxDxH) | mnm | 1160*530*1010 | ||
UnPacked Weight | kg | 95 | ||
Packed Weight | kg | 105 | ||
Company Profile
Guangzhou Mikee New Energy Co., Ltd.
Guangzhou Mikee New Energy Co., Ltd. is a subsidiary of Sunrise Oriental Group (SH: 603366), a listed technology enterprise. Our factory is located in Shunde, Guangdong Province, covering an area of 69000 square meters, with a total investment of 75 million dollars. It is one of the best scale air energy production bases in Asia, and undertakes ODM and OEM of air energy and energy storage products.
We have a number of pre automated assembly lines for commercial and civil products, with an annual production capacity of more than 100W sets and an investment of 150W dollars to build the industry's top heat pump laboratory. We have core data in the fields of hot water dedicated compressors, aerospace level leakproof enamel liners, 3-minute intelligent defrosting technology, super class energy technology, microchannel fast heating technology, etc.
We have a number of pre automated assembly lines for commercial and civil products, with an annual production capacity of more than 100W sets and an investment of 150W dollars to build the industry's top heat pump laboratory. We have core data in the fields of hot water dedicated compressors, aerospace level leakproof enamel liners, 3-minute intelligent defrosting technology, super class energy technology, microchannel fast heating technology, etc.
Our Advantages/Workshop
Commercial machine production line
▶▶ The commercial workshop has 3 production lines, 15 automated commodity inspection stations, which can be packaged and wound online. The maximum test capacity is 200P units, and 300 standard units can be produced in a single shift.
▶▶ The household workshop has two production lines, which can produce fluorine machines and water machines below 3P, 10 automatic vacuum pumping stations and 10 commodity inspection stations respectively. Robots are used for offline palletizing, and 700 standard units can be produced in a single shift.
▶▶ The household workshop has two production lines, which can produce fluorine machines and water machines below 3P, 10 automatic vacuum pumping stations and 10 commodity inspection stations respectively. Robots are used for offline palletizing, and 700 standard units can be produced in a single shift.
The sheet metal workshop has 3 laser cutting machines, 3 CNC punching machines, 6 CNC bending machines, 2 laser welding machines, and several equipment such as blanking and leveling, angle forming, spinning and pulling, plate shearing, deep throat punching, riveting, welding and grinding, with strong processing capacity.
The total length of the line is more than 520 meters, and the maximum workpiece can be sprayed 3 * 1.8 meters. The materials include galvanized plate, cold plate, brushed stainless steel plate, aluminum plate. The pre-treatment process includes degreasing and vitrification. QC inspection capabilities include: color detection, film thickness detection, hardness detection, adhesion detection, solvent resistance detection, ultraviolet aging test, impact resistance detection. The workpiece can be picked up and sent.
○ More than 10 million investment
○ Has ultra-low 60p temperature laboratory, enthalpy difference laboratory, data monitoring center, long-term operation laboratory
○ Ke - 30 ℃ environmental conditions
Certifications
Exhibition
FAQ
A) Are you a manufacturer?
Yes, we are a company and factory integrating R&D, production, and sales. Besides, our products have been exported to more than 100 countries and regions, such as the United States, Russia, the United Kingdom, and Australia.
B) Why should you select our heat pumps over those of other manufacturers?
We have more than 19 years of experience in the heat pump field. Besides, we have a professional technical team, the industry's top heat pump laboratory, and automatic production lines. We can meet your diverse order requirements.
C) Do you offer OEM/ODM customised services?
Yes. We are able to produce European-standard heat pumps under your brand according to your special needs.
D) I need to buy in bulk. Can you provide a sample service?
Yes, we are able to provide sample services. We have professional engineers who can help you solve after-sales installation problems.
E) How can we guarantee product quality?
1) There will be multiple tests during the production process.
2)Products will be strictly inspected before shipment.
