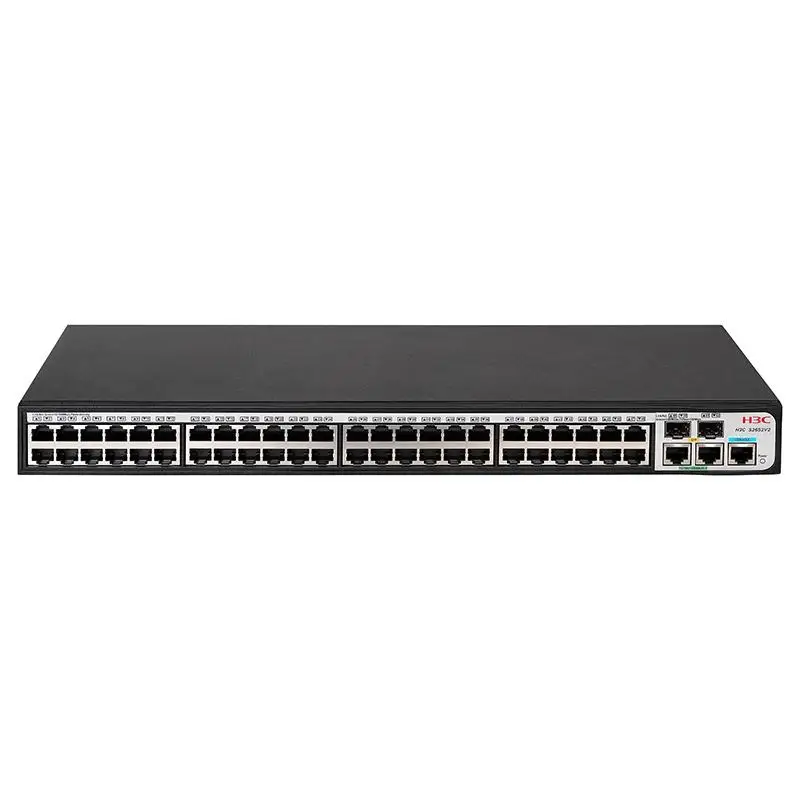

H3C S2652V2 100% новый 48-портовый 100M сетевой управляемый Ethernet
H3C S2652V2 100% новый 48-портовый 100M сетевой управляемый Ethernet
H3C S2652V2 100% новый 48-портовый 100M сетевой управляемый Ethernet
H3C S2652V2 100% новый 48-портовый 100M сетевой управляемый Ethernet

H3C S2652V2 100% новый 48-портовый 100M сетевой управляемый Ethernet


Поделиться:

Цена:290,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Features
S2610V2
S2626V2
S2652V2
S2610V2-PWR
S2626V2-PWR
S2626V2-HPWR
Switching capacity
260Gbps
Packet forwarding rate
24Mpps
Management port
1 console port
10/100/1000 Base-T port
10
24
48
10
24
24
SFP port
2
2
4
2
2
2
Copper port features
Half-duplex, full-duplex, auto-negotiation
MDI/MDI-X
Ethernet functions
LLDP
Static MAC configuration
MAC address learning limit (up to 16K)
Port mirror and flow mirror
Link aggregation (up to 8 ports per group)
Port isolation
STP/RSTP/MSTP
IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
VLAN
802.1Q ( up to 4K VLAN)
Protocol-based VLAN
IP subnet based VLAN
MAC based VLAN
GUEST VLAN
QinQ
IP routing
Static routing, RIP
DHCP
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Snooping Option82
Broadcast
IGMP V1/V2/V3 Snooping
QoS
Diff-Serv QoS
WRR/HQ-WRR
802.1p, DSCP priority mapping
Directional port speed limit
ACL
ACL on layer 2, layer 3 and layer 4
ACL on IPv4, IPv6
VLAN ACL
IPv6
IPv6 static routing, dual-stack
DHCPv6 Client, DHCPv6 Snooping
ND, PMTU
IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
Reliability
Hot patch, in-service patch upgrade
Security
Hierarchical user management and password protection
SSHv2
SSL
Specific IP address based FTP logging and password mechanism
Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet
Prevent Dos attack
MAC address limit
IP＋MAC+PORT+VLAN binding
IEEE 802.1x
Radius, HWTACACS
SNMPv3
Broadcast suppression
Prevent CPU attack
System management
Console/AUX Modem/Telnet/SSH2.0/CLI
Loading and upgrading through FTP/TFTP/Xmodem/SFTP
SNMP V1/V2c/V3
NTP clock
System log
Cluster management
Environment temperature
Operating temperature：-5℃~45℃
Storage temperature：-40℃~70℃
Environment humidity
Operating humidity：5%~95% , non-condensing
Storage humidity：5%~95% , non-condensing
Environment protection
China RoHs, EEE
Power consumption
-
≤19W
≤23W
≤41W
AC≤446W
AC≤467W
MAX: 150W (POE:125W)
MAX: 467W
(POE: 370W)
PoE+
-
-
-
Support PPOE+, 65W max
Weight
≤1.2kg
<2.2kg
<2.5kg
≤2.8kg
≤3.2kg
≤3.5kg
Input voltage range
100V-240V AC, 50/60Hz;
Dimensions (W × D x H)
266*162*44mm
440*173*44 mm
440*173*44 mm
266*162*44mm
440*238*44 mm
440*238*44 mm
