Vitalforce высококачественный двойной монитор HDMI KVM переключатель 4 порта горячая клавиша Arc Extractor 4K 30 Гц
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Vitalforce,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
KVM Switch Dual Monitor Selling Points:
HDMI KVM Switch4*1 DUAL DISPLAY SWITCH switches four groups of high-definition Audio and video source and USB interface implementation free switch. Adaptive EDID, can adapt to a variety of complex application environments.
HDMI KVM Switch4*1 DUAL DISPLAY SWITCH switches four groups of high-definition Audio and video source and USB interface implementation free switch. Adaptive EDID, can adapt to a variety of complex application environments.
Product Paramenters

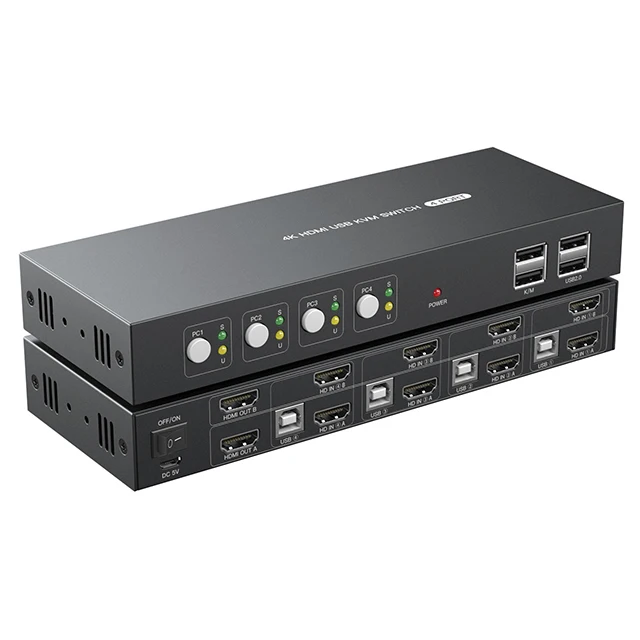

High Quality Dual Monitor Hdmi KVM Switch 4 Ports Hot Key Arc Extractor 4K 30hz Kvm Switches
Parameter | Description | ||
Name | Dual Monitor Hdmi KVM Switch | ||
Certificate | FCC/CE/RoHS | ||
Computer | 4 Ports | ||
Monitor | 2 ports | ||
Input | HDMI*2 / USB-B*2 | ||
Output | 2*HDMI | ||
Resolution | 3840x2160@30Hz, 1920*1080@60Hz | ||
Support | Buttons/Keyboard Hot Keys | ||
Interface protocols | USB1.1(2 pcs), USB2.0(2pcs) | ||
Standards | HDMI 1.4 | ||
PC input interface type | USB-B | ||
Output interface type | USB-A | ||
Connector | HDMI-A Interface | ||
Maximum pixel clock | 225MHz | ||
Maximum data rate | 10.2Gbps | ||
Impedance | 100Ω | ||
HDMI Cable Range | <5M( Resolution: 1920*1080@60Hz) | ||
Power supply | USB-B 5V power supply | ||
Power dissipation | MAX 7W | ||
Temperature | Operating: -5℃ ~ +70℃ | ||
Humidity | Operating: 5% ~ 90% | ||
Dimension | 202*75*27mm | ||
The warranty | 1 year free warranty | ||
Details Images
KVM Switch Dual MonitorS7201H2 Features：

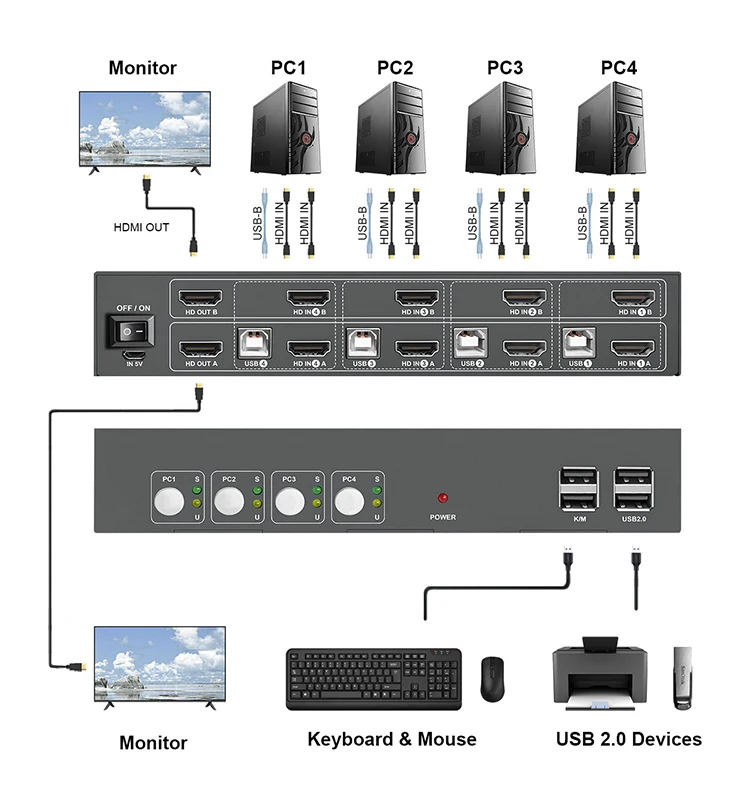

1. Using one set of keyboard, mouse and monitor to control 2 Dual graphics cards devices;

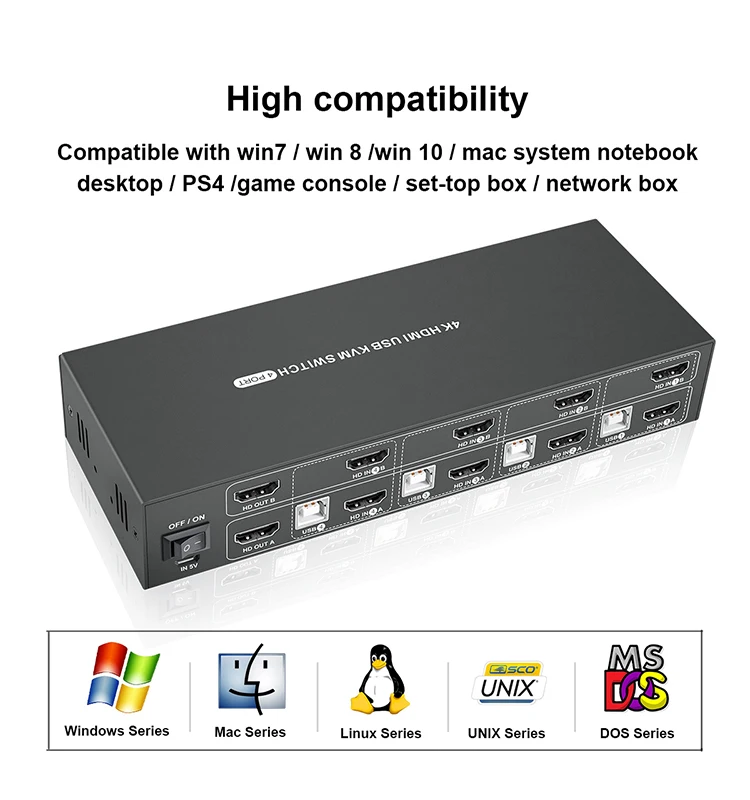

2.Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian and other Linux based system;
3.With EDID emulators in every input ports, keep PCs always have correct display information,when the switch connect diplayer, all EDID will be updated;
4.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices;

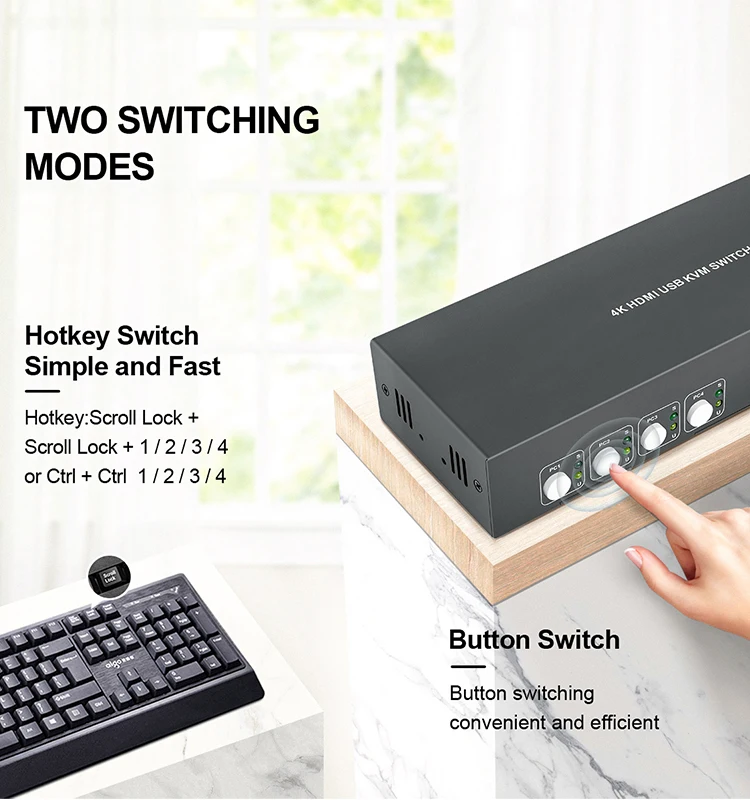

5.Support front panel buttons, keyboard hot keys to control KVM switch;
6.Support resolution up to 3840*2160@30Hz;
1. Using one set of keyboard, mouse and monitor to control 2 Dual graphics cards devices;
2.Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian and other Linux based system;
3.With EDID emulators in every input ports, keep PCs always have correct display information,when the switch connect diplayer, all EDID will be updated;
4.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices;
5.Support front panel buttons, keyboard hot keys to control KVM switch;
6.Support resolution up to 3840*2160@30Hz;

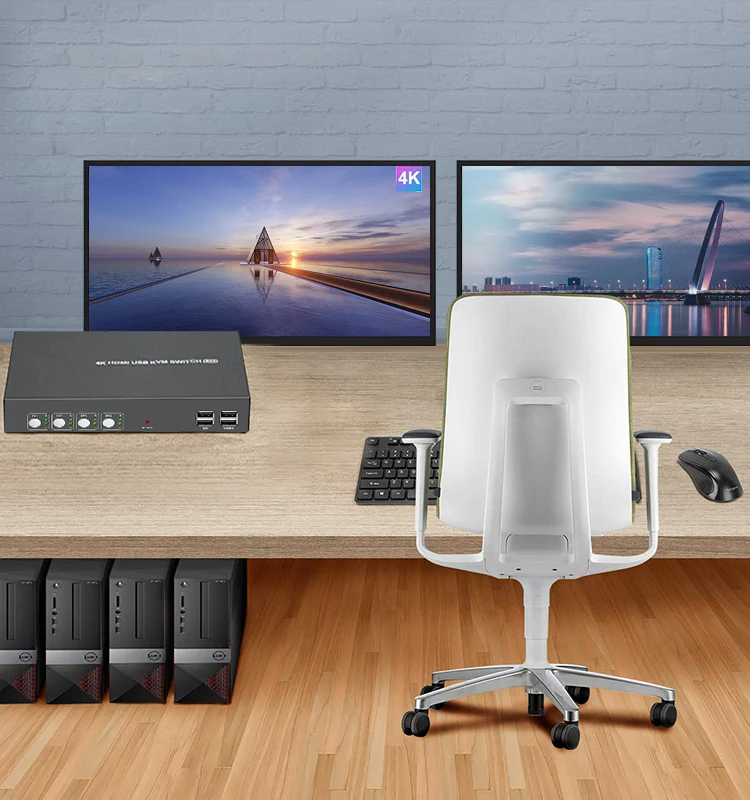

KVM Switch S7402H2 Applications：
It is widely used in office, conference system, Computer accessories, work from home and multimedia teaching, etc.
It is widely used in office, conference system, Computer accessories, work from home and multimedia teaching, etc.
What is Company Profile?
Q1: Are you trading company or manufacturer?
We are a professional manufacturer. We have more than 11 years of experience, and experienced engineer team and production team;
Q2: Is OEM or ODM available?
Yes, OEM and ODM are available. With the rich experience in the industry, we support not only OEM,
but also a true ODM service, because we have a strong and well-experienced R&D team.
Q3: How long is your delivery time?
The general delivery time is 3-7 days after receiving your deposit and depends on your quantity. Mass production order usually takes 2 or 3 weeks. If only for sample order, we usually can arrange in 2-4 days.
Q4: Which shipping way can you provide?
We can provide shipping by sea, by air and by fast express. Usually depends on you.
